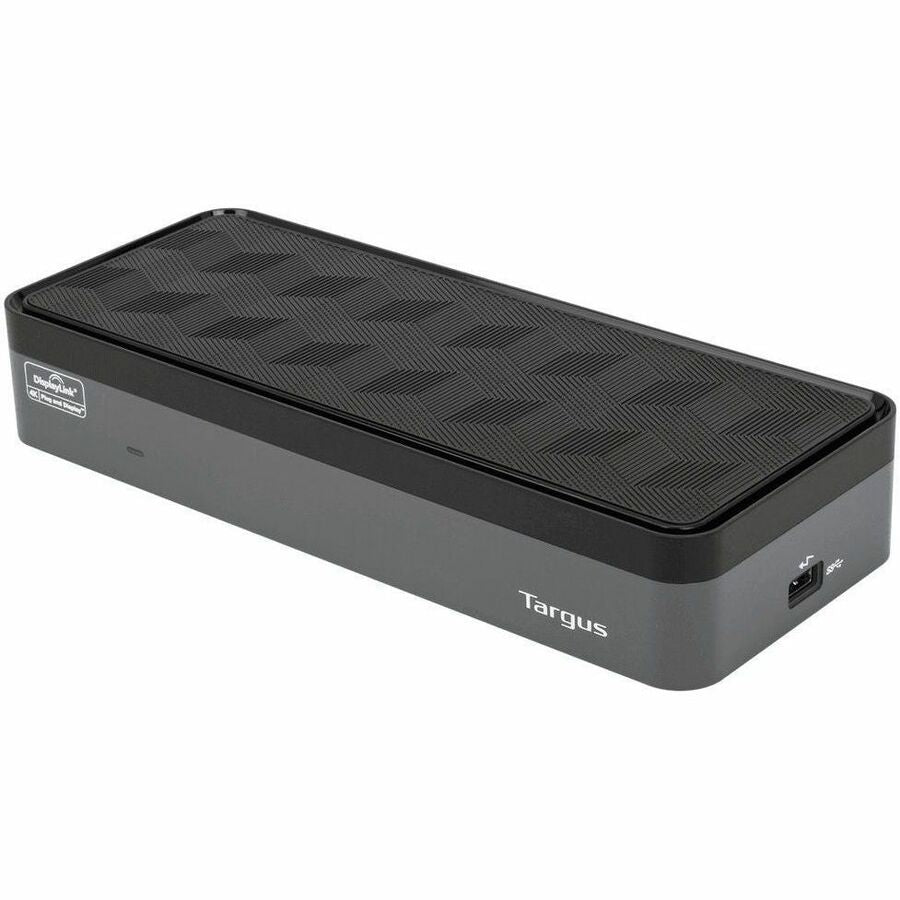

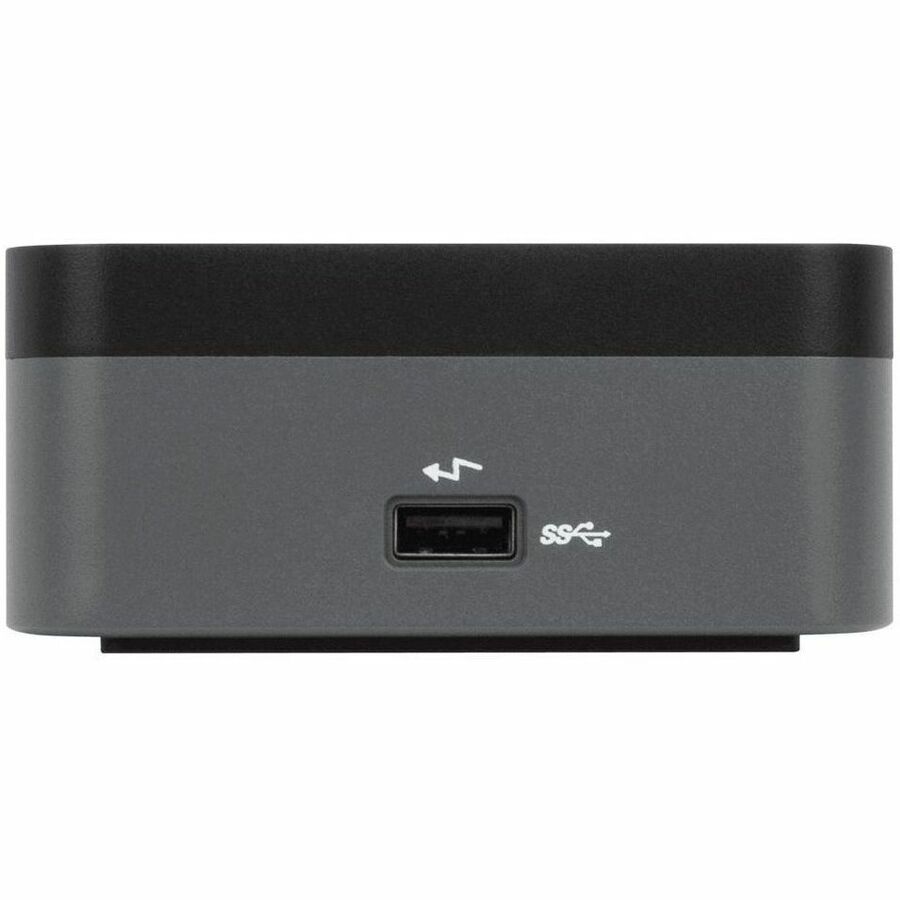

Targus USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery - DOCK570USZ
Key Features

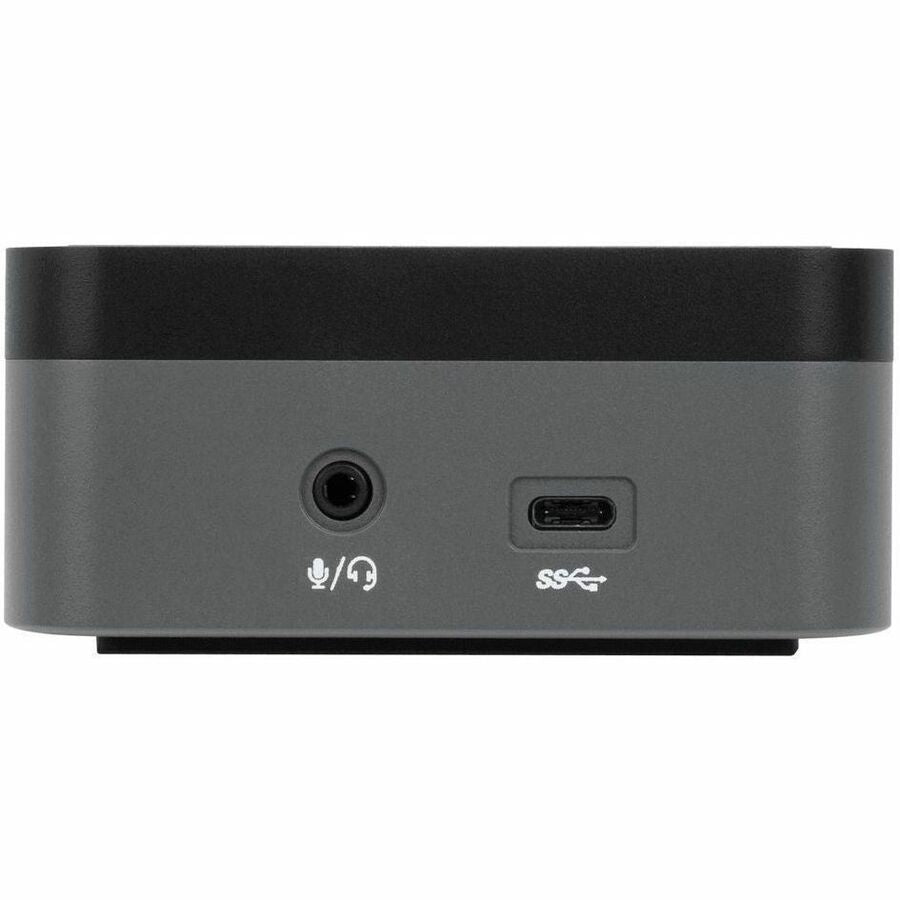

- 1 3.5mm combo Audio In/Out for mics, speakers, and headphones with Apple and Nokia headset auto-detection
- 1 Gigabit Ethernet port
- 1 USB 3.2 Gen 1 Type-C port
- 4 USB 3.2 Gen 1 Type-A ports (1 fast charging) connect essential peripherals
- Alt Mode host compatible (including Thunderbolt™ 3 and other alt modes)
- Compatible with Targus VESA Mounting Bracket (ACX003GLZ, sold separately)
- Integrated lock slot accommodates standard security locks to safeguard equipment
- Power Delivery 2.0 up to 100WDC (90W legacy devices using barrel tips)
- Supports single 5K and four 4K UHD displays via four DisplayPort (3840 x 2160 p60) or four HDMI (3840 x 2160 p50) ports (or combination of)
- USB-C to USB-A Host adapter included (ACC1104GLX)
Product Overview
Boost productivity and performance with the world's first enterprise-class universal docking station to deliver four 4K extended displays. Ideal for large enterprises - the Targus USB-C™ Universal Quad 4K (QV4K) Docking Station maximizes workstation viewing. Dual DisplayLink® DL-6910 chip technology supports up to four DisplayPort (3840 x 2160 p60) or HDMI (3840 x 2160 p50) displays. The docking station includes numerous additional ports to connect your essential peripherals and Ethernet network.
This sleek dock helps reduce clutter by providing the ease of a single connection for key peripherals like your mouse, keyboard, and more. Its rubberized, padded bottom protects against scratches, while the VESA bracket mounting provision allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings. Your most advanced configurations become easy with compatibility across virtually any laptop and most standard peripherals. Charging tips and a USB-C to USB-A adapter included to make this dock compatible with a variety of legacy laptops from major brands.
General Information
- Manufacturer: Targus Group International
- Manufacturer Part Number: DOCK570USZ
- Brand Name: Targus
- Product Model: DOCK570USZ
- Product Name: USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 4
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported:
- 4K
- UHD
- Device Supported: Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet

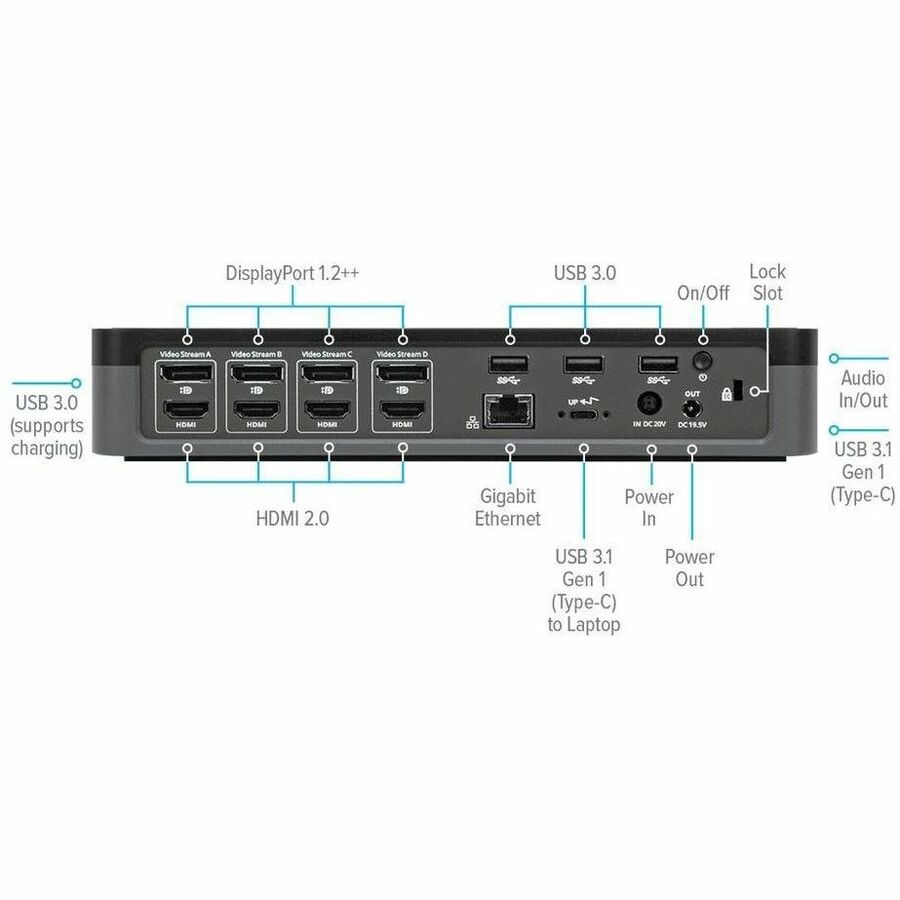

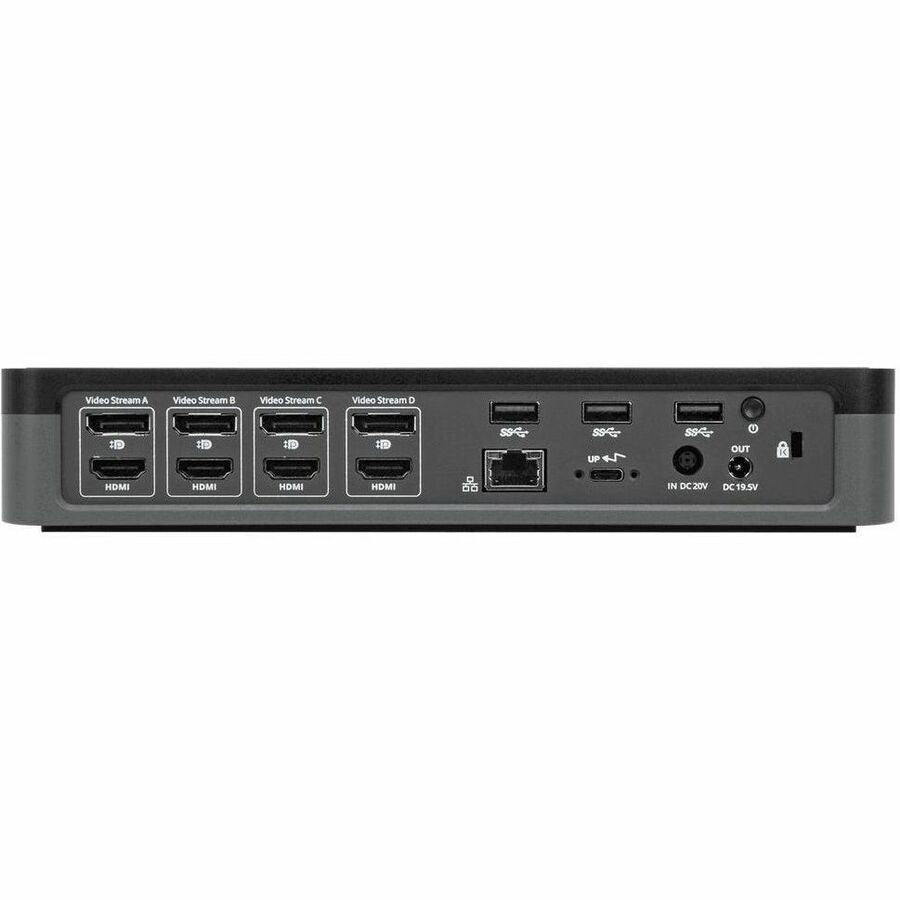

Interfaces/Ports
- Host Interface: USB 3.2 (Gen 1) Type C
- Total Number of USB Ports: 6
- Number of USB 3.0 Ports: 4
- Number of USB 3.1 Gen 1 Type-C Ports: 2
- USB Type-C: Yes
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPort Outputs: 4
- DisplayPort: Yes
- DisplayPort Version: 1.2++
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Outputs: 4
- HDMI: Yes
- USB Power Delivery: 100W
Software
- Operating System Supported:
- Windows
- macOS
- ChromeOS
- Linux
- Android
- Ubuntu
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color: Gray
- Height: 1.69"
- Width: 8.15"
- Weight (Approximate): 1.50 lb
Miscellaneous
- Package Contents:
- USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery
- User Guide
- DC cable to power tip, 1M
- Cable, Input US AC Cable Cord
- Power Tips
- USB-C/M (screwed) to C/M (normal) Cable, 1M, 5A, 10Gbps
- Adapter, AC to DC, output: 20V, 9A, 180W
- USB-C/F to A/M Adapter
- Kensington Security Slot: Yes
- TAA Compliant: Yes
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 3 Year
