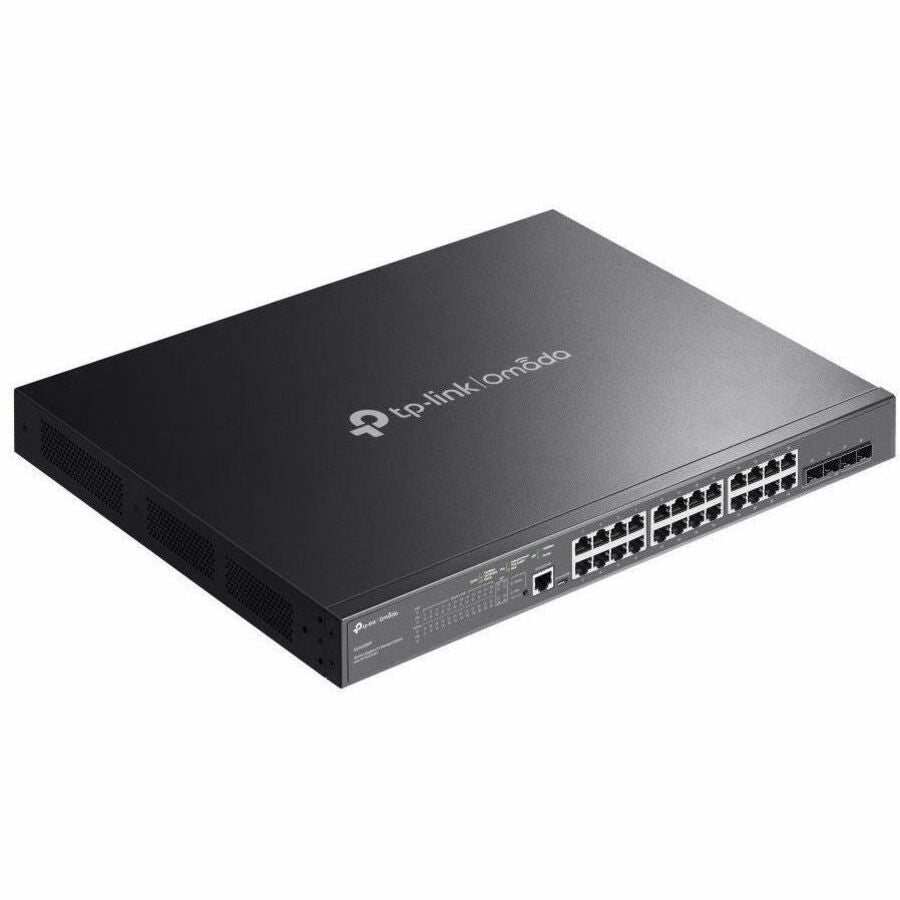

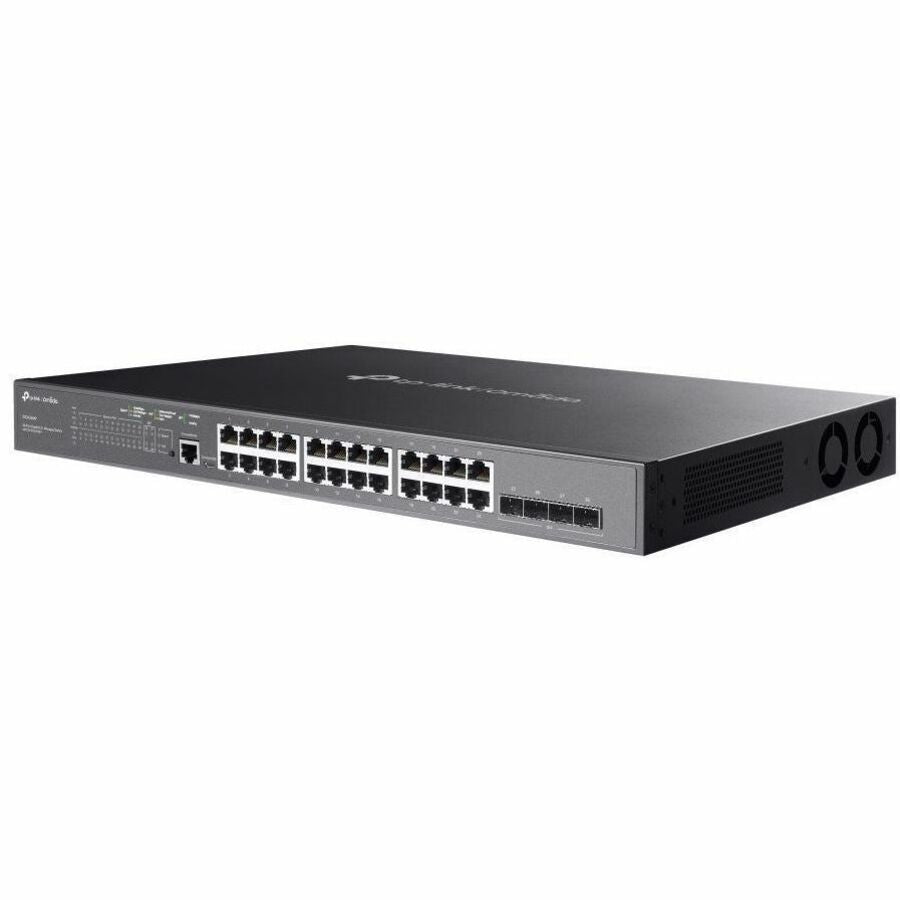

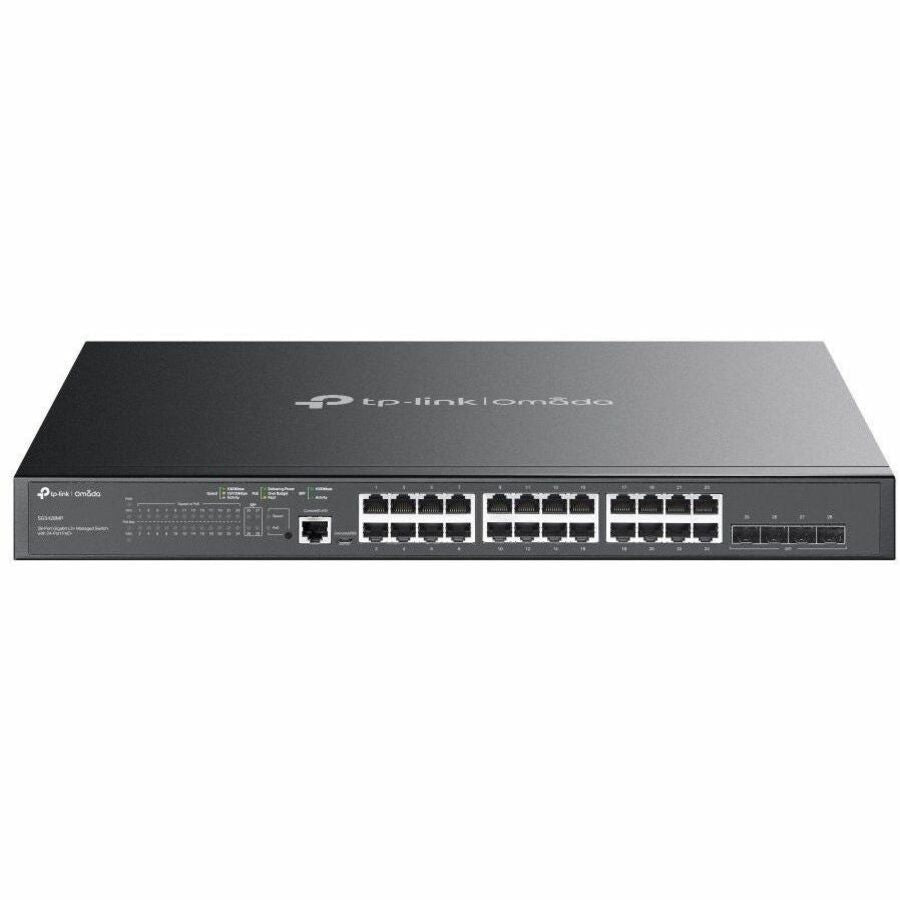

TP-Link 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ - SG3428MP
Key Features
- 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
- 384 W total PoE budget with up to 30 W PoE output per port
- Centralized cloud management via the web or the Omada app

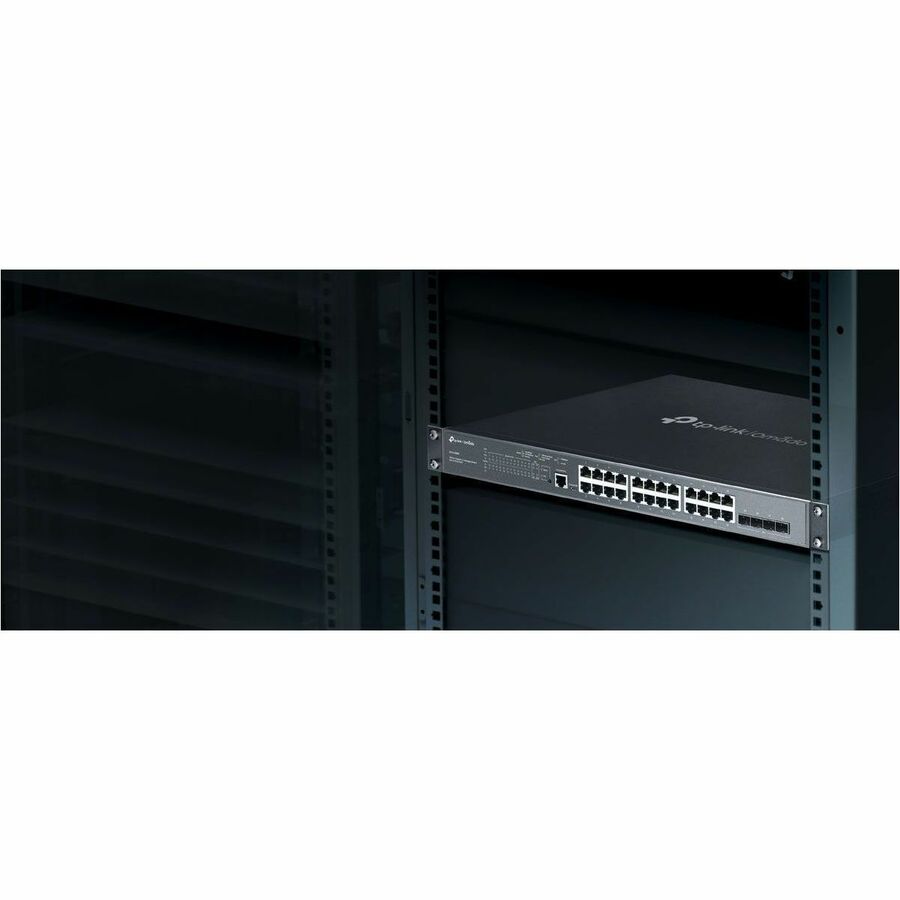

- Durable metal casing and rack-mountable design
- ERPS supports rapid protection and recovery in a ring topology
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
Product Overview
Omada 28-Port Gigabit L2+ Managed Switch with24-PortPoE+
- 24× Gigabit PoE+ Ports,
- 4× Gigabit SFP Slots
- 384 W Total PoE Budget
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Ethernet Ring Protection Switching
- Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios | Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG3428MP
- Brand Name: TP-Link
- Product Name: 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
- Product Type: Ethernet Switch
Technical Information
- Features:
- Remote Monitoring (RMON)
- DHCP Relay
- Link Aggregation
- Loopback Detection
- Intelligent monitoring
- DHCP Snooping
- Zero-Touch Provisioning (ZTP)
Interfaces/Ports
- Total Number of Network Ports: 25
- Network (RJ-45): Yes
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE+
- 44 x Gigabit Ethernet Expansion Slot
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP
- Number of SFP Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ah
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3ab
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3z
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 384 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source:
- Power Supply
- AC
- Power Consumption: 480.10 W
Physical Characteristics
- Product Color: Black
- Product Material: Metal
- Compatible Rack Unit: 1U
- Form Factor:
- Standalone
- Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 13"
Miscellaneous
- Package Contents:
- 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
