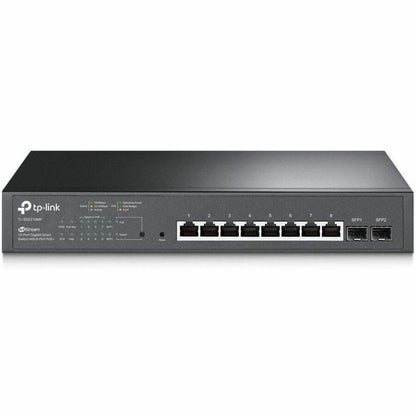

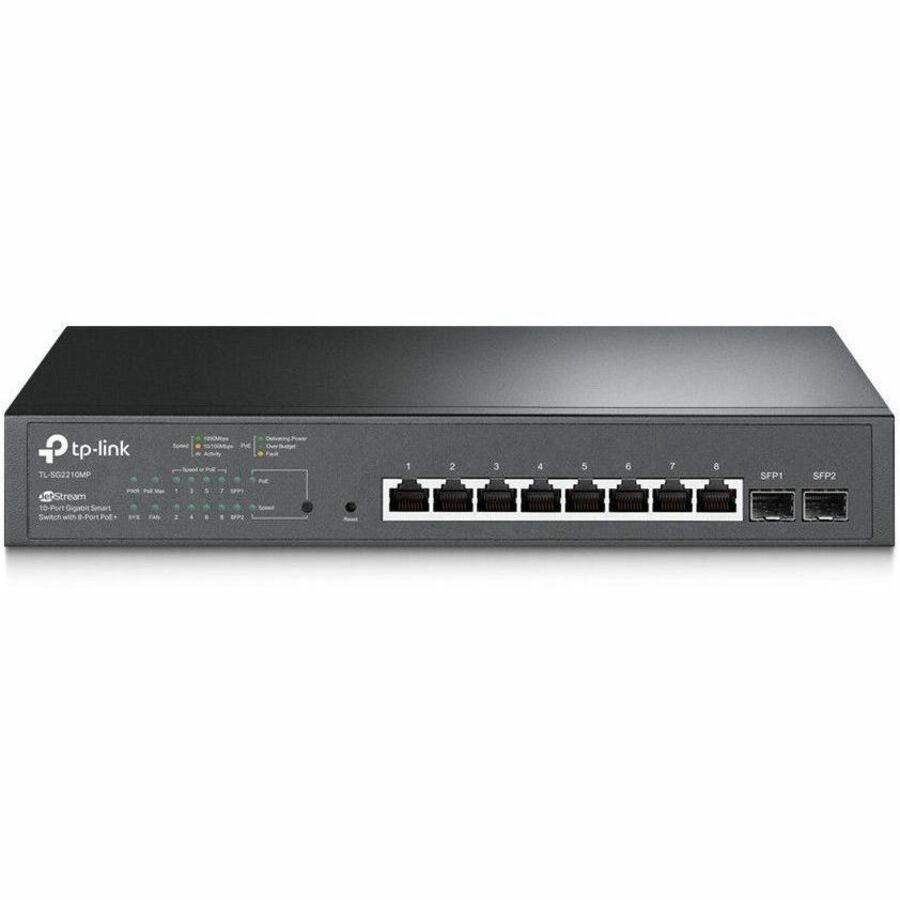

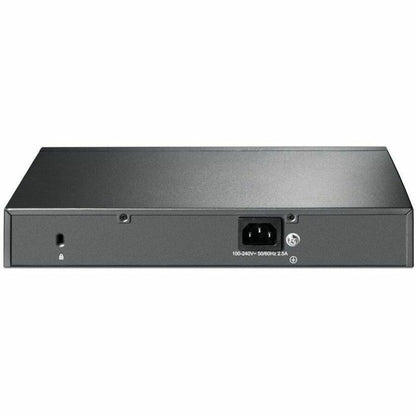

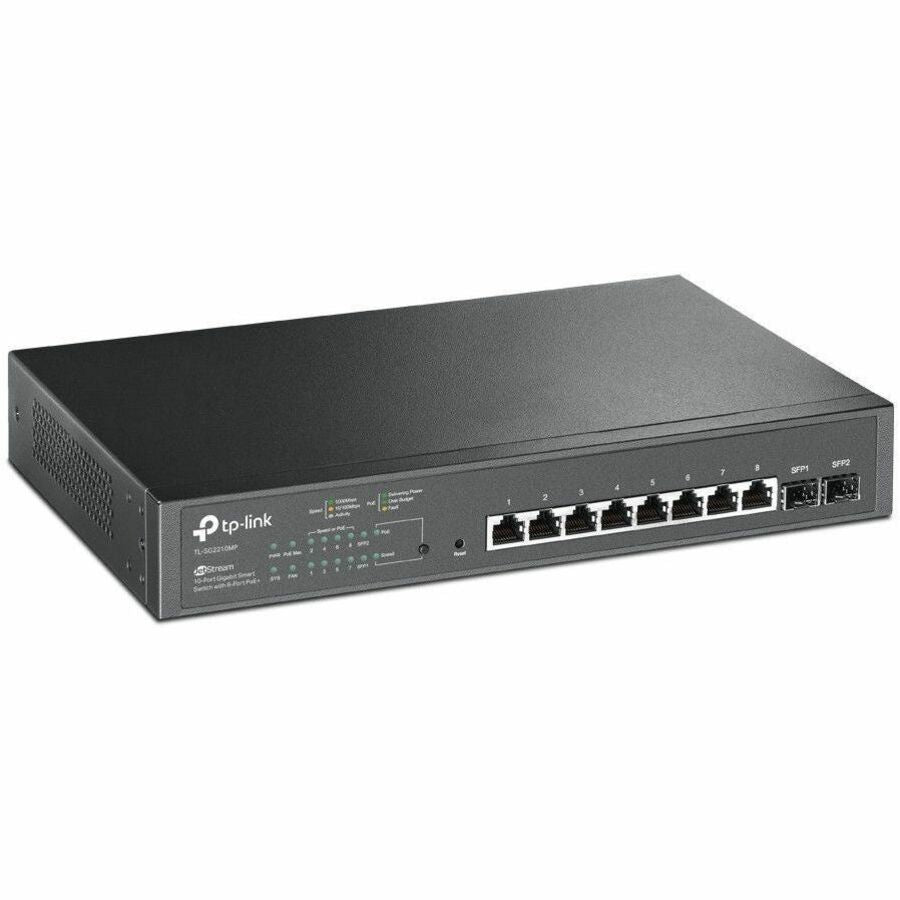

TP-Link JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ - SG2210MP
Key Features
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
- Desktop form factor for added reliability and dependability
- Effectively increases available bandwidth on your network
- Gigabit Ethernet port for ultra-fast network speeds
- Twisted Pair media support for efficient and reliable connectivity
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
Product Overview
Realize More Possibilities with Omada
JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
TL-SG2210MP
Centralized Cloud Management
Omada SDN Platform Integration
Advanced L2 Features
L2/L3/L4 QoS, ACL, IGMP Snooping and More
Abundant Security Strategies
LAN Area Investment Protection
PoE+ Output
8 PoE+ Ports with Total 150 W Power Budget
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG2210MP
- Brand Name: TP-Link
- Product Line: JetStream
- Product Model: TL-SG2210MP
- Product Name: JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 10
- Network (RJ-45): Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 2.0
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 4
- Networking Standards:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1p
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 150 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source:
- Power Supply
- AC
- PoE+
- Power Consumption: 173.90 W
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor:
- Desktop
- Rack-mountable
- Height: 1.7"
- Width: 11.6"
- Depth: 7.1"
