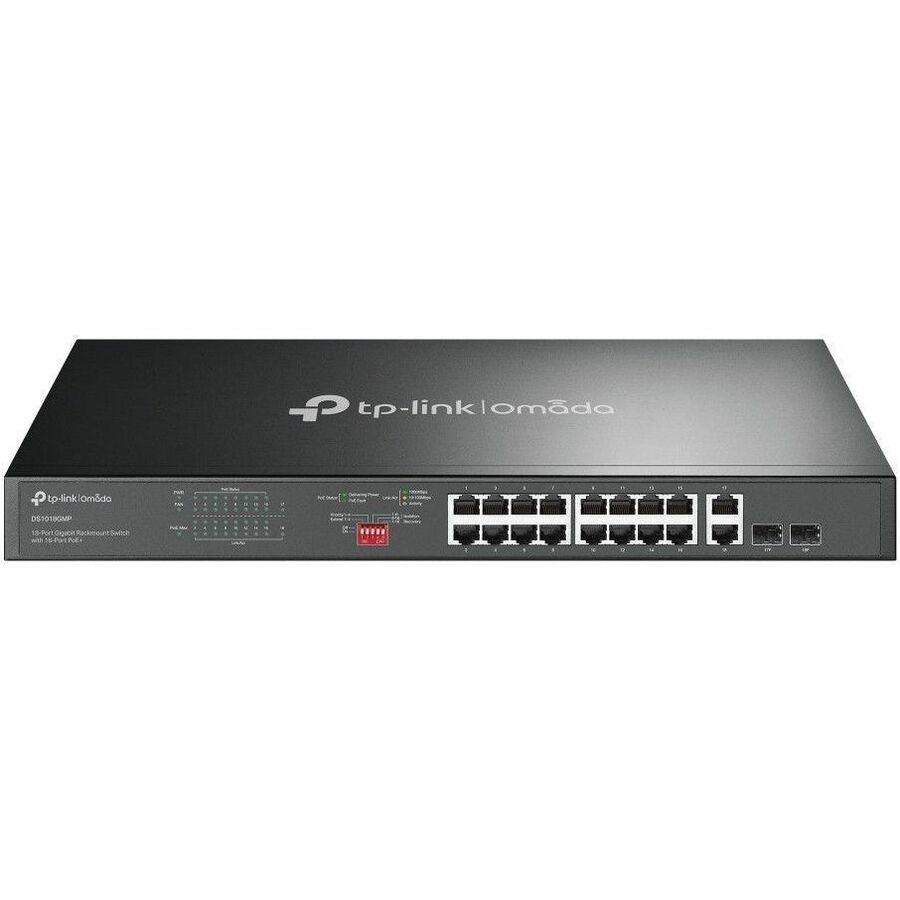

TP-Link Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+ - DS1018GMP
Key Features
- Effectively reduces downtime with improved network performance
- Gigabit Ethernet port for ultra-fast network speeds
- Optical Fiber media support ensures maximum convenience and great usability
- Quickly and easily set up a wired network with 18 networking ports
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Product Overview
DS1018GMP is an 18-port Gigabit Desktop/Rackmount Switch with 16 PoE+ ports. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 250 W*, up to 30 W per port, DS1018GMP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, DS1018GMP can save power consumption, making it an eco-friendly solution for your business network.
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: DS1018GMP
- Brand Name: TP-Link
- Product Line: Omada
- Product Name: Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 18
- Network (RJ-45): Yes
- Port/Expansion Slot Details:
- 18 x 10/100/1000BASE-T RJ45 Network Ports
- 2 x Gigabit SFP Expansion Port
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Ethernet Technology:
- Gigabit Ethernet
- Fast Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 2.0
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Network & Communication
- Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE802.3af
- IEEE 802.3z
- IEEE 802.1p
Management & Protocols
- Manageable: No
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 250 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Power Consumption: 293.34 W
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1.7"
- Width: 17.3"
