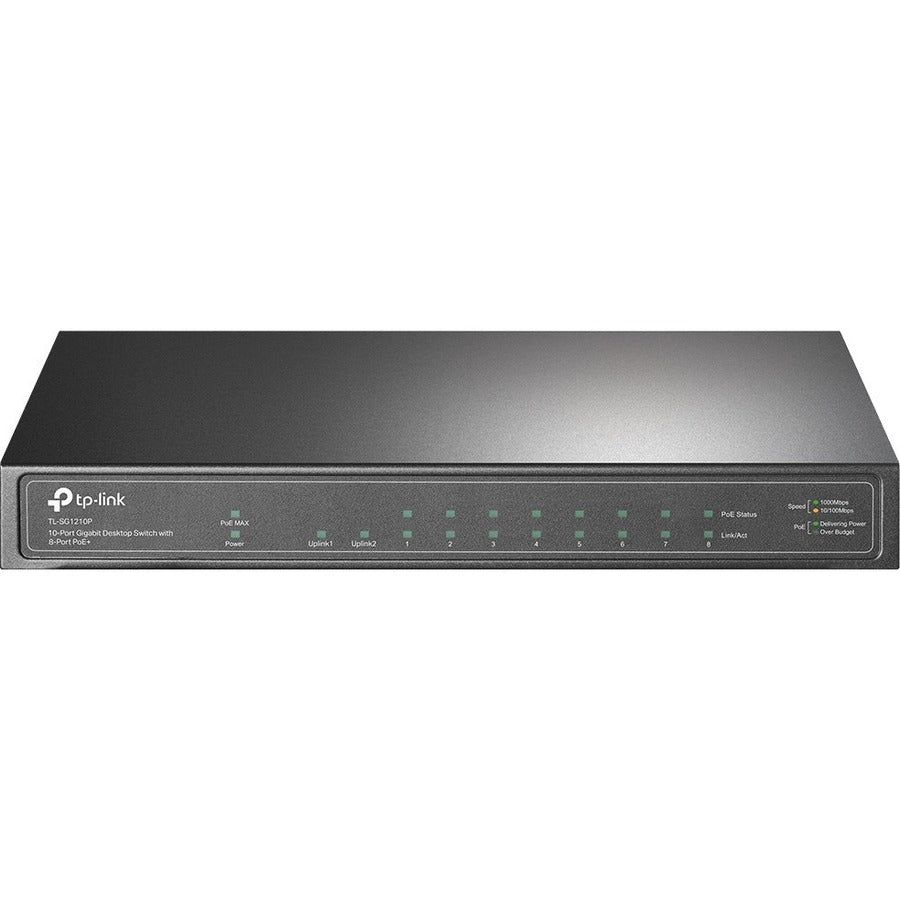

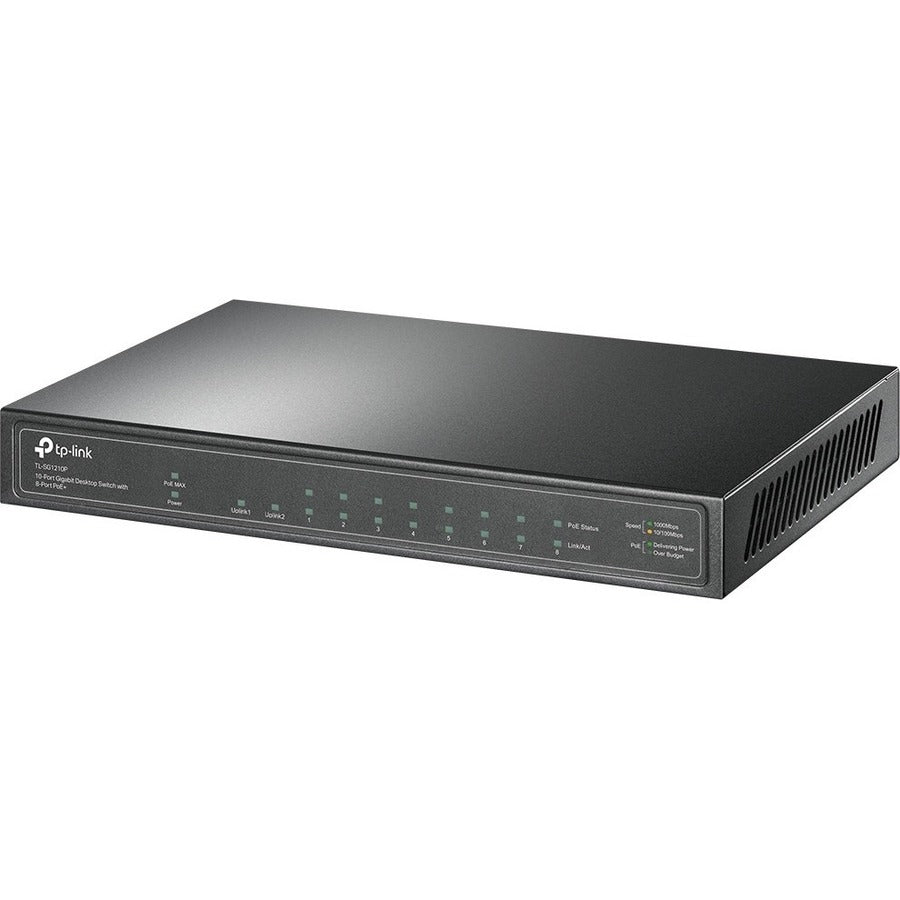

TP-Link TL-SG1210P - 8-Port Gigabit PoE Switch - TL-SG1210P
Key Features
- Advanced Software Features: Prioritize your traffic and guarantee high quality of video or voice data transmission with Port-based 802.1p/DSCP QoS, IGMP snooping, EEE802.3x Flow Control.
- Flexible Port Configuration: 8× 10/100/1000 Mbps RJ45 PoE+ ports, 1×Gigabit RJ45 Uplink port, and 1× Gigabit SFP port.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Power Over Ethernet: 8 PoE+(802.3at/af) ports providing up to 30W per port, total PoE budget 63W.
Product Overview
PoE Switches for Your Ultra Convenience
10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Easy to Use
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Qos
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: TL-SG1210P
- Brand Name: TP-Link
- Product Model: TL-SG1210P
- Product Name: 10-Port Gigabit Desktop Switch with 8-Port PoE+
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 10
- Network (RJ-45): Yes
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE+
- 1 x Gigabit Ethernet Network
- 1 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 1.0
- Expansion Slot Type: SFP (mini-GBIC)
- Shared SFP Slot: No
- Number of SFP Slots: 1
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3x
- IEEE 802.1p
Management & Protocols
- Manageable: No
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 63 W
- Power Source: Power Adapter
- Power Consumption: 7.11 W
Physical Characteristics
- Form Factor:
- Desktop
- Wall Mountable
- Height: 1"
- Width: 8.2"
- Depth: 5"
Miscellaneous
- Package Contents:
- 10-Port Gigabit Desktop Switch with 8-Port PoE+
- Power Adapter
- Installation Guide
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
