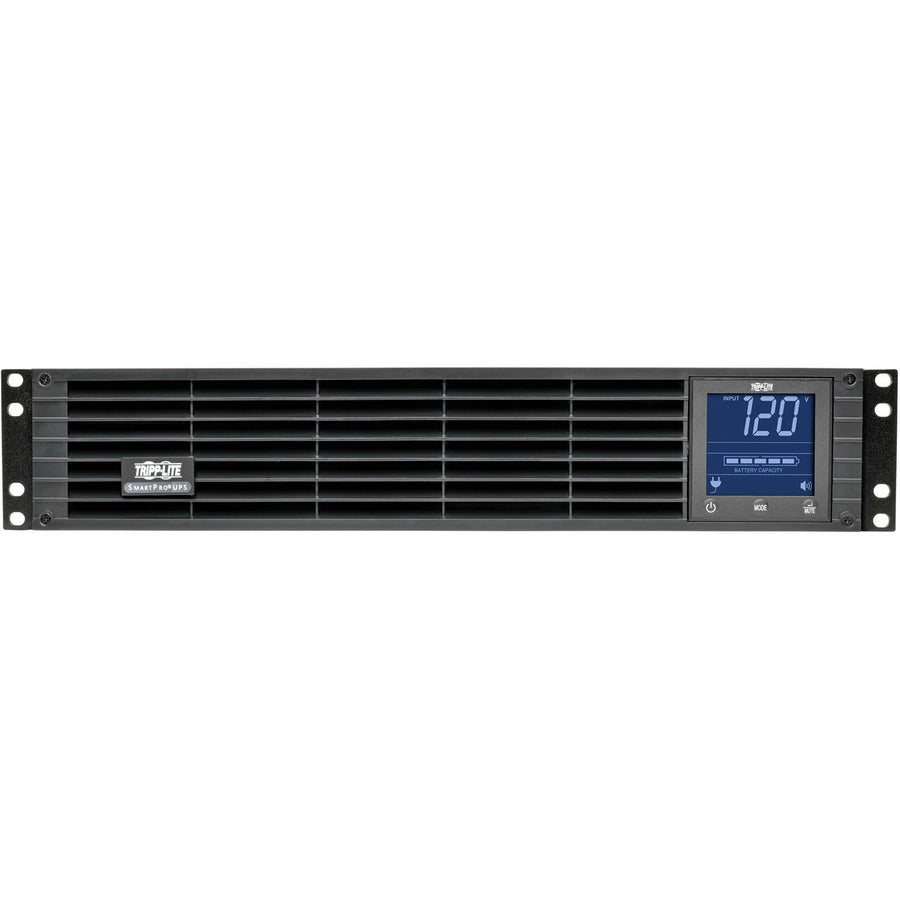

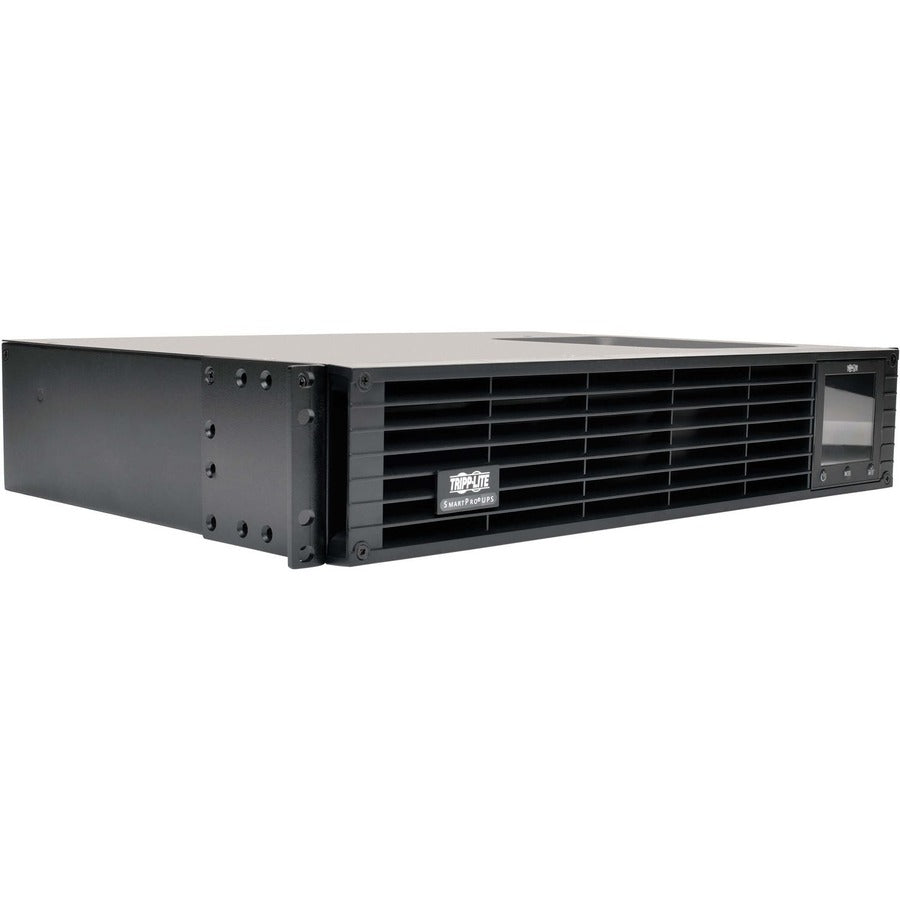

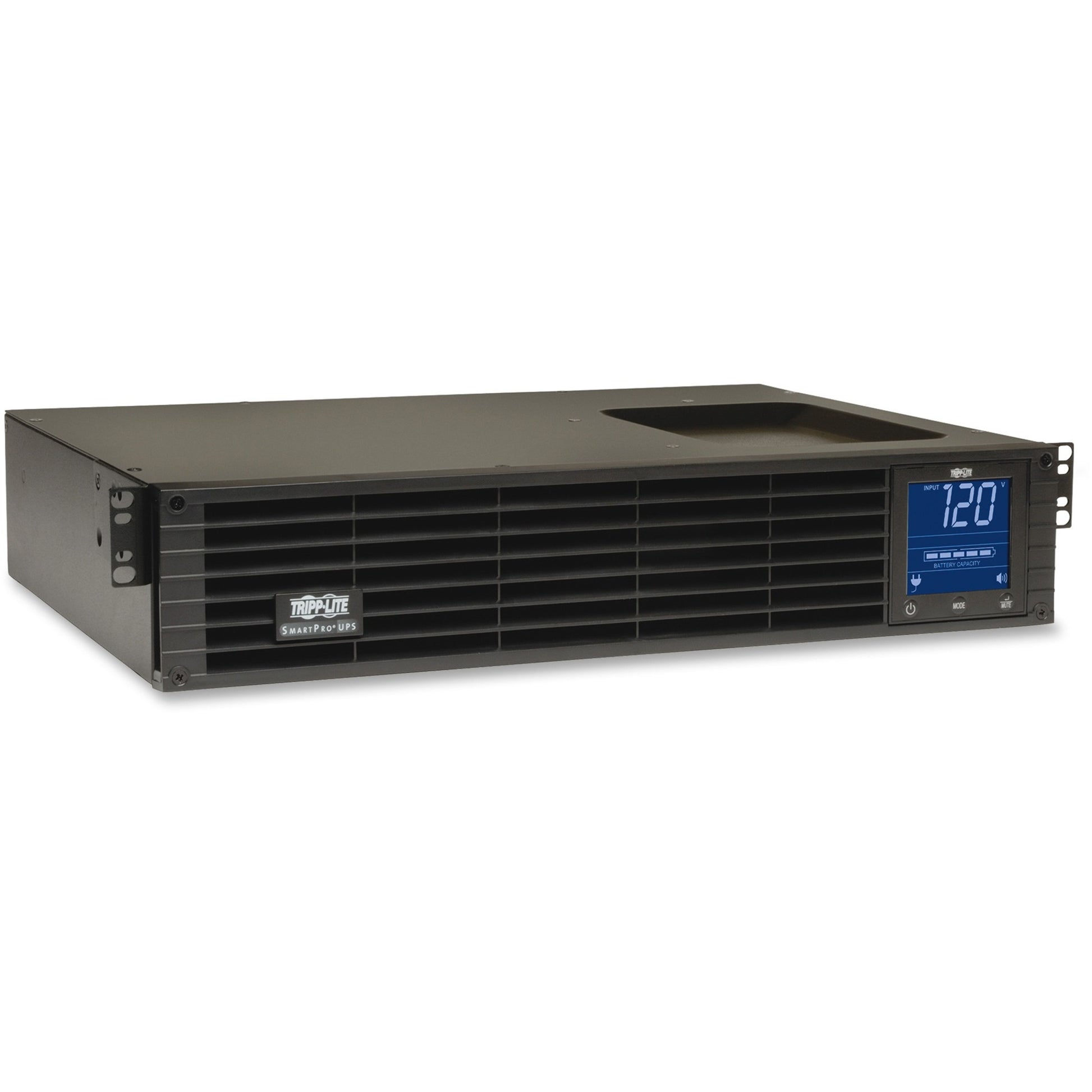

Tripp Lite by Eaton UPS SmartPro 120V 1.5kVA 1kW Line-Interactive Sine Wave UPS 2U Rack/Tower LCD USB DB9 8 Outlets - SMC15002URM
Key Features
- 17.7 min. runtime at half load; 6.5 min. at full load
- 8 NEMA 5-15R outlets
- Corrects under- and overvoltages from 83V to 147V

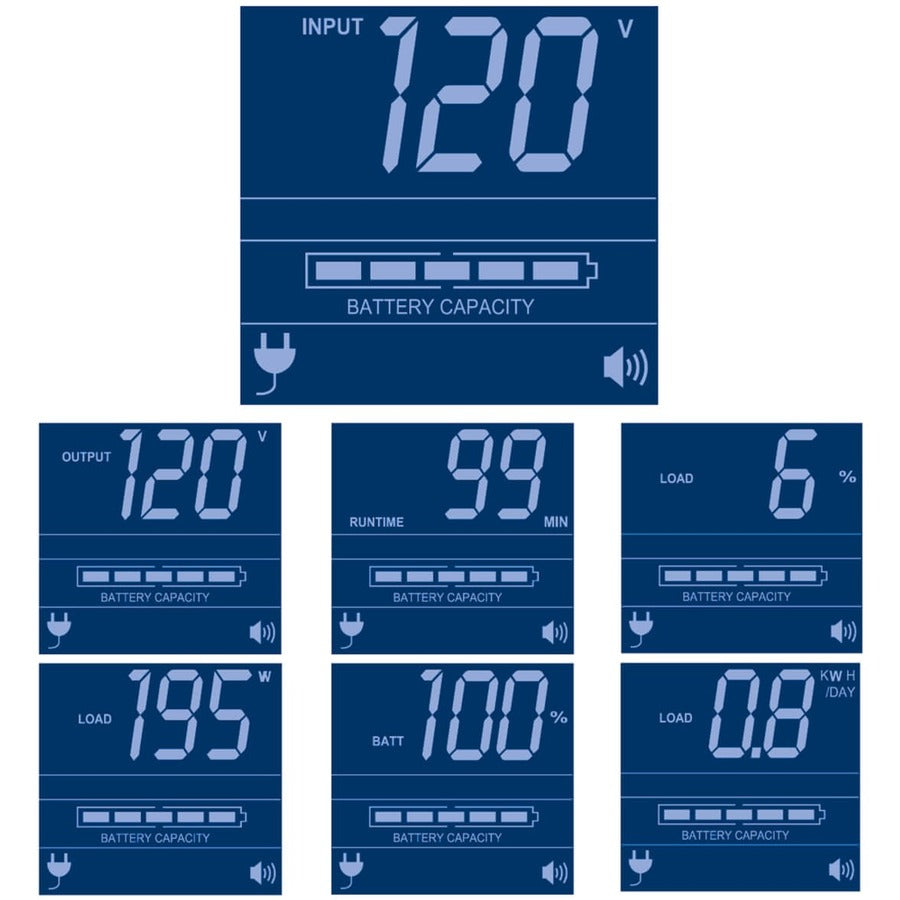

- Interactive LCD monitoring screen
- Monitoring of power conditions via POWERALERT12
Product Overview
Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 94 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMC15002URM
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Model: SMC15002URM
- Product Name: Line-interactive UPS Power Supply
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information

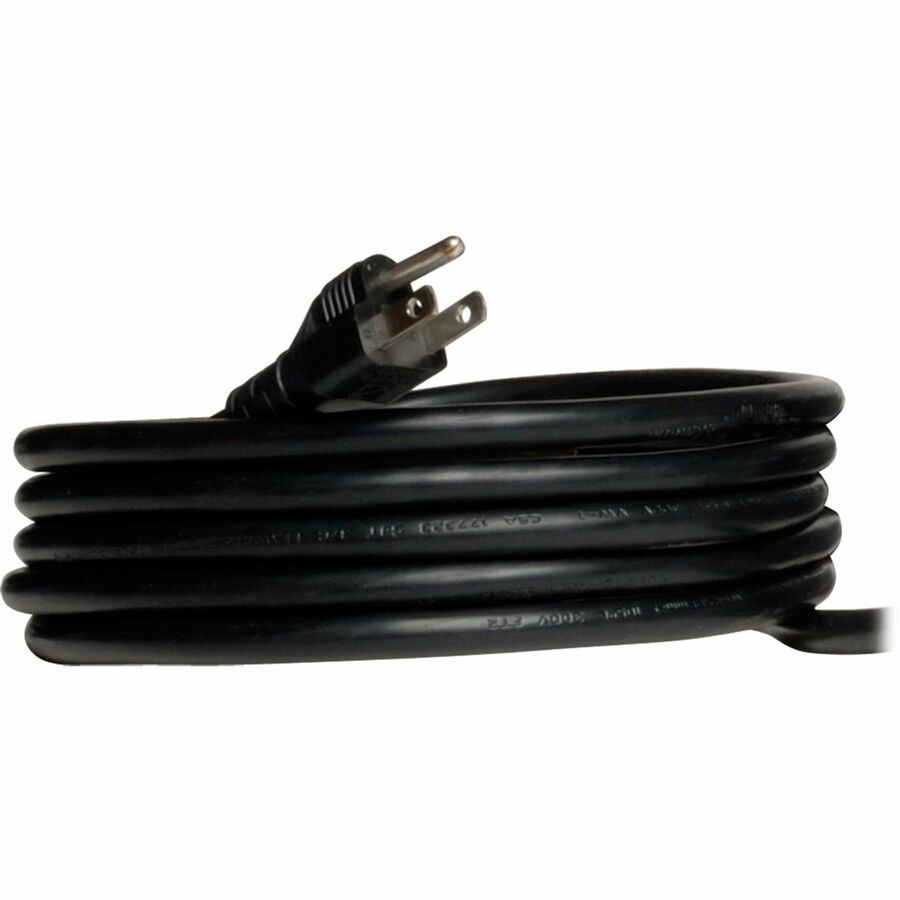

- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

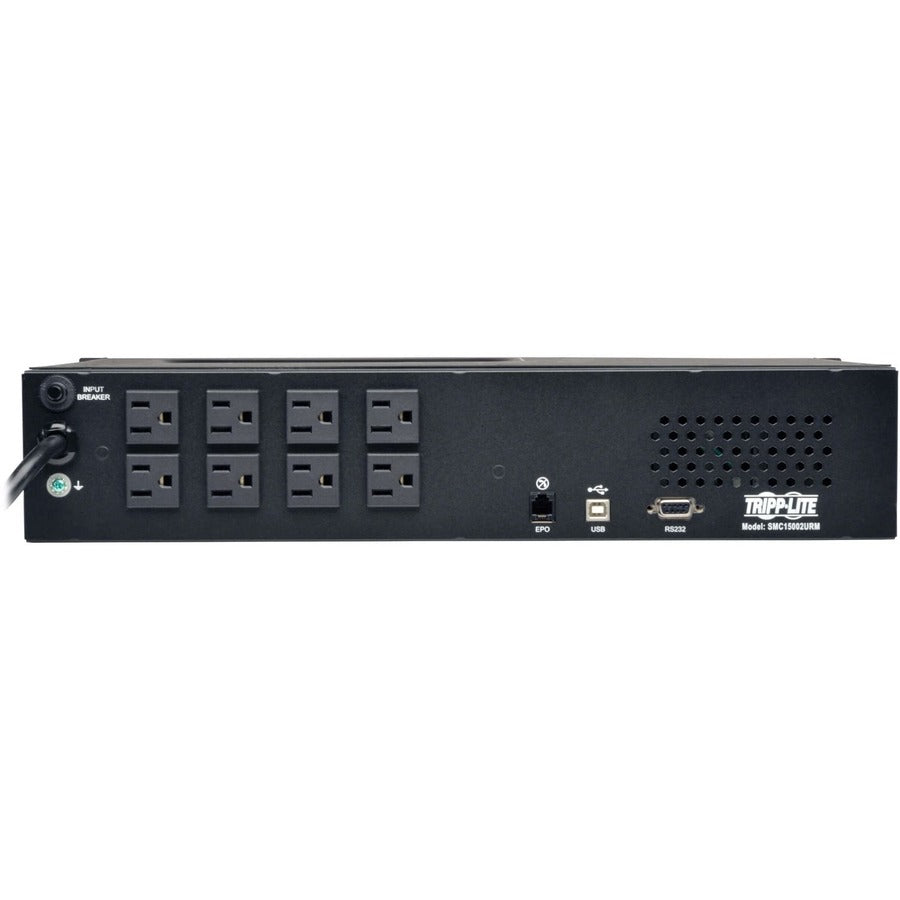

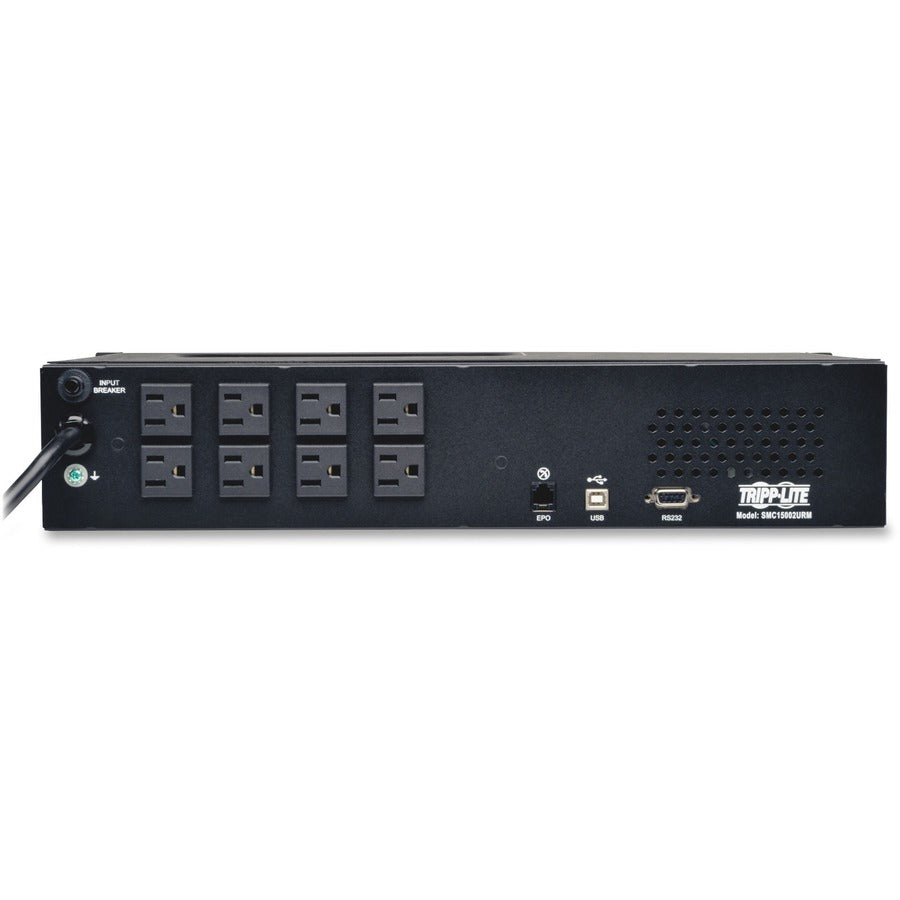

- Receptacle Detail: 8 x NEMA 5-15R
- Cord Length: 9.84 ft
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V AC
- Input Current: 12 A
- Output Voltage: 120 V AC
- Waveform Type:
- Sine Wave
- Pure Sine Wave
- Surge Energy Rating: 570 J
- Circuit Breaker: Yes
Management
- Alarm:
- UPS StartUp
- Power Failure
- Low Battery
- Overload
- UPS Fault
- Remote Shutdown
Controls/Indicators
- Status Indicators: LEDs
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 6.50 Minute
- Backup/Run Time (Half Load): 17.70 Minute
- Hot Swappable: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 45 dB(A)
- Thermal Dissipation: 65.35 W
Physical Characteristics
- Height: 3.45"
- Width: 17.30"
- Depth: 13.45"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 46.50 lb
Miscellaneous

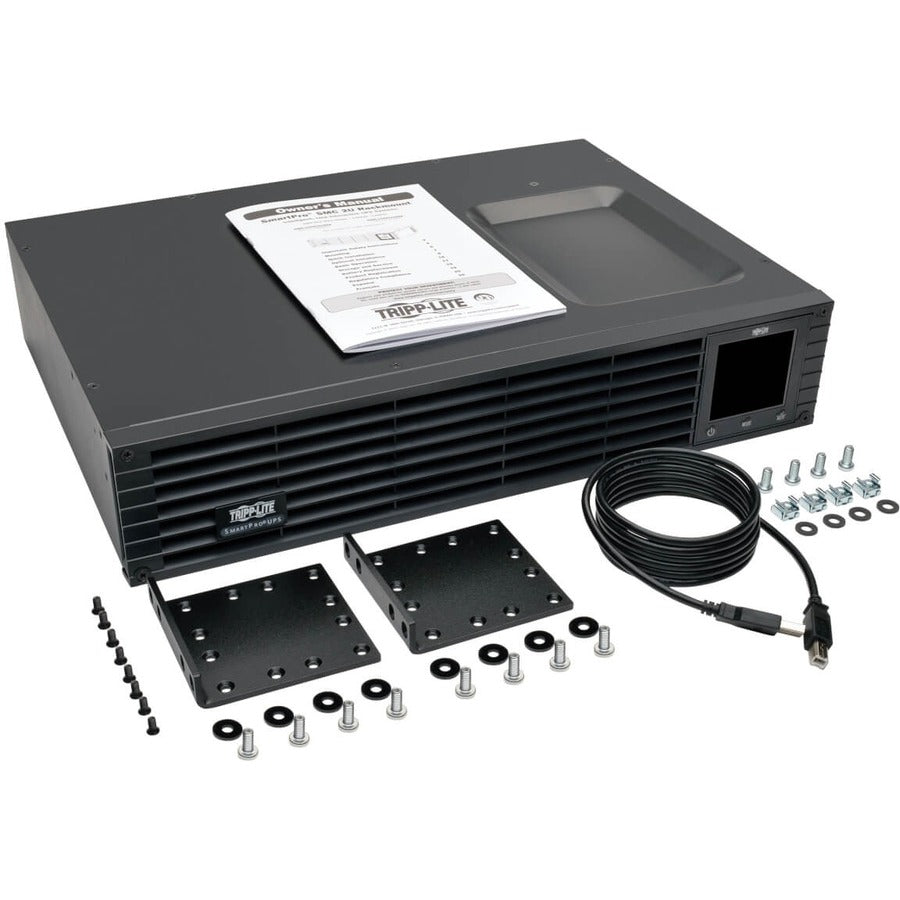

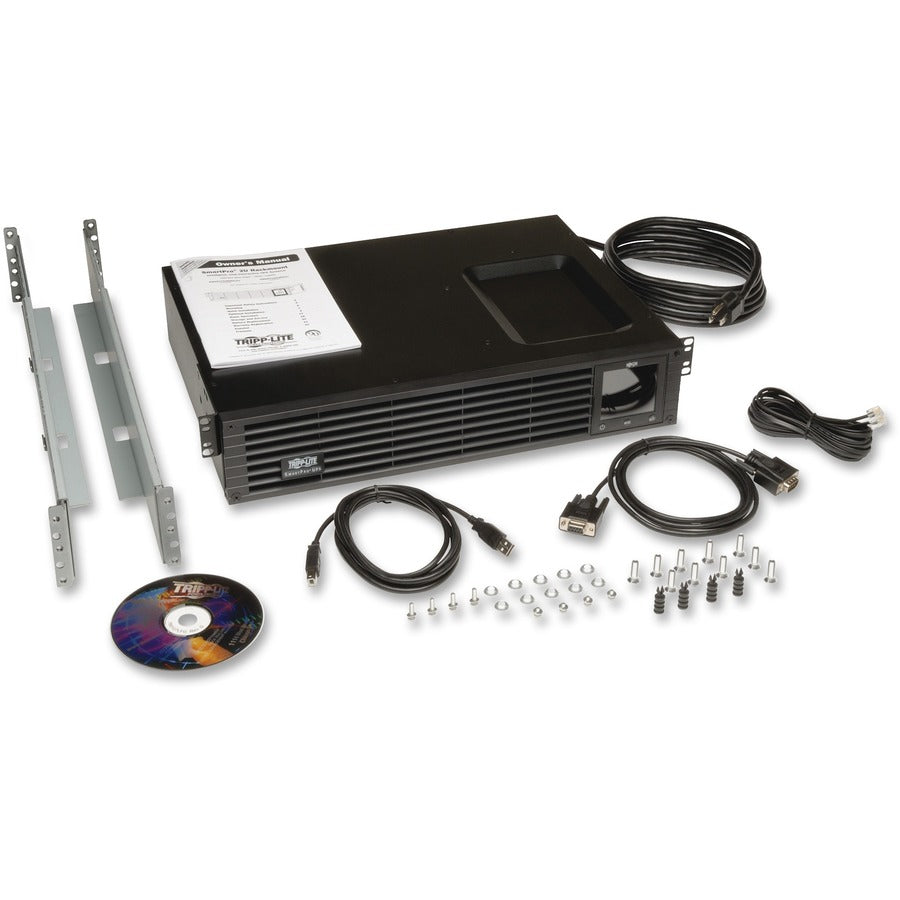

- Package Contents:
- SMC15002URM UPS System
- USB Cable
- 2 & 4 Post Rackmount Installation Hardware
- Instruction Manual
- Country of Origin: China
- TAA Compliant: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
- Additional Warranty Information:
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- 250,000 connected equipment insurance
