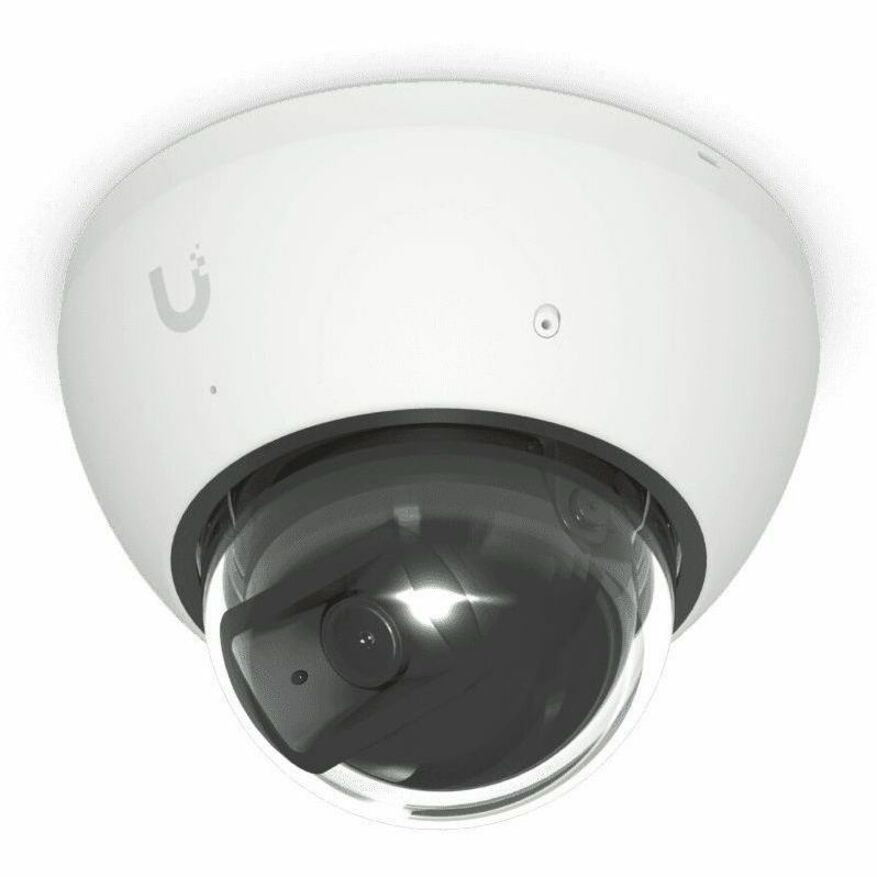

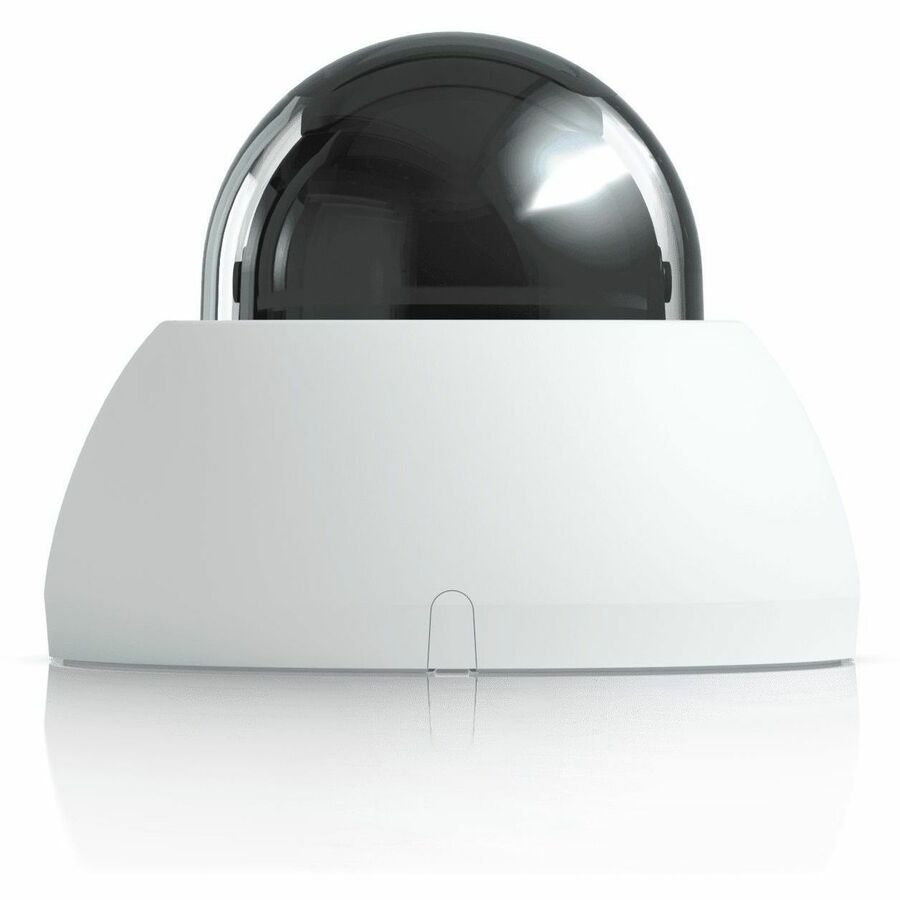

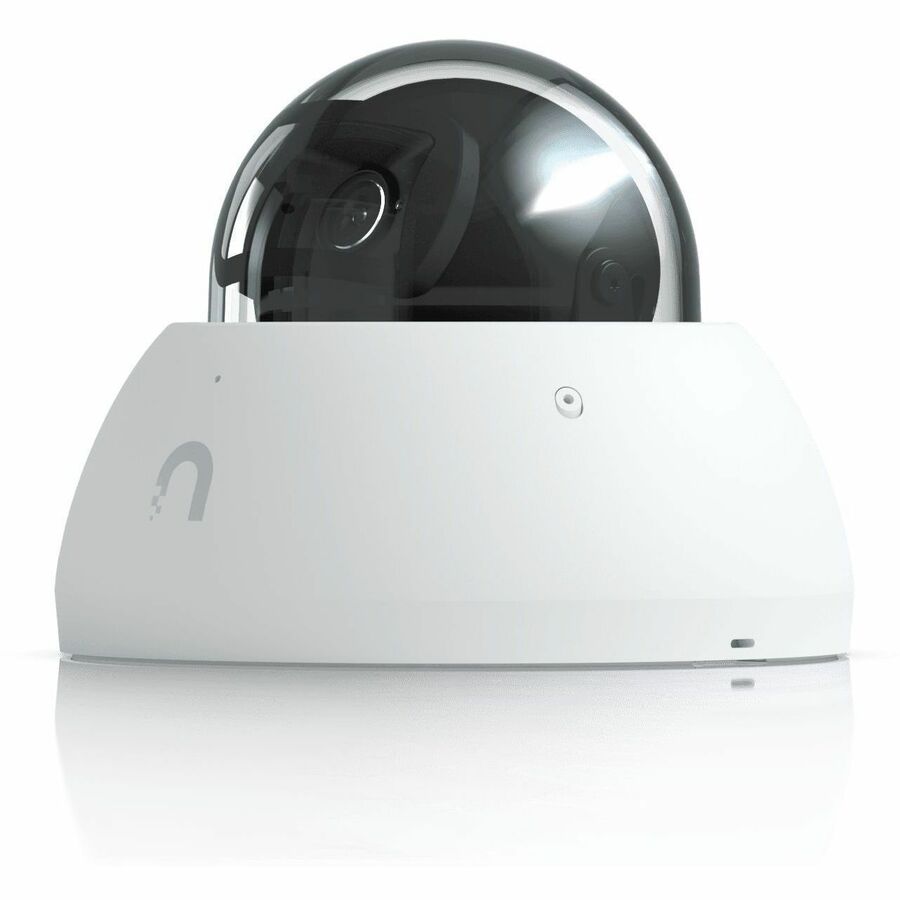

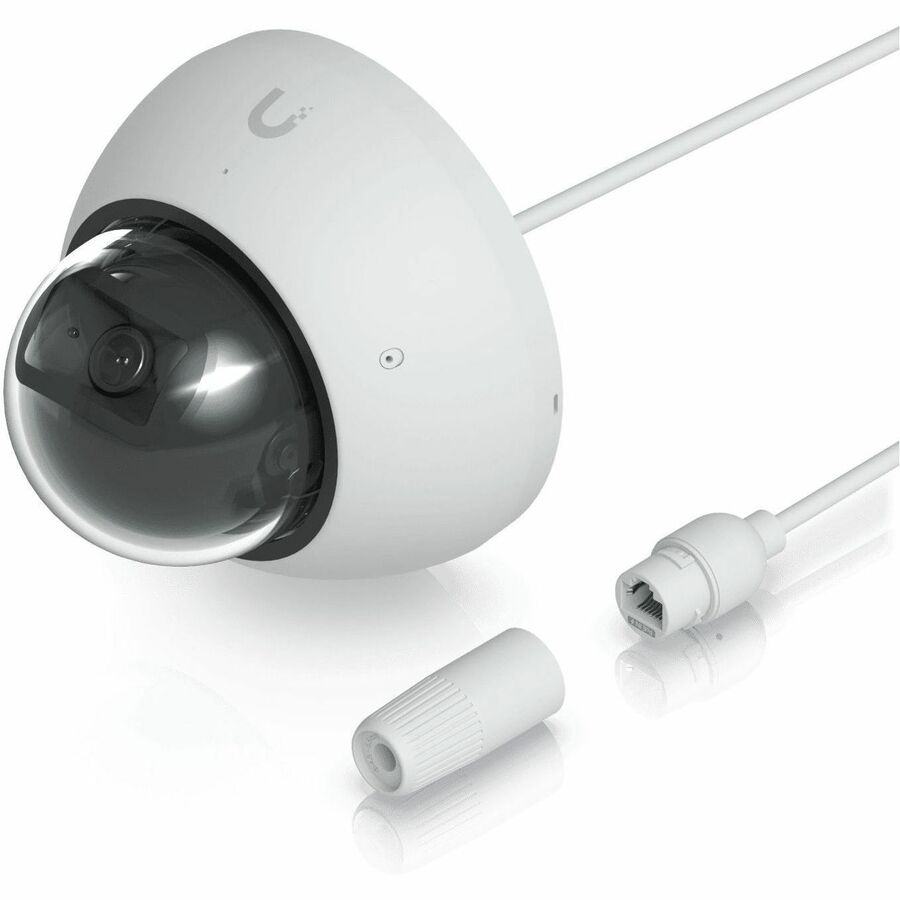

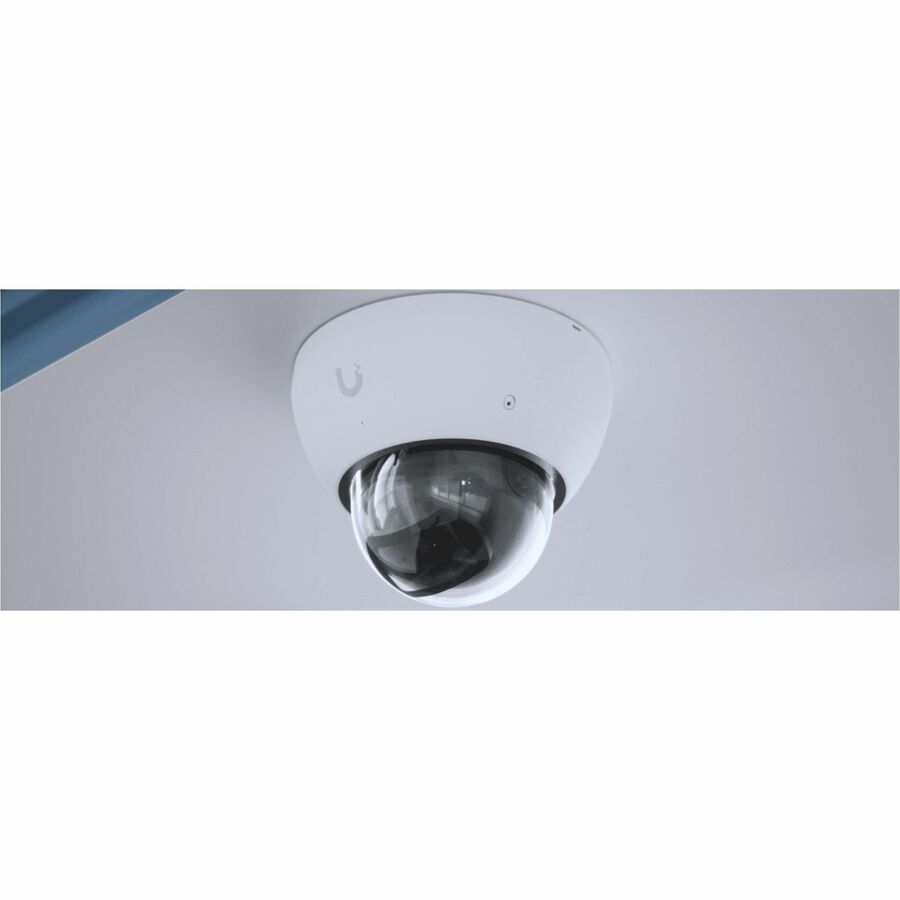

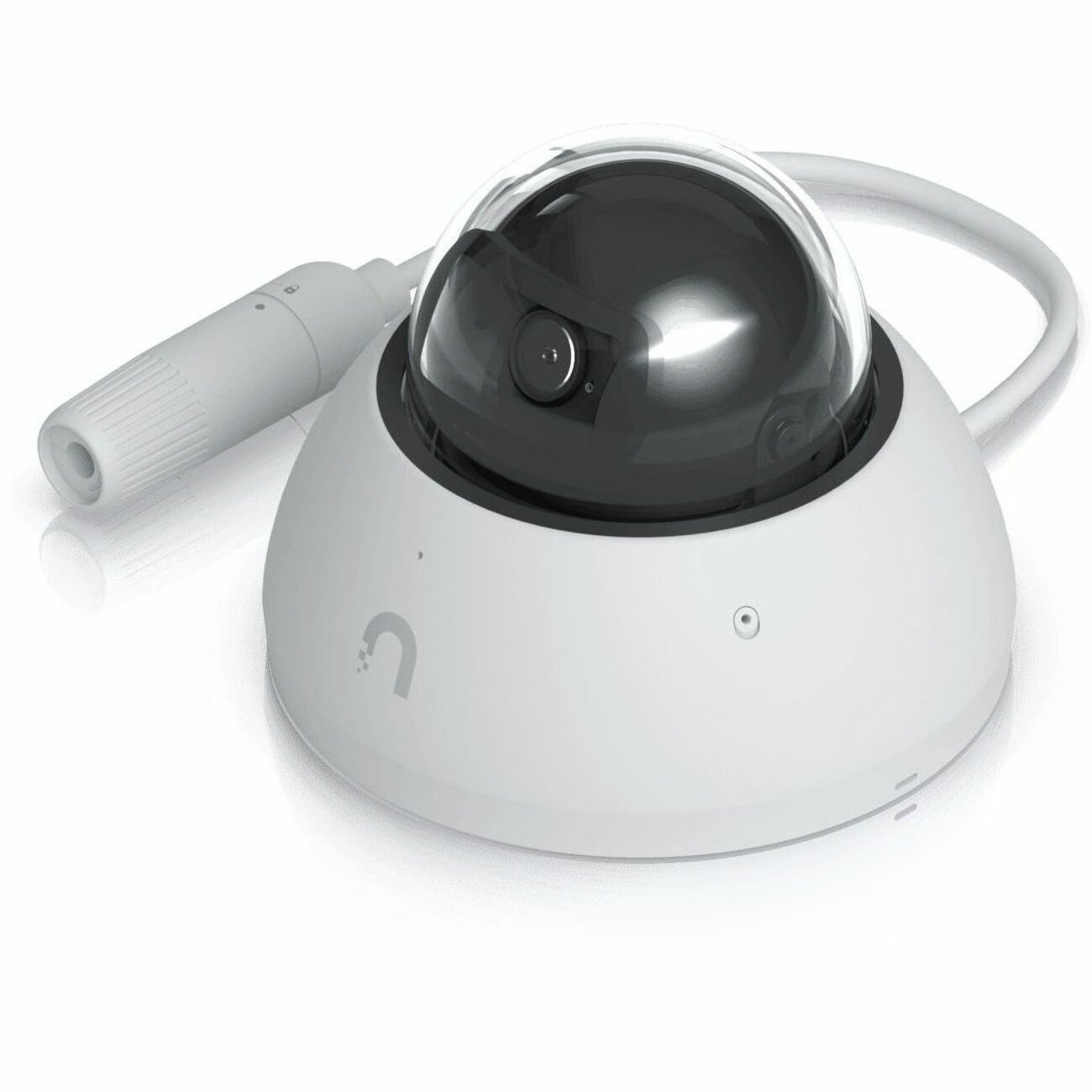

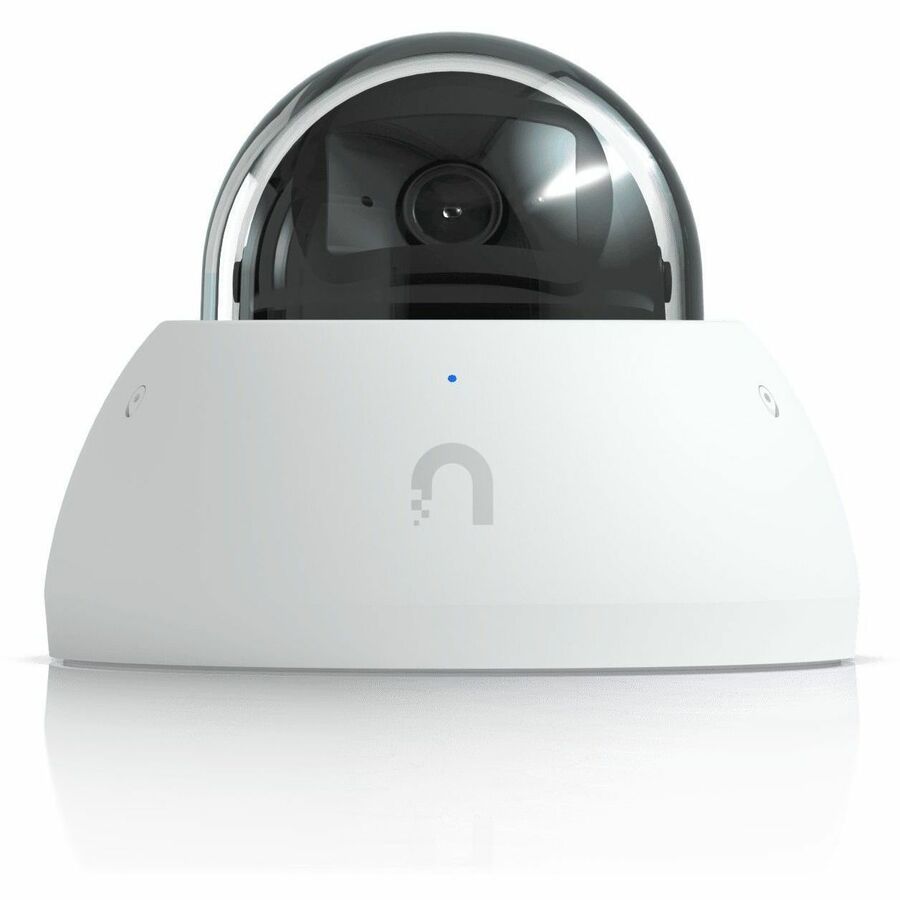

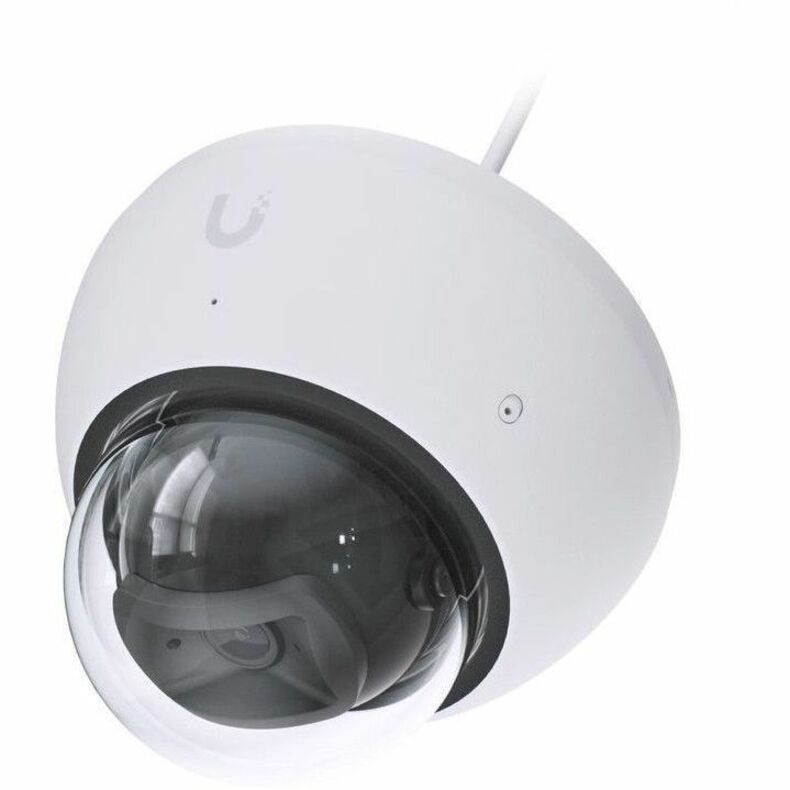

Ubiquiti UniFi Protect UVC-AI-DOME-W 8 Megapixel Outdoor 4K Network Camera - Color - Dome - UVC-AI-Dome-W
Key Features
- 4K recording format for stunning, vivid video results with maximum efficiency
- Built-in Microphone feature for better reliance and usability
- Ceiling Mount mount type ensures optimal results and maximum convenience
- For remote surveillance needs, this network camera is best suited
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- PoE power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Provides night vision of objects at a distance of up to 131.23 ft
- Up to 3840 x 2160 resolution for surveillance in real-time
- Wired connectivity technology offers maximum visual convenience
Product Overview
All-weather, vandal-proof 4K PoE dome camera with enhanced AI capabilities and long-range IR night vision.
- 4K (8MP) video resolution
- Ultra-wide viewing angle (109.9°)
- 40 m (131 ft) IR night vision
- Advanced AI: Face and license plate recognition
- Record audio with an integrated microphones
- Micro SD card support for edge recording
- Connect and power using PoE
- Weatherproof (outdoor exposed)
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: UVC-AI-Dome-W
- Brand Name: Ubiquiti
- Product Line: UniFi Protect
- Product Model: UVC-AI-DOME-W
- Product Name: AI Dome
- Product Type: Network Camera
Technical Information
- HD Recording: Yes
- Recording Formats: 4K
- Night Vision: Yes
- Night Vision Distance: 131.23 ft
- Night Vision Type: Infrared
- AI-powered: Yes
- Infrared (IR) Cut-off Filter: Yes
Display & Graphics
- Image Sensor Size: 1/1.8"
- Color Supported: Color
- Field of View: H: 109.9°, V: 56.7°, D: 134.1°
- Effective Camera Resolution: 8 Megapixel
Video
- Maximum Video Resolution: 3840 x 2160
- Maximum Frame Rate: 30 fps
Network & Communication
- Connectivity Technology: Wired
- Remote Management: Yes
- Ethernet Technology: Ethernet
Storage
- Storage Type: Memory Card
Interfaces/Ports
- Network (RJ-45): Yes
Power Description
- Maximum Power Consumption: 10 W
- Input Voltage:
- 42.5 V DC
- 57 V DC
- Power Source Type:
- PoE
- DC
Physical Characteristics
- Product Material:
- Aluminum Alloy
- Polycarbonate

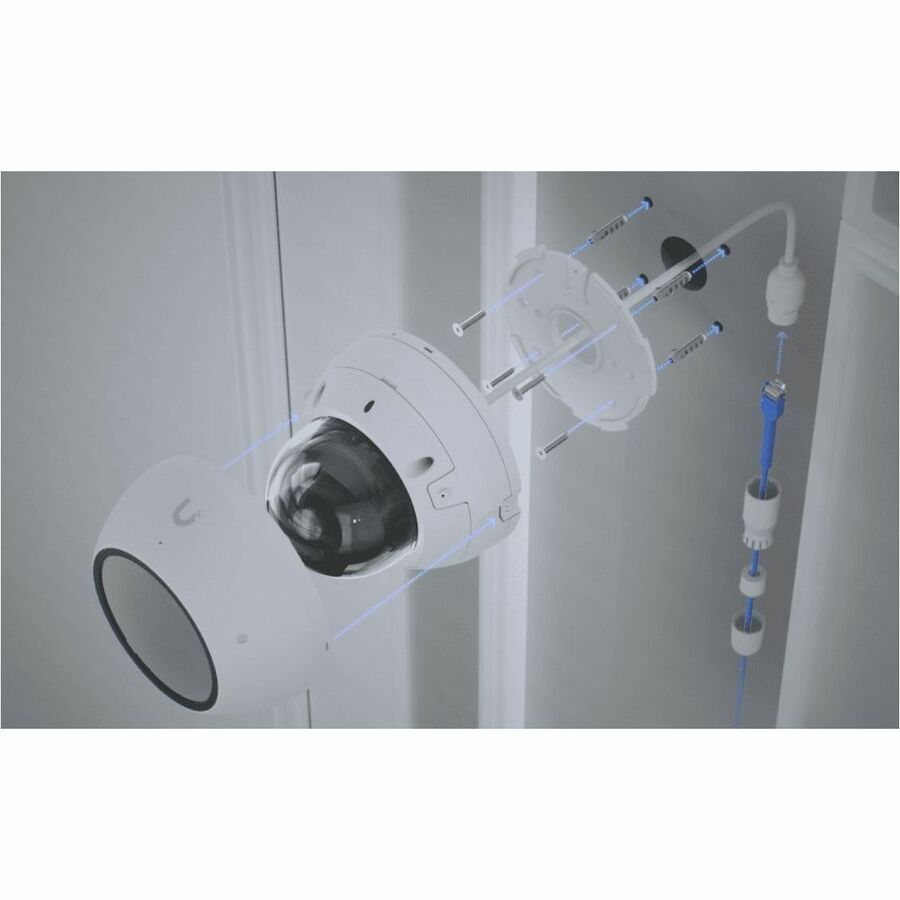

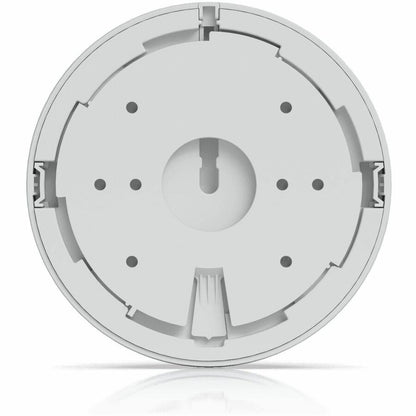

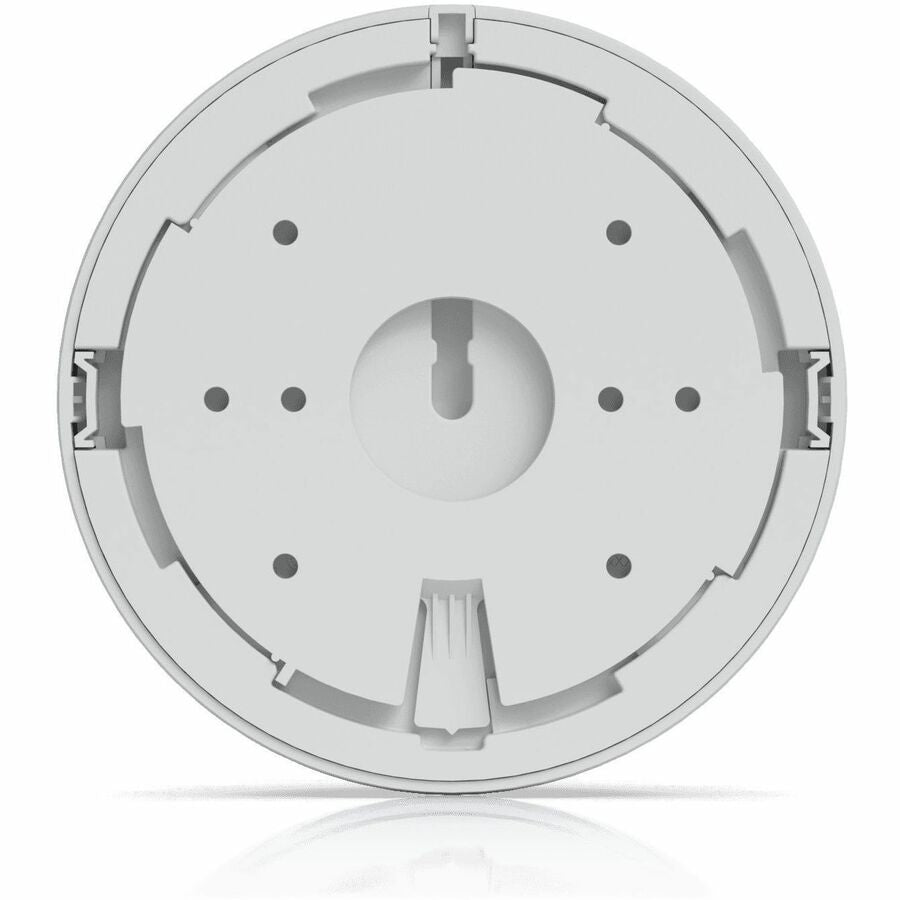

- Mount Type:
- Ceiling Mount

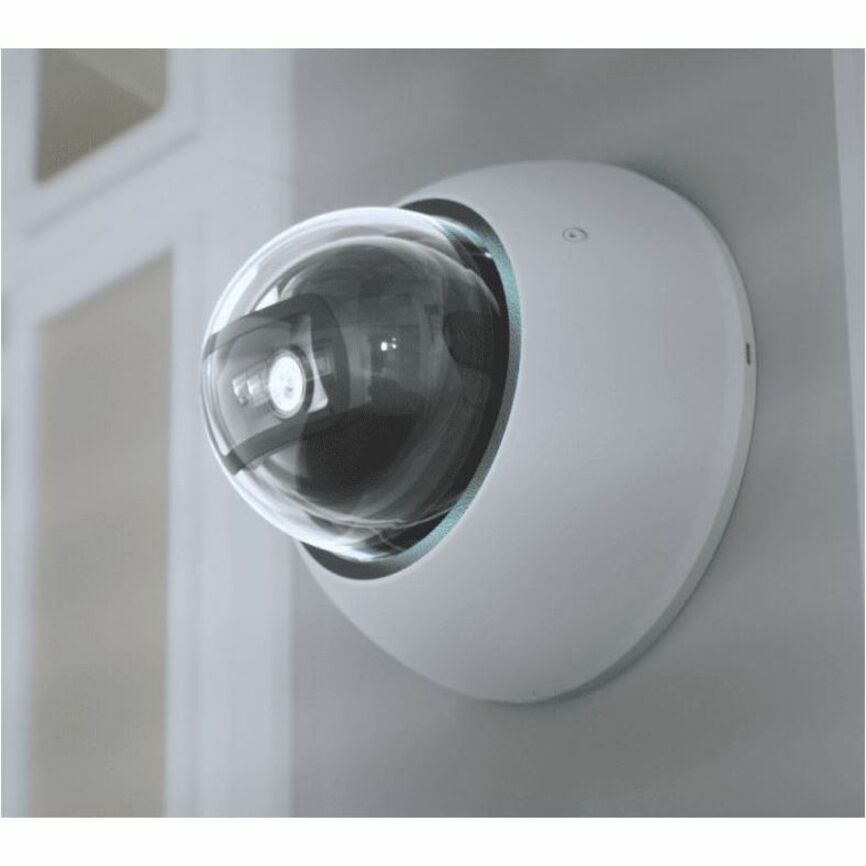

- Wall Mount
- Pendant Mount
- Junction Box Mount
- Form Factor: Dome
- Durability:
- Weather Proof
- Vandal Proof
- Tamper Resistant
- Height: 3.6"
- Width: 4.6"
- Depth: 4.6"
- Diameter: 4.6"
- Weight (Approximate): 1.54 lb
Environmental Conditions
- Minimum Operating Temperature: -22°F (-30°C)
- Maximum Operating Temperature: 122°F (50°C)
- Minimum Operating Humidity (Non-condensing): 10%
- Maximum Operating Humidity (Non-condensing): 90%
Miscellaneous
- Features:
- Built-in Microphone

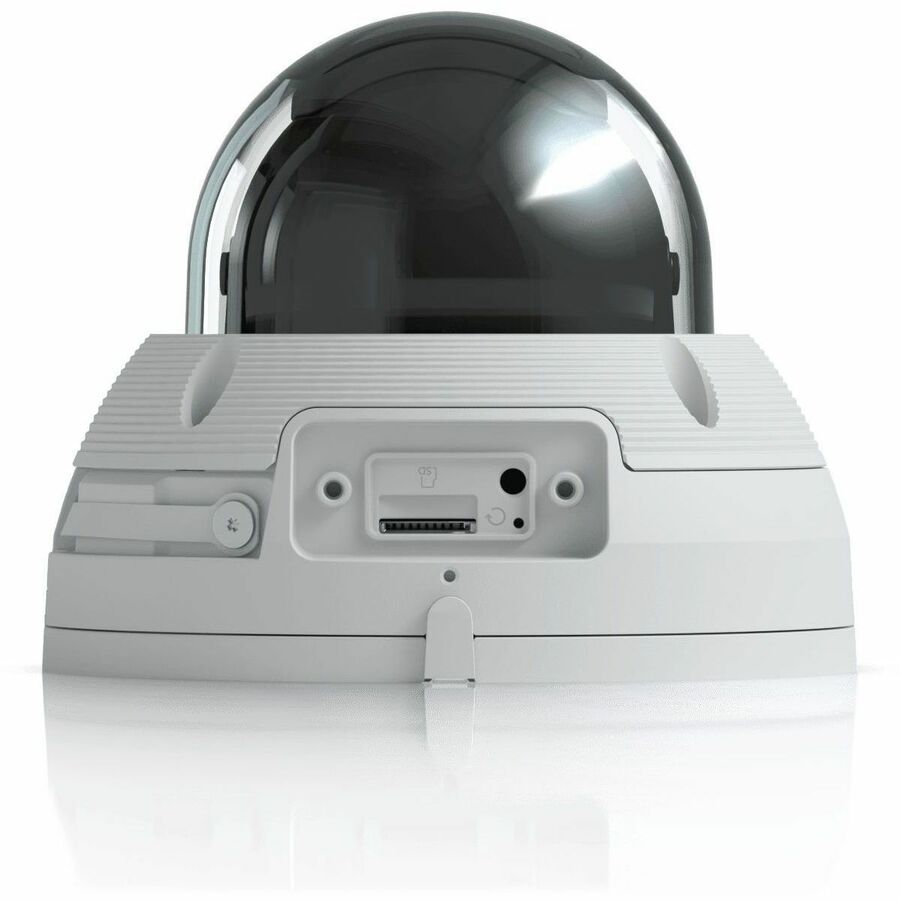

- SD Card Local Storage
- White Balance
- 2D Noise Reduction
- 3D Noise Reduction
- Factory Reset Button
- Indoor/Outdoor: Outdoor
- Impact Protection Rating: IK10
- Ingress Protection Rating: IP66
