Vertiv Geist Basic Rack PDU - (12) IEC C13| 30A| 208V| L6-30P| 4.9kW| RPDU - VP9571A
Key Features
- (12) IEC C13 receptacles
- L6-30P plug
- 4.9kW
- 30A
- 208V
- 1U rack PDU with horizontal form factor, ideal for short racks and small network closets
- All Vertiv Geist power distribution units undergo individual testing for functionality to ensure your network is powered by a reliable rPDU
- Three-year warranty is extendable to five years if unit is registered within 120 days of purchase
- UL-listed, so it meets an important requirement for many data centers
Product Overview

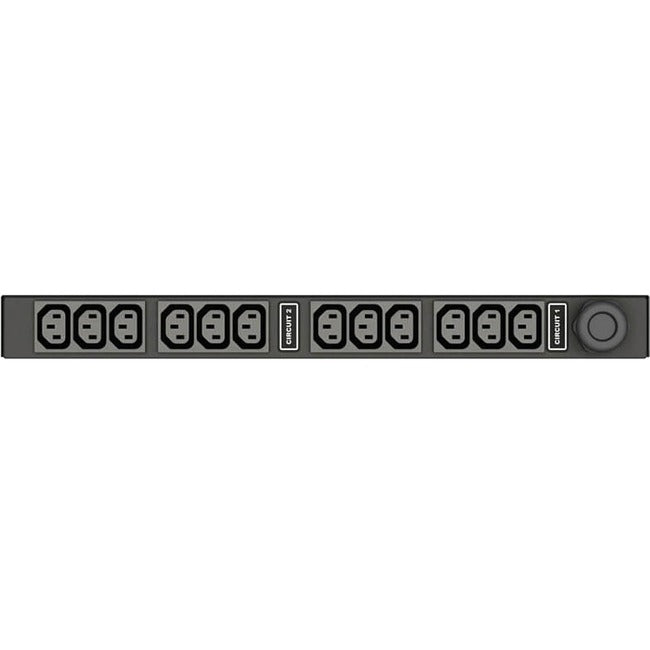

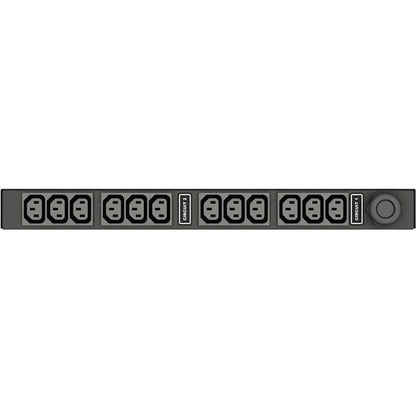

The Vertiv Geist Basic Rack PDU is a 30A, 208V, 1U horizontal rack power distribution unit (PDU). This 1U rack PDU has 12 IEC C13 outlets and a L6-30P plug providing 4.9kW in power capacity. With its horizontal form factor, this rPDU is designed for easy access in the rack, making it ideal for short cabinets and small network closets. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The TAA-Compliant and RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: VP9571A
- Brand Name: Vertiv Geist
- Product Series: rPDUs
- Product Name: 12-Outlets PDU
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L6-30P
- Plug/Connector Detail: 1 x NEMA L6-30P
- Receptacle Type: IEC 60320 C13
- Receptacle Detail: 12 x IEC 60320 C13
Power Description
- Input Voltage: 230 V AC
- Power Rating (Watt): 4900 W
- Input Current: 30 A
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.7"
- Width: 17"
- Depth: 6.5"
- Length: 6.5"
- Weight (Approximate): 8 lb
Miscellaneous
- Country of Origin: United States
Warranty
- Limited Warranty: 5 Year
