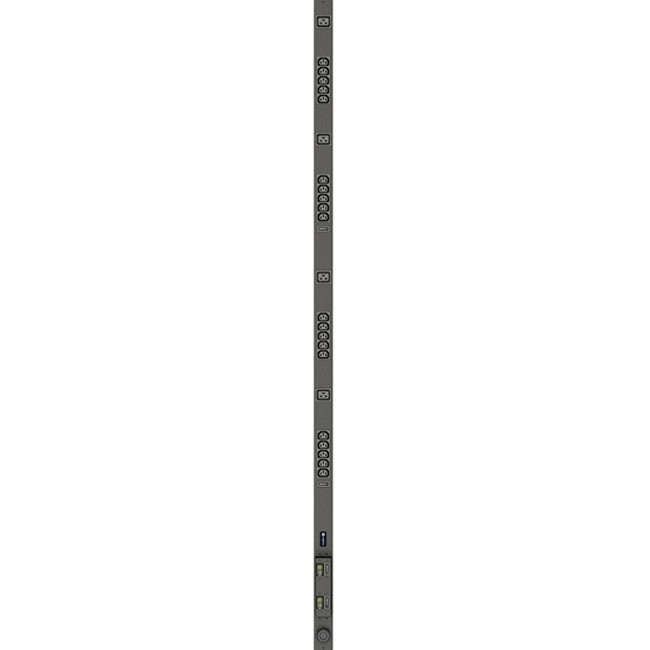

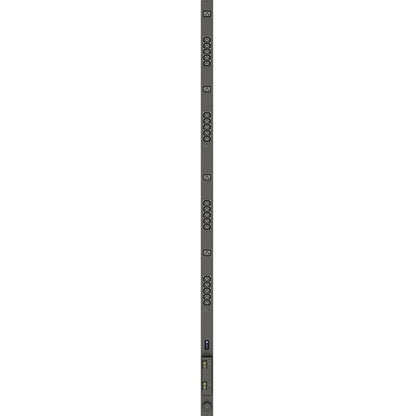

Vertiv Geist Rack PDU, Basic, Vertical, 30A, 208V, (20)C13/(4)C19 - VP7541

Vertiv Geist Rack PDU, Basic, Vertical, 30A, 208V, (20)C13/(4)C19 - VP7541

SKU: VP7541

Regular price $457.99 USD
Regular price Sale price $457.99 USD
Sale Sold out

 Out of stock

Want to know when this is back in stock?

View full details

Vertiv Geist Rack PDU, Basic, Vertical, 30A, 208V, (20)C13/(4)C19 - VP7541

Key Features

  • All Vertiv Geist Basic Rack PDUs are individually tested for reliability and functionality - no batch tests.
  • If registered within 120 days, the standard three-year warranty that comes with the Vertiv Geist Basic Rack PDU is automatically upgraded to five years.
  • The addition of a local display or inline meter enables instant power usage feedback, which can help avoid overloads and costly downtime.
  • The Vertiv Geist Basic Rack PDU provides reliable power distribution at a low price point
  • Vertiv Geist Basic Rack PDUs are UL listed in accordance with common data center and insurance provider requirements.

Product Overview

The Vertiv Geist Basic Rack PDU family delivers reliable power distribution at a competitive price point. The Vertiv Geist Basic Rack PDU is the entry-level solution in the Vertiv Rack PDU family, providing basic, reliable power distribution in all IT environments. Vertiv Geist Basic Rack PDUs are UL-listed, meeting an important requirement for many data centers and insurance providers. Vertiv Geist Basic Rack PDUs are not batch-tested. Every unit is tested individually for reliability and functionality before shipping. All Vertiv Geist Basic Rack PDUs come with a standard three-year warranty with an automatic upgrade to five years if the product is registered within 120 days of purchase. The addition of a local display or inline meter enables instant power usage feedback, which can help avoid overloads and costly downtime. This model (VP9562) is 15A, 120V, 1.4kW in a horizontal form factor, with 10 NEMA 5-15R outlets.

More from the Manufacturer

General Information

  • Manufacturer: Vertiv
  • Manufacturer Part Number: VP7541
  • Brand Name: Vertiv Geist
  • Product Series: rPDUs
  • Product Name: 24-Outlets PDU
  • Product Type: PDU

Technical Information

  • PDU Type: Basic
  • Plug/Connector Type: NEMA L6-30P
  • Plug/Connector Detail: 1 x NEMA L6-30P
  • Receptacle Type:
    • IEC 60320 C13
    • IEC 60320 C19

  • Receptacle Detail:
    • 20 x IEC 60320 C13
    • 4 x IEC 60320 C19

Power Description

  • Input Voltage: 230 V AC
  • Power Rating (Watt): 4900 W
  • Input Current: 30 A

Physical Characteristics

  • Mounting Orientation: Vertical
  • Mount Type: Rack-mountable
  • Height: 66.3"
  • Width: 2"
  • Depth: 2"
  • Length: 2"
  • Weight (Approximate): 17 lb

Miscellaneous

  • Country of Origin: United States

Warranty

  • Limited Warranty: 5 Year
