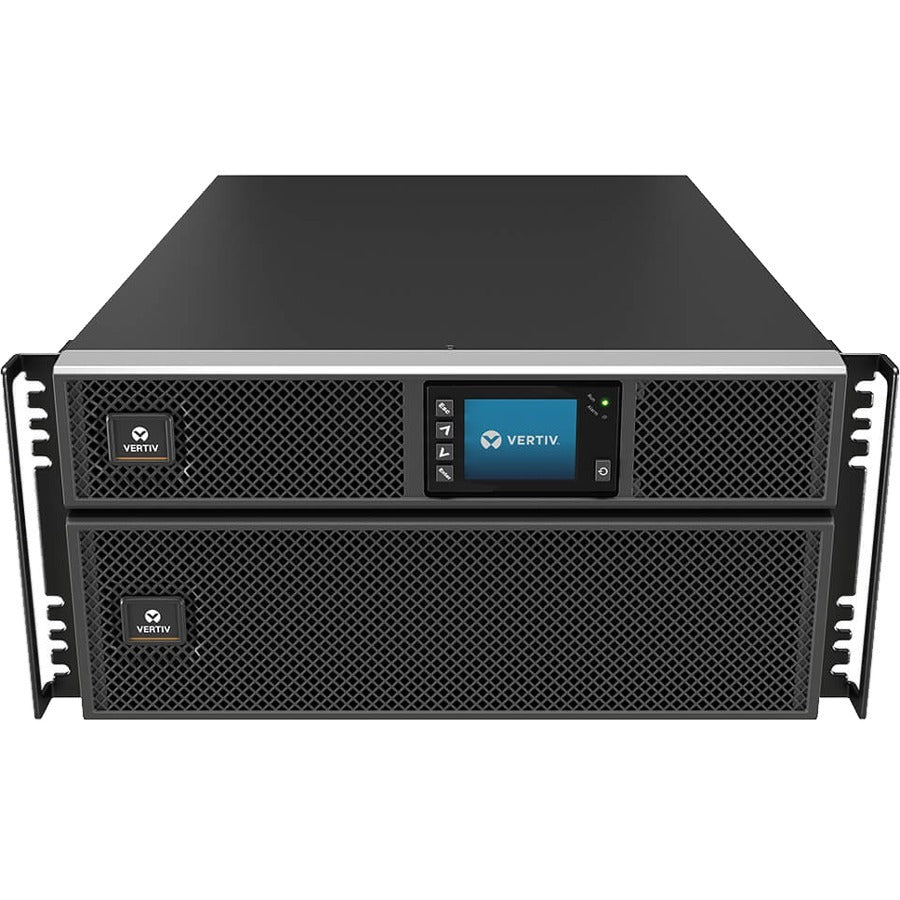

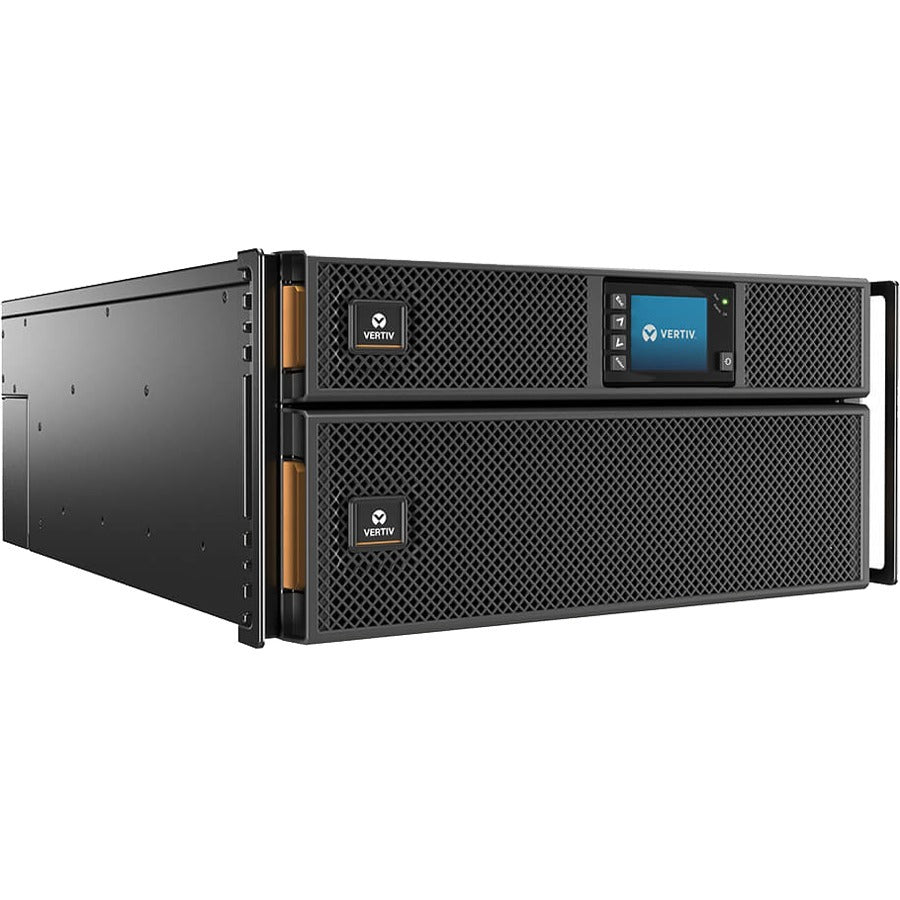

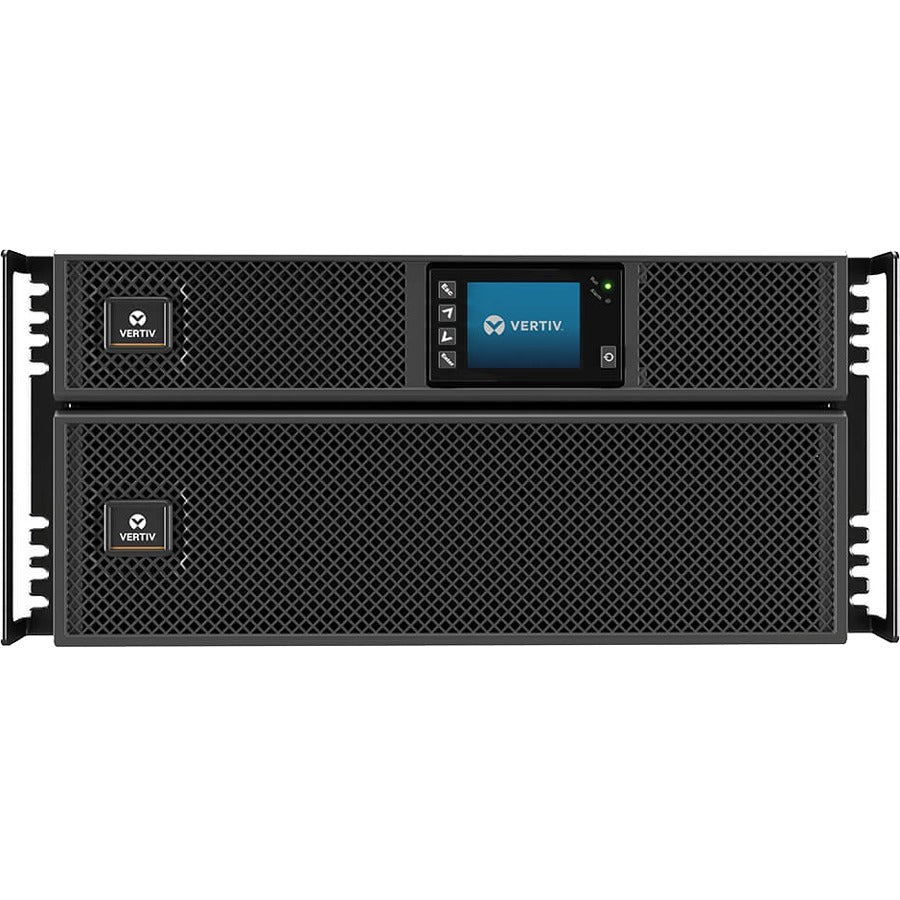

Vertiv Liebert GXT5 UPS - 5kVA/5kW/208 and 120V | Online Rack Tower Energy Star - GXT5-5000MVRT4UXLN
Key Features
- 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
- EASY-TO-USE INTERFACE: Tower/rack mount design with gravity sensing graphical color display.
- ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
- HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
- REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
Product Overview
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 5kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: GXT5-5000MVRT4UXLN
- Brand Name: Vertiv Liebert
- Product Series: GXT
- Product Name: GXT5 5000VA 208/120V UPS
- Packaged Quantity: 1
- Product Type: Double Conversion Online UPS
Technical Information
- Plug/Connector Type: Terminal Block
- Receptacle Type: Hardwired
- Transfer Time: 0 ns
- Phase: Single Phase
- Application/Usage:
- IT System
- Mission Critical Equipment
- Data Center
Power Description
- Load Capacity (VA): 5000 VA
- Load Capacity (Watt): 5000 W
- Input Voltage: 208 V AC
- Output Voltage:
- 208 V AC
- 120 V AC
- Input Frequency: 60 Hz
- Waveform Type: Pure Sine Wave
- User Selectable Output: 208/120VAC
- Utility (AC) Mode Overload:
- 105% to 125% for 5 minutes
- 125% to 150% for 60 seconds
- >150% (impact load) minimum 200 ms
Controls/Indicators
- Status Indicators: LED/Full Color Graphic LCD
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- Network (RJ-45): Yes
Battery Information
- Battery Characteristics: Valve-regulated, Non-spillable, Flame-retardant
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 4.50 Minute
- Backup/Run Time (Half Load): 12.50 Minute
- Number of External Battery Cabinets: 1
- Backup/Run Time With External Battery Cabinet (Full Load): 12.50 Minute
- Backup/Run Time With External Battery Cabinet (Half Load): 33 Minute
- Hot Swappable: Yes
- Replaceable Battery: Yes
Environmental Conditions
- Environmental Sensors:
- Leak Detection Sensor
- Temperature Sensor
- Humidity Sensor
- Maximum Operating Elevation: 9842.52 ft
- Storage Temperature: 5°F (-15°C) - 104°F (40°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 6.8"
- Width: 16.9"
- Depth: 25.6"
- Rack Height: 4U
- Form Factor: Rack/Tower
- Weight (Approximate): 125.60 lb
Miscellaneous
- Package Contents:
- GXT5 5000VA 208/120V UPS
- 4 Post Fixed Rail Kit
- Tower Stand
- USB Cable
- Quick Start Guide
- Safety Instruction Manual
- Energy Star: Yes
- Country of Origin: China
- TAA Compliant: No
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 3 Year
