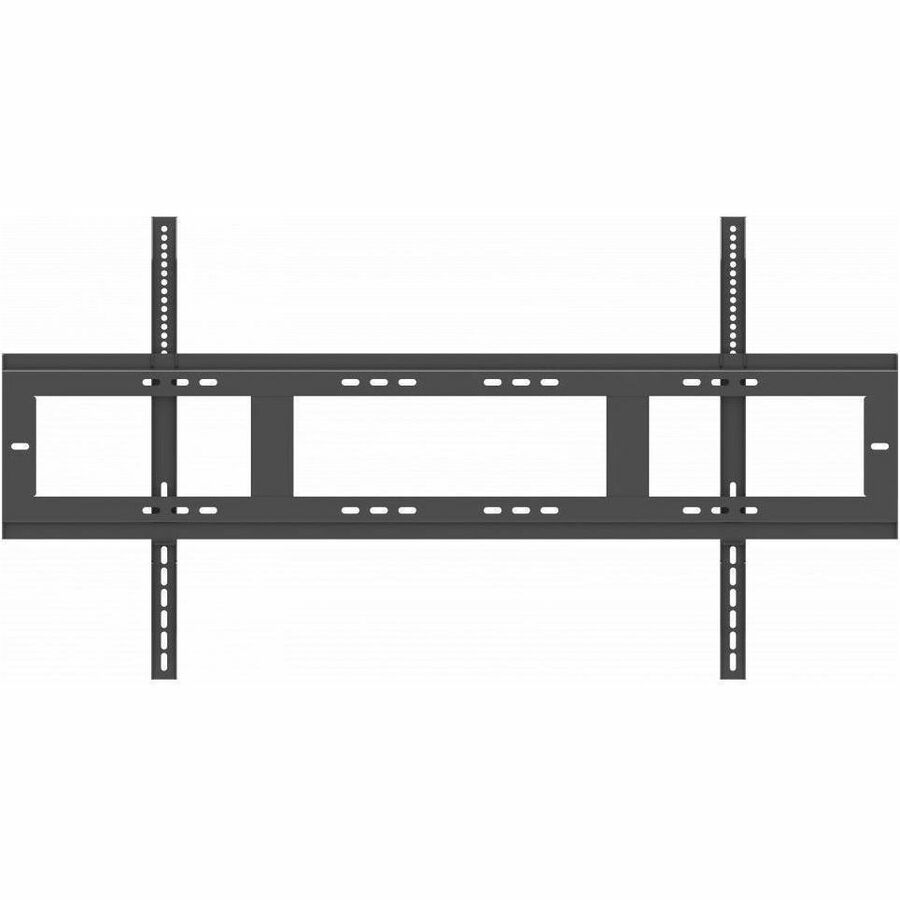

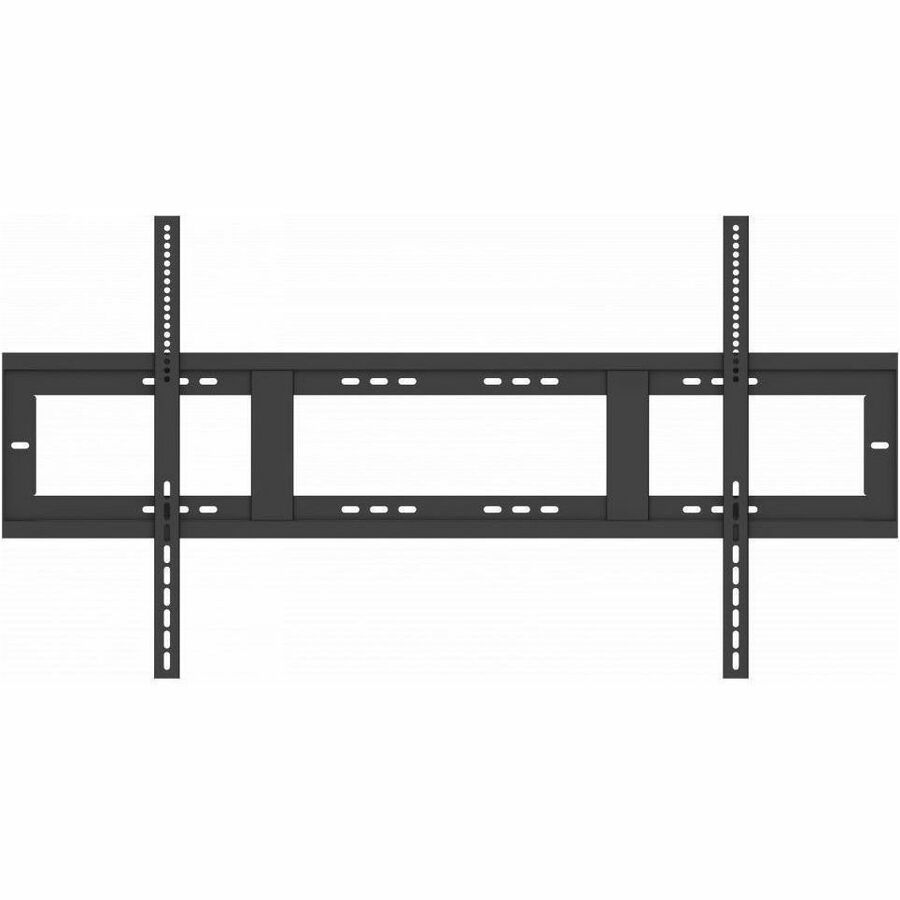

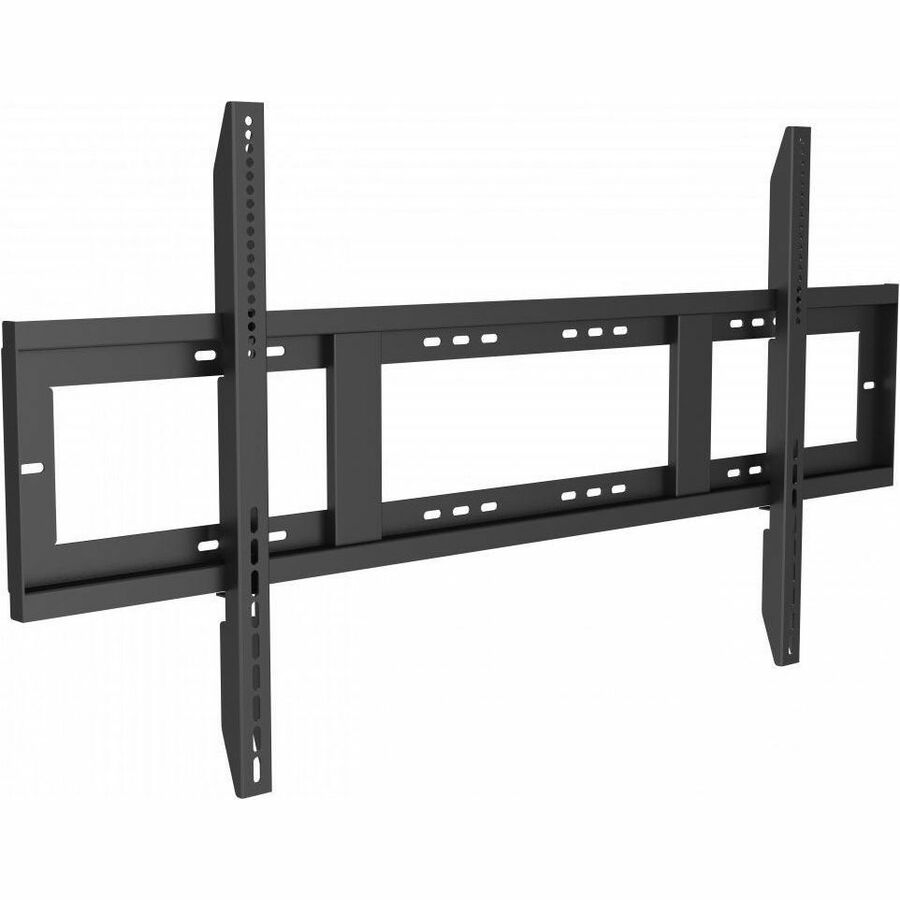

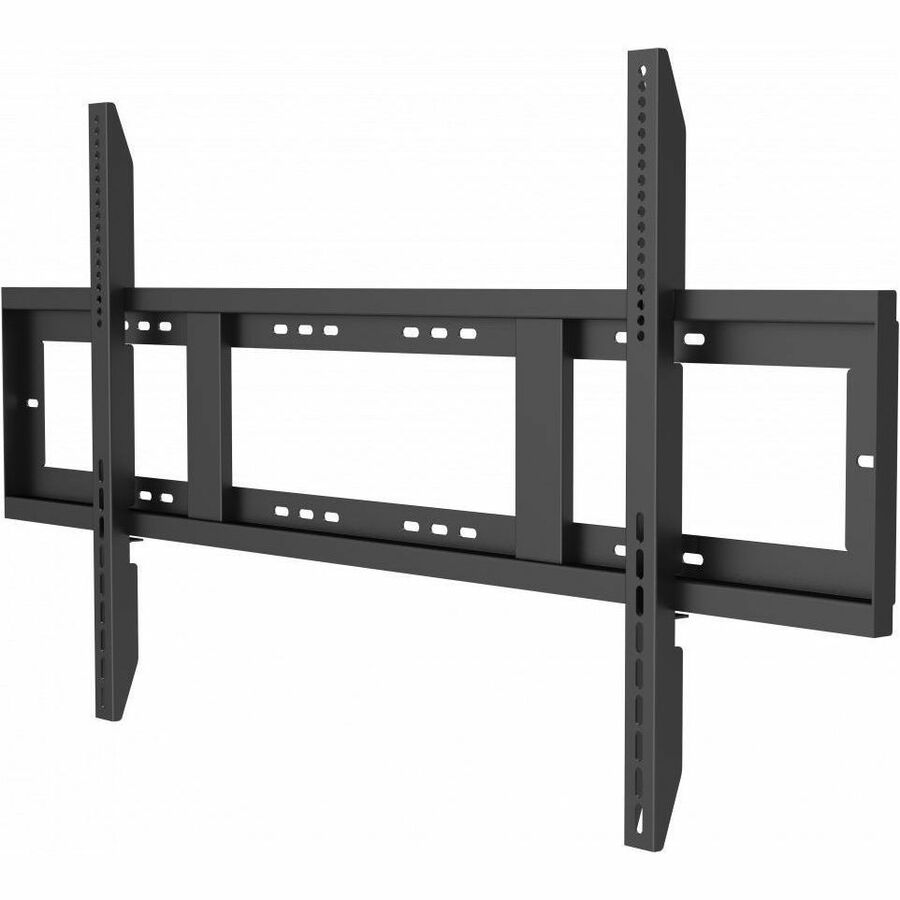

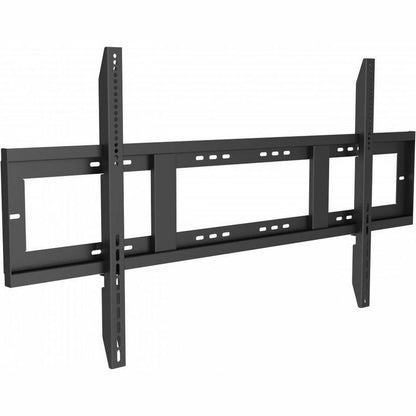

ViewSonic Wall Mount for Display, Interactive Display, Flat Panel Display, TV - Black - VB-WMK-003
Key Features
- Distant to the Wall is 1.8 Inches
- Package Contents Contains VB-WMK-003, Installation Guide, Mounting Hardware
- Recommended Screen Size: 55" - 105"
- VESA Standard Pattern Support 200 x 200 mm to 1000 x 600 mm
- Weight Capacity Up to 330 lbs.
Product Overview
Extend Your Display
Mounted and installed displays extend only 1.8" from the wall.
VESA Configurations
Supports VESA patterns: 200 x 200 mm to 1000 x 600 mm
Secure Placement
A reinforced security bar keeps your display firmly anchored to the wall.
General Information
- Manufacturer: ViewSonic Corporation
- Manufacturer Part Number: VB-WMK-003
- Brand Name: ViewSonic
- Product Name: VB-WMK-003 - Fixed Wall Mount, VESA standard up to 1000x600mm, 330 lbs
- Product Type: Wall Mount
Product Information
- Device Supported:
- Display
- Interactive Display
- Flat Panel Display
- TV
- Maximum Load Capacity: 330 lb
- Minimum Screen Size Supported: 55"
- Maximum Screen Size Supported: 105"
- Features: Extendable
- Mount Profile: Fixed
- Maximum Tilt Angle: 15°
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 1000 x 600
- 200 x 200
- 1000 x 400
- Form Factor: Wall Mountable
- Height: 25.59"
- Width: 49.61"
- Depth: 1.77"
- Weight (Approximate): 15 lb
Miscellaneous
- Package Contents:
- VB-WMK-003 - Fixed Wall Mount, VESA standard up to 1000x600mm, 330 lbs
- Installation Guide
- Mounting Hardware
- Application/Usage: Presentation
- Compatibility:
ViewSonic Displays:
- IFP8650-S
- IFP6550-S
- IFP6550-2-S
- IFP7550-2-S
- IFP8650-2-S
- IFP5550-S
- IFP7550-S
- IFP105S
- CDE8630
- CDE9830
- CDE6530
- CDE7530
Warranty
- Limited Warranty: 90 Day
