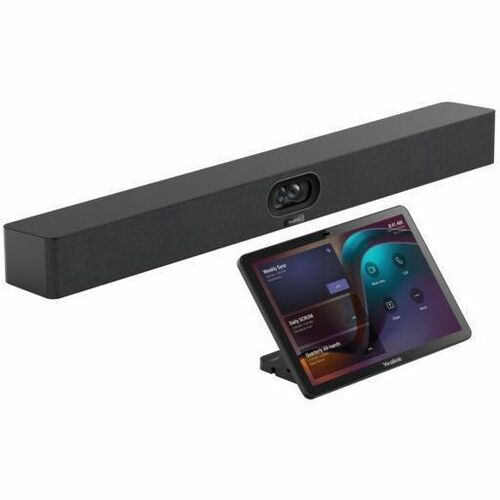

Yealink MeetingBar A40-031 All-in-One Collaboration Bar Kit with Dual 48MP Cameras, 4K UHD at 60fps, 120-Degree Field of View, 8-MEMS Microphone Array with 20-Foot Pickup, 20W Stereo Speakers, CTP25 Touch Panel, and Android 13 for Microsoft Teams and Zoom Conference Room AV Equipment
The Yealink MeetingBar A40-031 is a complete collaboration bar kit that pairs the MeetingBar A40 all-in-one video bar with the CTP25 touch panel controller, providing everything a small to medium meeting room needs for Teams and Zoom video conferencing as turnkey conference room AV equipment. The A40 bar integrates dual 48MP cameras that stitch two 78-degree fields of view into a combined 120-degree frame, an 8-MEMS beamforming microphone array with 20-foot (6-meter) voice pickup, and dual 10W stereo speakers into a single enclosure that mounts above or below any display, and 6x digital zoom with AI-powered Auto Framing and Speaker Tracking keeps participants centered without manual camera adjustments.
The A40 runs on Android 13 and ships certified for both Microsoft Teams Rooms and Zoom Rooms, eliminating the need for a separate PC or dedicated compute device. Dual HDMI output connects to two displays for dual-screen meeting layouts, Gigabit Ethernet provides wired network access, and USB-C with USB-A ports support content sharing and peripheral connections. The CTP25 touch panel adds an intuitive interface for one-touch meeting join, in-room controls, and room scheduling, connecting to the A40 bar over the network for cable-free desk placement. The 4K at 60fps output maintains sharp video quality during active presentations and screen sharing, and the depth of field optimized for 1 to 5 meters ensures consistent focus across the seating area of small to medium conference rooms.
Where the Yealink MeetingBar A40 Collaboration Bar Fits
- Small to medium conference rooms seating up to 12 participants where a complete AV solution ships in one box where the A40 bar and CTP25 touch panel arrive as a matched pair, the Android 13 platform comes preconfigured for Teams or Zoom, and the two-device kit replaces the separate camera, soundbar, PC, and controller that traditional room systems require
- Medium meeting rooms where dual 48MP cameras outperform single-lens video bars where the stitched 120-degree frame captures the full width of a longer conference table without barrel distortion, the 6x digital zoom maintains detail when framing individual speakers at distance, and the 20-foot microphone pickup range covers participants seated across the full room without expansion microphones
- Mixed-platform organizations running both Microsoft Teams and Zoom where the dual Teams and Zoom certification on a single Android platform supports either platform from the same hardware, the CTP25 touch panel provides an intuitive interface for non-technical users to launch and manage meetings, and the Yealink Device Management Platform handles remote administration across locations
What the Yealink MeetingBar A40 Collaboration Bar Delivers
- Dual 48MP Camera System: Two 78-degree cameras stitched into 120-degree combined field of view (110-degree horizontal, 54-degree vertical). 4K UHD at 60fps. 6x digital zoom. AI Auto Framing and Speaker Tracking. 1-5 meter depth of field.
- 8-MEMS Microphone Array with 20W Speakers: 8 beamforming MEMS microphones with 20-foot (6-meter) pickup range. Dual 10W stereo speakers. Full duplex with noise reduction and echo cancellation.
- CTP25 Touch Panel Controller: One-touch meeting join, in-room controls, and room scheduling. Network-connected to A40 bar. Cable-free desk placement.
- Dual-Certified Platform: Android 13 with native Microsoft Teams Rooms and Zoom Rooms support. Single SKU for both platforms. No external PC required. Microsoft MDEP supported.
- Connectivity and Ports: 2x HDMI output for dual-screen layouts. Gigabit Ethernet. USB-C and USB-A ports. 3.5mm line-in and line-out. WiFi and Bluetooth.
