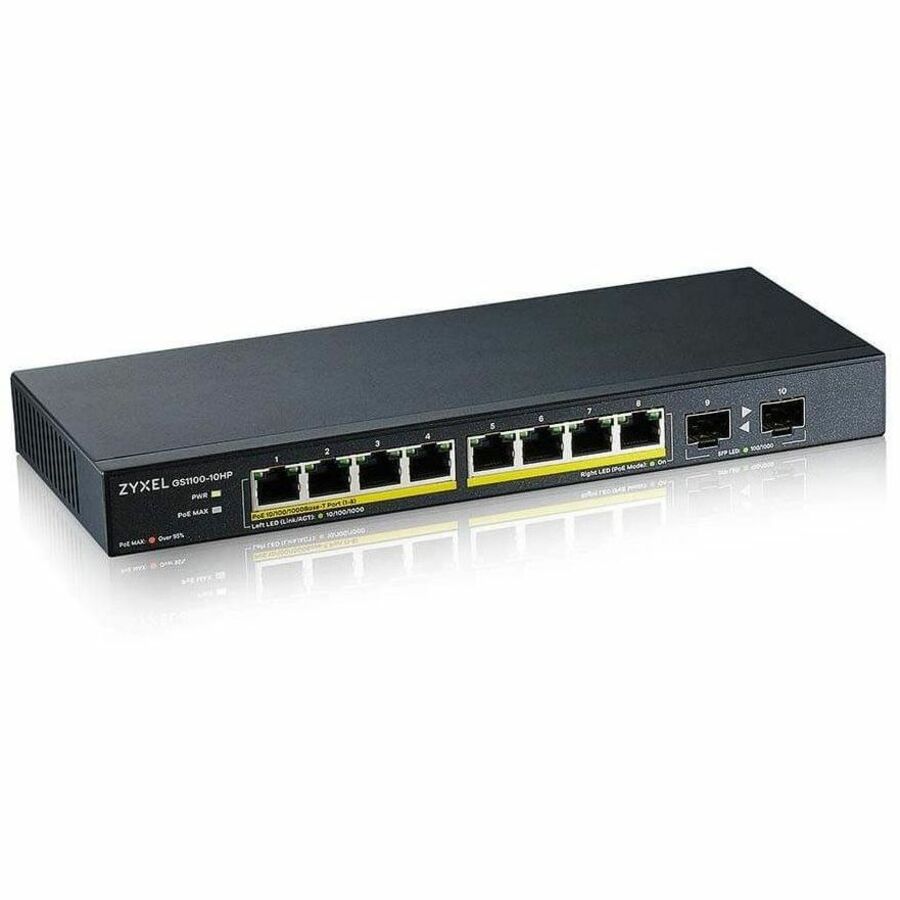

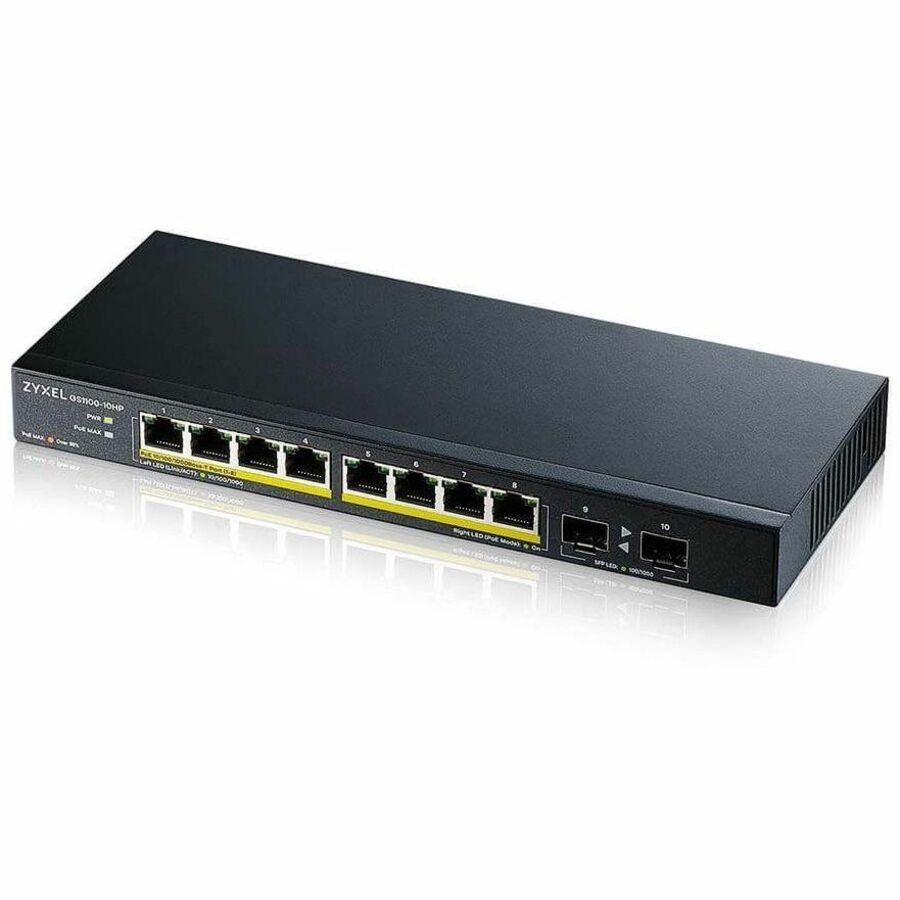

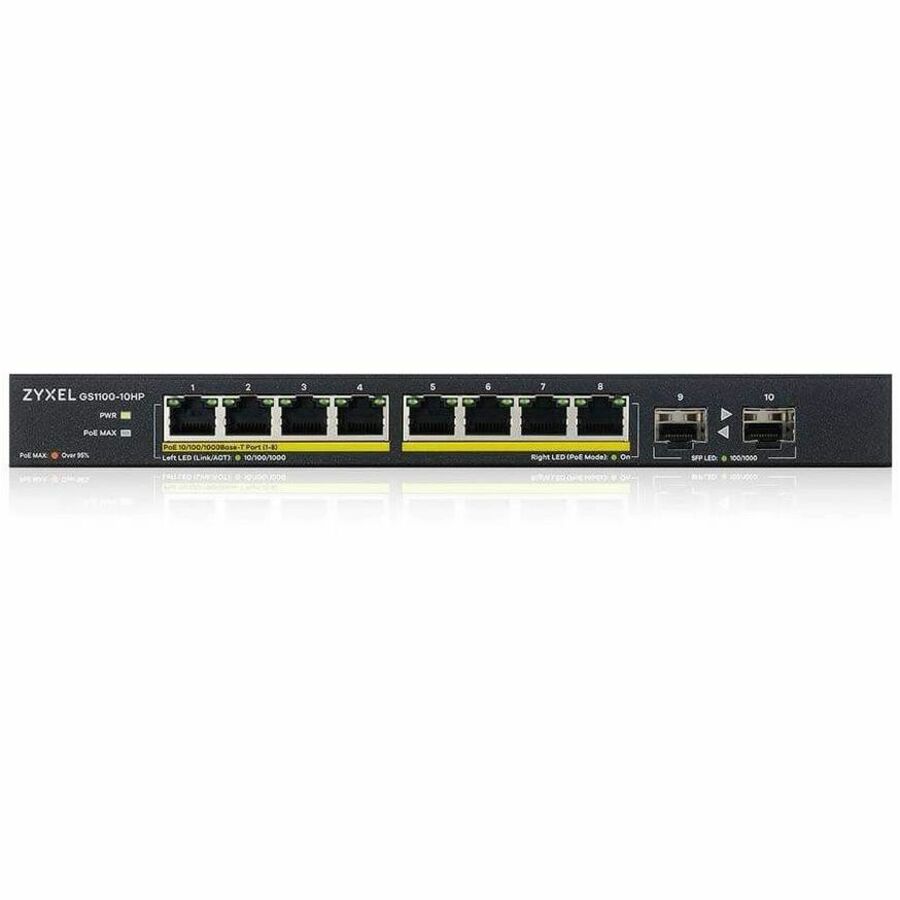

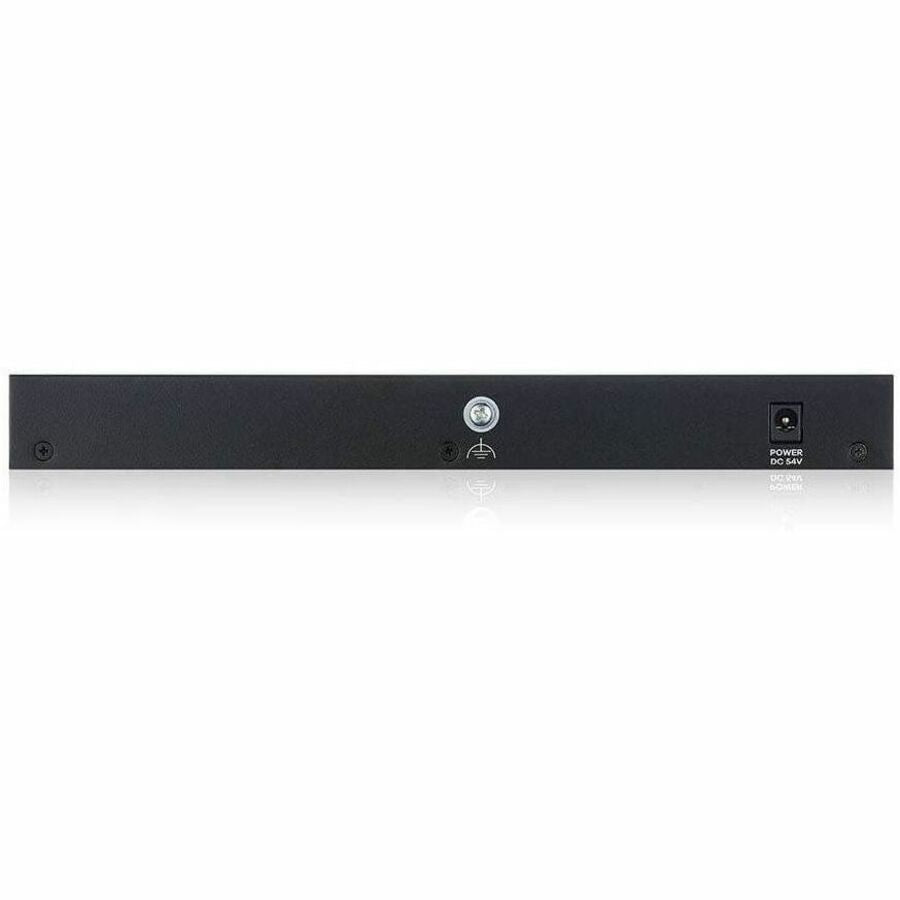

ZYXEL GS1100-10HP 8-Port Gigabit PoE Switch | 8 PoE+ Ports at 130W with 2 SFP Uplinks - GS1100-10HP
Key Features
- 802.3af PoE+ 130W Budget
- Auto MDI/MDI-X support
- Fanless design for silent operation
- Non-blocking, wire-speed transmission
- Two SFP ports support for easy long-distance deployment
Product Overview
Affordable Solution for Gigabit Connections to the DesktopThe ZyXEL GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-Mail Compose Search Delete and-play simplicity for high-bandwidth network applications.
The ZyXEL GS1100 Series consists of four unmanaged switches: the GS1100-8HP, GS1100-16, GS1100-24 and GS1100-24E. The GS1100-16 and GS1100-24E feature 16 and 24 GbE ports. The GS1100-24 is a 24-port Gigabit switch with 2 additional open Gigabit SFP slots, while the GS1100-8HP is an 8-port Gigabit switch that complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard, providing 4 PoE ports with up to 30 watts per port.
General Information
- Manufacturer: ZYXEL Communications Corp.
- Manufacturer Part Number: GS1100-10HP
- Brand Name: ZYXEL
- Product Series: GS1100
- Product Model: GS1100-10HP
- Product Name: GS1100-10HP Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 8
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-TX
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 2.0
- Expansion Slot Type: SFP (mini-GBIC)
- Shared SFP Slot: No
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: No
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 130 W
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1"
- Width: 4"
- Length: 10"
Miscellaneous
- Country of Origin: China
