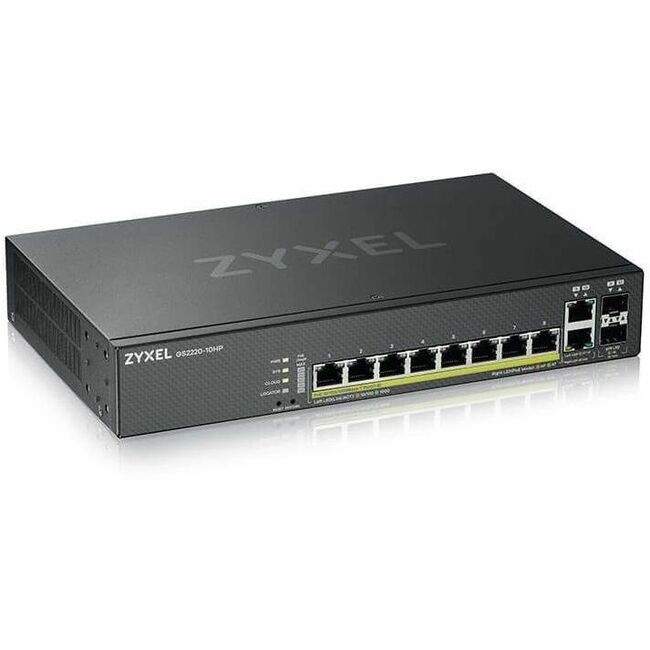

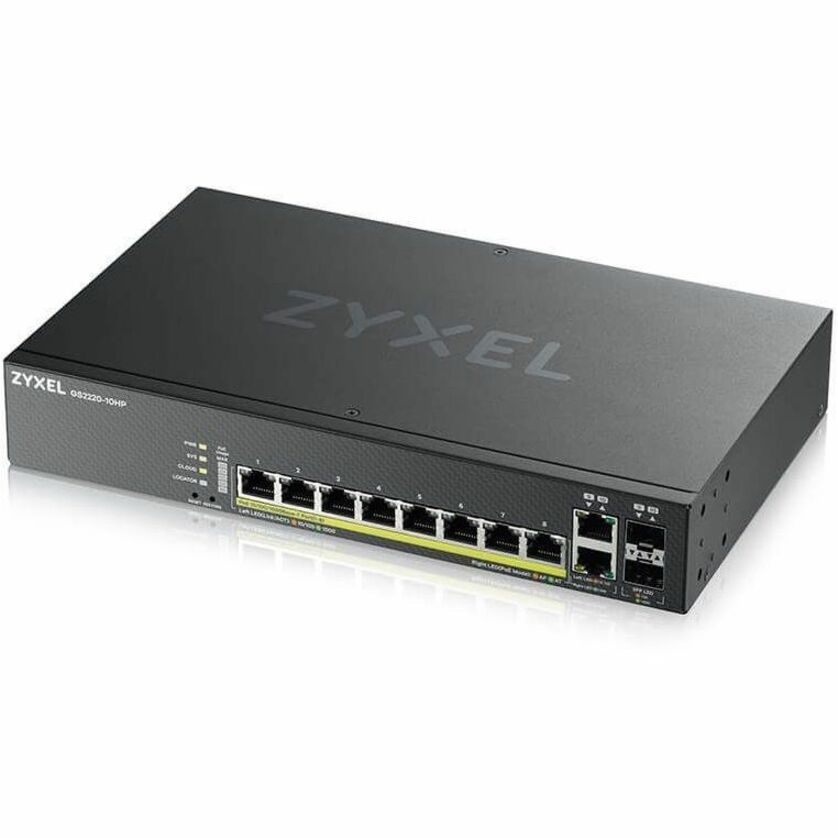

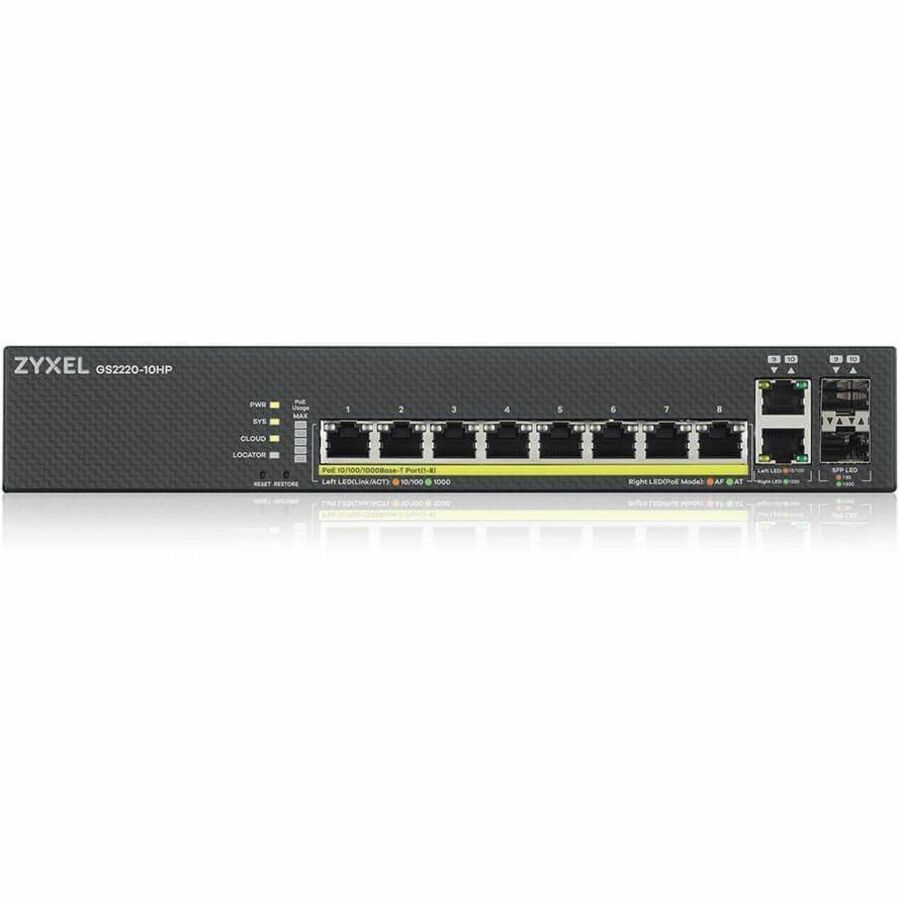

ZYXEL GS2220-10HP 8-Port Gigabit L2+ Managed and Nebula Pro Cloud Managed Switch | 8 PoE+ Ports at 180W with 2 SFP Uplinks - GS2220-10HP
Key Features
- Check real-time status intuitively by cloud and PoE LED indicators
- High power budget of 375 W (28HP/52HP) and 180 W (10HP) within its compact case design simplifying rack installation
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
- NebulaFlex Pro allows users to switch between standalone management and intuitive Nebula cloud managed mode with 1-Year Pro Pack bundled
- Smart fan and fanless designs offer near silent operations in both desktop and rack-mount environment
Product Overview
GS2220 Layer 2 Managed Switch
Designed For Converged Networks
Industry first tri-mode switch
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.
Powerful L2 features
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses, and educational institutions greater agility and more effective traffic management for the converged applications of today.
Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.
Power your devices with efficiency and energy-saving
The PoE models support 802.3at to offer 30W per port along with maximum 375W high-power budget to meet the needs from power-hungry devices. The intelligent consumption mode allows delivery of only the actual power required by devices connected to the switch for better business ROI.
Experience whisper-silent operations
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.
Flexible port combination
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.
General Information
- Manufacturer: ZYXEL Communications Corp.
- Manufacturer Part Number: GS2220-10HP
- Brand Name: ZYXEL
- Product Series: GS2220
- Product Model: GS2220-10HP
- Product Name: 8-port GbE L2 PoE Switch with GbE Uplink
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 8
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet TP/SFP Combo
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 2.0
- Expansion Slot Type: SFP (mini-GBIC)
- Shared SFP Slot: Yes
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 4
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 180 W
- Power Source:
- Power Supply
- PoE
- Power Consumption: 210.80 W
Physical Characteristics
- Form Factor:
- Rack-mountable
- Wall Mountable
- Height: 1.7"
- Width: 10.5"
- Depth: 6.4"
- Weight (Approximate): 3.97 lb
Miscellaneous
- Package Contents:
- 8-port GbE L2 PoE Switch with GbE Uplink
- Power Cord
- Wall-mount Kit
- Rack Mounting Kit
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
