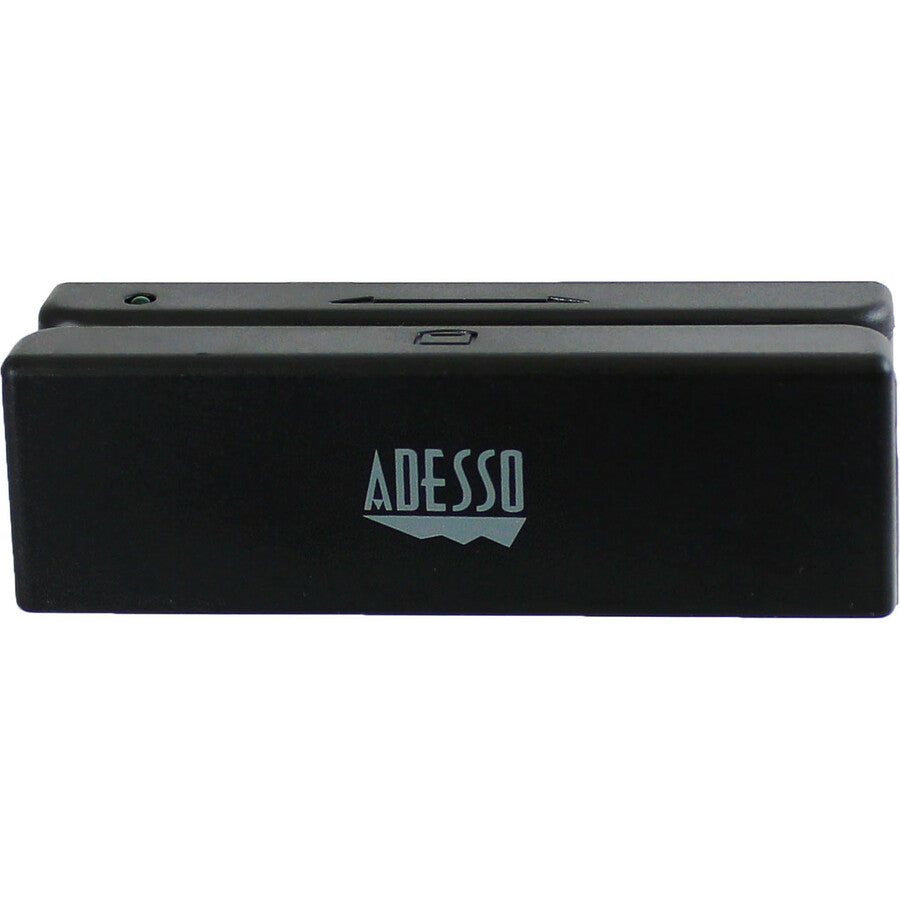

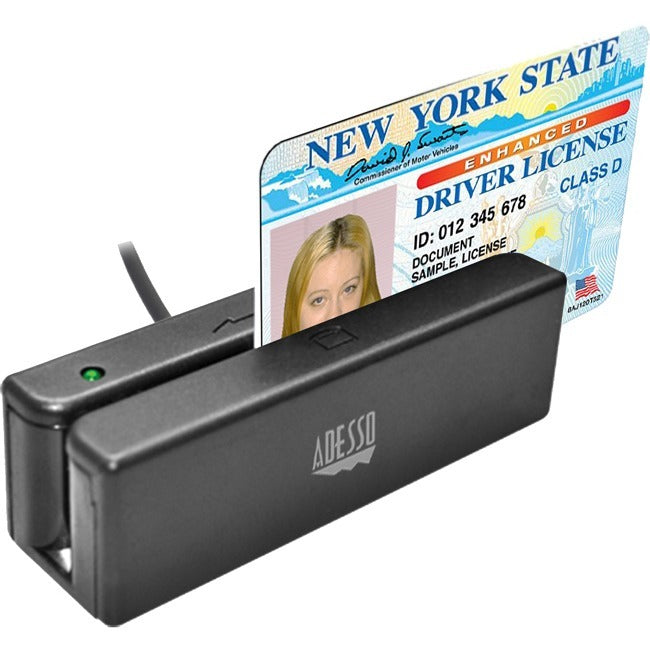

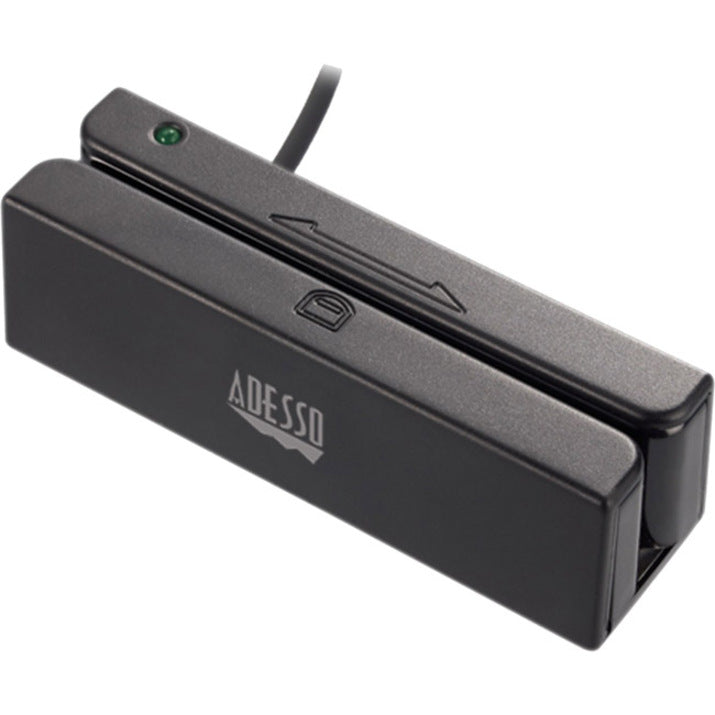

Adesso MSR-100 Magnetic Stripe Card Reader - MSR-100
Key Features
- Analog output of keyboard
- Bi-directional card reader
- Chip set: Magtek
- Connectes easily and directly with computer or terminal
- Good Anti-interference, and excellent accurate reading
- Operation response combines a diode and buzzer for notification of successful reading
Product Overview
The Adesso MSR-100 magnetic stripe card reader is used to read and transmit data from any magnetic card that is swiped. It has an excellent Electro--Static discharge and electromagnetic compatible. It is widely used in all different areas such as POS terminals, poster terminals, access monitoring, attendance records etc...
Features:

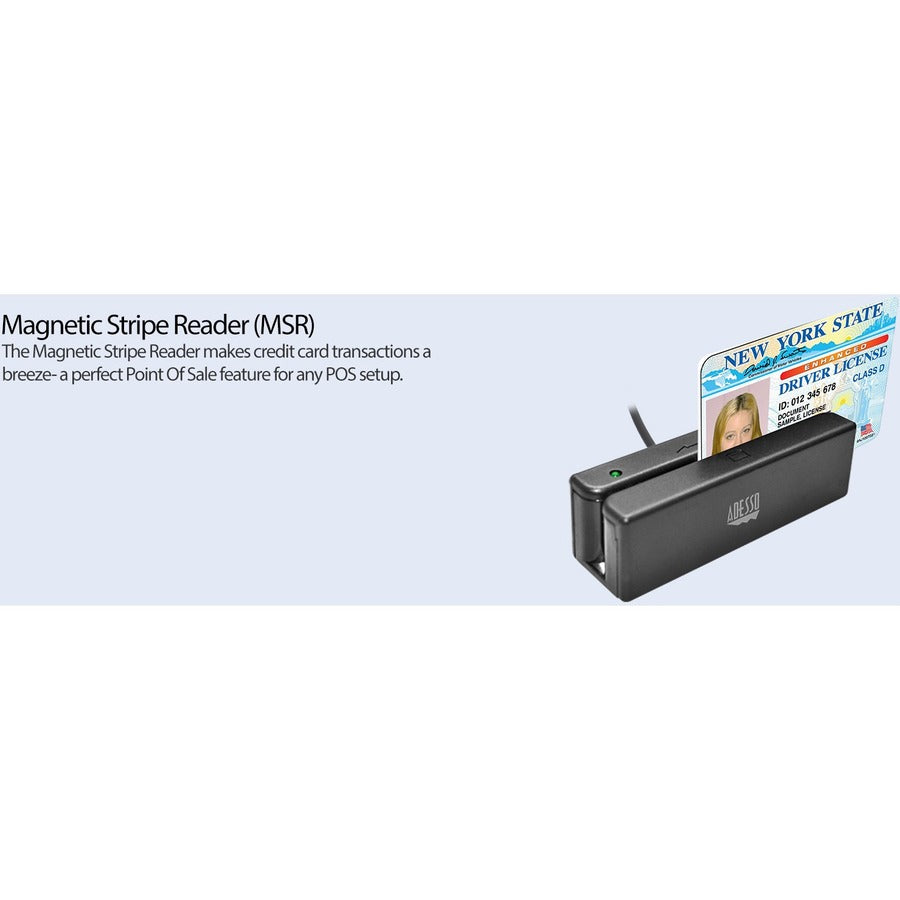

Magnetic Stripe Reader (MSR)
The Magnetic Stripe Reader makes credit card transactions a breeze- a perfect Point Of Sale feature for any POS setup.

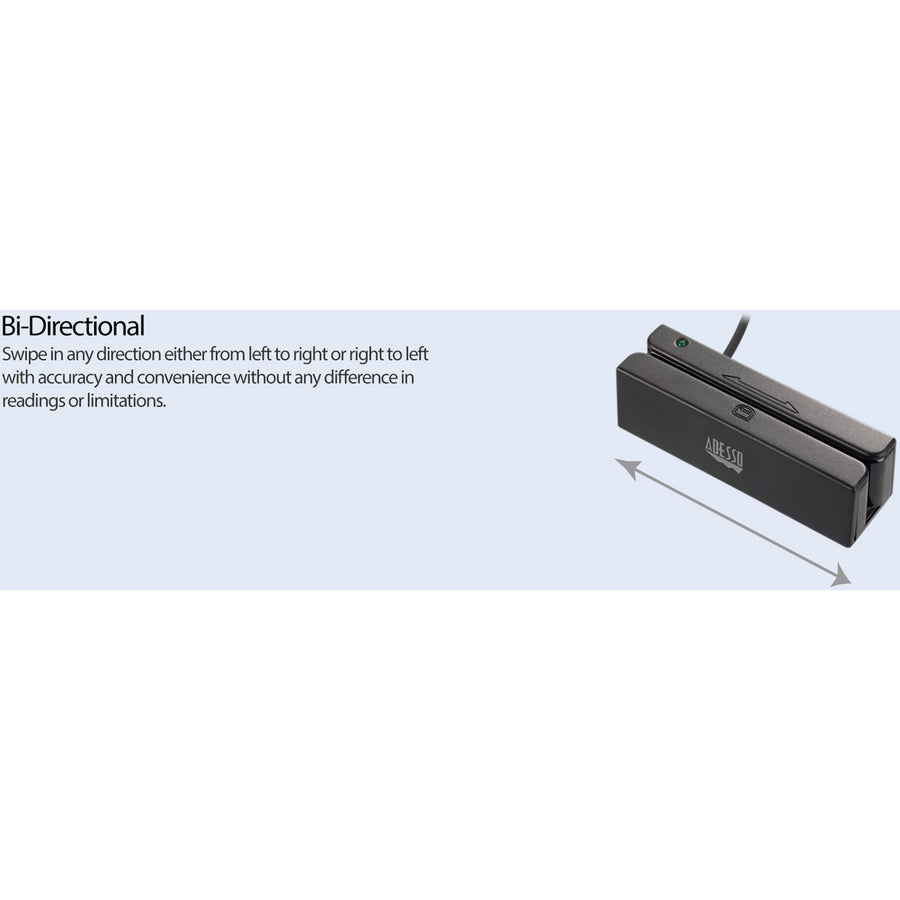

Bi-Directional
Swipe in any direction either from left to right or right to left with accuracy and convenience without any difference in readings or limitations.
Up to 500,000 passes with ISO-conforming cards
Long life span greater then 500,000 swipes of ISO cards. Never worry about a wearing head, or inaccurate readings because of it. The MSR-100 will last for years and years of accurate readings into your POS system.

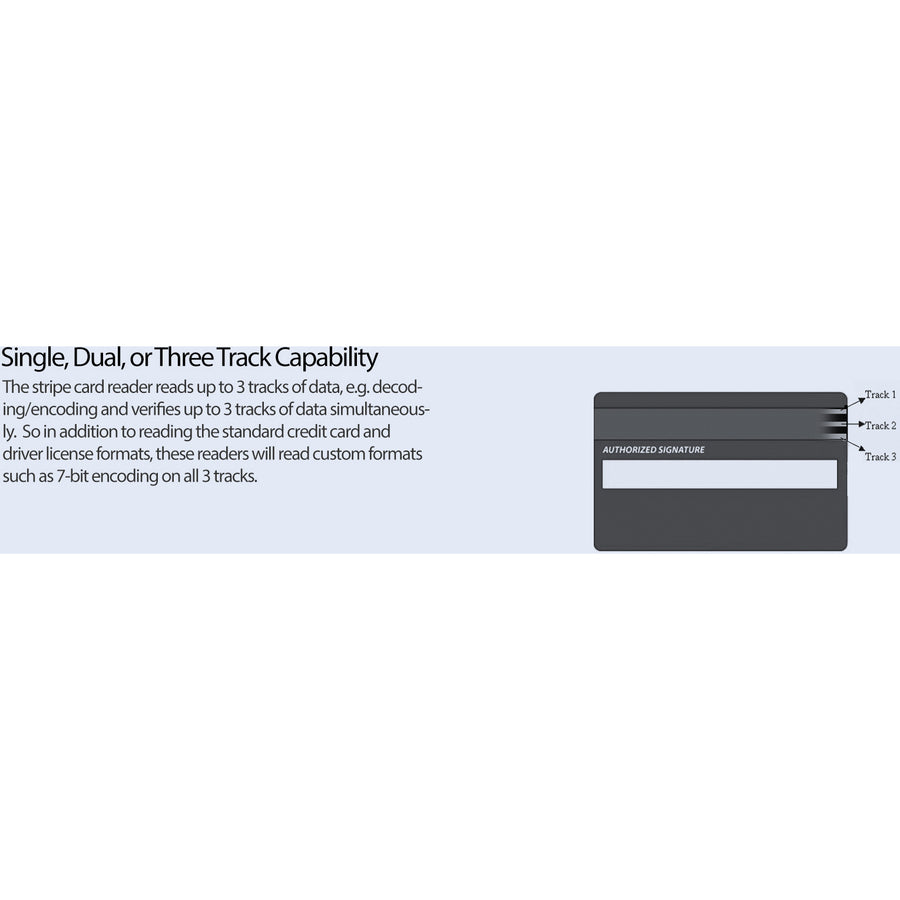

Single, Dual, or Three Track Capability
The stripe card reader reads up to 3 tracks of data, e.g. decoding/encoding and verifies up to 3 tracks of data simultaneously. So in addition to reading the standard credit card and driver license formats, these readers will read custom formats such as 7-bit encoding on all 3 tracks.
General Information
- Manufacturer: Adesso, Inc
- Manufacturer Part Number: MSR-100
- Brand Name: Adesso
- Product Model: MSR-100
- Product Name: MSR-100 Magnetic Stripe Card Reader
- Product Type: Magnetic Stripe Reader
Technical Information
- Magnetic Stripe Track Configuration: Triple Track
- Magnetic Stripe Track Number:
- Track 1
- Track 2
- Track 3
- Minimum Swipe Speed: 3 in/s
- Maximum Swipe Speed: 50 in/s
- Number of Swipes (Head Life): 500000
- Magnetic Stripe Format:
- ISO 7810
- ISO 7811
- Bi-directional Reading: Yes
Interfaces/Ports
- USB: Yes
Power Description
- Input Voltage: 5 V DC
Physical Characteristics
- Height: 1"
- Width: 0.9"
- Length: 3.6"
- Weight (Approximate): 4 oz
Miscellaneous
- Additional Information:
- Encode Mode: F2F
- Standard: ISO7810?ISO7811-1/2/3/4/5
- Compatible Operation systems: Windows® 2000 / XP / Vista / 7 / 8 / 10
- Data Format: according with the requirement of user
- Card Swipe Speed: 10-140cm/s
- Life circle of the Head: ?500000 times
- Coercive Force: 300-4000oe
- The Density of Magnetic Stripe:
Track 1-210BPI with max 75 characters
Track 2-210BPI with max 75 characters or 75BPI with 37 characters;
Track 3-210BPI with max 75 characters
Environment :
- Working Temperature: 0-40?
- Working Humidity: 10%- 90%
- Working Voltage: DC+5V ±5%
- Working Current: ≤50mA
- Storage Temperature: -20 -50 ?

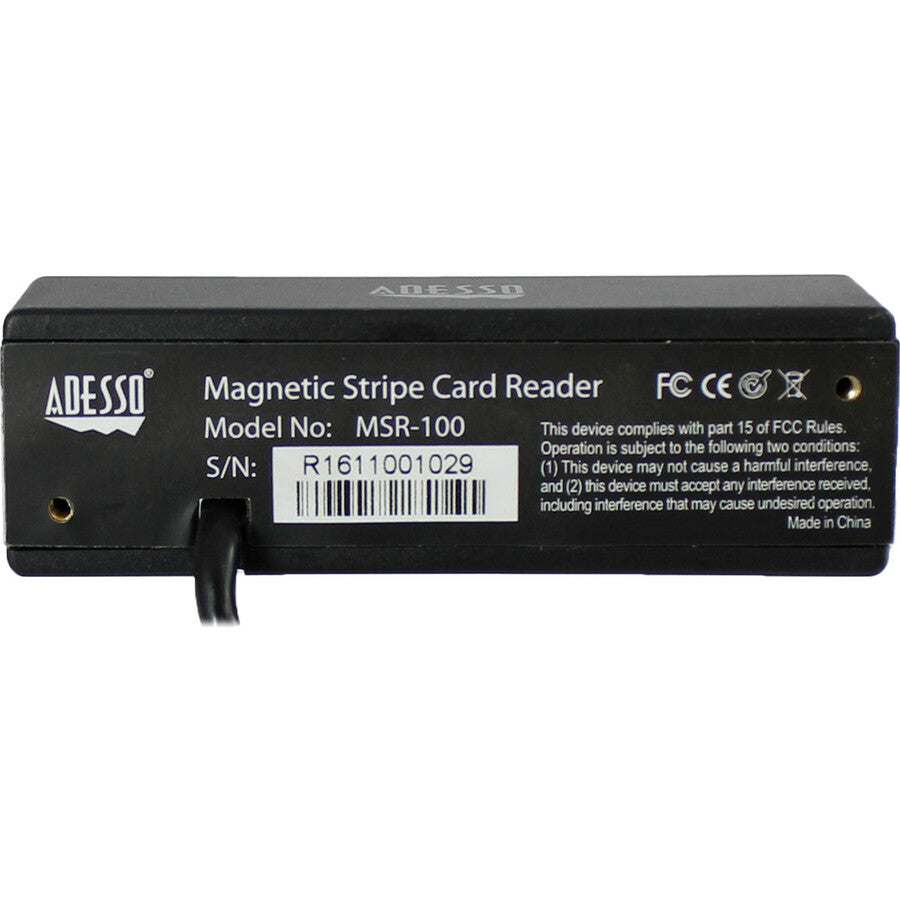

- Certifications & Standards:
- FCC
- CE
- Environmentally Friendly: Yes
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: 1 Year
