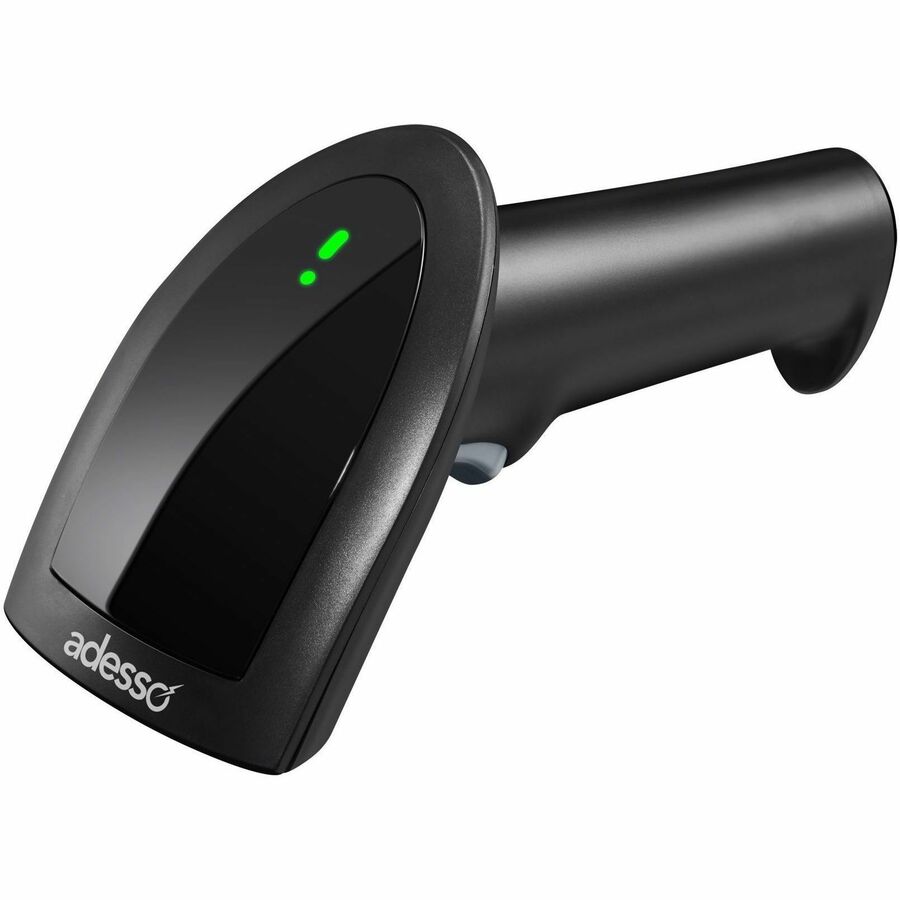

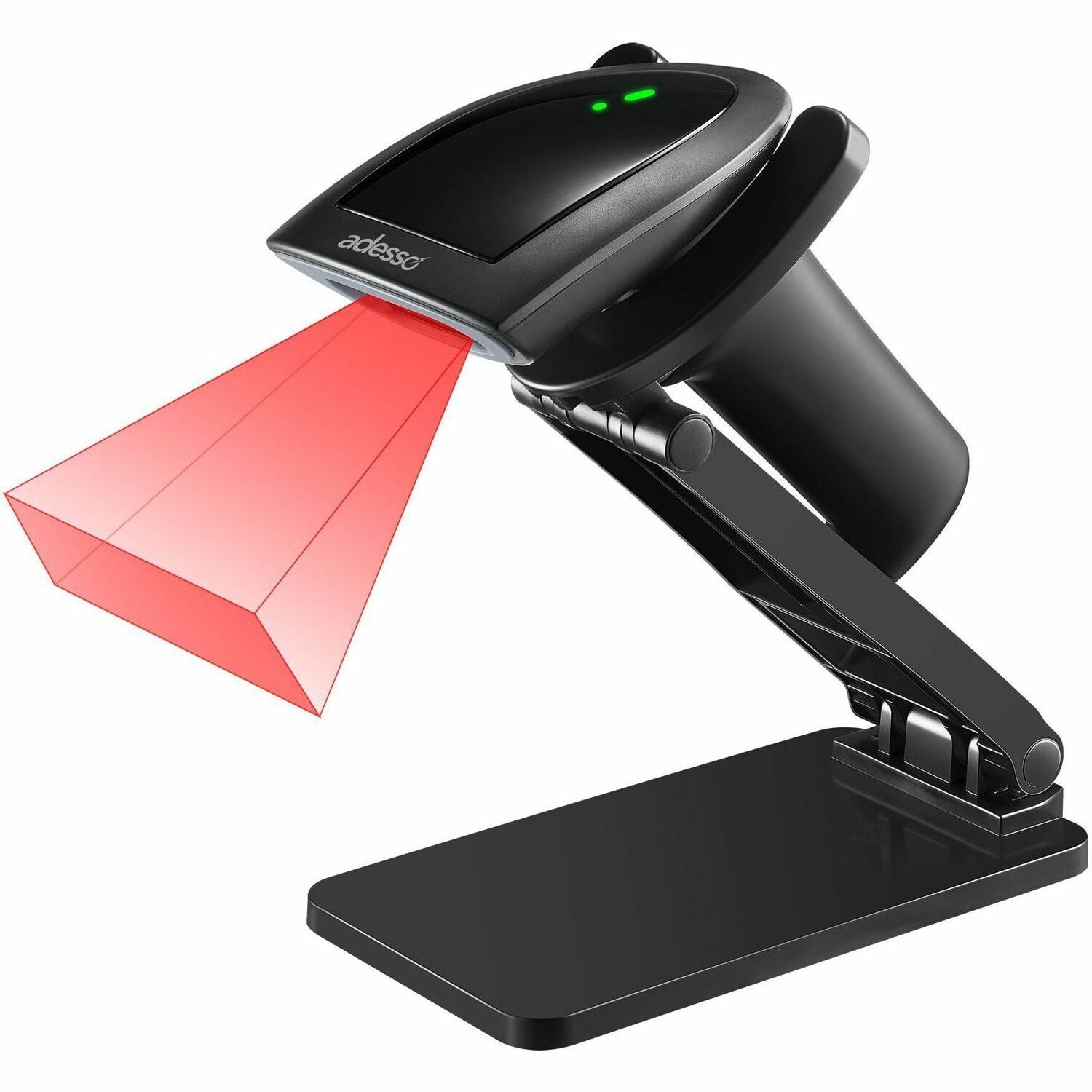

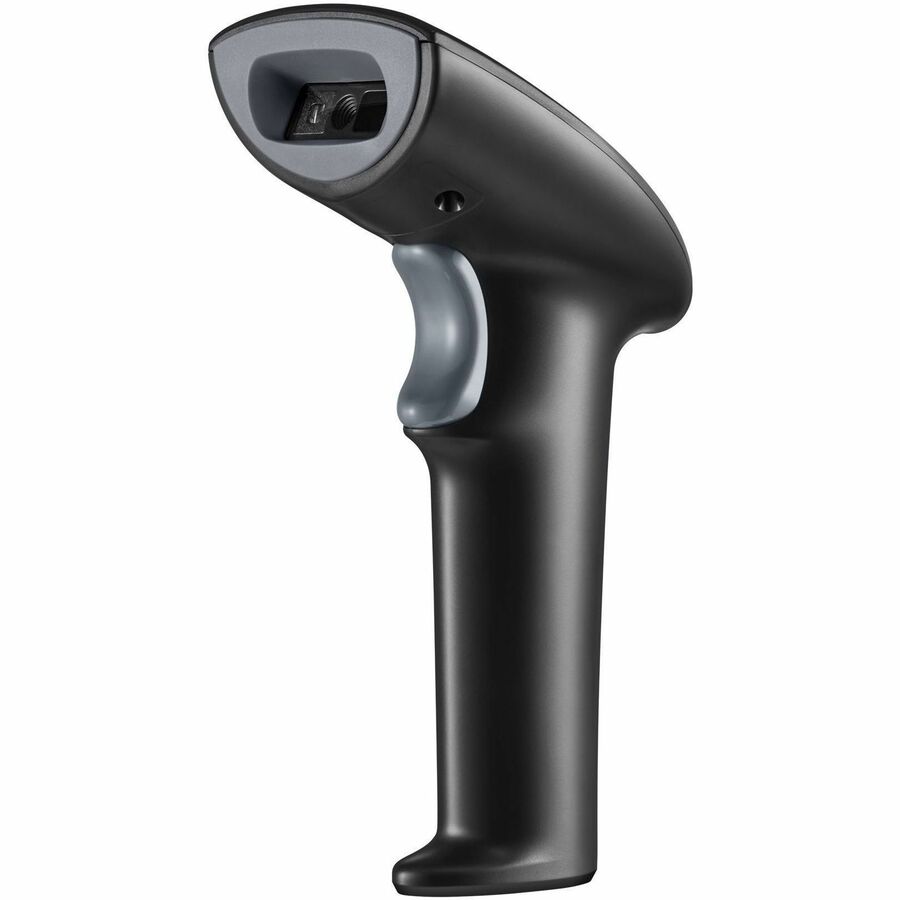

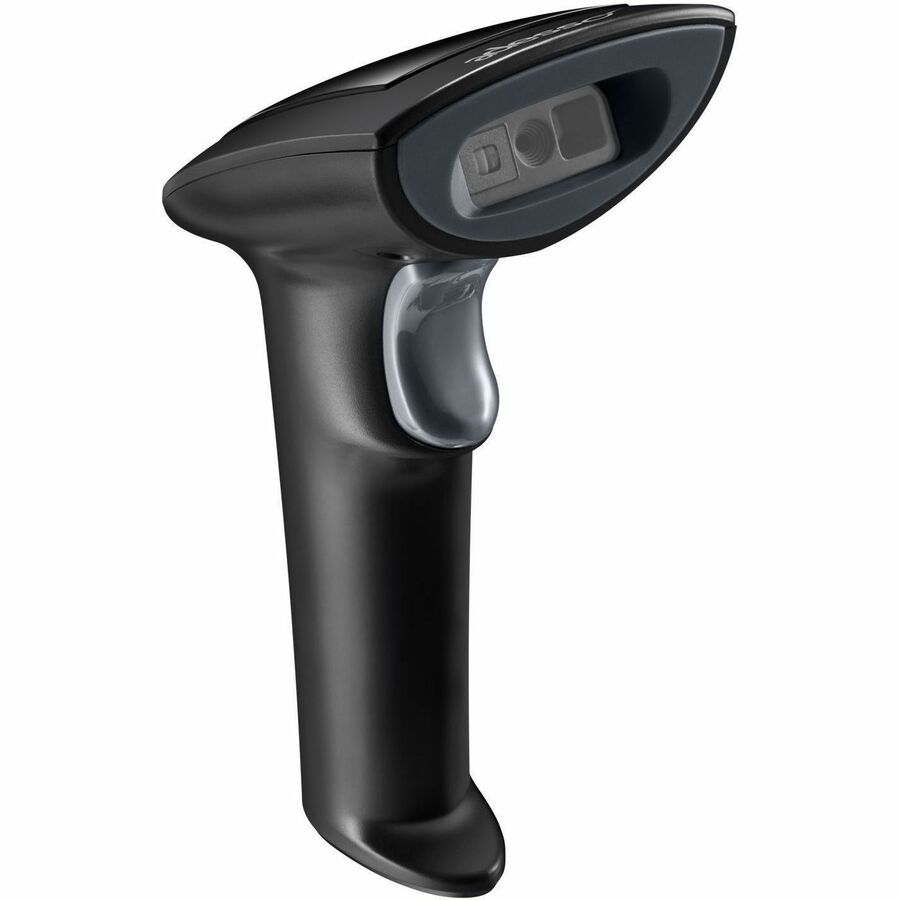

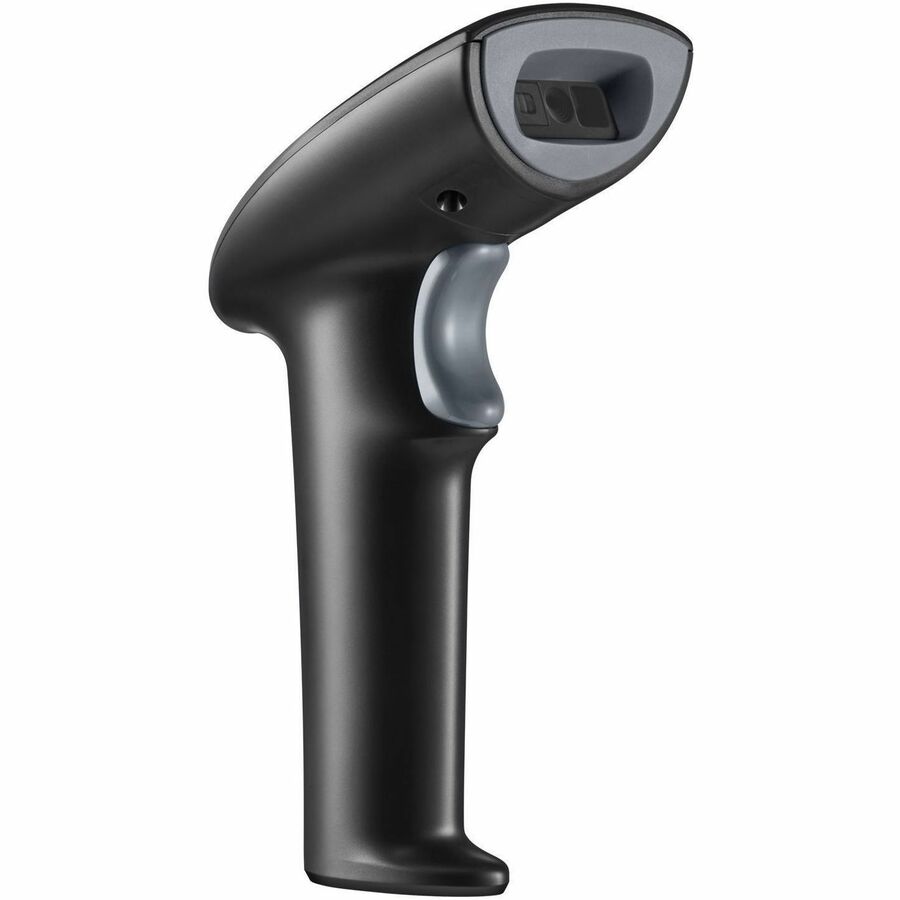

Adesso NuScan 2900 Bluetooth and Wireless 2D Barcode Scanner - NUSCAN 2900
Key Features
- Features CMOS image sensor
- Increase productivity and performance by excluding the cable
- Incredible and responsive 2D scanning even on curved or translucent surfaces
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
Product Overview
2D Scanning Engine
The 2D scanning engine oers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes
Bluetooth, 2.4Ghz and Wired Connection
Featuring dual connectivity options: Bluetooth for seamless wireless operation with mobile devices, tablets, and computers, and 2.4GHz wireless via a USB dongle for a stable, long-range connection. Eortlessly switch between
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 5 inches per second, offering fast and accurate.

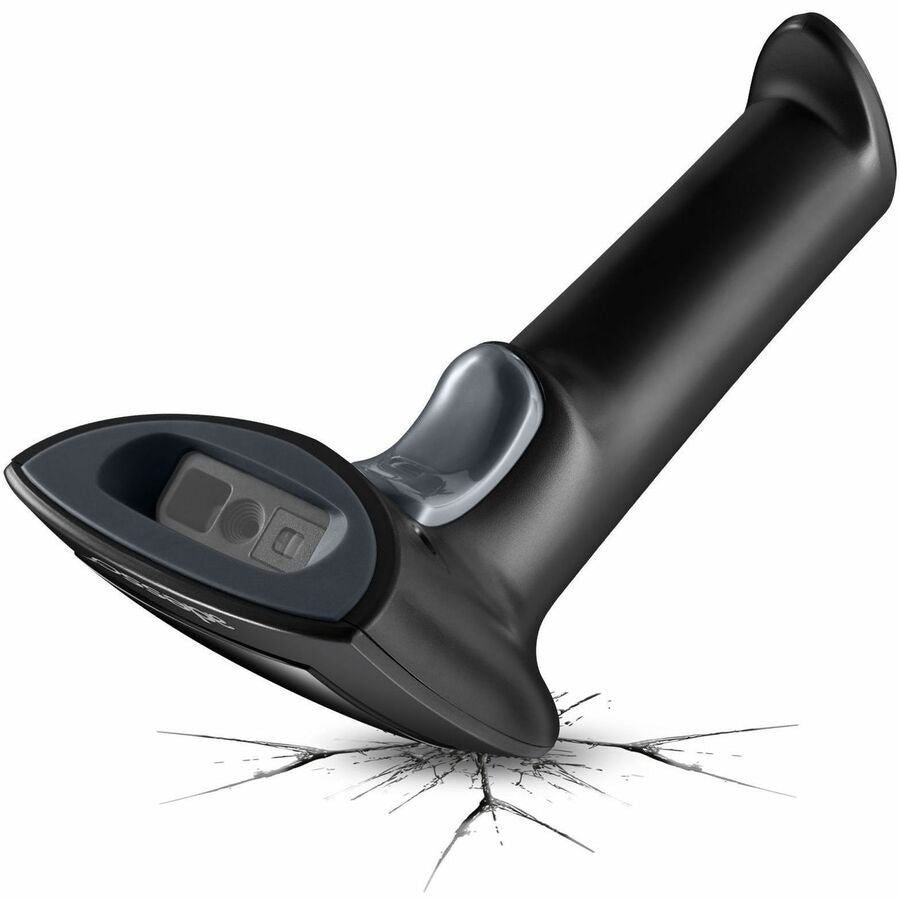

Drop Protection
With its drop protection and rugged design, the NuScan 2900R can withstand accidental drops of up to 5 feet.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, oering fast and accurate scanning results.
Long Scanning Range
The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan depth.
General Information
- Manufacturer: Adesso, Inc
- Manufacturer Part Number: NUSCAN 2900
- Brand Name: Adesso
- Product Line: NuScan
- Product Model: 2900
- Product Name: NuScan 2900 Bluetooth and Wireless 2D Barcode Scanner
- Product Type: Barcode Scanner
Technical Information
- Connectivity Technology: Wireless
- Scanning Capability:
- 2D
- 1D
- Barcode Symbology Supported:
1D:
- UPC/EAN/JAN
- UPC/EAN with supplementary
- JAN 8 & Jan 13
- ISBN/ISSN
- Code 39
- ASCII
- Codabar
- Code 128
- Code 93
- Interleaved 2 of 5
- Industrial 2 of 5
- Standard 2 of 5
- GS1 DataBar
- Matrix 2 of 5.
2D:
- QR
- Micro QR
- PDF417
- Datamatrix
- Azetec
- Matrix
- Image Sensor Type: CMOS
- Scanner Range: Long Range
- Reading Angle (Pitch): 70°
- Reading Angle (Roll): 360°
- Maximum Ambient Light: 100000 lux
- Drop Specification:
With its drop protection and rugged design, the NuScan 2900R can withstand accidental drops of up to 5 feet.
- Minimum Print Contrast: 20%
- Minimum Element Resolution (Code 39): 4.7 mil
- Minimum Element Resolution (DataMatrix): 10 mil
- Image Sensor Resolution: 640 x 480
- Illumination Type: LED
- Illumination Color: White
- Features: Beep
Network & Communication
- Bluetooth: Yes
Battery Information
- Battery Chemistry: Lithium Polymer (Li-Polymer)
- Battery Capacity: 2000 mAh
- Maximum Battery Run Time: 14 Hour
Environmental Conditions
- Operating Temperature: 14°F (-10°C) to 140°F (60°C)
- Storage Temperature: -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing): 5% to 95%
Physical Characteristics
- Rugged: Yes
- Durability:
- Drop Resistant
- Shock Resistant
- Height: 1"
- Width: 1.9"
- Length: 4.2"
Miscellaneous

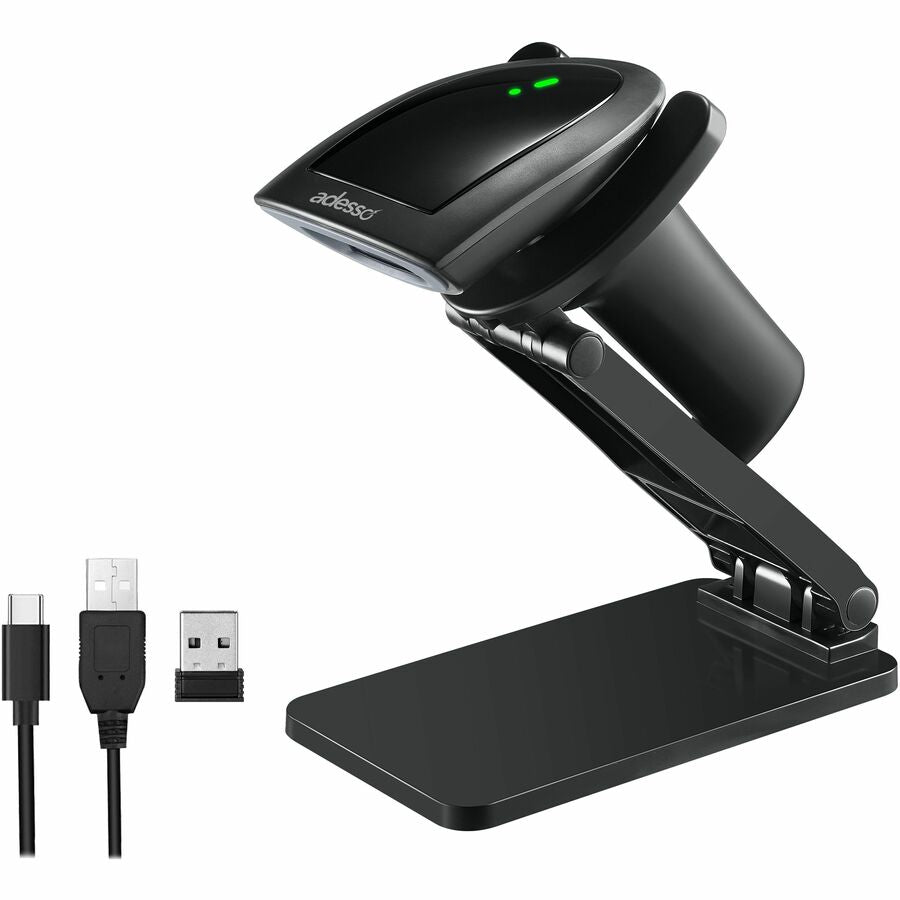

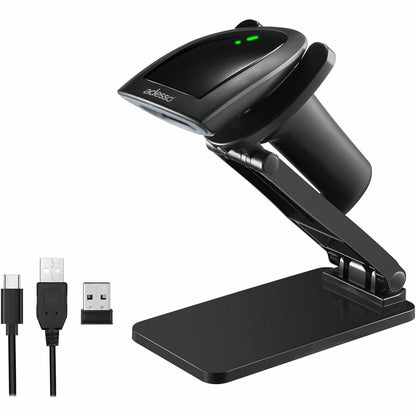

- Package Contents:
- Adesso NuScan 2900

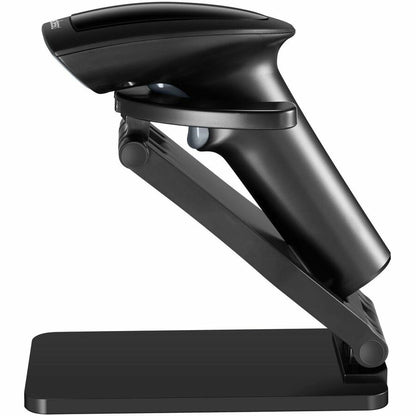

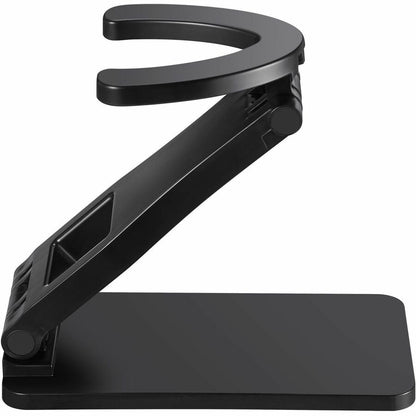

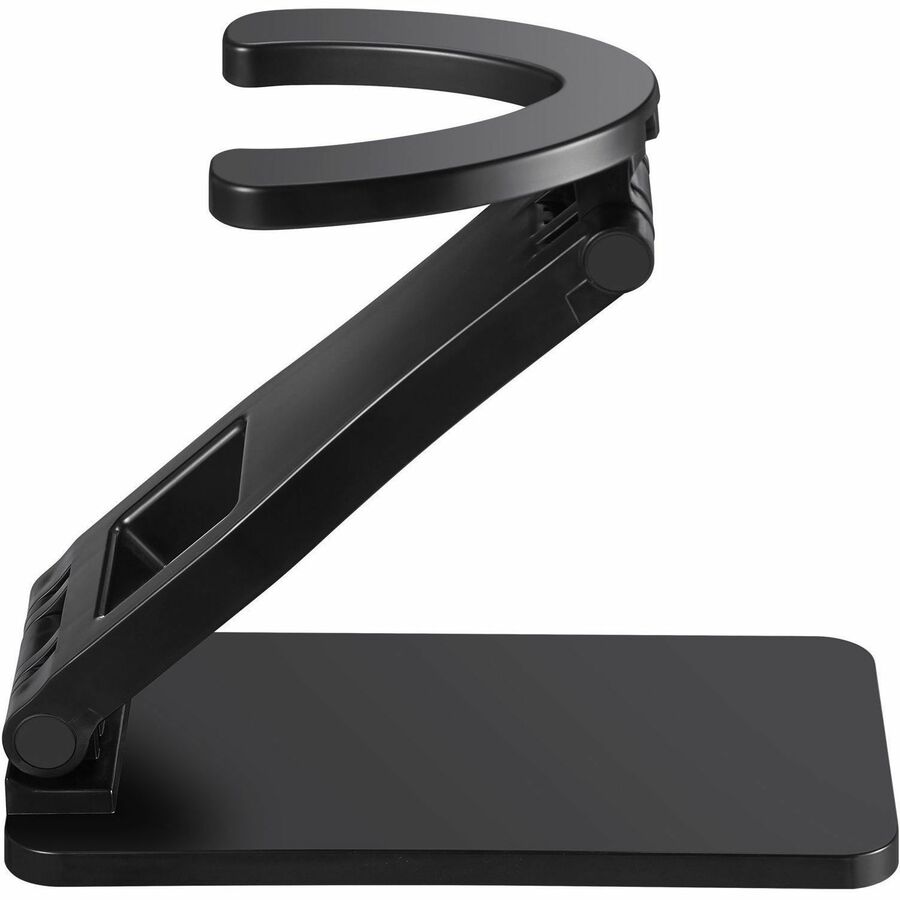

- Scanner Holder

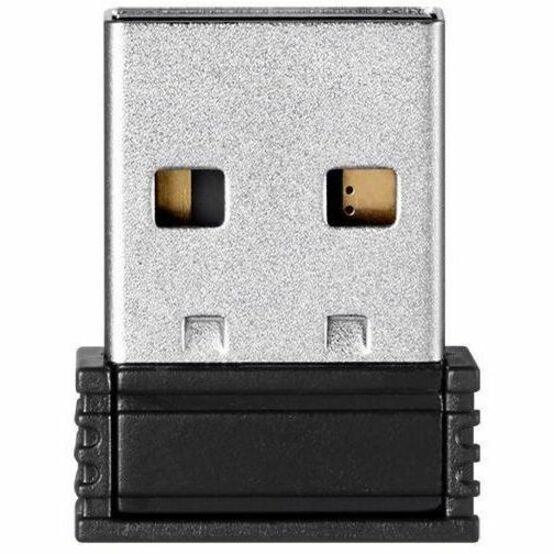

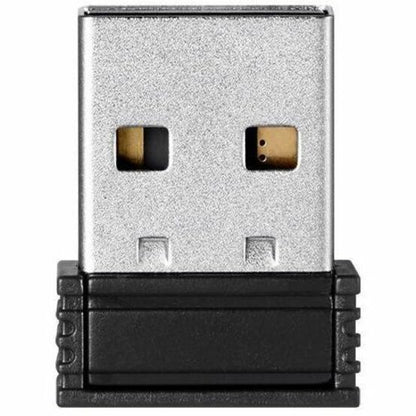

- 2.4Ghz Receiver
- Quick Start User Guide
- Platform Supported:
- Windows
- Mac
- Android
- Tablet
- iOS
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
