3-Channel Analog Master Station with Selective Calling, All Call Capability, and Hands-Free Response for Small Intercom Systems

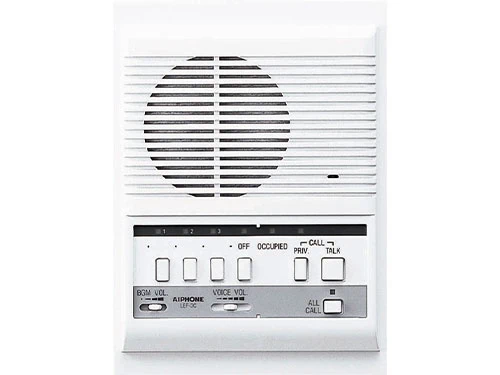

The Aiphone LEF-3C is a 3-channel analog master station that supports up to 4 intermixable stations, including additional masters, sub stations, and door stations on the same system. Each of the 3 call buttons connects to a specific station for selective calling, and the master operator uses press-to-talk communication while the called station responds hands-free. When paired with optional All Call wiring and the BG-10C exchange unit, the LEF-3C gains simultaneous paging across every connected station and background music distribution. The LEF-3C fits building security and internal communication systems where a small number of zones need dedicated intercom channels without IP networking infrastructure.
The LEF-3C runs on 12V DC power and connects to each station with a multi-conductor wire run that reaches up to 650 feet on 22 AWG cable or 1,600 feet on 18 AWG cable. An occupied LED on the front panel shows when the talk path is in use, preventing other operators from interrupting an active conversation. The compact 3-button layout keeps the unit smaller than the 5-channel and 10-channel LEF models, making it the right fit for installations that need 3 or fewer intercom zones with the same audio quality and wiring flexibility as the larger stations in the series.
Where the LEF-3C Fits
- Small offices and medical clinics where the front desk needs dedicated intercom channels to 2 or 3 rooms, wings, or entry points for quick two-way communication without a phone system
- Secure facilities and access points where a small guard station or reception desk needs selective calling to a door station and one or two interior stations for entry screening and visitor management
- Retail and service locations where a back office, stockroom, and front entrance each need a dedicated intercom channel connected to a single master station at the manager's desk
What the LEF-3C Delivers
- 3 selective call channels with up to 4 stations: Each call button connects to a dedicated station. The system supports any combination of master stations, sub stations, and door stations across the 3 channels for flexible zone coverage.
- All Call paging with optional BG-10C exchange unit: Adding the optional BG-10C and 3 additional common wires enables simultaneous paging to every connected station and background music distribution from an external audio source.
- Press-to-talk master with hands-free response: The master operator presses and holds the call button to talk, then releases to listen. The receiving station responds hands-free without pressing any button, keeping the conversation natural at the remote end.
- Long-distance wiring up to 1,600 feet: Standard 22 AWG cable reaches 650 feet between stations, and 18 AWG cable extends the run to 1,600 feet. The multi-conductor wiring scheme uses 5 common wires plus one individual wire per station.
- Compact form factor for small installations: The 3-button layout measures 8-1/4 in. H x 6-1/8 in. W x 1-3/8 in. D, keeping the unit smaller and less obtrusive than the 5-channel and 10-channel LEF models while delivering the same audio performance.
