- Description
- Specifications
Aorus STEALTH B850 Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX - B850 AORUS STEALTH
Key Features
- (Exclusive Patented Design)
- : 4*DIMMs with AMD EXPO™Memory Module Support
- : 4*M.2 slots, including PCIe 5.0 x4
- : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- : Experience the protection and heat dissipation with the UD Base Plate.
- : HDMI
- : high-efficiency heat dissipation & flexible baseplate for M.2 SSD
- : M.2 heatsinks with screwless design
- : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
- : PCIe and M.2 slots with Quick Release & Screwless Design
- : Quick and easy design for Wi-Fi antenna installation
- : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- : Unleash new era gaming performance
- : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5
- DDR5 OC up to 8200MT/s
- Digital twin 14+2+2 phases VRM solution
- DriverBIOS
- Dual Channel DDR5
- Efficien
Product Overview
OVERVIEW | X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
Zenith Memory Performance
Advanced AI-enhanced overclocking tech. for DDR5.
D5 Bionic Corsa
Advanced AI-enhanced overclocking tech. for DDR5.
Steady Power
Keeps your computing smooth.
Comprehensive Thermal
Keep your system cool and efficient
Hassle-free Assembly
Ultimate DIY-Friendly experience
Tailored Computing
More superb, user-friendly, customized BIOS & software
Born from Ultra Durable™
Built for longevity and reliability.
General Information
- Manufacturer: GIGABYTE Technology, Inc
- Manufacturer Part Number: B850 AORUS STEALTH
- Brand Name: Aorus
- Product Line: STEALTH
- Product Model: B850
- Product Name: STEALTH B850 Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B850
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 8200 MHz
- 8000 MHz
- 7950 MHz
- 7900 MHz
- 7800 MHz
- 7600 MHz
- 7400 MHz
- 7200 MHz
- 7000 MHz
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5200 MHz
- 4800 MHz
- 4400 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
- Graphics Controller Manufacturer: AMD
- Graphics Controller Model: Radeon Graphics
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11be
I/O Expansions
- Total Number of Expansion Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0

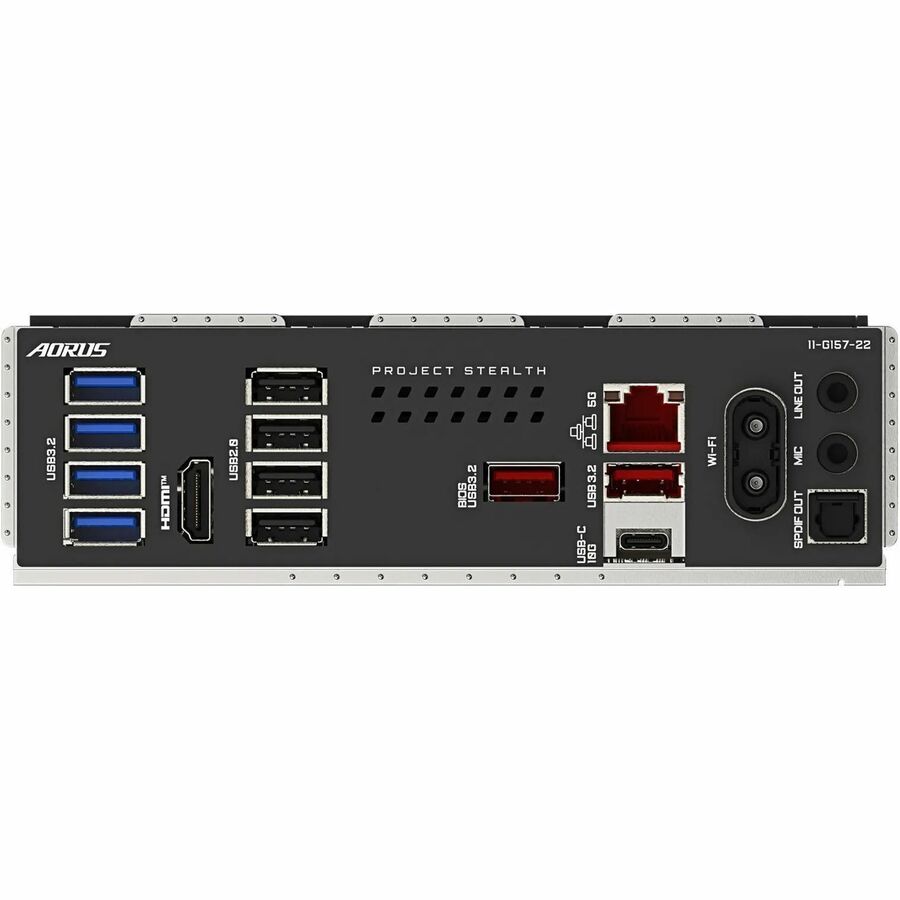

Interfaces/Ports
- Total Number of USB Ports: 11
- Number of USB 2.0 Ports: 4
- Number of USB 3.2 Gen 1 Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 2
- Number of USB 3.2 Gen 2 Type-C Ports: 1
- S/PDIF: Yes
- HDMI: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 2
- Number of M.2 Interfaces: 4
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: ATX
- Height: 1.8"
- Width: 12"
- Depth: 9.6"
- Weight (Approximate): 2.20 lb
Miscellaneous
- Environmental Compliance:
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- China Restriction of Hazardous Substances (China RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
