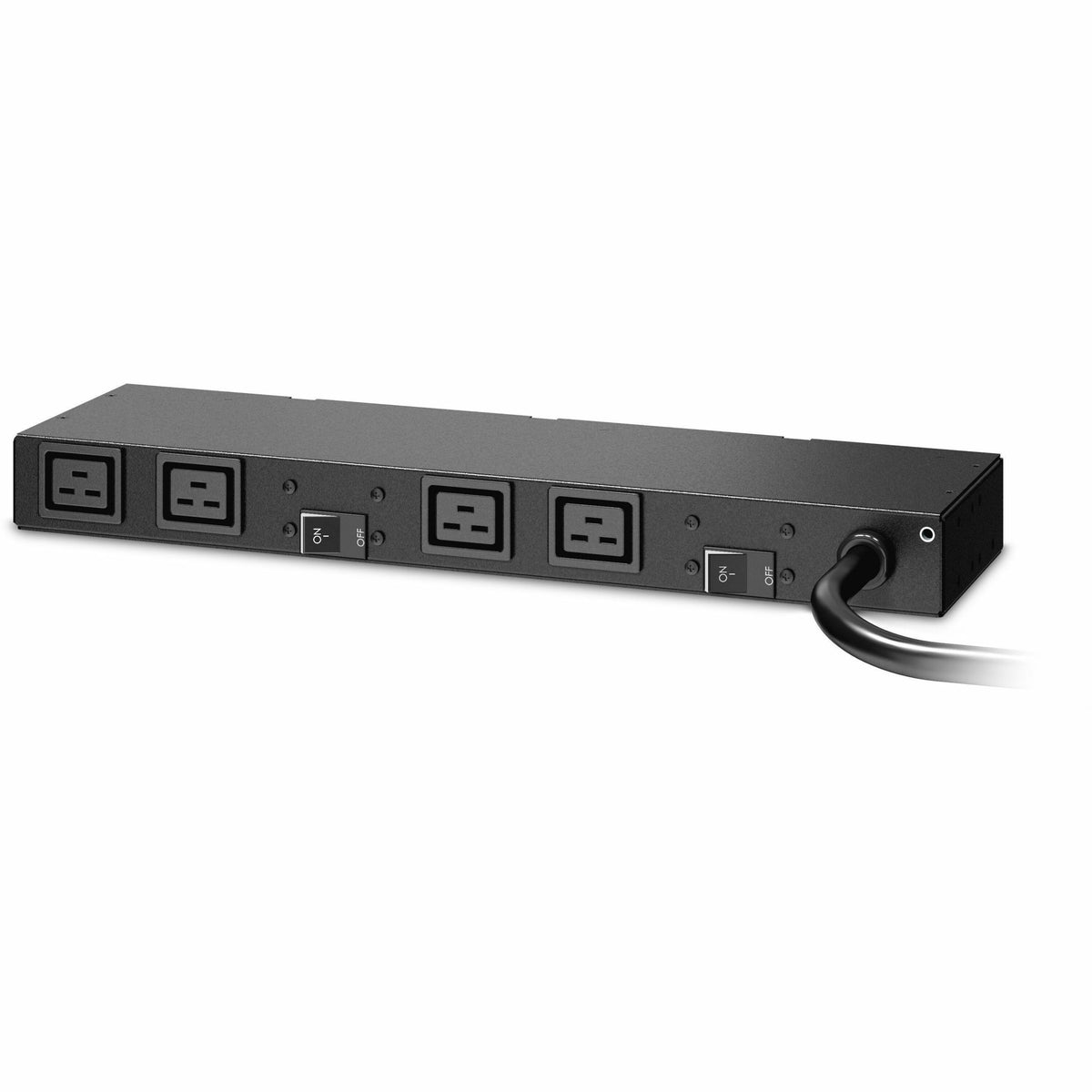

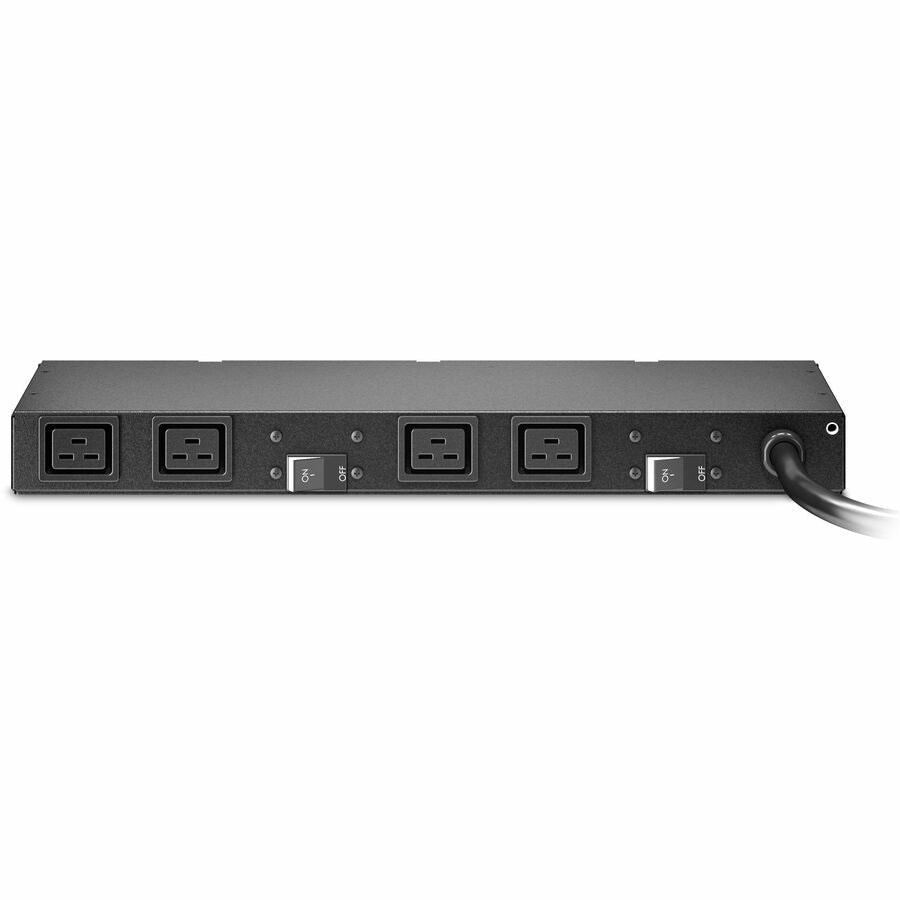

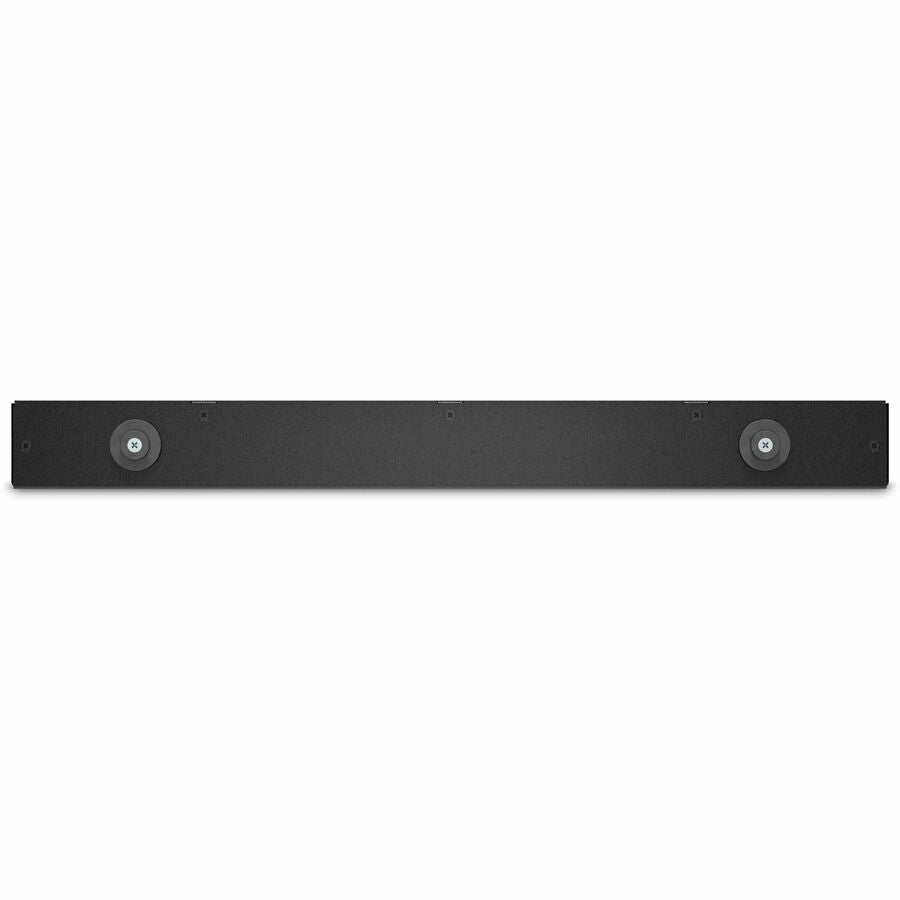

APC NetShelter Basic Rack PDU, 0U/1U, 208V, 30A, 4 C19 outlet - AP6031A
Key Features
- Can be mounted horizontally or vertically
- Equipped with 4 C19 outlets for versatile power connections
- Includes toolless mounting kit for quick setup
- Supports up to 30A, 208V power distribution
Product Overview
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 4 IEC 60320 C19 outlets, providing connections for high-power IT equipment. It includes a 12-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP6031A
- Brand Name: APC
- Product Line: Basic
- Product Name: Basic 4-Outlet PDU
- Packaged Quantity: 1
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L6-30P
- Plug/Connector Detail: 1 x NEMA L6-30P
- Receptacle Type: IEC 60320 C19
- Receptacle Detail: 4 x IEC 60320 C19
- Protection Type: Overcurrent Protection
Power Description
- Input Voltage:
- 200 V
- 208 V
- Output Voltage:
- 200 V AC
- 208 V AC
- Input Current: 30 A
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Form Factor: Tower
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 11.98 ft
- Height: 1.7"
- Width: 17.2"
- Depth: 5"
- Weight (Approximate): 8.38 lb
Miscellaneous
- Package Contents:
- Basic 4-Outlet PDU
- Installation guide
- Safety guide
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Single-use Plastic (SUP) Free Shipping Packaging: No
Warranty
- Limited Warranty: 2 Year
