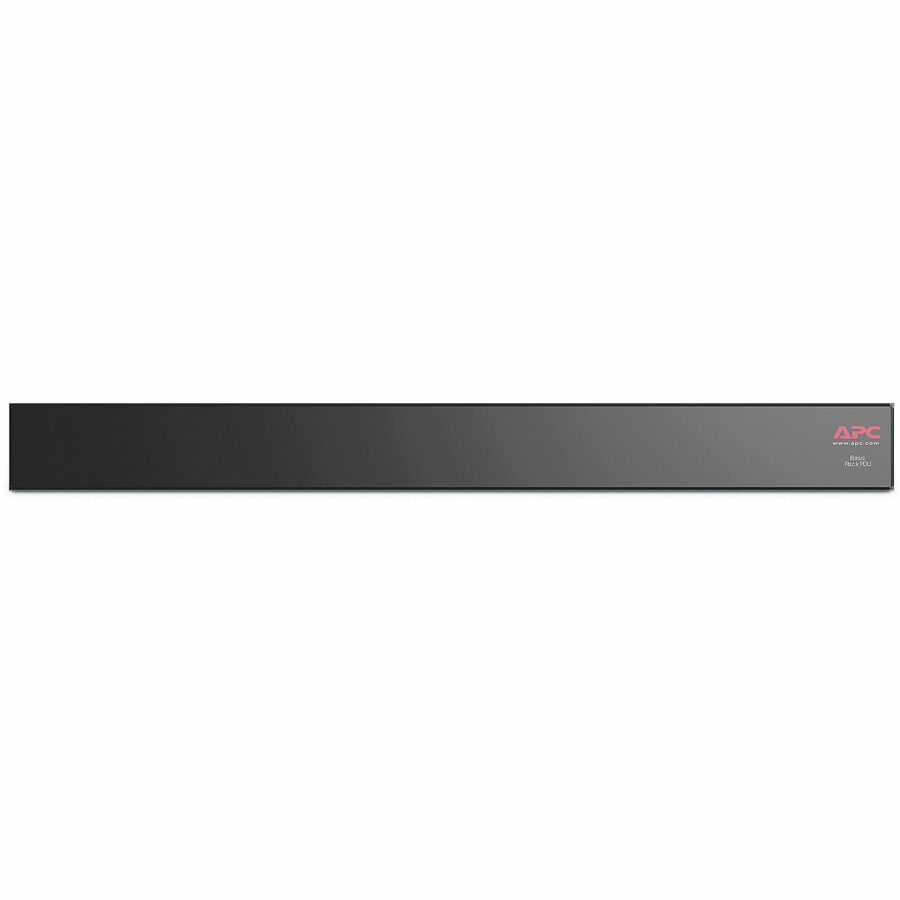

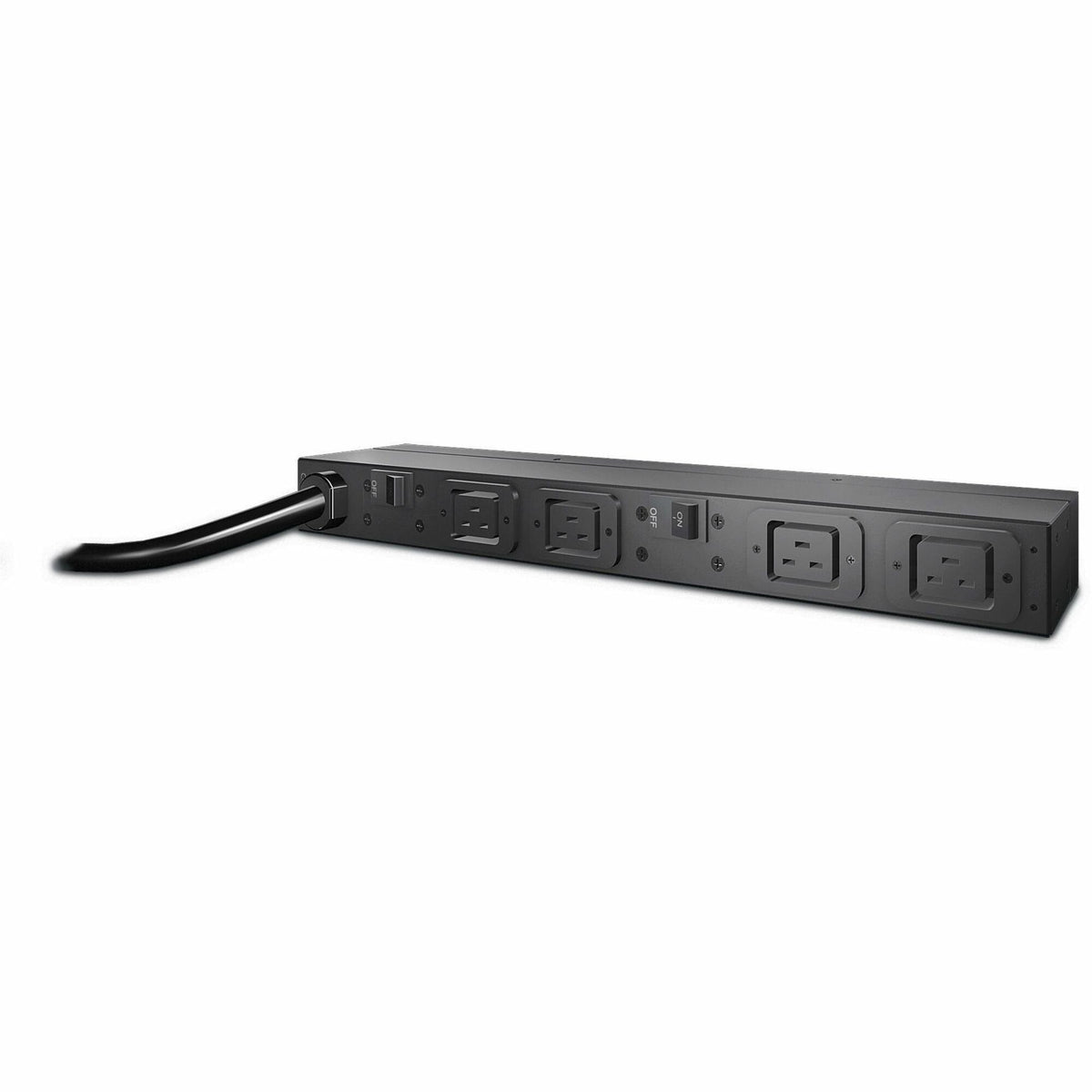

APC NetShelter Basic Rack PDU, 1U, 30A, 208V, 4 C19 outlets - AP9570
Key Features
- Easy installation with toolless mounting capabilities
- Equipped with 4 C19 outlets for versatile power connections
- Horizontal mounting to fit various rack configurations
- Supports up to 30A, 208V power distribution
Product Overview
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 4 IEC 60320 C19 outlets, providing connections for high-power IT equipment. It includes a 10-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP9570
- Brand Name: APC
- Product Line: Basic Rack
- Product Name: Basic Rack 6.24kVA PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L6-30P
- Receptacle Type: IEC 60320 C19
- Receptacle Detail: 4 x IEC 60320 C19
- Protection Type: Overload Protection
Power Description
- Input Voltage:
- 200 V
- 208 V
- 230 V
- Input Voltage Range: 208 V AC - 240 V AC
- Output Voltage: 208 V AC
- Power Rating (VA): 6240 VA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 9.84 ft
- Height: 1.7"
- Width: 17.6"
- Depth: 2.5"
- Weight (Approximate): 6.02 lb
Miscellaneous
- Package Contents:
- Basic Rack 6.24kVA PDU
- Installation guide
- Rack mounting brackets
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Single-use Plastic (SUP) Free Shipping Packaging: No
Warranty
- Limited Warranty: 2 Year
