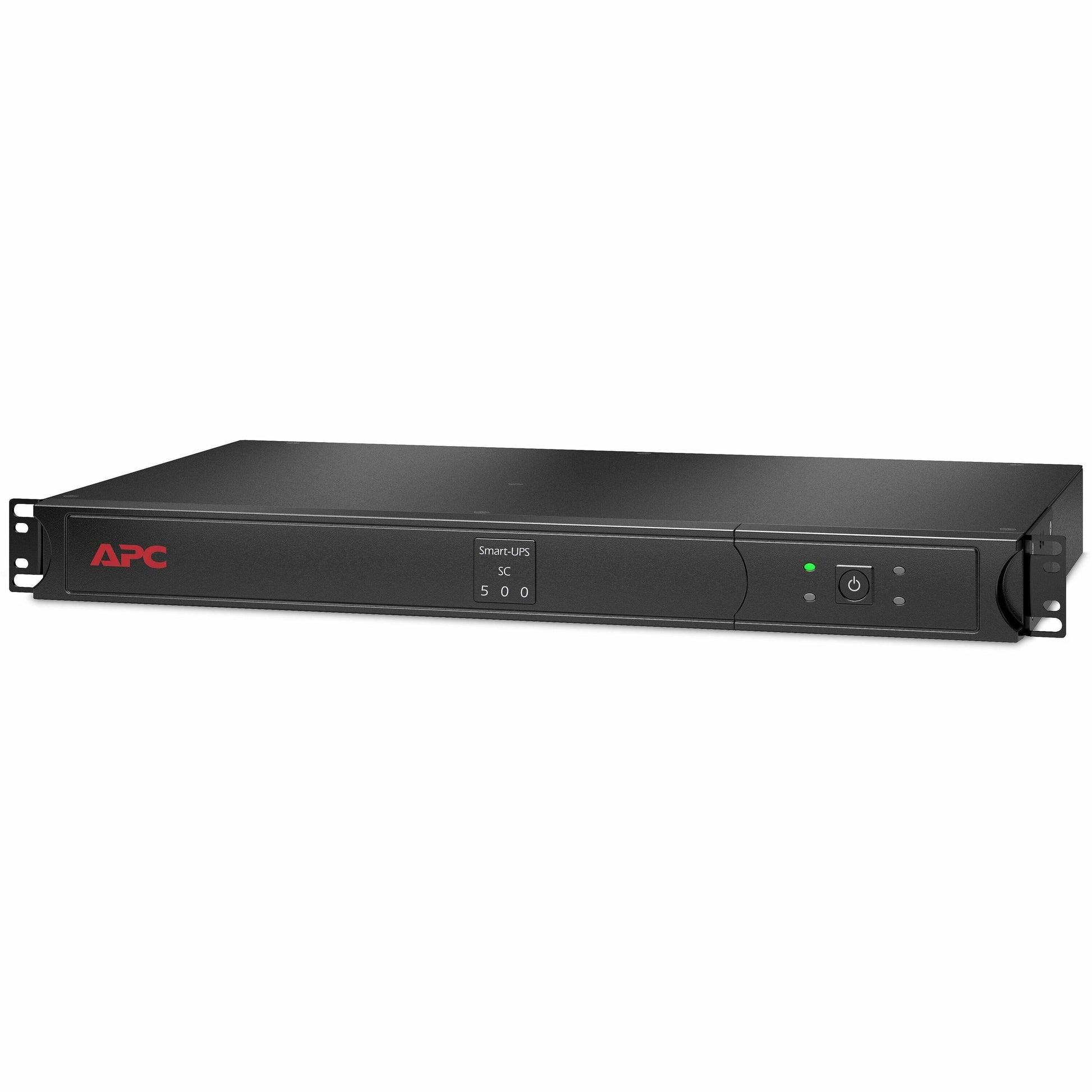

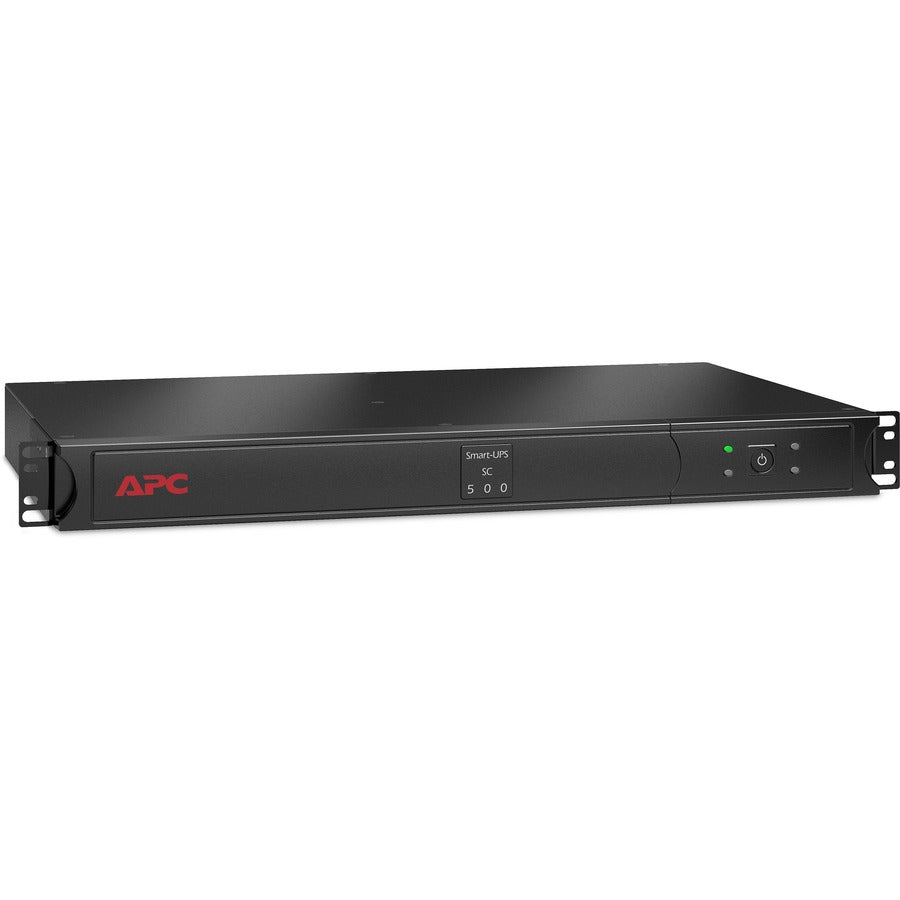

APC Smart-UPS, Line Interactive, 500VA, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth - SC500RM1U
Key Features
- 500VA/400W line interactive sine wave 1U rackmount UPS
- Graceful shutdown using serial or USB cables via PowerChute Software
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Peace of mind with a 2-year warranty on UPS and battery

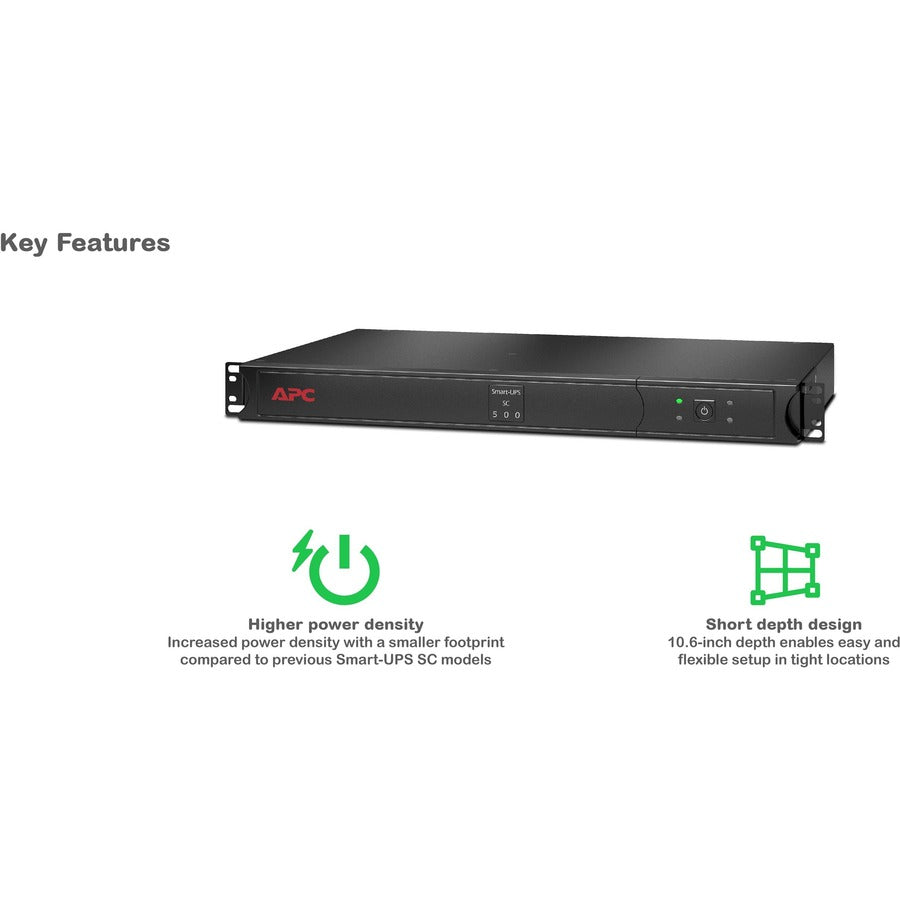

- Short depth UPS provides extra space for cable management
Product Overview

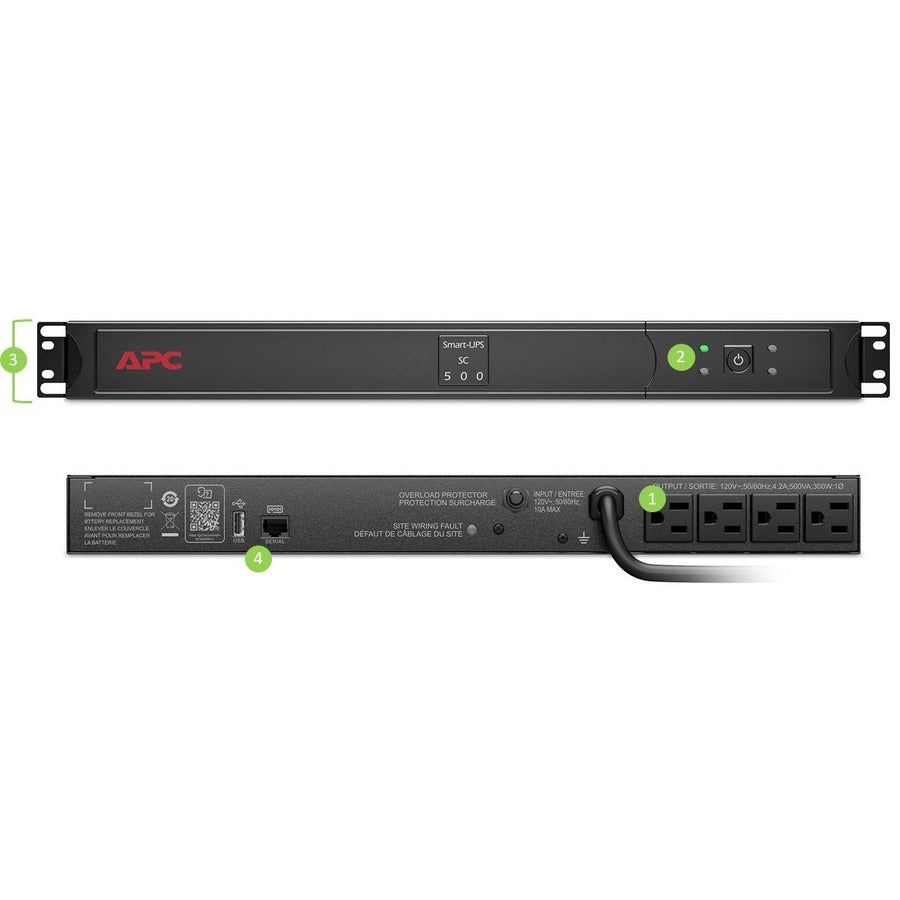

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS provides simulated sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA5-15R outlets. It offers UPS firmware upgrades and power monitoring by software. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SC UPS has a 2-year warranty on the UPS and battery.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SC500RM1U
- Brand Name: APC
- Product Line: Smart-UPS
- Product Name: Smart-UPS 500VA Rack-mountable UPS
- Product Type: Line-interactive UPS
Technical Information

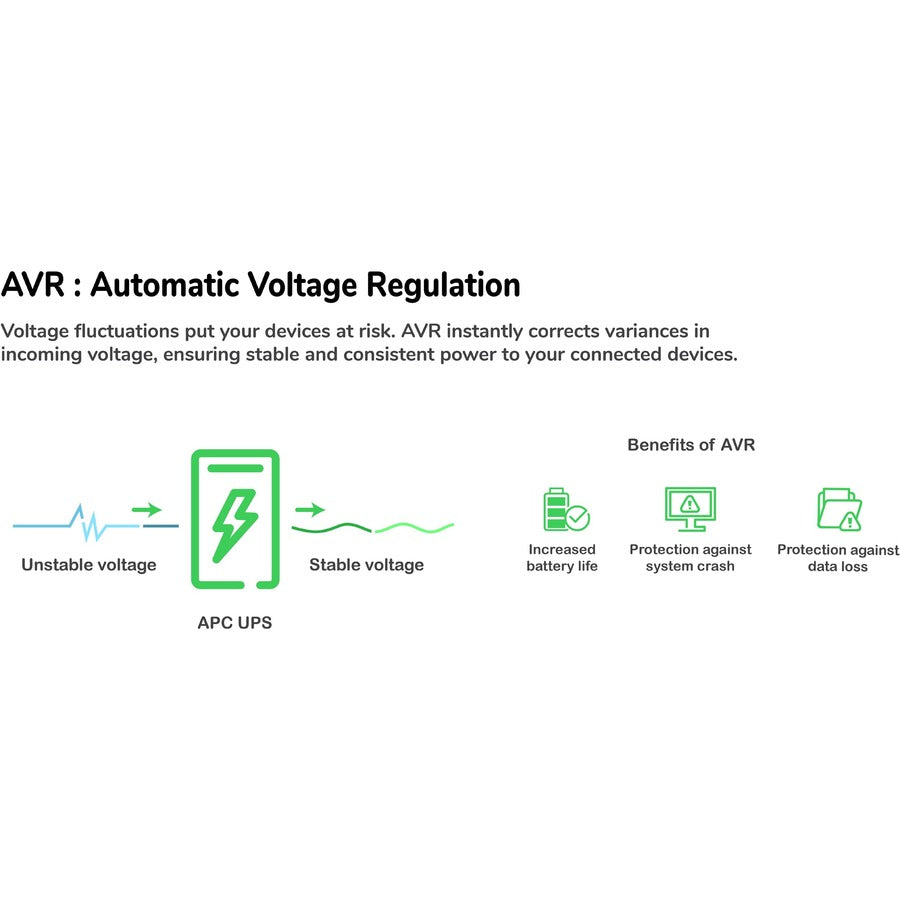

- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P
- Receptacle Detail: 4 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Cord Length: 7.87 ft
- Phase: Single Phase
- Application/Usage:
- Business
- Electronic
- Server
- Virtual Machine
- Hyperconverged Infrastructure (HCI)
- Home/Office
- POS
- Network Device
- Switch
- IT
Power Description
- Load Capacity (VA): 500 VA
- Load Capacity (Watt): 300 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Waveform Type: Stepped Approximated Sine Wave
- Surge Energy Rating: 400 J
Display & Graphics
- Display: LED

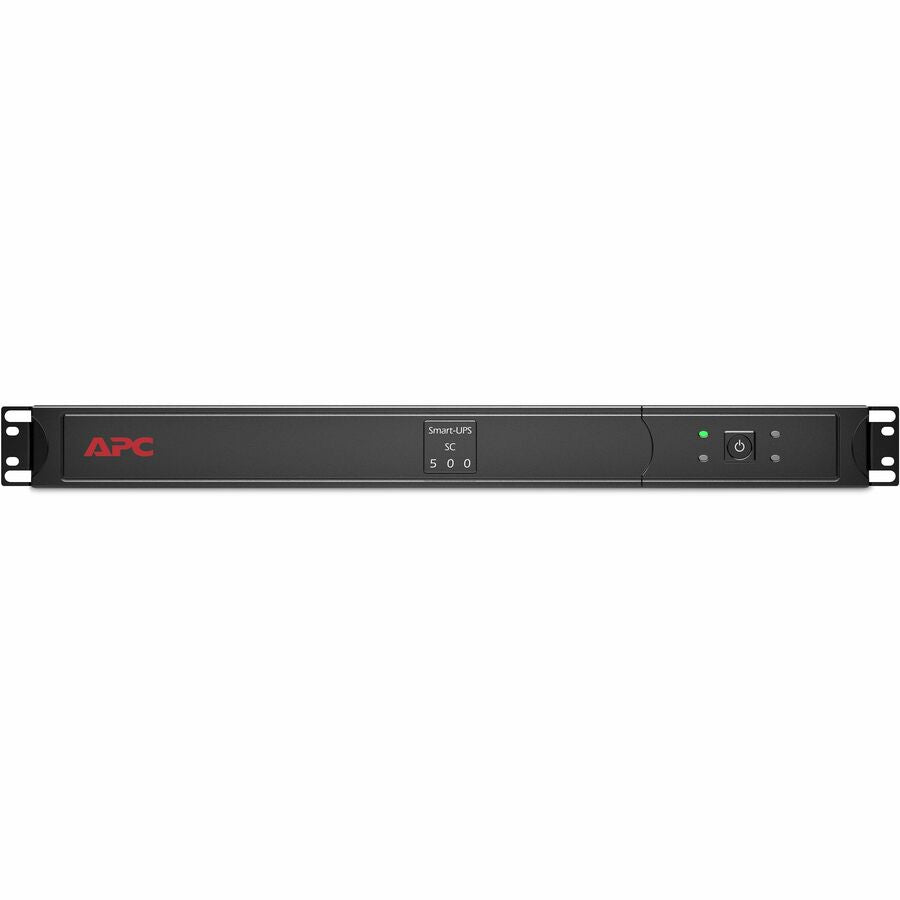

Controls/Indicators
- Status Indicators:
LED Indicators:
- On-Line
- On-Battery
- Replace Battery
- Overload Indicators

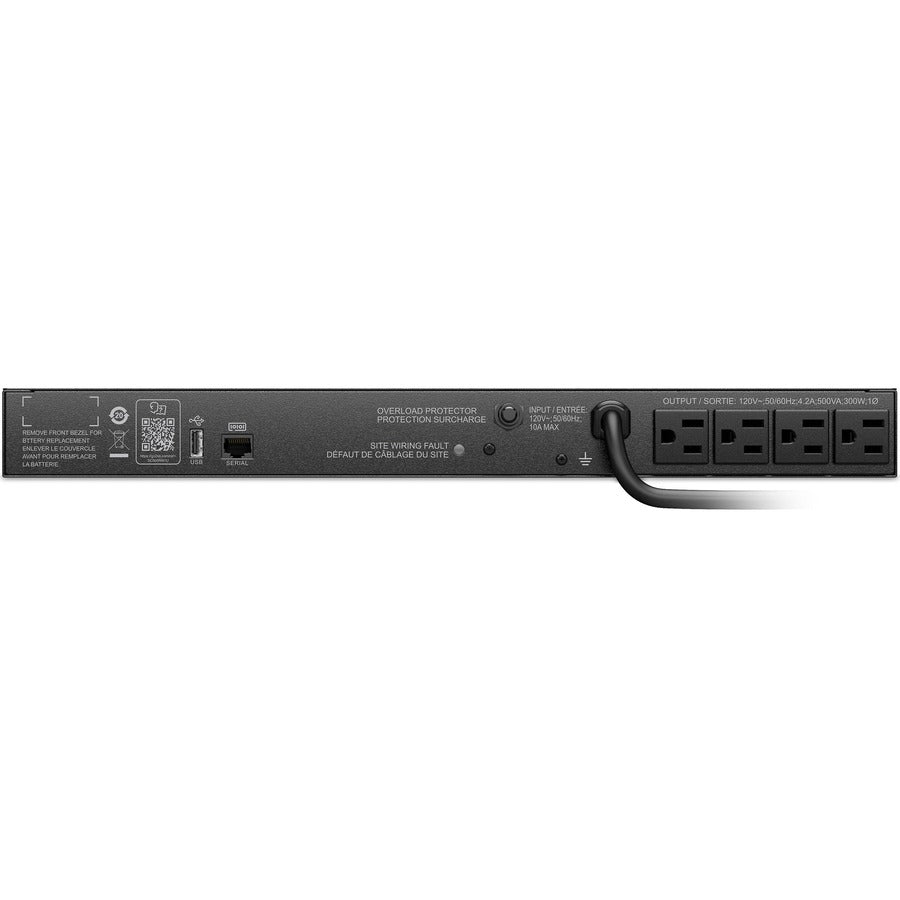

Interfaces/Ports
- USB: Yes
- Network (RJ-45): Yes
Battery Information
- Battery Chemistry: Lead Acid
- Typical Battery Recharge Time: 5 Hour
- Replaceable Battery: Yes

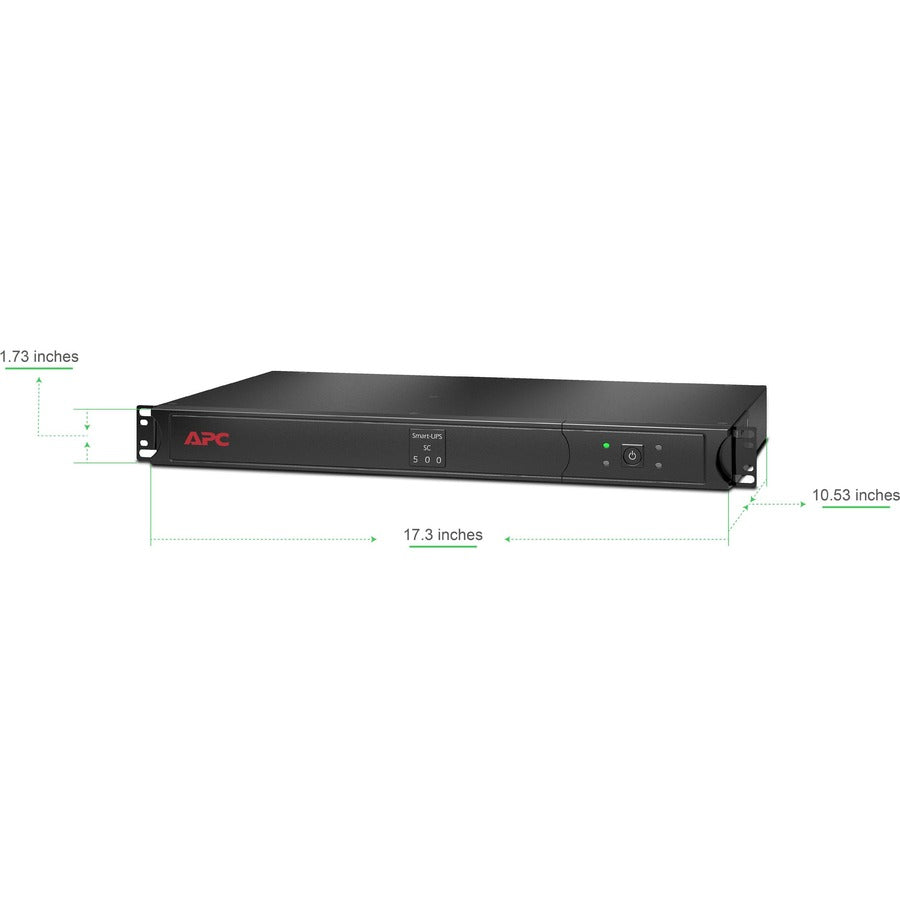

Physical Characteristics
- Product Color: Black
- Height: 1.73"
- Width: 17.32"
- Depth: 10.55"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 17.86 lb
Miscellaneous
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: India
- Environmentally Friendly: Yes
- Energy Efficiency Certification: ENERGY STAR 2.0
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
