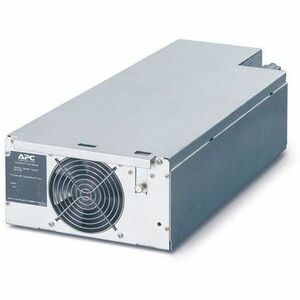

APC Symmetra LX 4kVA Power Module, 200/208V - SYPM4KP
Key Features
- Designed for high-density, double-conversion on-line power protection
- It has a power rating of 4000 VA (3200 W)
- Operates at a frequency range of 45-65 Hz
- Supports output voltage range of 100V to 208V
Product Overview
The APC Symmetra LX Power Module is designed for high-density, double-conversion on-line power protection. It supports input voltages of 200V and 208V, with output voltage range of 100V to 208V. The module has a power rating of 4000 VA (3200 W) and operates at a frequency range of 45-65 Hz.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SYPM4KP
- Brand Name: APC
- Product Name: Power Module
- Product Type: Power Module
Technical Information
- Receptacles: 1 x Hard Wire 4-wire (2PH+N+G)
Power Description
- Input Voltage:
- 200 V AC
- 208 V AC
- Input Current: 18 A
- Output Voltage:
- 100 V AC
- 120 V AC
- 200 V AC
- 208 V AC
- Output Power: 4000 W
Physical Characteristics
- Product Color: Silver
- Rack Height: 0U
- Height: 5.9"
- Width: 9.8"
- Depth: 22.2"
- Weight (Approximate): 33.07 lb
Miscellaneous
- Package Contents:
- Power Module
- Installation guide
- Compatibility:
APC Symmetra LX 4kVA UPS
- Certifications & Standards: CSA
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Single-use Plastic (SUP) Free Shipping Packaging: No
Warranty
- Limited Warranty: 2 Year
