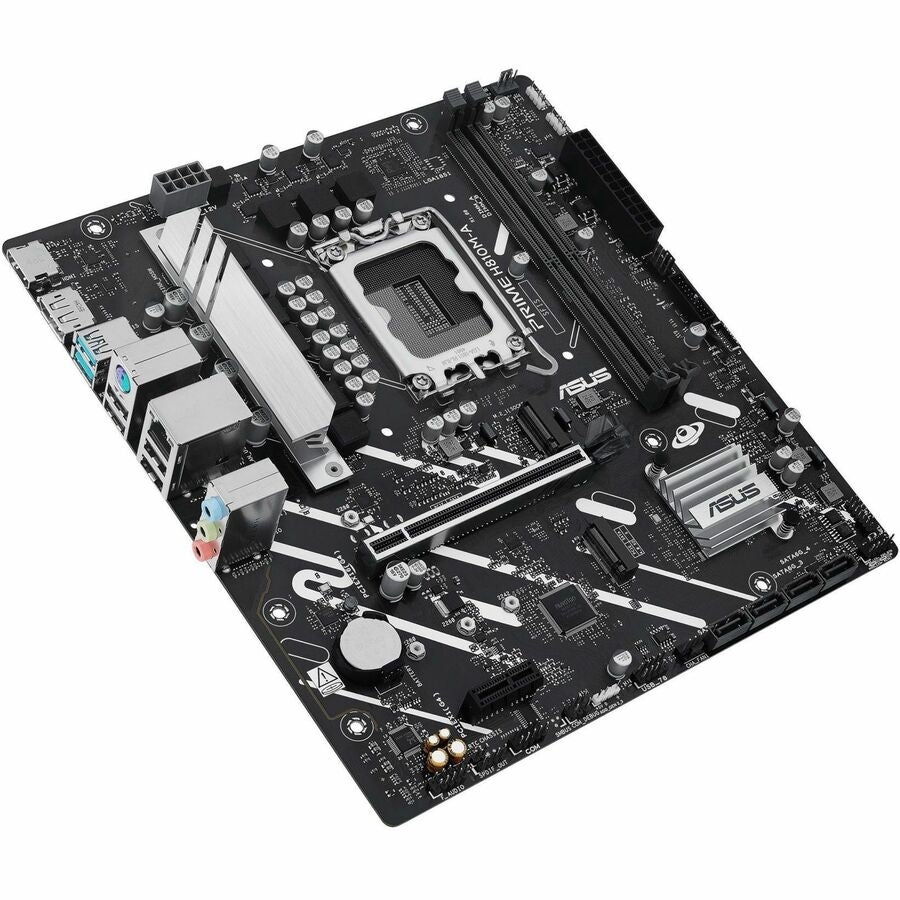

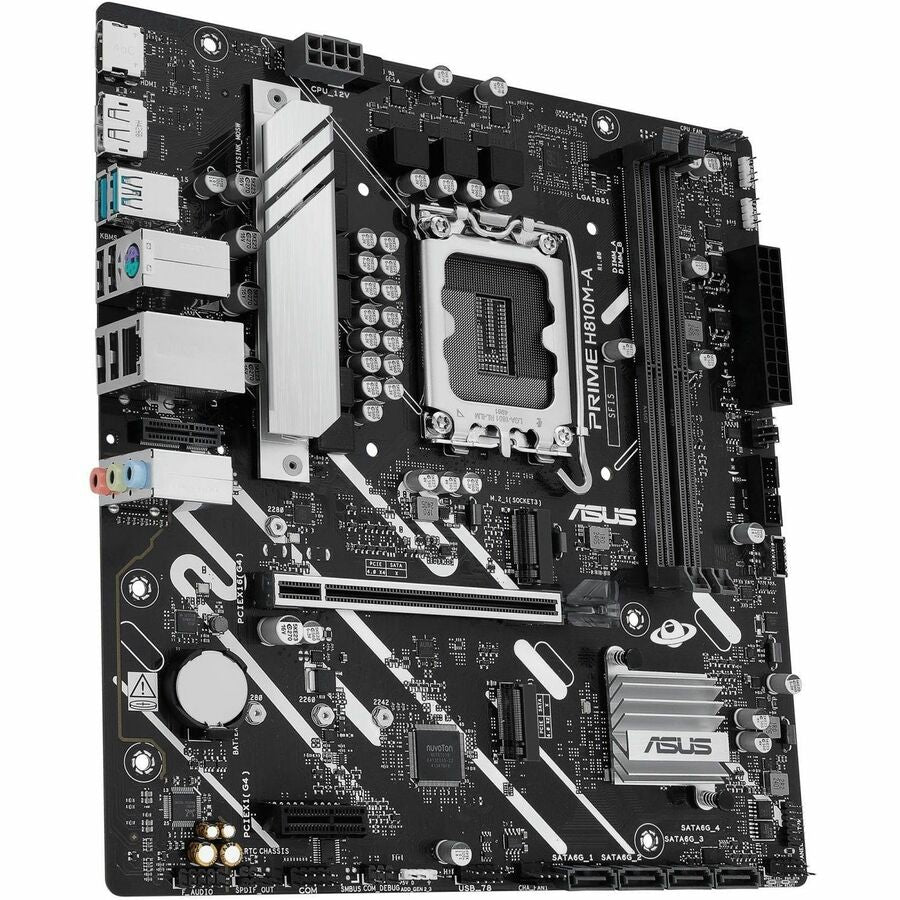

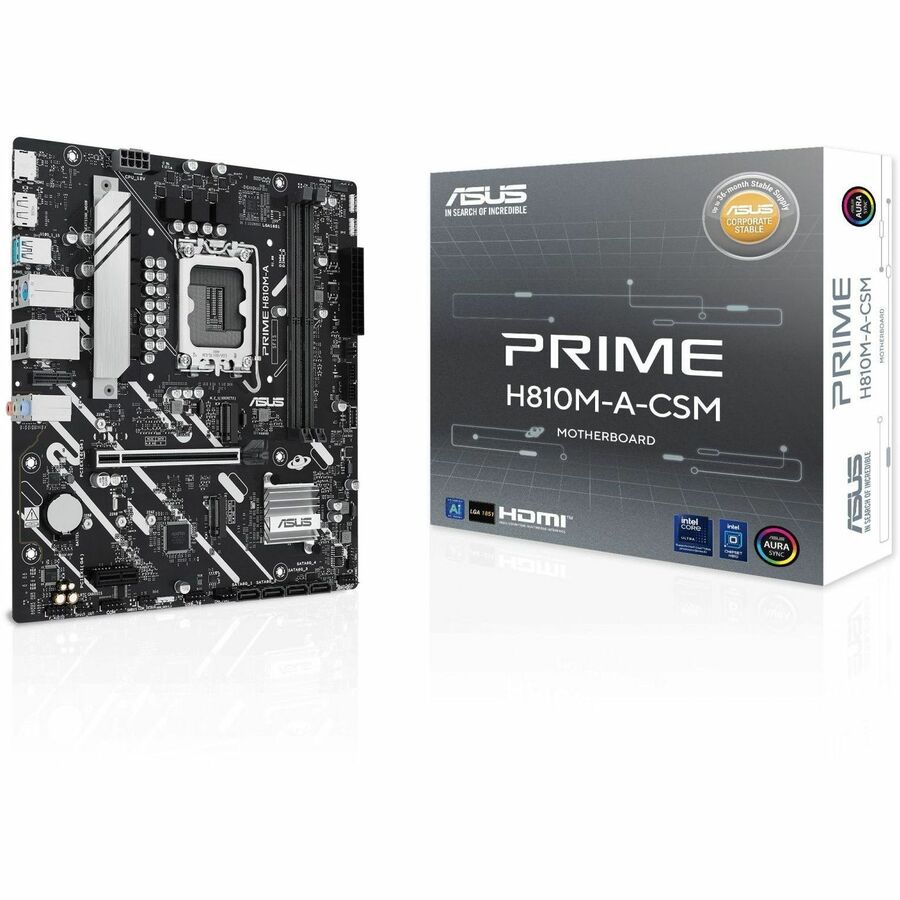

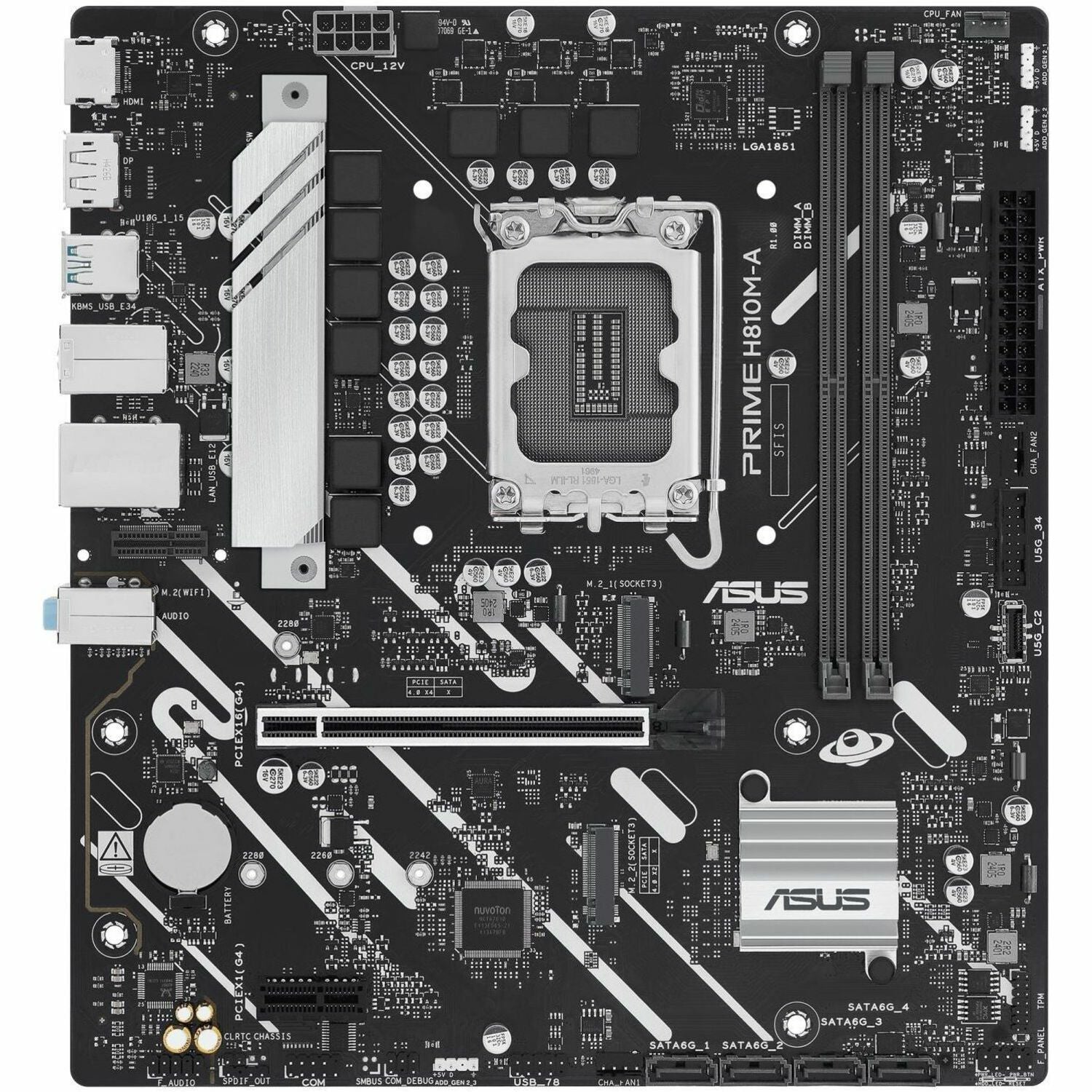

Asus Prime H810M-A-CSM Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX - PRIME H810M-A CSM
Key Features
- Core Ultra processors supported for enhanced, dependable system performance with maximum usability
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
Product Overview
PRIME H810M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.
General Information
- Manufacturer: ASUS Computer International
- Manufacturer Part Number: PRIME H810M-A CSM
- Brand Name: Asus
- Product Line: Prime
- Product Model: H810M-A-CSM
- Product Name: PRIME H810M-A-CSM Desktop Motherboard
- Product Type: Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: H810
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1851
- Processor Supported: Core Ultra
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported: 6400 MHz
- Memory Technology: DDR5 SDRAM
- Error Checking: ECC
I/O Controller
- Controller Type: Serial ATA/600
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Gigabit Ethernet: Yes
- Wireless LAN: Yes
I/O Expansions
- Total Number of Expansion Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard: PCI Express 4.0

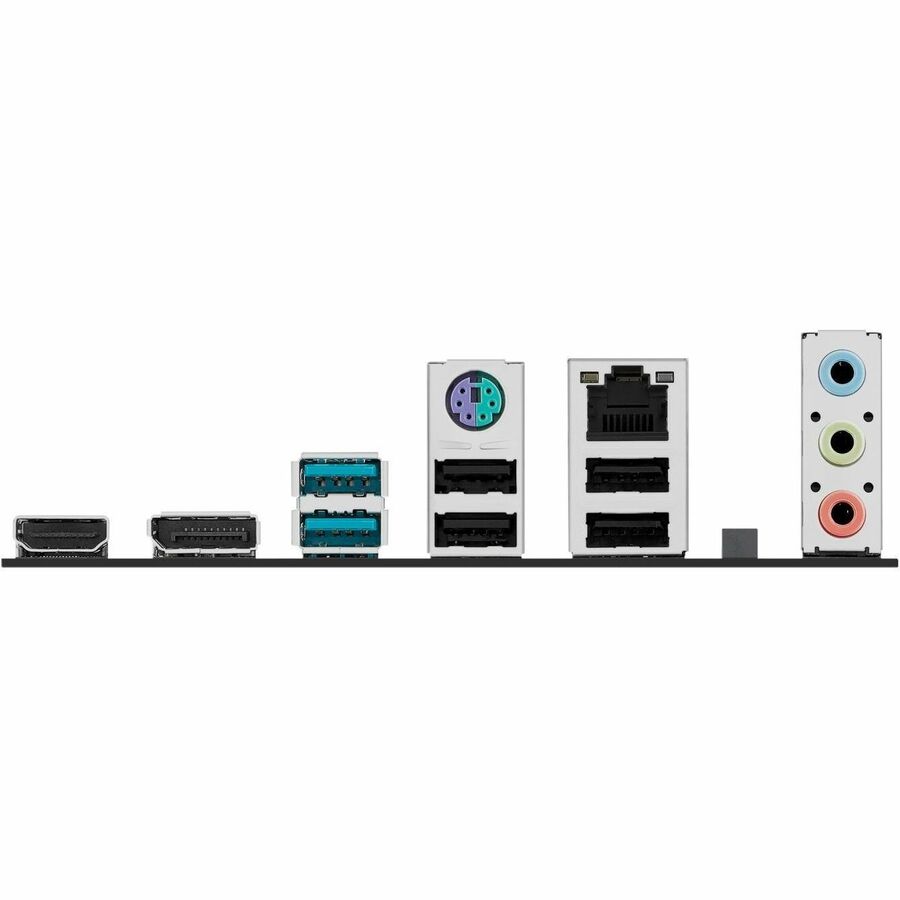

Interfaces/Ports
- Total Number of USB Ports: 6
- VGA: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 5
- Number of Onboard USB 2.0 Ports: 2
- Onboard S/PDIF Header: Yes
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 8.8"
Miscellaneous
- Package Contents:
- PRIME H810M-A-CSM Desktop Motherboard
- 2 x SATA 6Gb/s cables

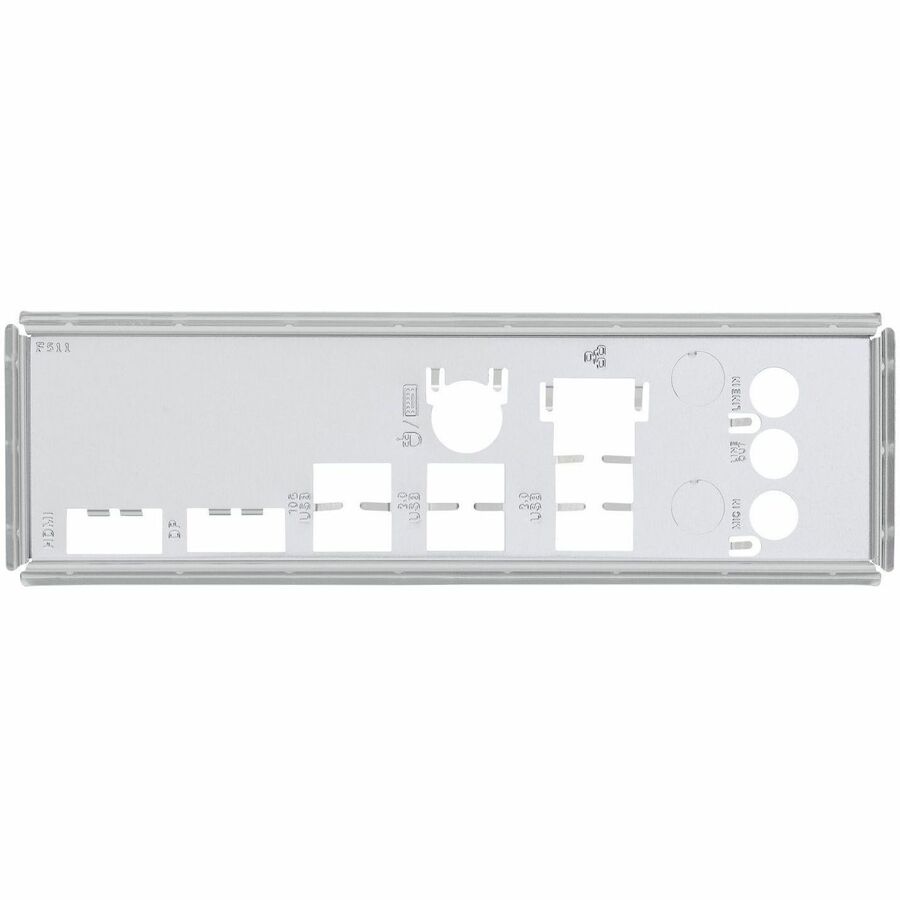

- 1 x I/O shield
- 1 x Screw package for M.2 SSD
- 1 x ACC Express activation key card
- 1 x Quick start guide
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- TCO Certified: Yes
Warranty
- Limited Warranty: 3 Year
