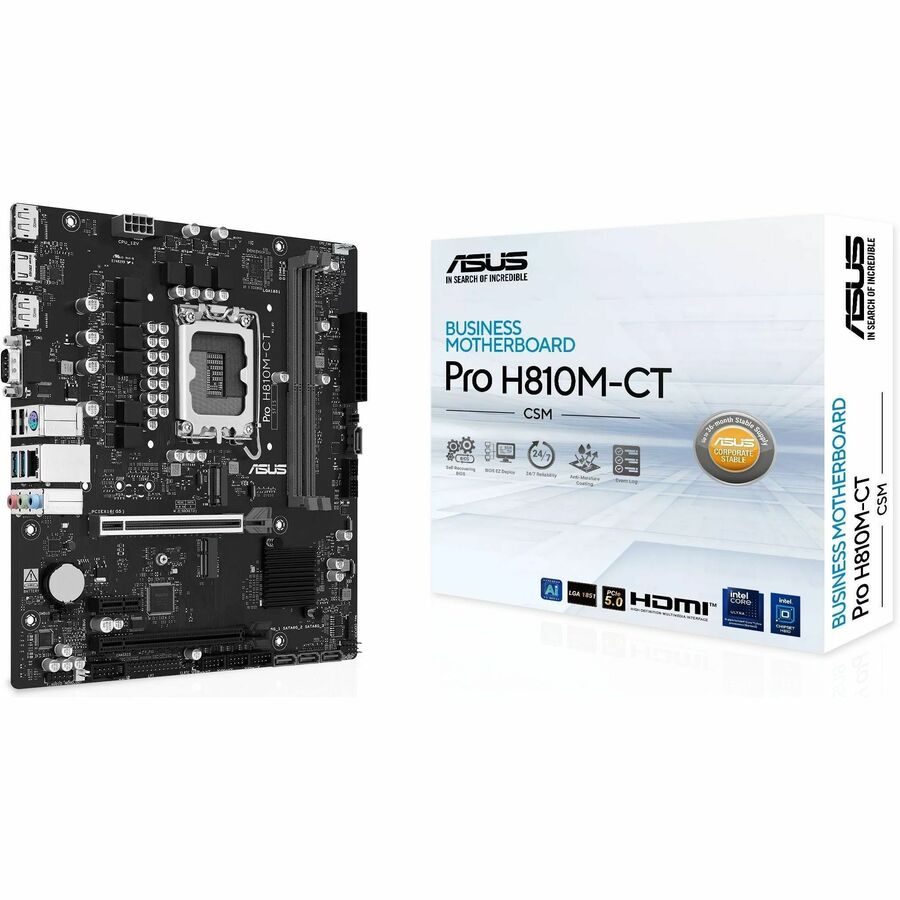

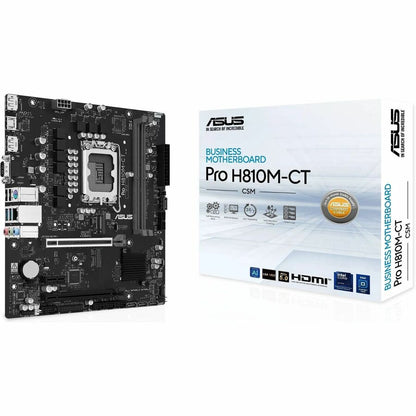

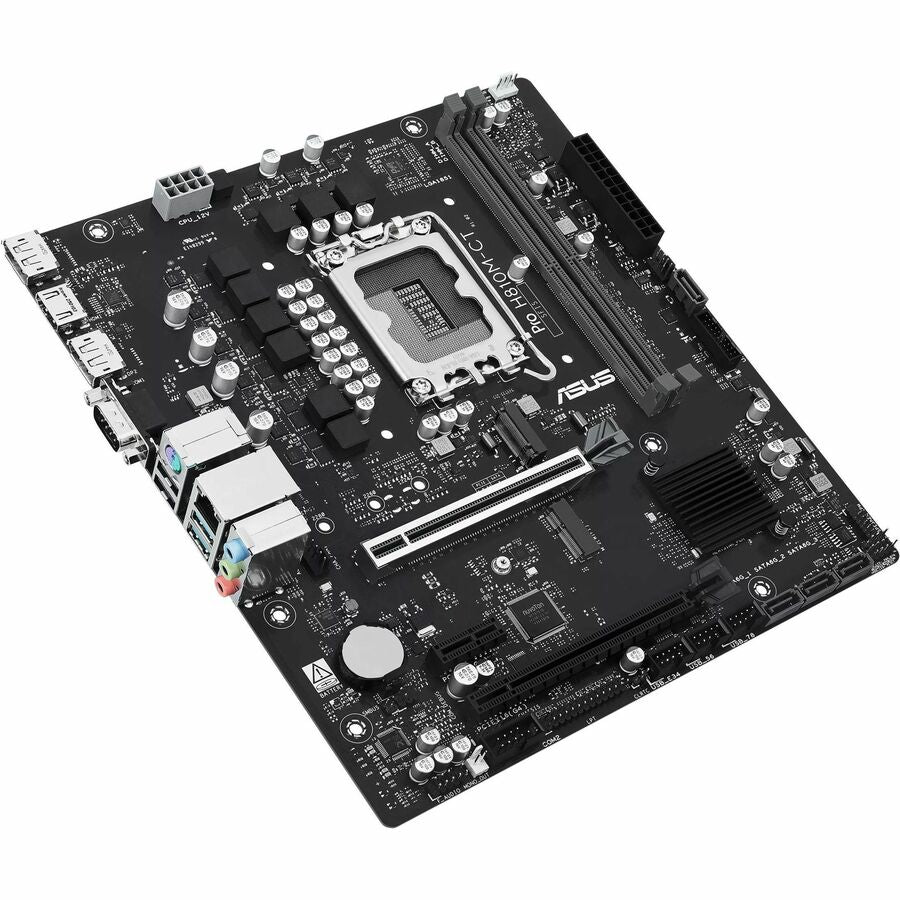

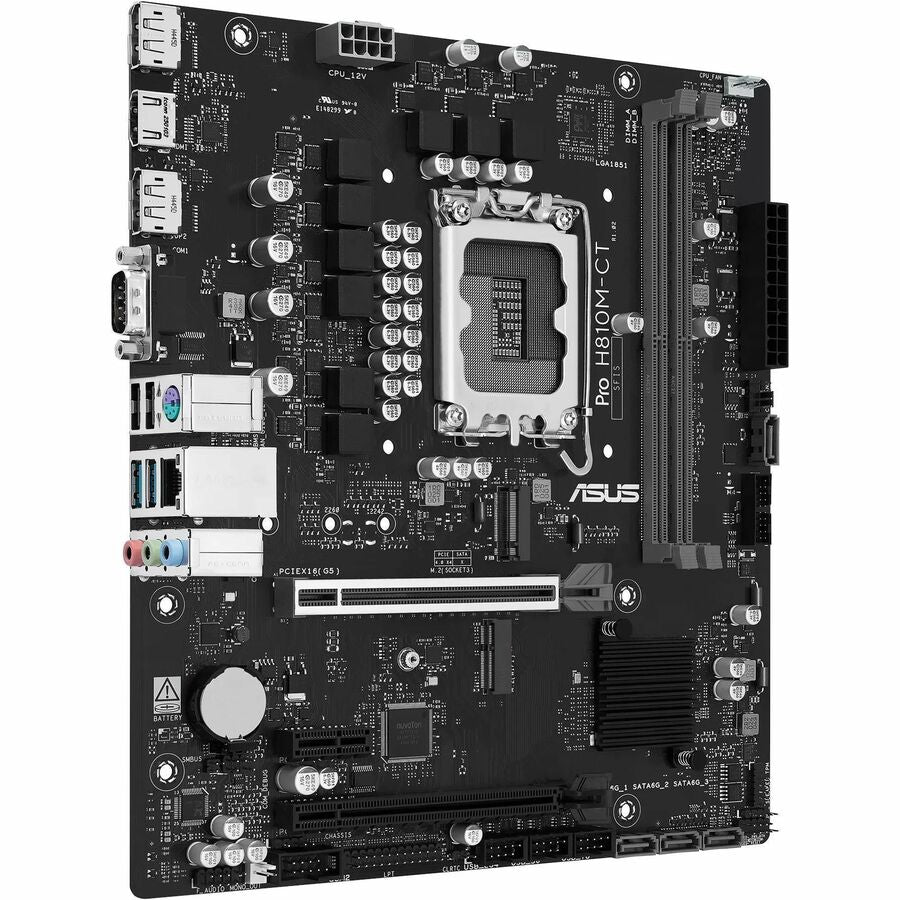

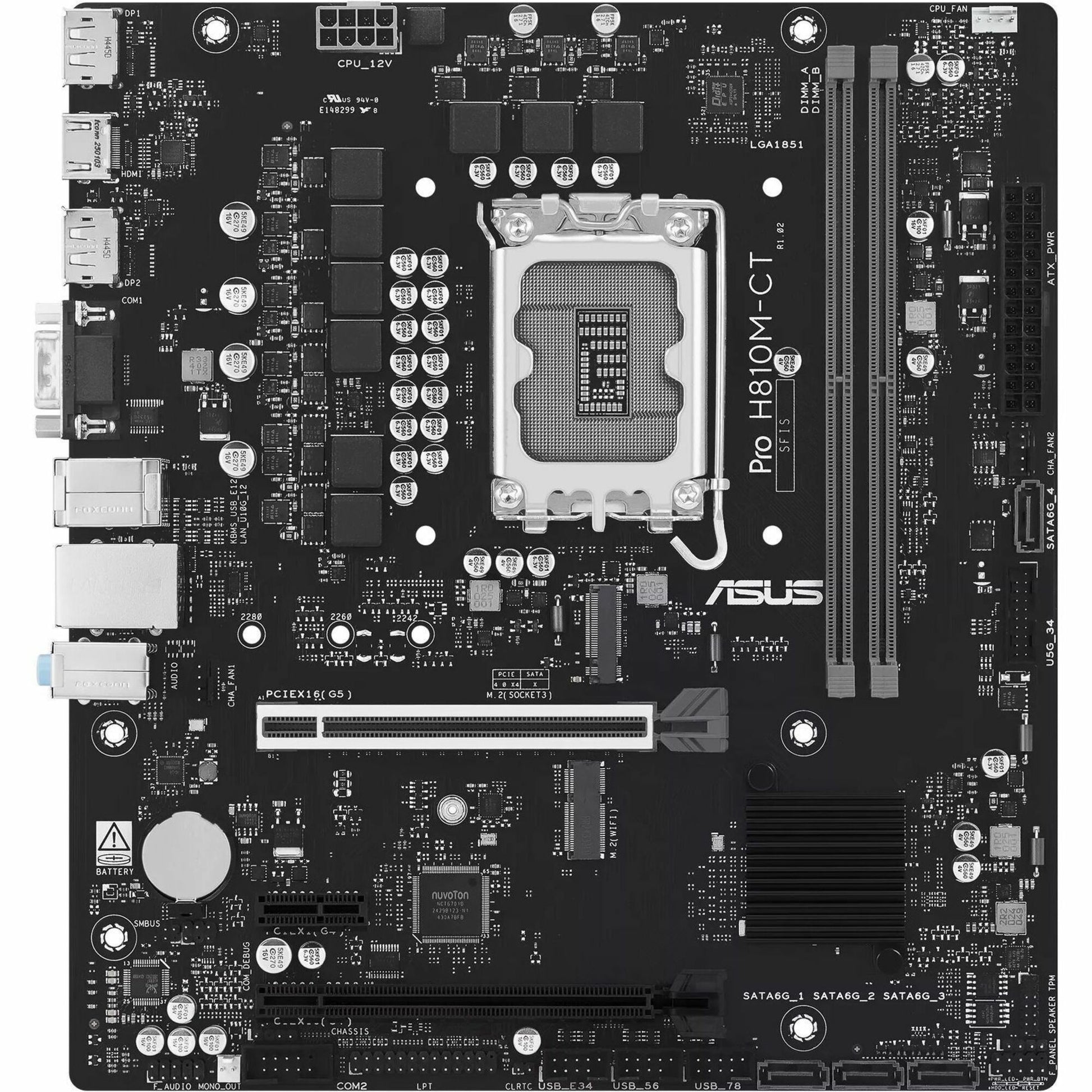

Asus Pro H810M-CT-CSM Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX - PRO H810M-CT-CSM
Key Features
- Core Ultra processors supported for faster, dependable performance and better access to data and information

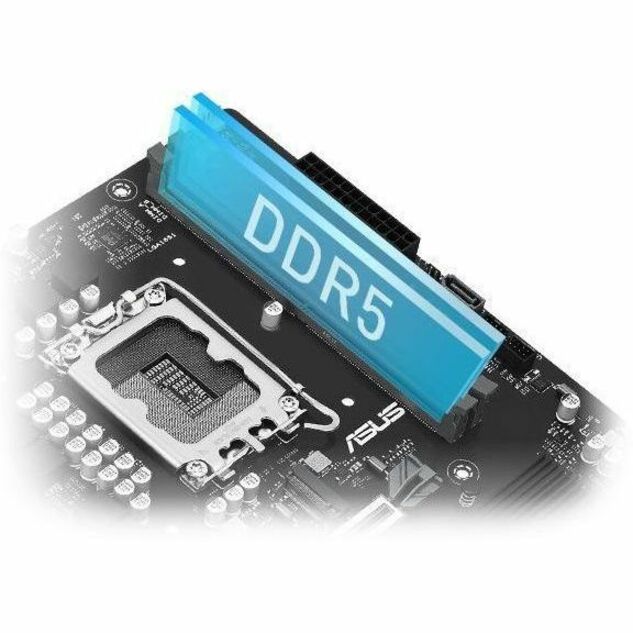

- DDR5 SDRAM slot for convenient installation of memory
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
Product Overview
Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability
- Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket:Ready for Intel Core Ultra Processors (Series 2)
- ASUS CSM Program:A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express:Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security:A self-recovering BIOS, TXT, TPM to safeguard PCs and NIST SP 800-193 compliance
- Consistent and Reliable Performance:High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization:BIOS EZ Deploy, an event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability:Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity:PCIe 5.0, DDR5, rear USB 10Gbps Type-A
- DIY Friendly Design:SafeSlot, Dual DIMM clips, Box headers
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express - a US,60
General Information
- Manufacturer: ASUS Computer International
- Manufacturer Part Number: PRO H810M-CT-CSM
- Brand Name: Asus
- Product Line: Pro
- Product Model: H810M-CT-CSM
- Product Name: Pro H810M-CT-CSM Desktop Motherboard
- Product Type: Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: H810
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1851
- Processor Supported: Core Ultra
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported: 6400 MHz
- Memory Technology: DDR5 SDRAM
- Error Checking: ECC
I/O Controller
- Controller Type: Serial ATA/600
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 5.0

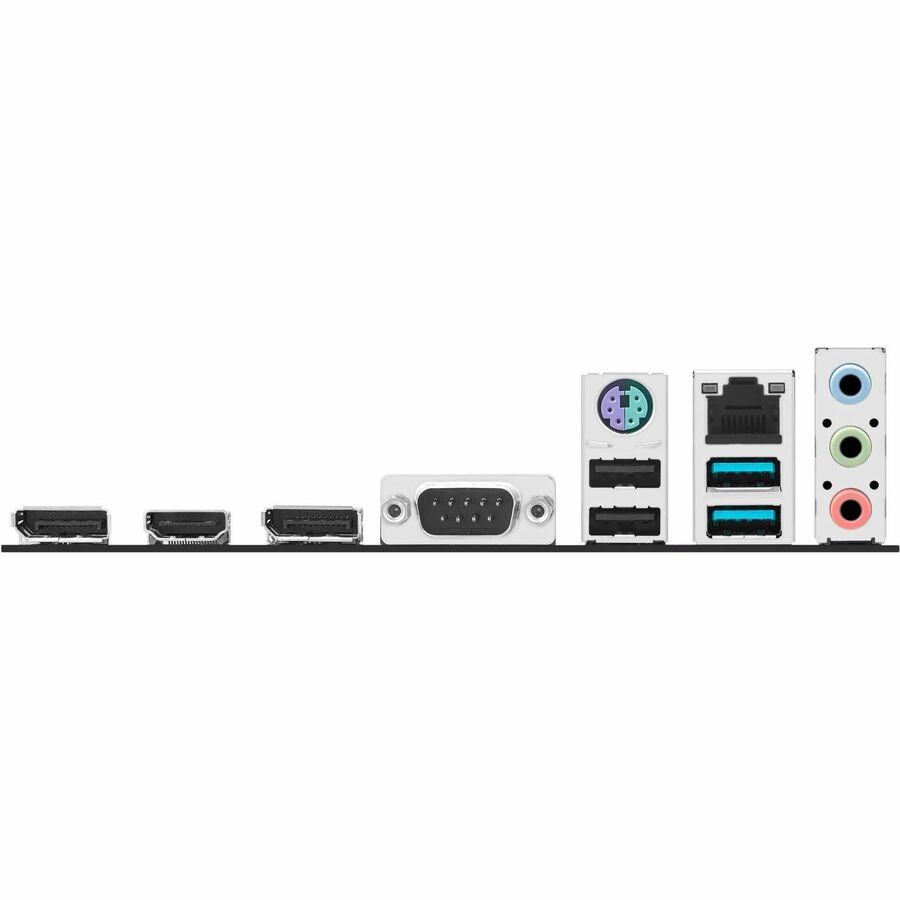

Interfaces/Ports
- Total Number of USB Ports: 4
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 1
- Total Number of Onboard USB Ports: 8
- Number of Onboard USB 2.0 Ports: 6
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 8.8"
Miscellaneous
- Package Contents:
- Pro H810M-CT-CSM Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O shield
- 1 x M.2 anchor package
- 1 x Screw package for M.2 Key E
- 1 x ACC Express activation key card
- 1 x Quick start guide
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- TCO Certified: Yes
Warranty
- Limited Warranty: 3 Year
