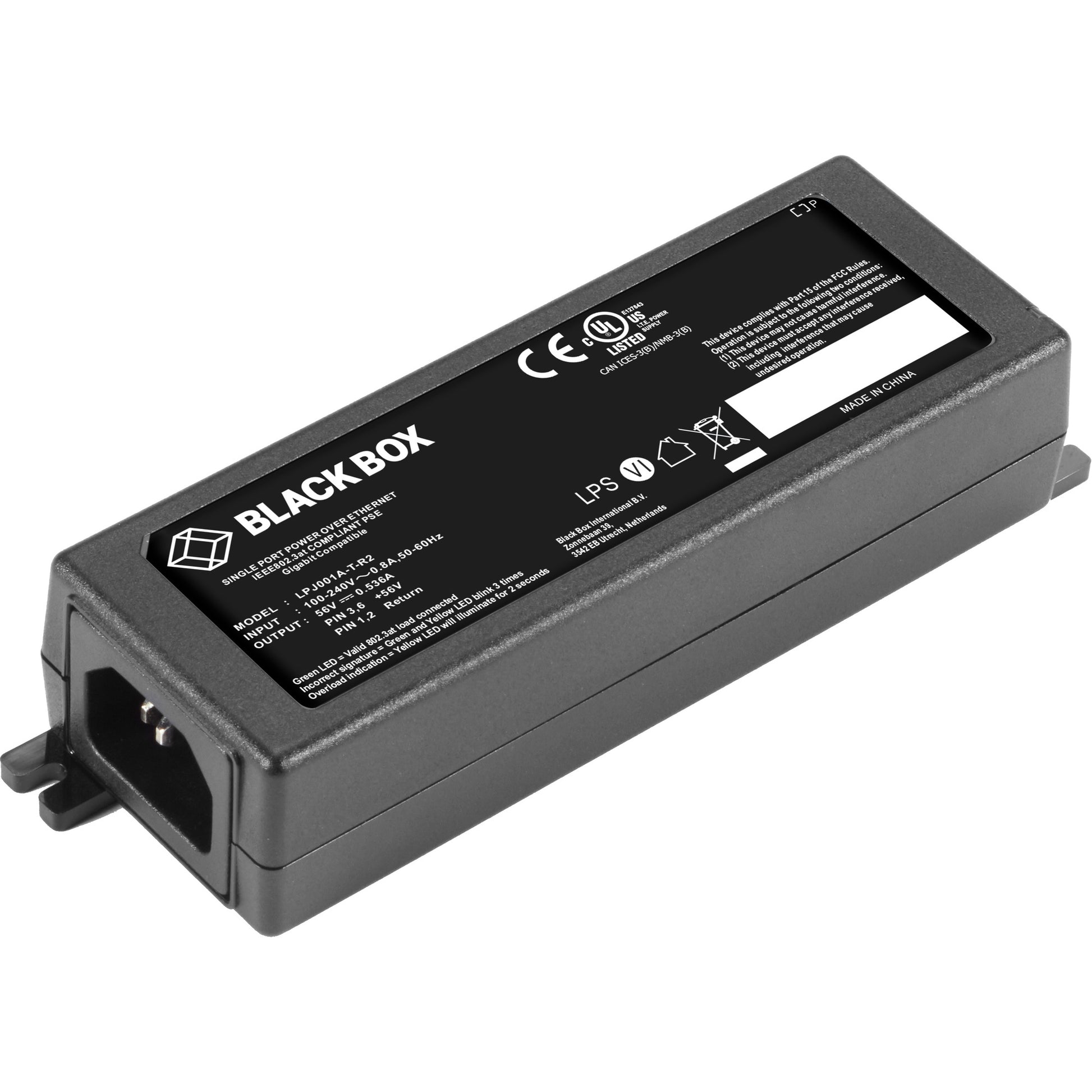

Black Box 1PT PoE+ Gb ENET Injector - LPJ001A-T-R2
Key Features
- An economical wiring solution, carries both data and power over a single Ethernet cable
- Diagnostic LEDs indicate 802.3at device detection
- Ideal for multi-radio wireless access points, PTZ security cameras, IP phones containing streaming video displays, and LCDs
- Powers 802.3at and 802.3af compliant devices
- Provides 30W of safe PoE Plus power to each device
- Supports 10-/100-/1000-Mbps midspan data connections on an RJ-45 input/output
- Supports Gigabit Ethernet data connections for high-speed equipment
Product Overview
The Black Box PoE+ midspan injectors are used in Enterprise applications to power VoIP phones, wireless access points, IP security cameras and more. PoE+ injectors add power to the Ethernet link and will help you avoid upgrading non-PoE switch infrastructure. PoE enables you to avoid installing AC power at a remote powered device.
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: LPJ001A-T-R2
- Brand Name: Black Box
- Product Model: LPJ001A-T-R2
- Product Name: 10/100/1000BASE-T RJ45 POE+ Gigabit ETH Injector 802.3at 1PT
- Product Condition: New
- Product Type: PoE Injector
Technical Information
- Protection Type:
- Over Voltage
- Over Current
- Overload Protection
- Short Circuit
- Over Temperature
Power Description

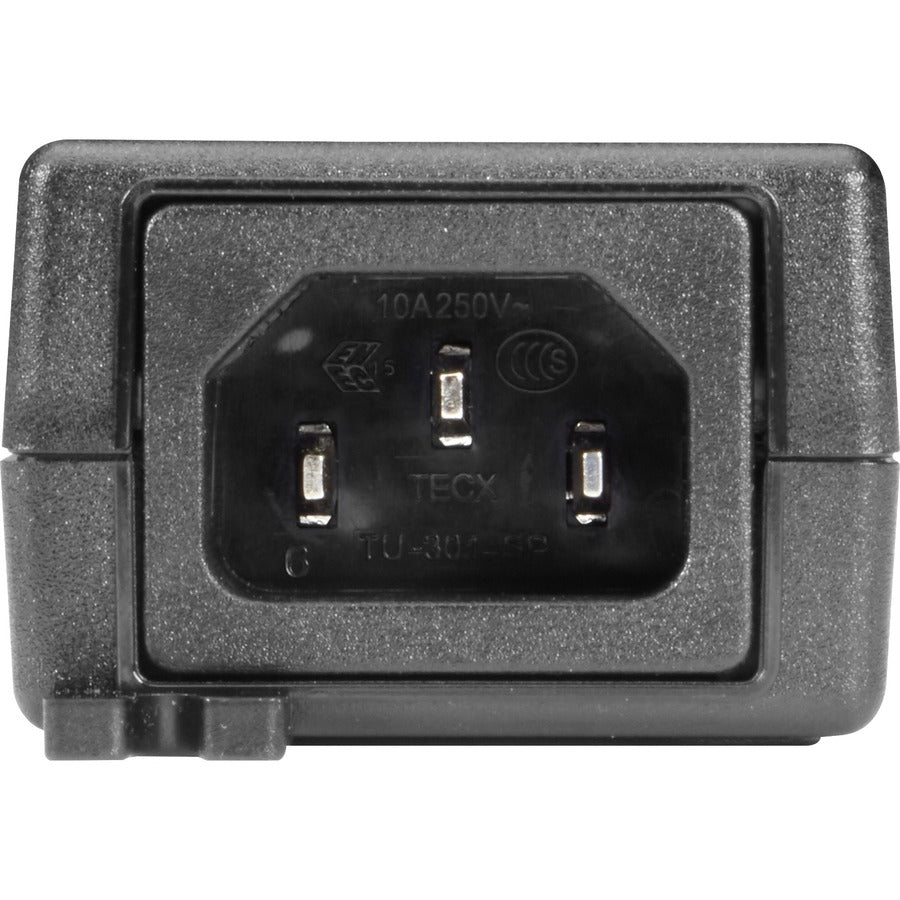

- Input Voltage:
- 120 V AC
- 230 V AC
- Maximum Output Voltage: 56 V DC
Interfaces/Ports

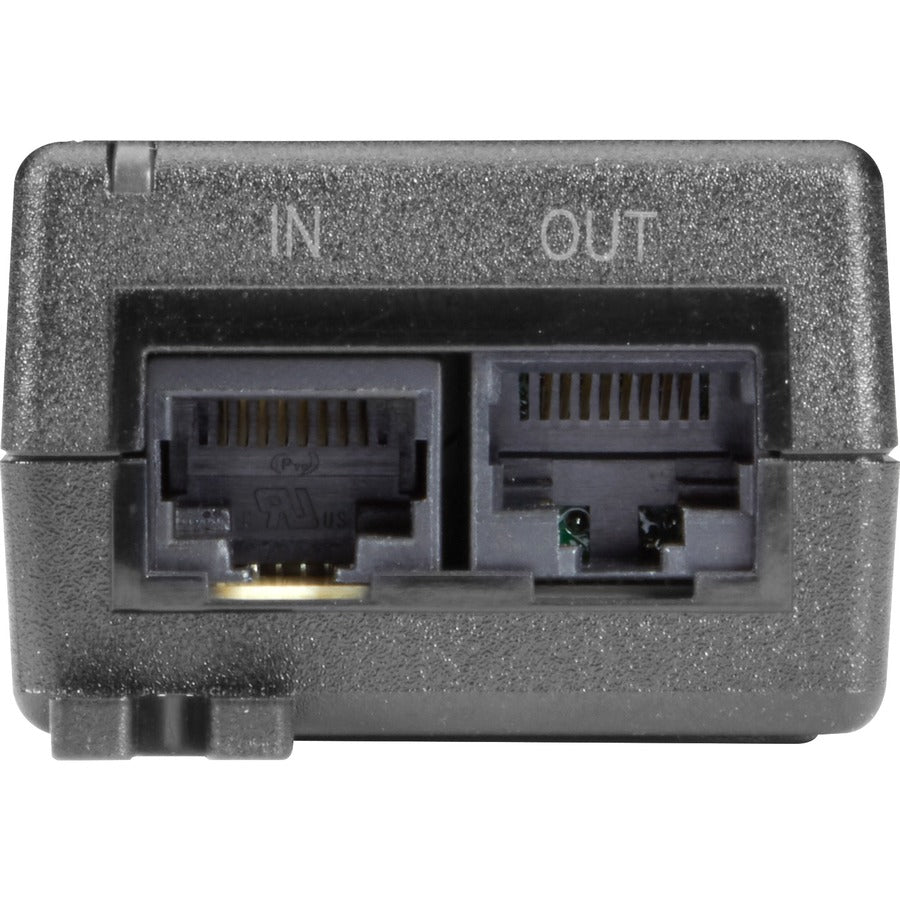

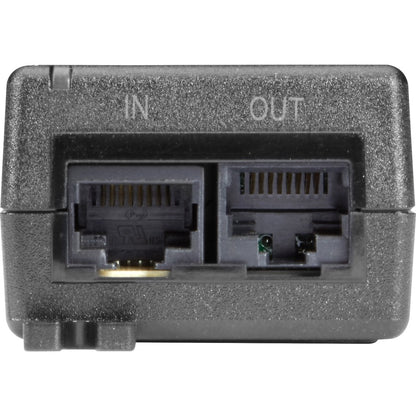

- Input Ports: 1 x 10/100/1000Base-T
- Output Ports: 1 x 10/100/1000Base-T
Physical Characteristics
- Height: 1.1"
- Width: 1.8"
- Depth: 5.5"
- Weight (Approximate): 6.40 oz
Miscellaneous
- Certifications & Standards:
Standards:
- IEEE 802.3at
- IEEE 802.3af
- CE
- cUL/UL
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: 1 Year
