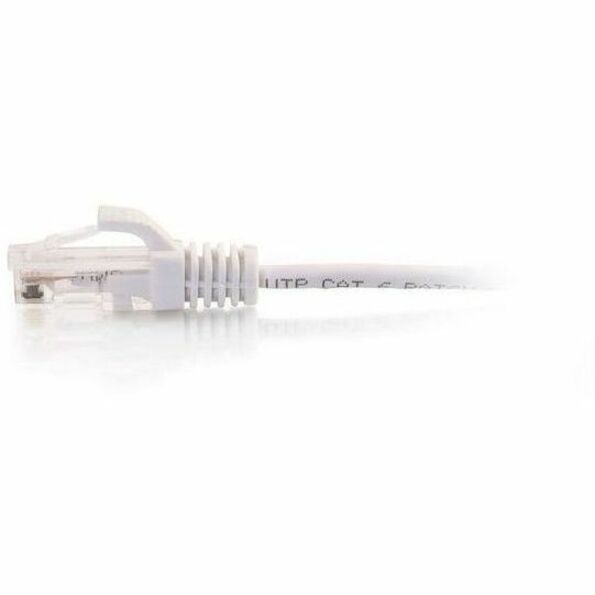

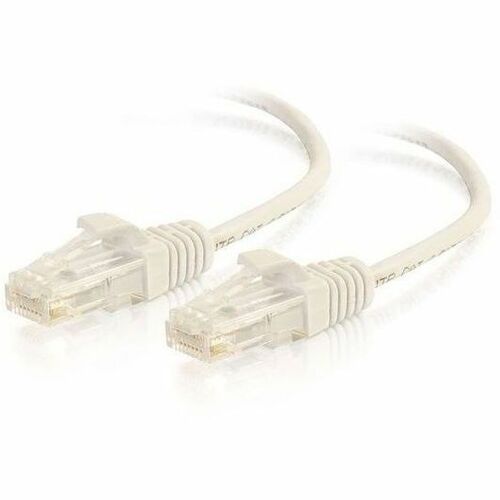

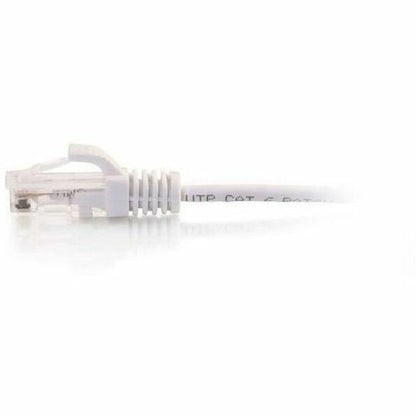

C2G 1.5ft (0.46m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable - White - C2G02236
Key Features
- 28AWG construction
- 36% reduction in diameter compared to standard Cat5e cables
- Meets the ANSI/TIA-568-C.2 standard for Patch Cord Performance
- Snagless connector design
Product Overview
The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels.
This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
This patch cable does not meet the recommend conductor size, 22-26AWG, requirement of ANSI/TIA-568-C.2. Attenuation is increased due to the smaller 28AWG conductors.
Maximum cable length recommendations:
96 Meter Channel (90 meters of horizontal cable and up to 6 meters of slim network patch cables)
93 Meter Channel (83 meters of horizontal cable and up to 10 meters of slim network patch cables)
For POE/POE+ applications we limit bundles to 40 cables due to heat dissipation of these reduced diameter cables.
Additional Technical Specifications
ELECTRICAL SPECIFICATIONS
Conductor DC Resistance: 9.38Ω/100m (maximum)
Impedance: 100Ω
Capacitance: 5600pf/100m
Propagation Delay: 545ns/100m (maximum)
Delay Skew: 45ns/100m (maximum)
PHYSICAL SPECIFICATIONS
Wiring Scheme: T568B
Temperature Rating: 75°C
Voltage Rating: 30V
Approvals: CE
Warranty: Lifetime
Package Type: Polybag
CONDUCTOR (4 PAIR)
Conductor Type: 248AWG (7/0.16 BC)
Insulation: FM-PE ID: ø.60±0.05
Twist Pair: White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown
CONNECTOR TYPE (QTY. 2)
Connector Type: 8P8C (RJ45)
Gender: Male
Contact Material: Gold Plated 50µ
Hood Material: Molded PVC, UL94V-0
OVERALL CABLE
Jacket: PVC
Outer Diameter: 3.8 ± 0.15mm
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: C2G02236
- Brand Name: C2G
- Product Name: C2G 1.5ft (0.46m) Cat6 Snagless (UTP) Slim Ethernet Network Patch Cable - White
- Product Type: Network Cable
Technical Information
- Cable Type: Category 6
- Cable Characteristic: Patch Cable
- Cable Length: 1.50 ft
- Cable Shielding Type: Unshielded Twisted Pair (UTP)
- Connector Type on First End: RJ-45 Network - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x RJ-45 Network - Male
- Connector Type on Second End: RJ-45 Network - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x RJ-45 Network - Male
- Connector Plating: Gold
- Shielding: No
- Jacket Type: Standard Non-rated
- Device Supported: Network Device
- American Wire Gauge: 28 AWG
- Data Transfer Rate: 10 Gbit/s
- Boot Type:
- Molded
- Snagless
- Number of Pairs: 4
- Number of Conductors: 8
- Features:
- Minimized Near-End Crosstalk (NEXT)
- PoE
- PoE+
- Strain Relief
- Stranded
Physical Characteristics
- Color Family: White
- Product Color: White
- Product Material: Copper
- Connector Material: Gold
- Insulation Material: FM-PE
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.01 lb
Miscellaneous
- Application/Usage:
- Commercial
- Industrial
- Residential
- Indoor
- Data Center
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin: Vietnam
Warranty
- Limited Warranty: Lifetime
