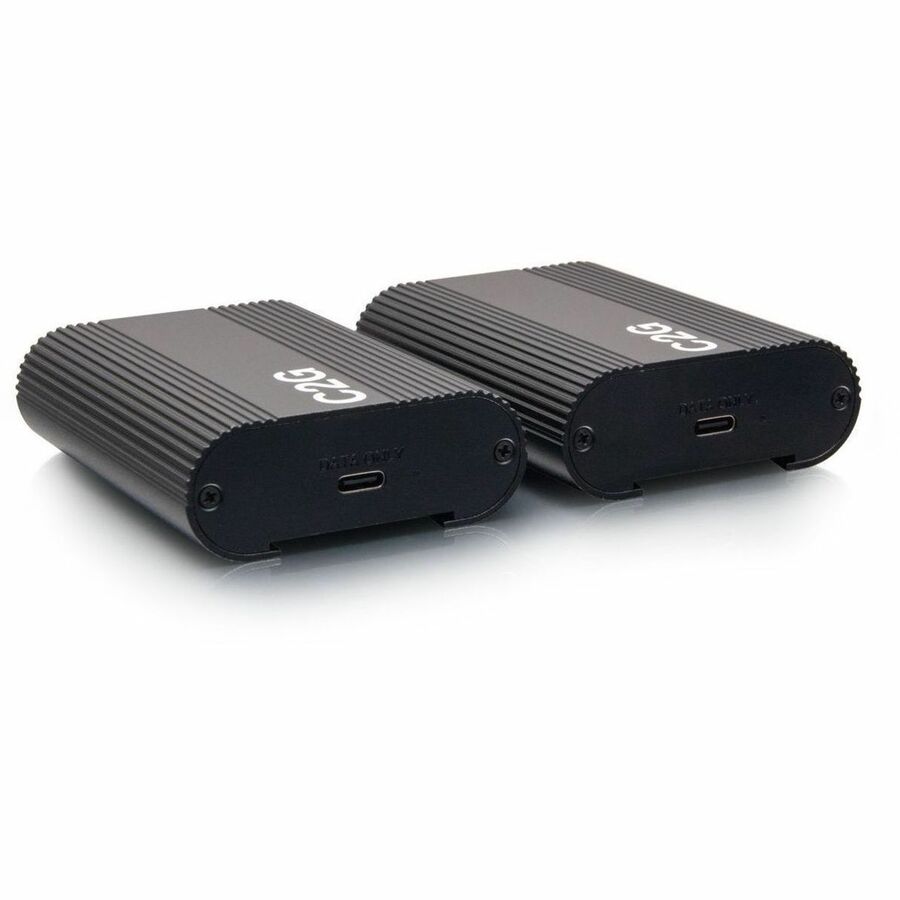

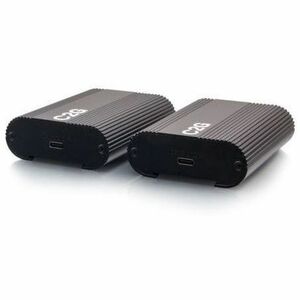

C2G Superbooster® USB Camera Extender Over Cat Box to Box Kit - C2G54277
Key Features
- As easy to use as a passive cable. Plug and play with no software or drivers required
- Backed by a 5-year warranty
- Bi-directional data and power transfer - simplifies installation by allowing the same module to be used as either a transmitter or receiver
- Compatible with USB 2.0. Compatible to USB 1.1 if a USB 2.0 hub is used on the device end.
- Extends a USB camera up to 150ft (45.7m) over Cat6
- Lower power consumption - typically 0.5W
- Optional external power to support high-current devices(up to 3A)
- Supports a dual-mode USB-C device when explicit device mode is selected.
- Tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera
- Up to 1.5A power delivery from host to device
Product Overview
C2G Superbooster USB Extenders deliver reliable USB signal transmission for USB devices, allowing devices such as cameras, interactive whiteboards and printers to be placed at greater distances from the host computer.
What's more, the C2G Superbooster USB Camera Extender has been tested to be compatible with industry-leading video conferencing cameras. Not only does this testing ensure reliability and deployment confidence for AV integrators, it saves valuable time as well.
This camera extender is designed with chipset technology that offers a higher compatibility rate than other USB extenders on the market. The C2G Superbooster USB Camera Extender has been tested and proven by C2G to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera.
This Superbooster® USB Camera Extender provides reliable USB data extension from a computer to a USB camera up to 150 feet (45.7m) over a standard Cat6 network cable - making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.
This plug-and-play solution consists of one box transmitter and one box receiver.
This package includes:
1 x Box Transmitter
1 x Box Receiver
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: C2G54277
- Brand Name: C2G
- Product Line: Superbooster
- Product Name: C2G Superbooster® USB Camera Extender Over Cat Box to Box Kit
- Product Type: Video Extender Transmitter/Receiver
Technical Information
- Connectivity Technology: Wired
- Maximum Operating Distance: 150 ft
- HDBase-T: Yes
Video
- Graphics Modes: 4K
- Supported Video Modes: 1080p
- Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
- Network (RJ-45): Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 4
Media & Performance
- Twisted Pair Cable Standard: Category 6
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Transmitter Height: 3.27"
- Transmitter Width: 2.48"
- Transmitter Depth: 94"
- Receiver Height: 3.27"
- Receiver Width: 2.48"
- Receiver Depth: 94"
Miscellaneous
- Package Contents:
- 1 x Box Transmitter
- 1 x Box Receiver
- Application/Usage:
- Commercial
- Residential
- Video Conferencing Camera
- IP Camera
- Conference Room
- Classroom
- Hospital
- Auditorium
- Country of Origin: China
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 5 Year
