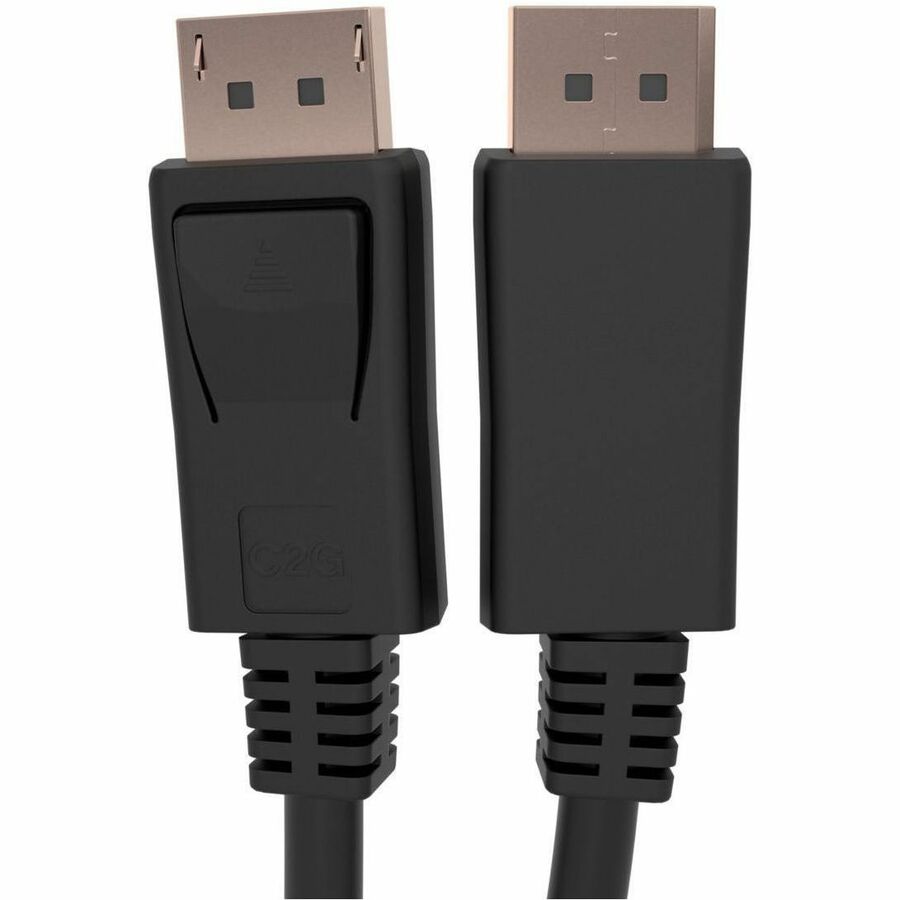

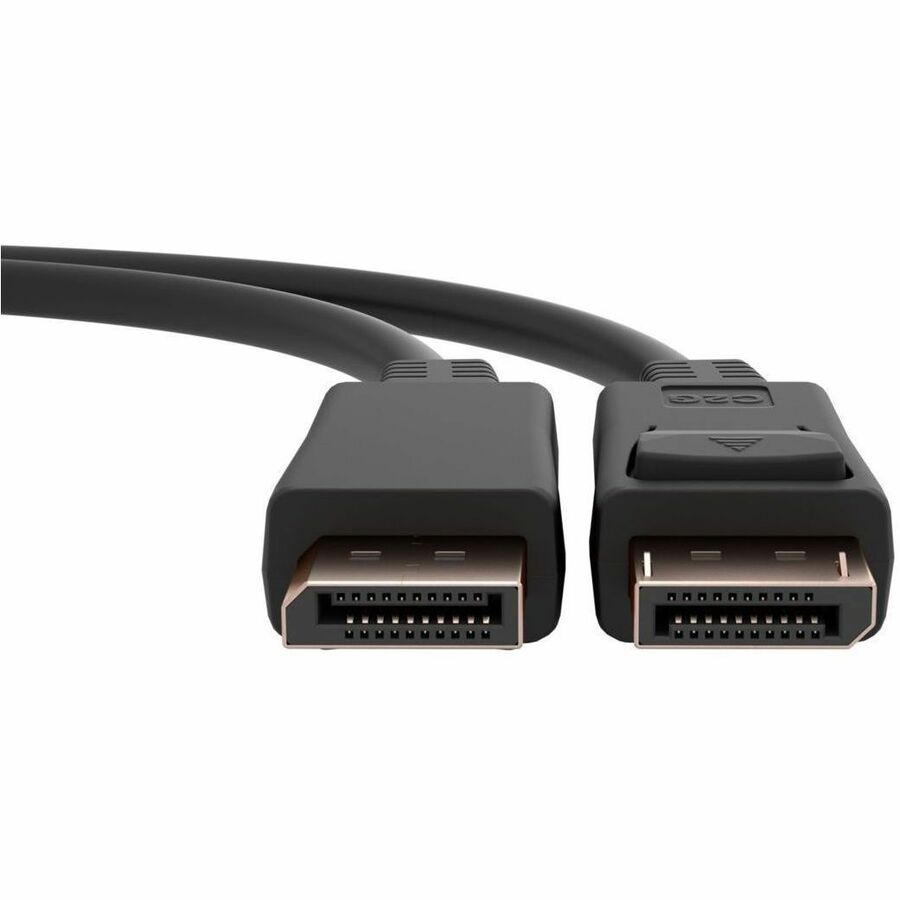

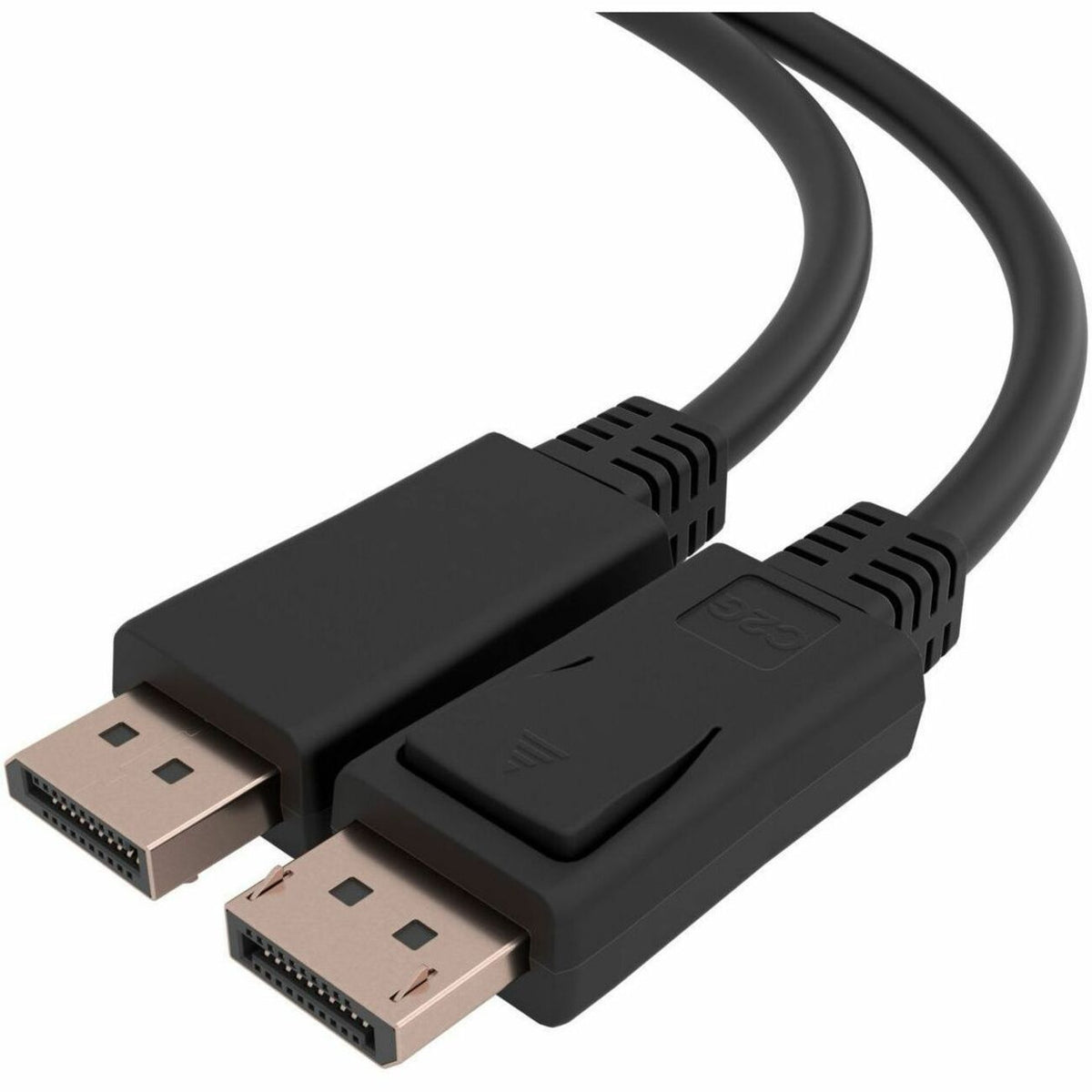

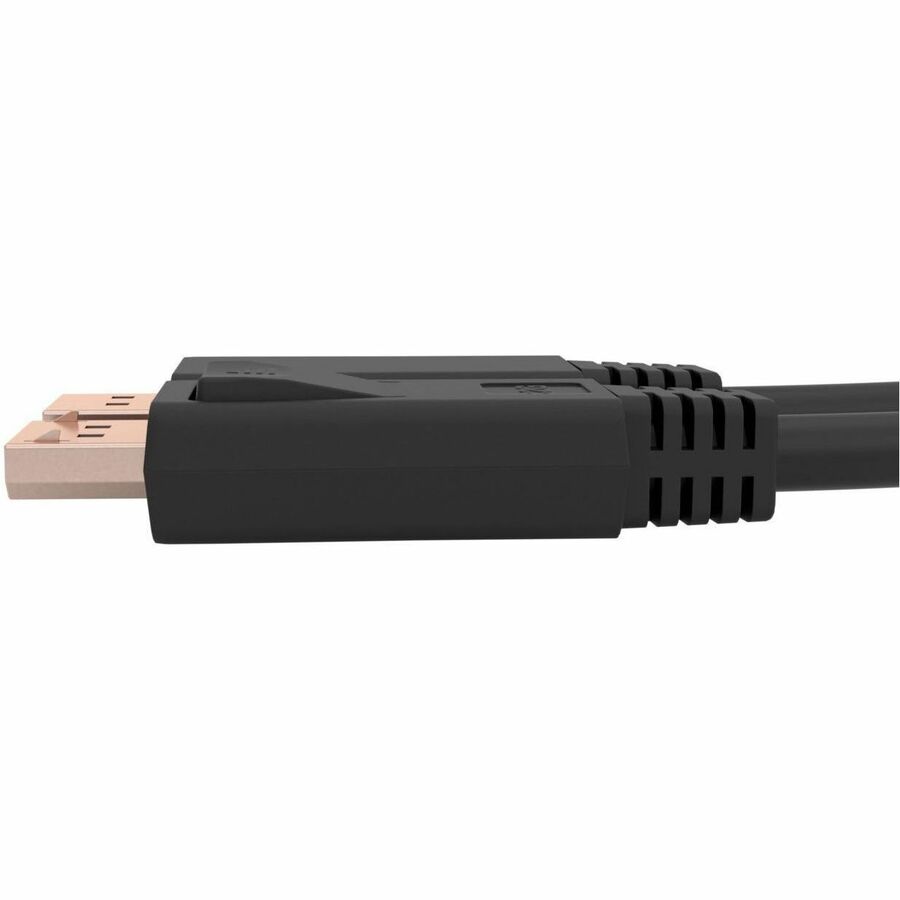

C2G TAACompliant DisplayPort™ Cable with Latches8K 60Hz - C2G50114
Key Features
- Backed by a Lifetime Warranty for peace of mind.
- Cable jacket rating VW-1 and compliant with UL standards, making it suitable for basic applications.
- Fully compliant with the DisplayPort 1.4 specification
- Supports data bandwidth up to 32.4Gbps.
- Supports video resolutions up to 8K@30Hz without DSC.
- Supports video resolutions up to 8K@60Hz UHD (7680 x 4320) with DSC only
- This cable transmits uncompressed audio and deep color depth
Product Overview
The C2G TAA-Compliant DisplayPort™ Cable with Latches - 8K 60Hz delivers exceptional video and audio performance, perfect for high-resolution displays and professional use. It supports DisplayPort 1.4, providing up to 8K resolution at 60Hz (7680 x 4320) with a data bandwidth of up to 32.4Gbps for uncompressed audio and deep color depth. Designed for secure connections, it features latching connectors and supports High Bit Rate (HBR) bandwidth, ensuring reliable performance for resolutions up to 4K at 60Hz. Backed by a lifetime warranty for added peace of mind.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: C2G50114
- Brand Name: C2G
- Product Name: TAACompliant DisplayPort™ Cable with Latches8K 60Hz
- Packaged Quantity: 1
- Product Type: A/V Cable
Technical Information
- Cable Type: DisplayPort
- Cable Length: 10 ft
- Connector Type on First End: DisplayPort 1.4 Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x DisplayPort 1.4 Digital Audio/Video - Male
- Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x DisplayPort 1.4 Digital Audio/Video - Male
- Shielding: No
- Jacket Type:
- Standard Non-rated
- VW-1
- Device Supported:
- Audio/Video Device
- Display
- American Wire Gauge: 28 AWG
- Data Transfer Rate: 32.4 Gbit/s
- Supported Resolution: 7680 x 4320
- Number of Pairs: 5
- Number of Conductors: 10
- Impedance: 100 Mega Ohm
- Features: Latching Connector
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.43 lb
Miscellaneous
- Application/Usage:
- Commercial
- Industrial
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: Lifetime
