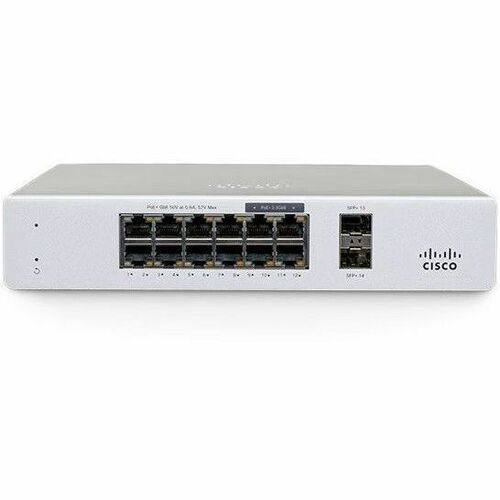

Cisco Meraki MS130-12X Ethernet Switch - MS130-12X
Key Features
- Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
- Available in white color to allow visual alignment with surrounding equipment
- Built?in power supply supports internal components by providing required operating voltage
- Desktop form factor supports placement outside dedicated wiring enclosures for accessible device positioning
- Ethernet Switch supports increased network bandwidth availability through data switching
- Expand network capacity using 12 networking ports to accommodate additional devices within an existing wired setup
- Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
- Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
- Management capability enables control over network setup and configuration according to operational requirements
- Twisted pair cable support enables cost?efficient network connections for data transmission across distan
Product Overview
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
General Information
- Manufacturer: Cisco Systems, Inc
- Manufacturer Part Number: MS130-12X
- Brand Name: Cisco Meraki
- Product Series: MS130
- Product Model: MS130-12X
- Product Name: MS130-12X Ethernet Switch
- Packaged Quantity: 1
- Product Type: Ethernet Switch
Technical Information
- Features:
- Zero-Touch Provisioning (ZTP)
- DHCP Relay
- DHCP Snooping
- Access Control List
- Automatic Firmware Upgrade
- VLAN Segmentation
- Built-in Fan
Interfaces/Ports
- Total Number of Network Ports: 12
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE++
- 4 x 2.5 Gigabit Ethernet PoE++
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 2.5GBase-T
- 10GBase-X
- Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 2
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 240 W
- Input Voltage: 54 V DC
- Power Source: Power Supply
- Power Consumption: 260 W
Physical Characteristics
- Product Color: White
- Form Factor:
- Desktop
- Wall Mountable
- Height: 1.8"
- Width: 9"
- Depth: 8.6"
- Weight (Approximate): 2.34 lb
Miscellaneous
- Package Contents:
- MS130-12X Ethernet Switch
- AC Power Supply
- Energy Star: No
- TCO Certified: No
Warranty
- Limited Warranty: Lifetime
