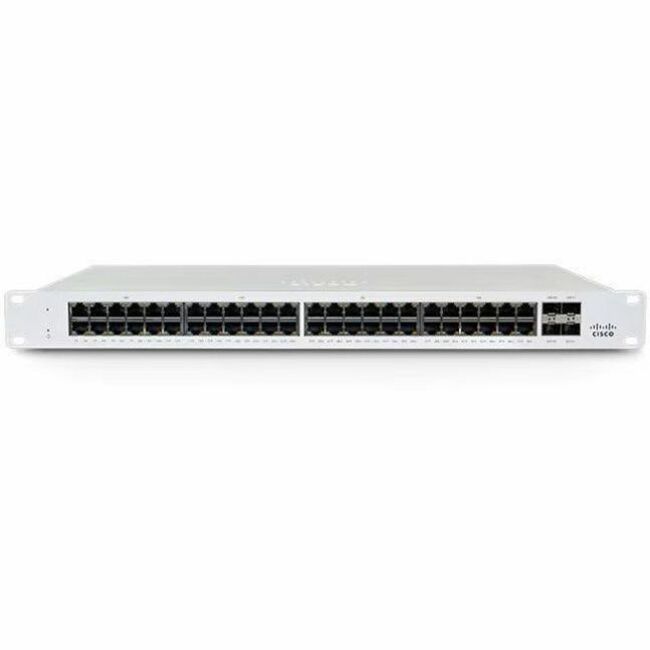

Cisco Meraki MS130-48X Ethernet Switch - MS130-48X
Key Features
- 10/100/1000 Mbps RJ45
- 100M/1G/2.5G mGbE RJ45
- 802.1Q VLAN tagging
- 802.1X Authentication
- Automatic Firmware upgrades
- DHCP Snooping
- IPv4/6 ACL support
- Managed via Cisco Meraki Dashboard
- Remote Packet Capture Tools via Meraki Dashboard
- SNMP/Syslog Integration
Product Overview
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
General Information
- Manufacturer: Cisco Systems, Inc
- Manufacturer Part Number: MS130-48X
- Brand Name: Cisco Meraki
- Product Series: MS130
- Product Model: MS130-48X
- Product Name: MS130-48X Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Features:
- DHCP Snooping
- Fanless
- Remote/Cloud Management
Interfaces/Ports
- Total Number of Network Ports: 48
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 40 x Gigabit Ethernet PoE
- 8 x 2.5 Gigabit Ethernet PoE
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 2.5GBase-T
- 10GBase-X
- Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3bt
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 740 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source:
- AC
- Power Supply
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 13.4"
- Weight (Approximate): 12.59 lb
Warranty
- Limited Warranty: Lifetime
