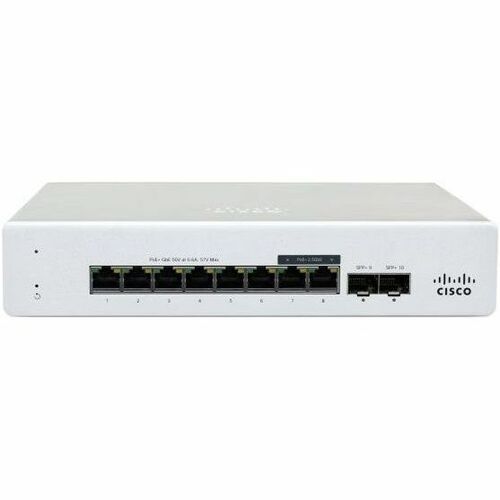

Cisco Meraki MS130-8P Ethernet Switch - MS130-8P
Key Features
- 10/100/1000 Mbps RJ45
- 100M/1G/2.5G mGbE RJ45
- 4x 10 Gbe SFP+ models available
- 802.1Q VLAN tagging
- 802.1X Authentication
- 802.3bt PoE up to 30W per port
- Automatic Firmware upgrades
- DHCP Snooping
- IPv4/6 ACL support
- Managed via Cisco Meraki Dashboard
- Remote Packet Capture Tools via Meraki Dashboard
- SNMP/Syslog Integration
Product Overview
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
General Information
- Manufacturer: Cisco Systems, Inc
- Manufacturer Part Number: MS130-8P
- Brand Name: Cisco Meraki
- Product Series: MS130
- Product Model: MS130-8P
- Product Name: MS130-8P Ethernet Switch
- Packaged Quantity: 1
- Product Type: Ethernet Switch
Technical Information
- Features:
- Zero-Touch Provisioning (ZTP)
- DHCP Relay
- DHCP Snooping
- Access Control List
- Automatic Firmware Upgrade
- VLAN Segmentation
- Fanless
Interfaces/Ports
- Total Number of Network Ports: 8
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE++
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 120 W
- Input Voltage: 54 V DC
- Power Source: Power Supply
- Power Consumption: 128 W
Physical Characteristics
- Product Color: White
- Form Factor:
- Desktop
- Wall Mountable
- Height: 1.1"
- Width: 6"
- Depth: 8.7"
- Weight (Approximate): 1.94 lb
Miscellaneous
- Package Contents:
- MS130-8P Ethernet Switch
- AC Power Supply
- Energy Star: No
- TCO Certified: No
Warranty
- Limited Warranty: Lifetime
