Cooler Master Premium Modular ATX Case MasterFrame 500 Mesh - MF500M-KHNN-S01
Key Features
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- With the support of 8 fan(s), the high air flow mid-tower casing protects and enhances the hardware components
Product Overview

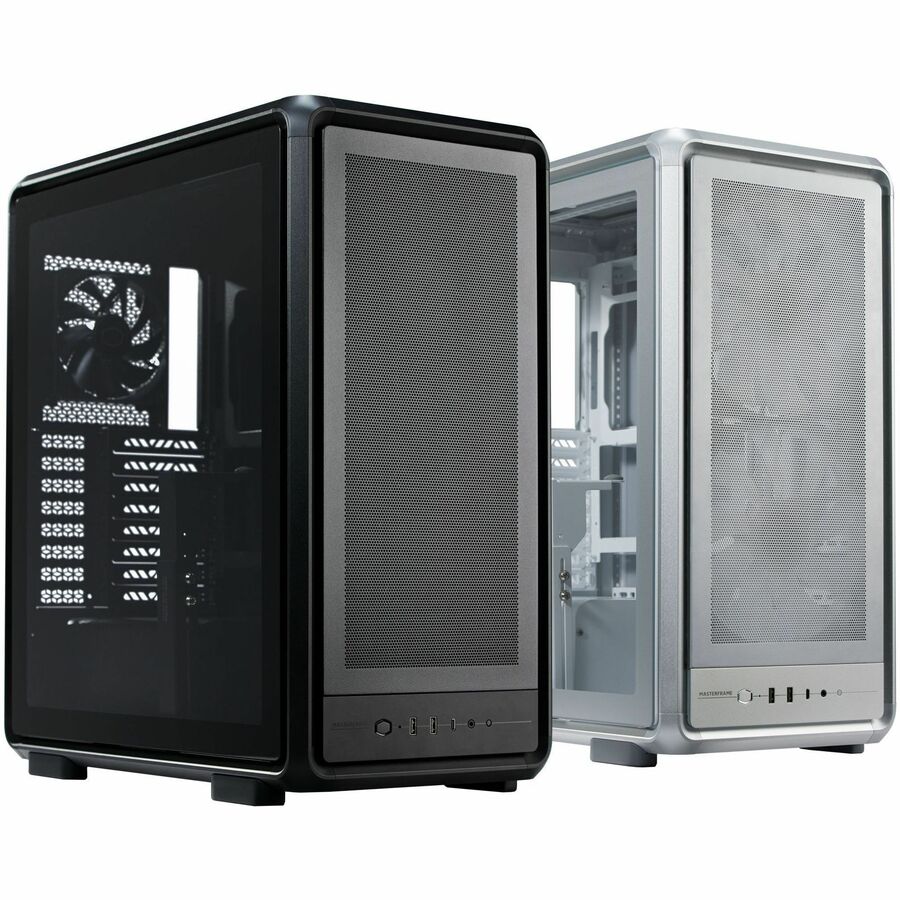

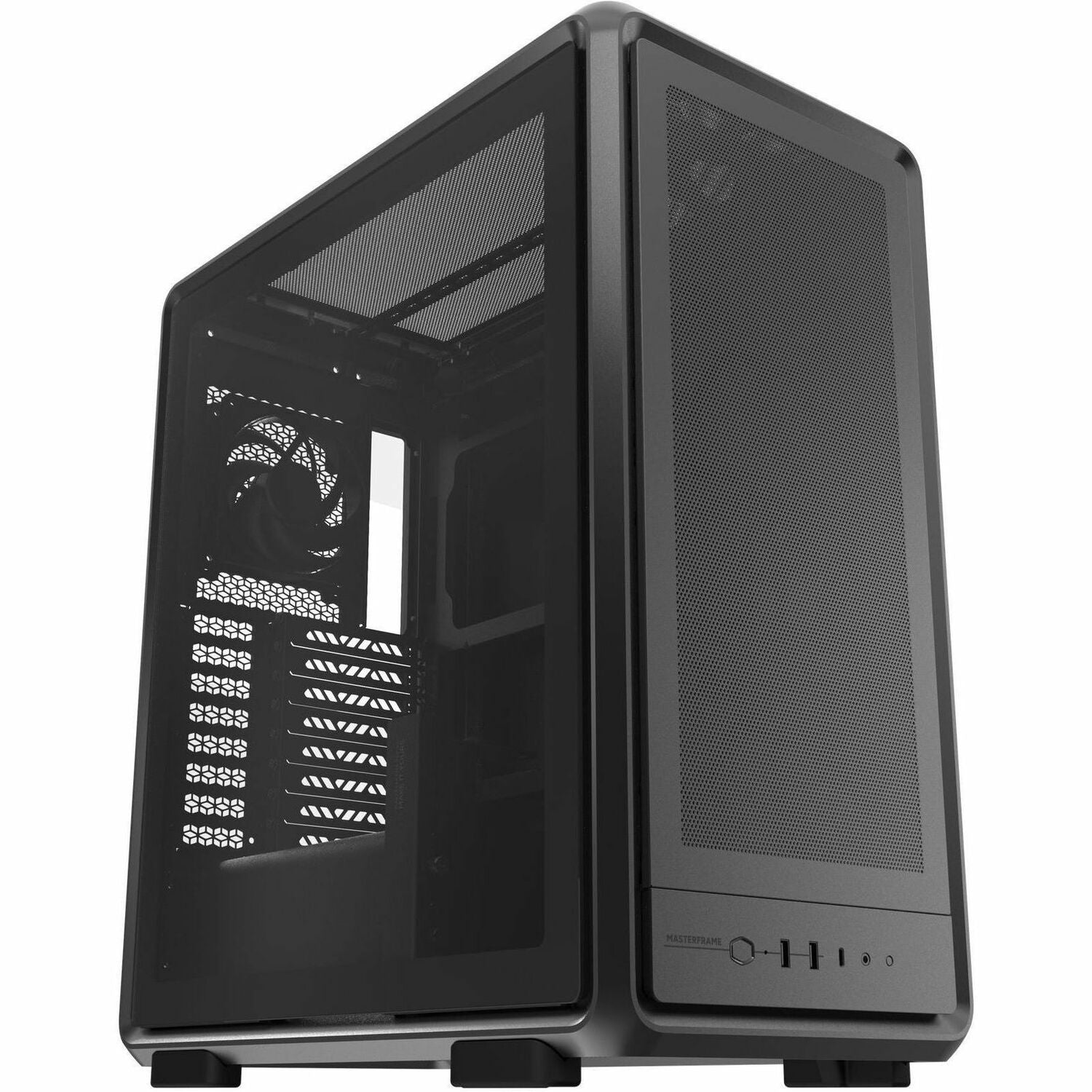

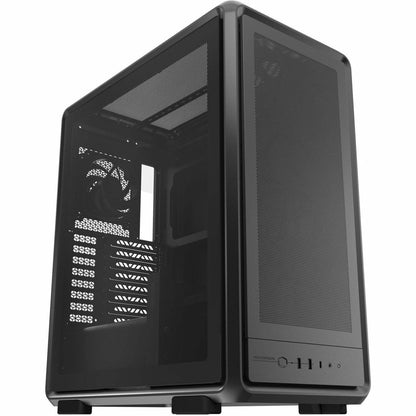

MasterFrame 500 Mesh
The MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design.
Black

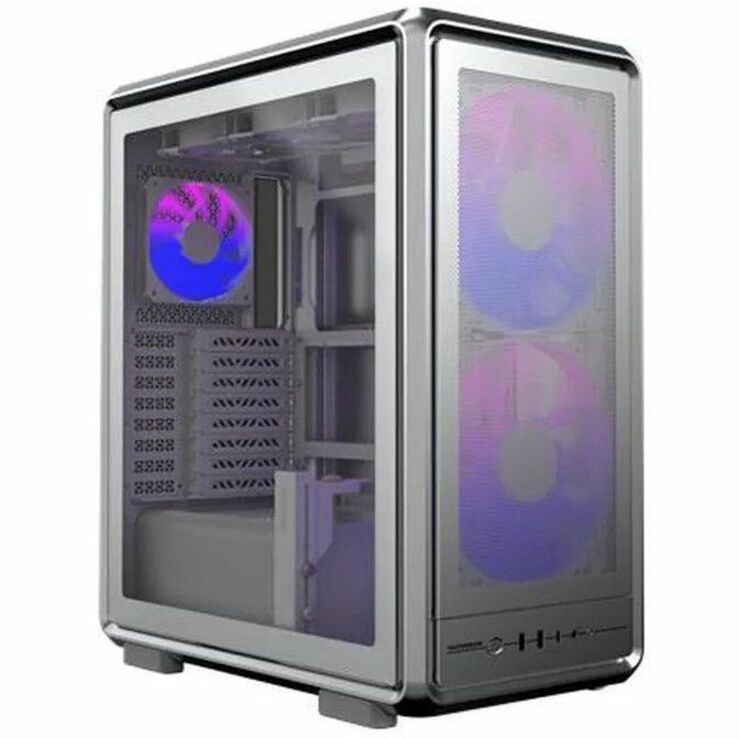

- Pre-installed Fans:
- ARGB Version: Front Dual SickleFlow 200 ARGB PWM Fans, Rear 120 ARGB PWM Fans,
- Non-ARGB: Front Dual SickleFlow 200 non-ARGB PWM Fans, Rear 120 non-ARGB PWM Fans,
- Dual 360mm Radiator support,
- Tempered Glass side,
- USB 3.1 Type-C
FreeForm 2.0 Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.

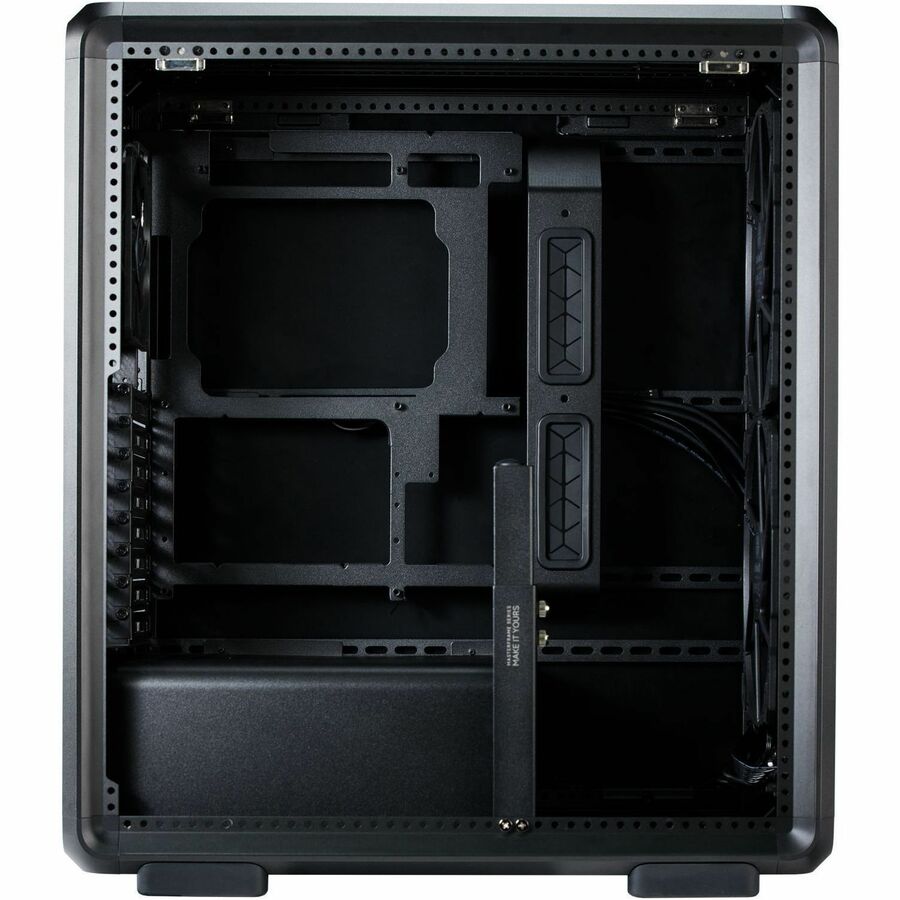

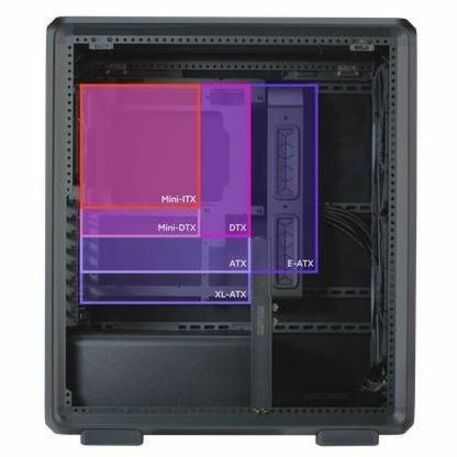

Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Extensive Cooling Support
Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.
Ample GPU Clearance
Accommodates graphics cards up to 390mm, offering plenty of space for high-end GPUs.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Customization
Swappable Panel
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: MF500M-KHNN-S01
- Brand Name: Cooler Master
- Product Line: MasterFrame 500
- Product Model: MF500M-KHNN-S01
- Product Name: Premium Modular ATX Case MasterFrame 500 Mesh
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- Mini ITX
- Mini DTX
- Micro ATX
- ATX
- EATX
- SSI CEB
- Number of Fans Supported: 8
- Number of Fans Installed: 4
- Fan Size Supported:
- 4.72"
- 5.51"
- 7.09"
- 7.87"
- Installed Fan Size:
- 7.87"
- 4.72"
- Installed Fan Size Details:
- 2 x 120mm
- 2 x 200mm
- Features:
- Dust Filter
- Removable Filter
Bays
- Number of Internal 2.5" Bays: 1
- Number of Total Expansion Bays: 1
I/O Expansions
- Total Number of Expansion Slots: 8
Interfaces/Ports
- Total Number of USB Ports: 3
- USB Port Details:
- 2 x USB 3.2 Gen 1 Type-A
- 1 x USB 3.2 Gen 2x2 Type C
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
- Microphone: Yes
- Headphone/Microphone Combo Port: Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Galvanized Cold Rolled Steel (SGCC)
- Steel
- Aluminium
- Tempered Glass
- Cooler Type: Fan Cooler
- Form Factor: Mid-tower
- Maximum CPU Cooler Height: 7.48"
- Maximum PSU Length: 9.25"
- Maximum GPU Length: 15.35"
- Height: 21.4"
- Width: 10.3"
- Depth: 18.5"
- Weight (Approximate): 31.09 lb
Miscellaneous
- Package Contents:
- Premium Modular ATX Case MasterFrame 500 Mesh
- GPU Support Bracket
Warranty
- Limited Warranty: 2 Year
