Cooler Master Premium Modular ATX Case MasterFrame 600 - MF600-KGNN-S00
Key Features
- 5 bays help in upgrading the system by increasing number of hardware components
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- With the support of 10 fan(s), the high air flow mid-tower casing protects and enhances the hardware components
Product Overview

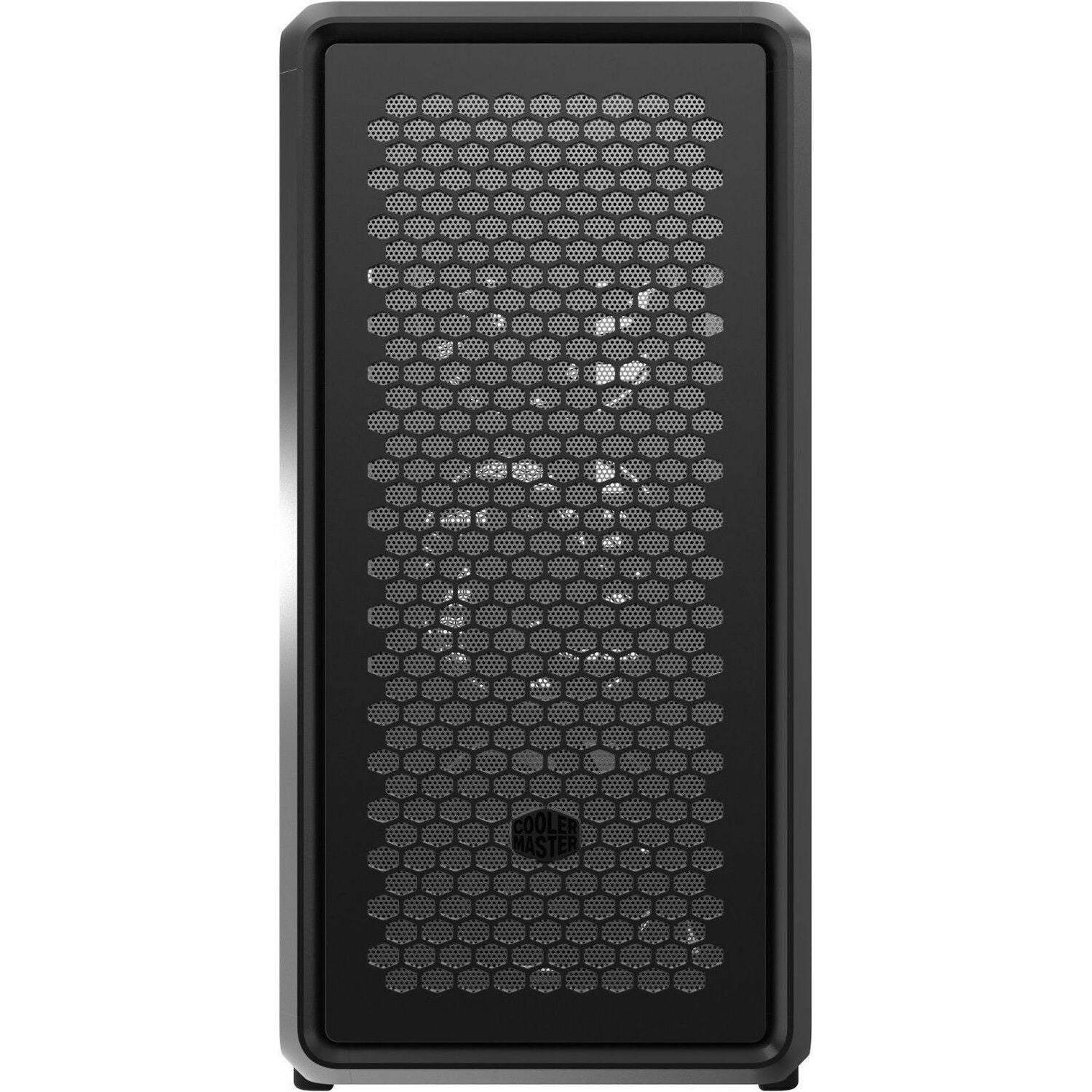

MasterFrame 600
The MasterFrame 600 is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.

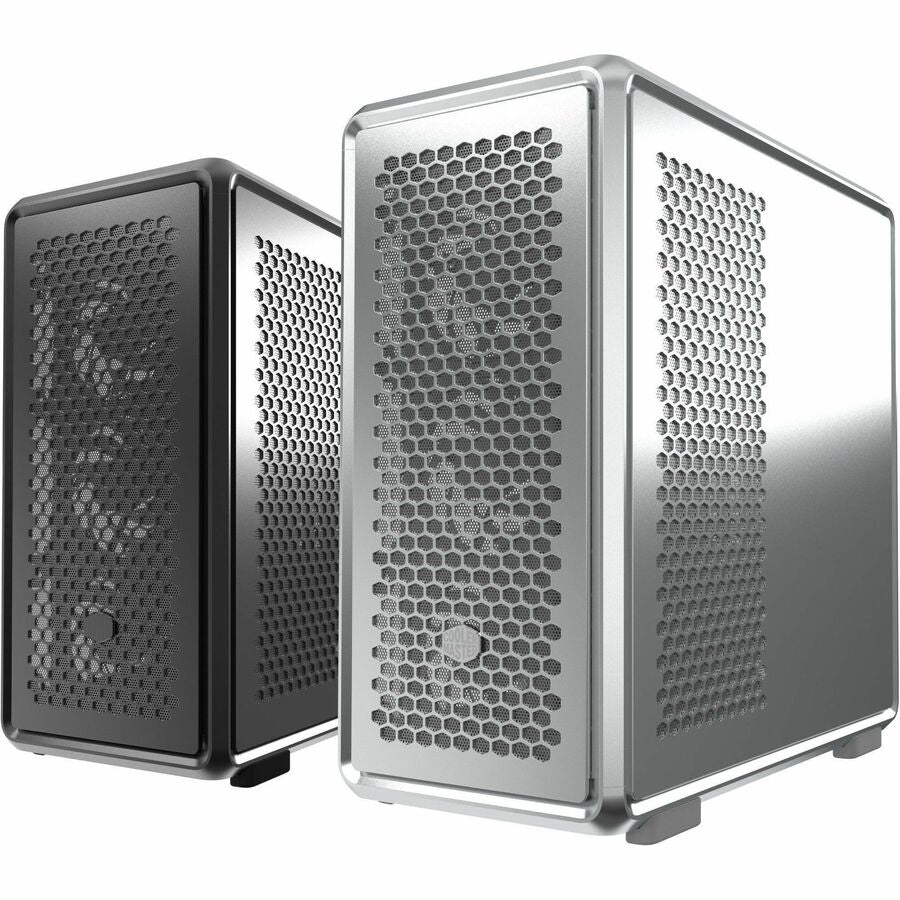

Silver
Rear Sickleflow 120 ARGB PWM Fans,
Triple Sickleflow 140 ARGB PWM Fan,
Triple 360mm Radiator support,
Tempered Glass side,
USB 3.2 Type-C,
Support GPU length 485mm
Black
Rear Mobius 120 PWM Fans,
Triple Mobius 140 PWM Fan,
Triple 360mm Radiator support,
Tempered Glass side,
USB 3.2 Type-C,
Support GPU length 485mm
FreeForm 2.0
Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.

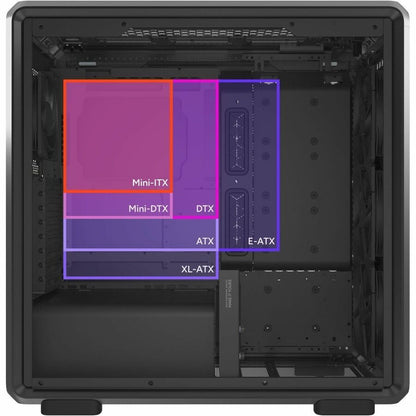

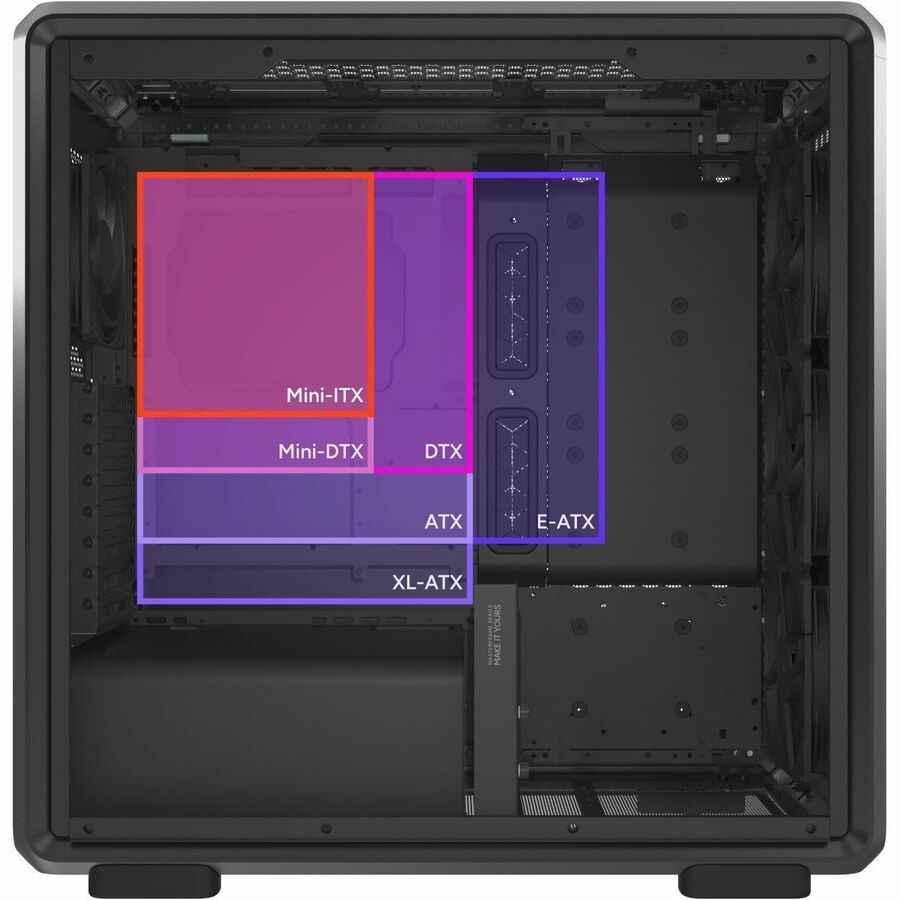

Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Extensive Cooling Support
Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.

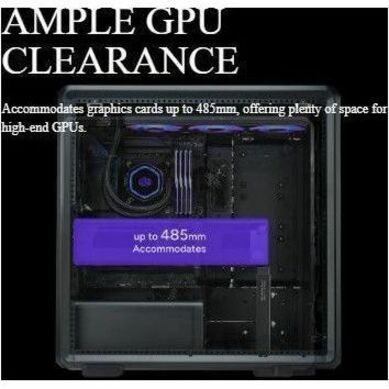

Ample GPU Clearance
Accommodates graphics cards up to 485mm, offering plenty of space for high-end GPUs.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Customization
Swappable Panel.
Ebony
.Eucalyptus
.GreyOak
.StoneVeneer
.Walnut
MasterFrame Series
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: MF600-KGNN-S00
- Brand Name: Cooler Master
- Product Line: MasterFrame 600
- Product Model: MF600-KGNN-S00
- Product Name: Premium Modular ATX Case MasterFrame 600
- Product Type: Gaming Computer Case
Technical Information
- Motherboard Supported:
- Mini ITX
- Mini DTX
- Micro ATX
- ATX
- EATX
- SSI CEB
- Number of Fans Supported: 10
- Number of Fans Installed: 4
- Fan Size Supported:
- 4.72"
- 5.51"
- 7.09"
- 7.87"
- Installed Fan Size:
- 5.51"
- 4.72"
- Features: Dust Filter
- Window Panel: Yes
- Window Panel Location:
- Side Panel
- Left Side
- Right Side
Bays
- Number of Internal 2.5" Bays: 3
- Number of Internal 2.5"/3.5" Bays: 2
- Number of Total Expansion Bays: 5
I/O Expansions
- Total Number of Expansion Slots: 8
Interfaces/Ports
- Total Number of USB Ports: 3
- USB Port Details:
- 1 x USB 3.2 Gen 2x2 Type C
- 2 x USB 3.2 Gen 1 Type-A
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
- Microphone: Yes
- Headphone/Microphone Combo Port: Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Galvanized Cold Rolled Steel (SGCC)
- Aluminum
- Tempered Glass
- Cooler Type: Fan Cooler
- Form Factor: Mid-tower
- Maximum CPU Cooler Height: 7.48"
- Maximum PSU Length: 9.25"
- Maximum GPU Length: 19.09"
- Height: 21.4"
- Width: 10.3"
- Depth: 20.9"
Miscellaneous
- Package Contents:
- Premium Modular ATX Case MasterFrame 600
- GPU Support Bracket
Warranty
- Limited Warranty: 2 Year
