CyberPower PDU24001 Single Phase 100 - 120 VAC 15A Metered ATS PDU - PDU24001
Key Features
- Amps: 15A (Derated to 12A)
- Frequency: 50/60Hz
- Outlets: 10 x NEMA 5-15R
- Phase: Single
- Plug type: 2 x NEMA 5-15P
- Size: 1U Rackmount
- Volts: 100-120V
- Warranty: 3 year
Product Overview
Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

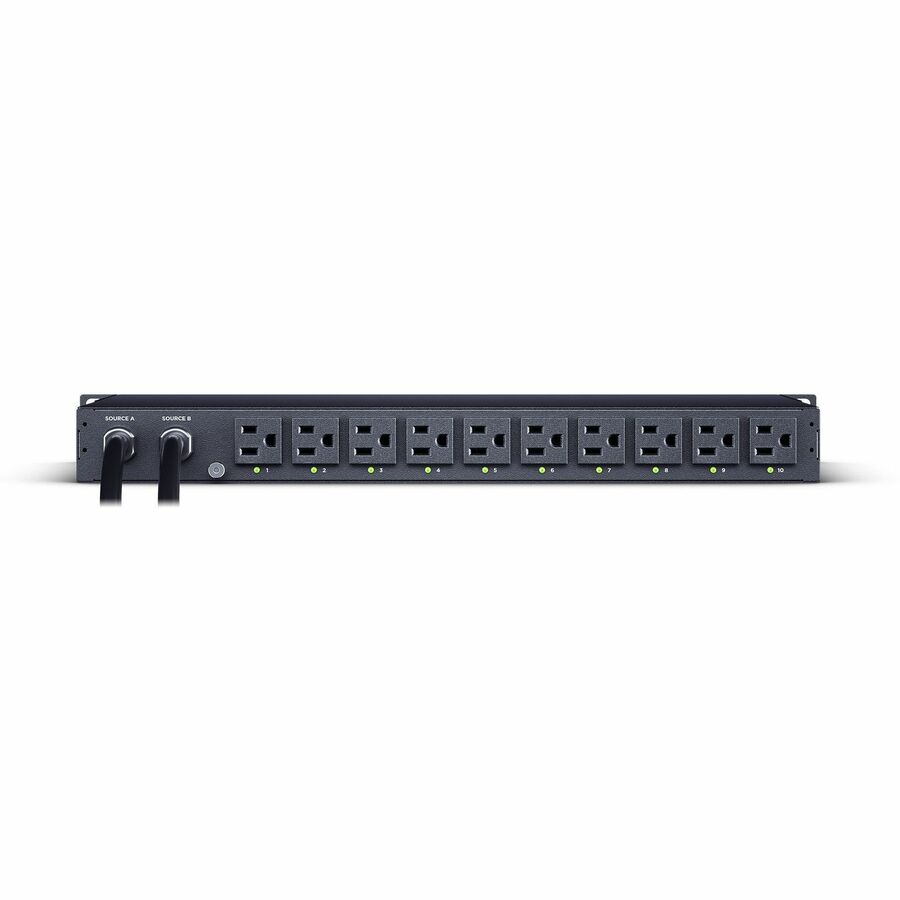

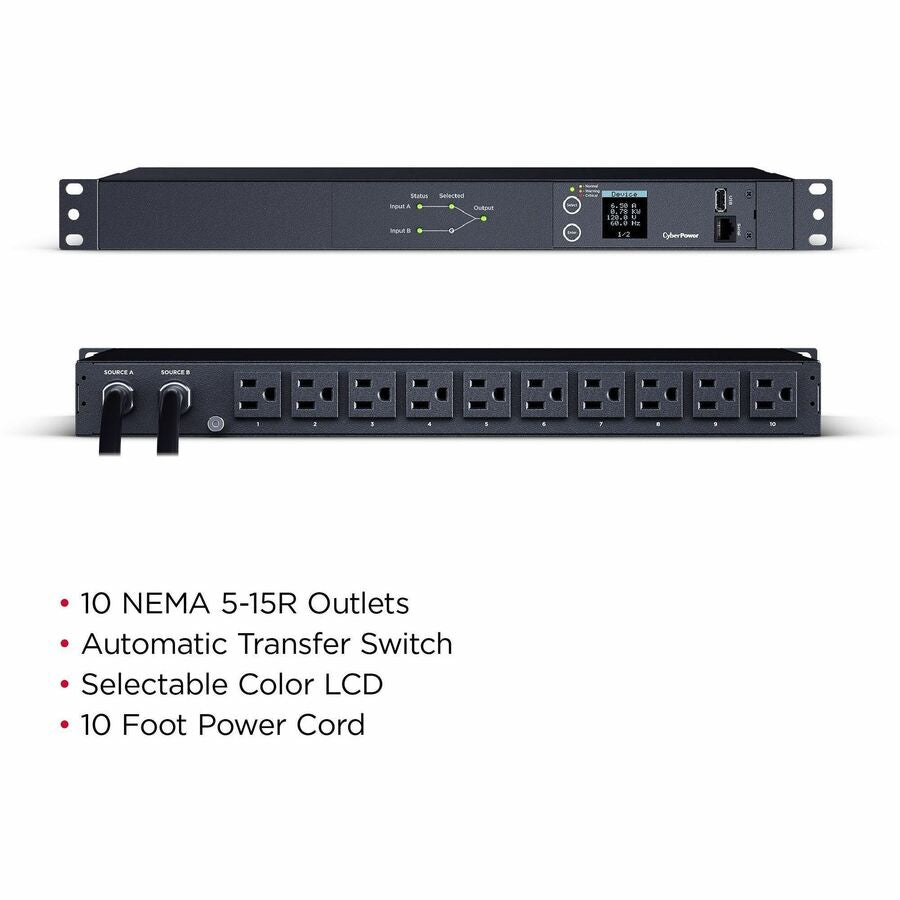

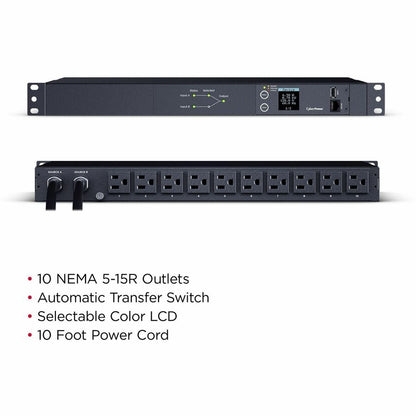

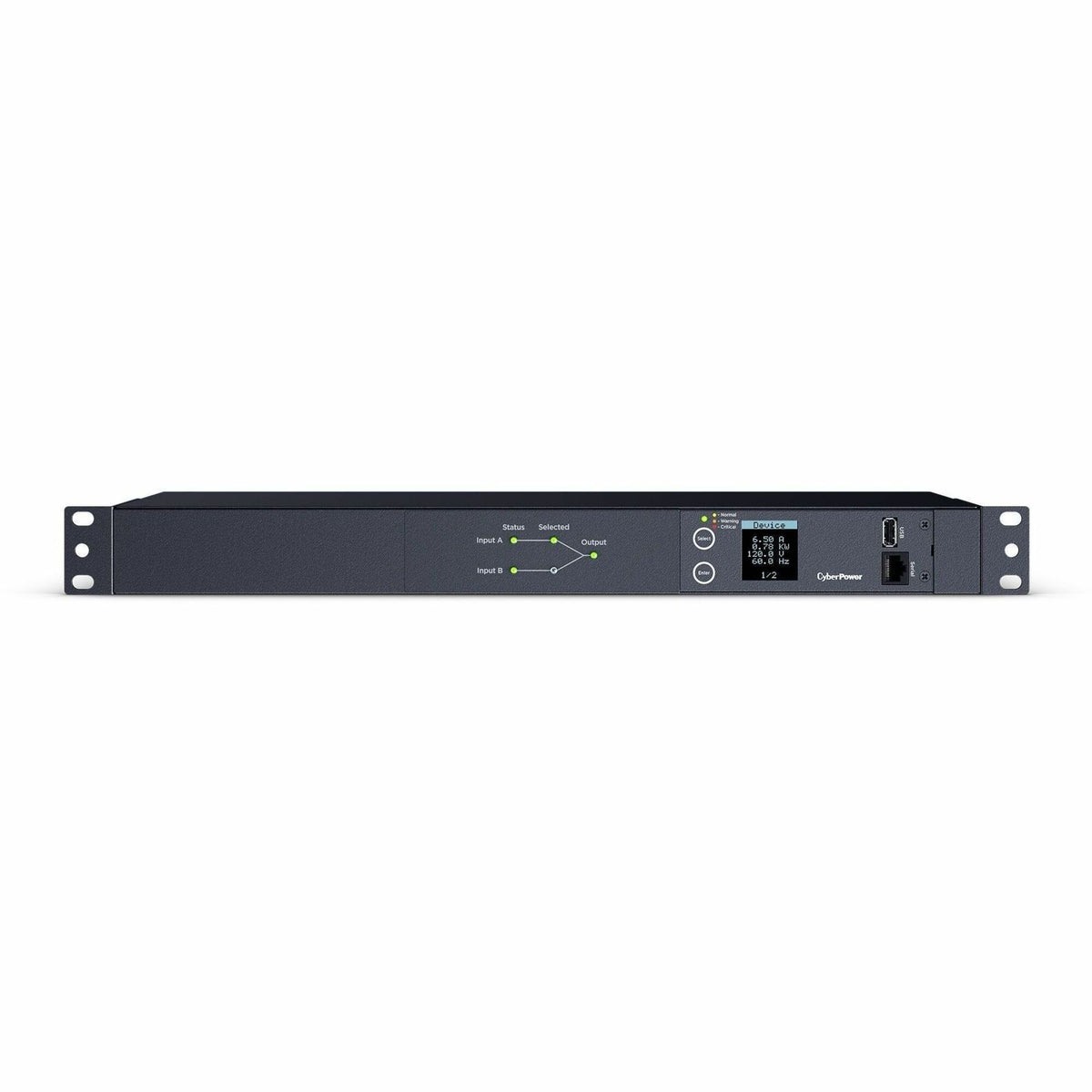

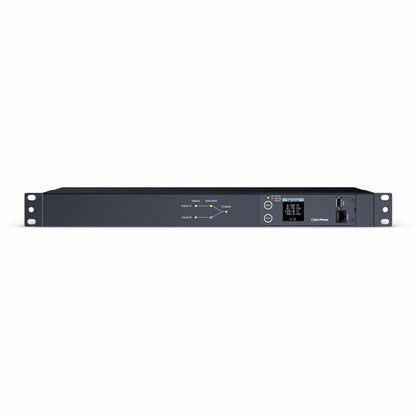

The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU24001
- Brand Name: CyberPower
- Product Series: Metered ATS PDU
- Product Model: PDU24001
- Product Name: PDU24001
- Product Type: PDU
Technical Information
- PDU Type: Metered
- Design: Modular
- Phase: Single Phase
- Plug/Connector Type: NEMA 5-15P
- Plug/Connector Detail: 2 x NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 10 x NEMA 5-15R
- Locking Receptacles: Cord Retention Tray
- Features:
- LCD Display
- LED Status Indicator
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 120 V AC
- Output Voltage: 120 V AC
- Output Voltage Range: 100 V AC - 120 V AC
- Input Current: 15 A
- Input Frequency: 60 Hz
Management
- Management: Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Form Factor: Rack
- Rack Height: 1U
- Cord Length: 10 ft

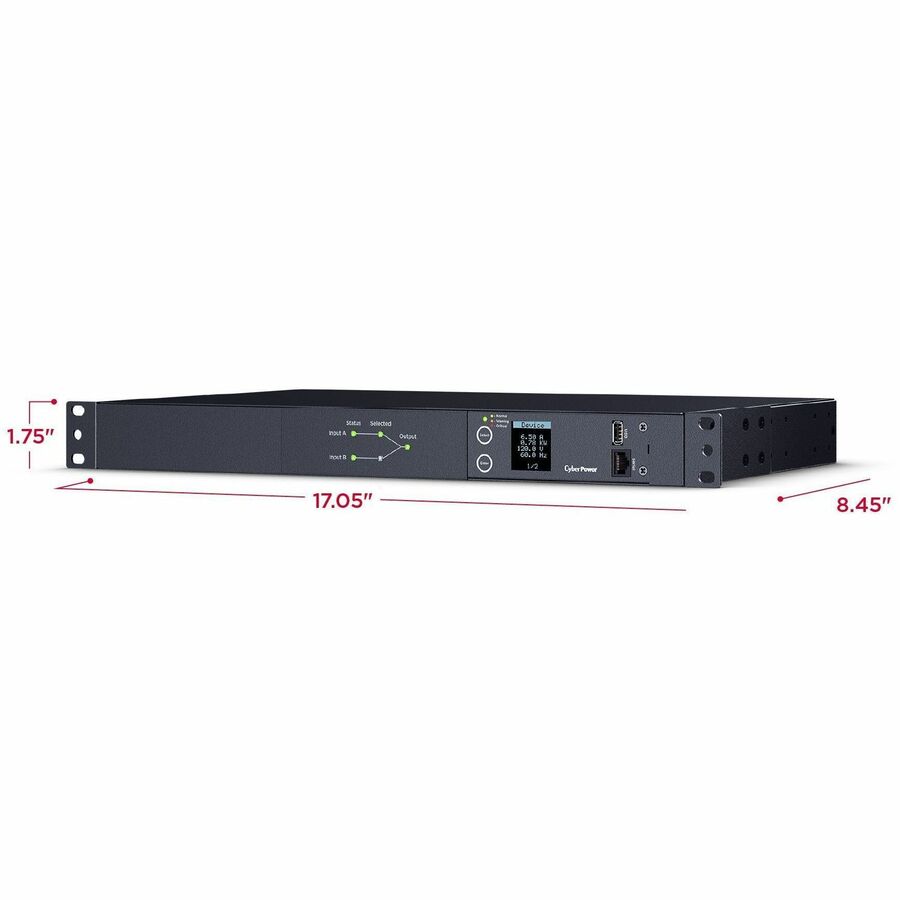

- Height: 1.8"
- Width: 17.1"
- Depth: 8.5"
- Weight (Approximate): 9.59 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 113°F (45°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 131°F (55°C)
Miscellaneous
- Application/Usage:
- Network Device
- Data Center
- Network Closet
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
