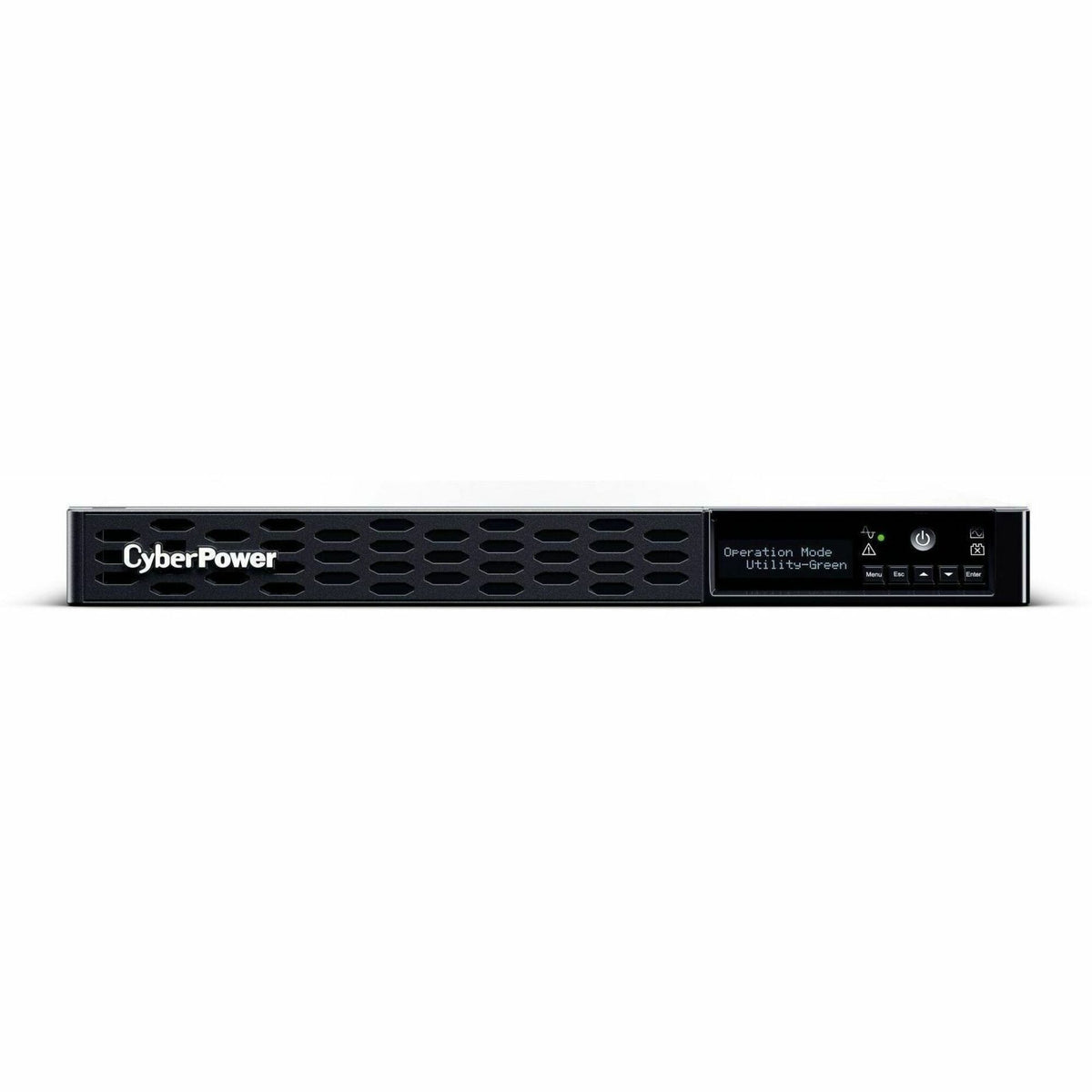

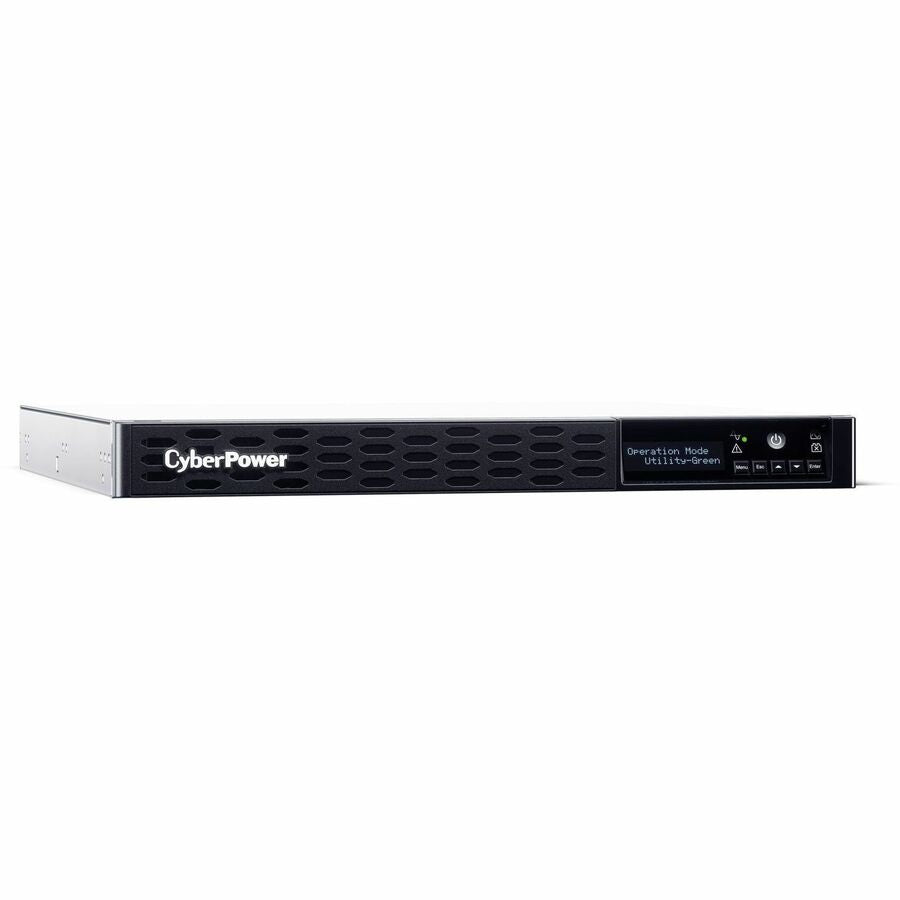

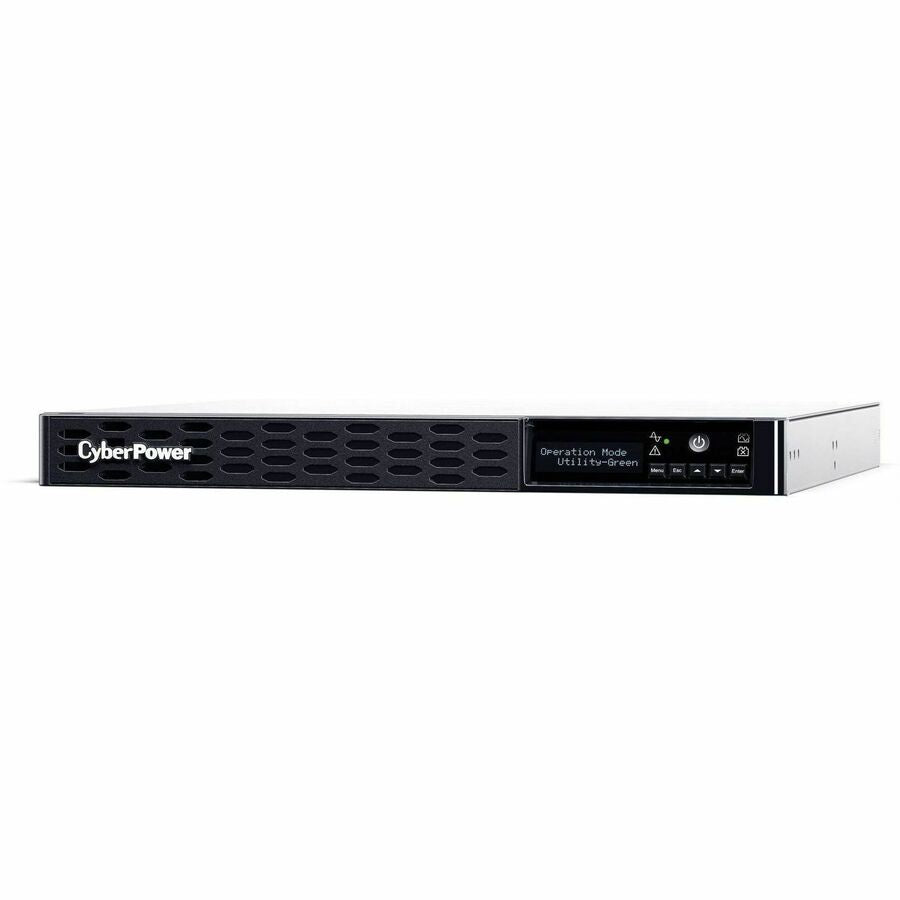

CyberPower PR1500RM1UC Smart App Sinewave UPS Systems - PR1500RM1UC
Key Features
- Capacity: 1500 VA / 1500 W
- Communication: USB, Serial, SNMP, Cloud, EPO

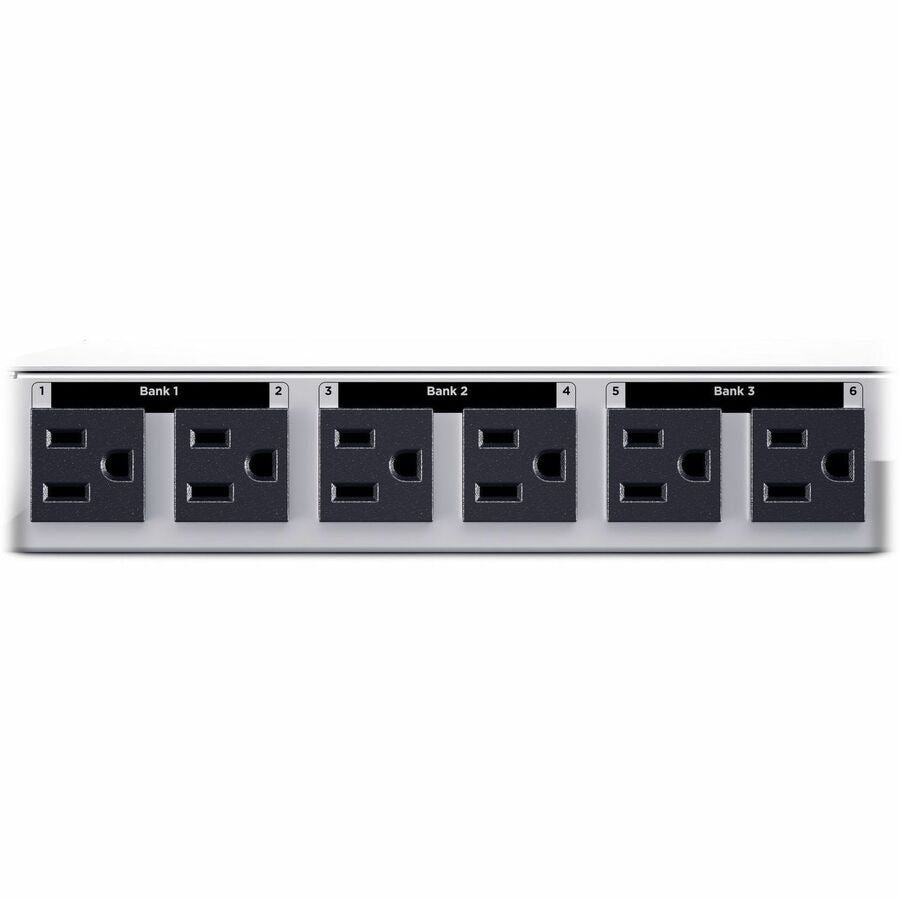

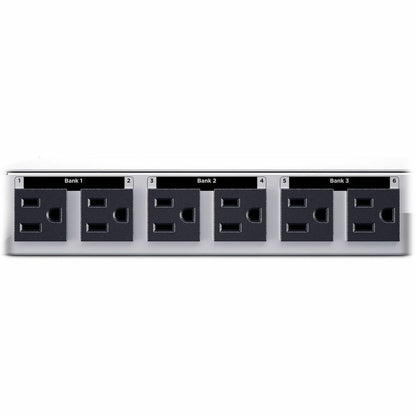

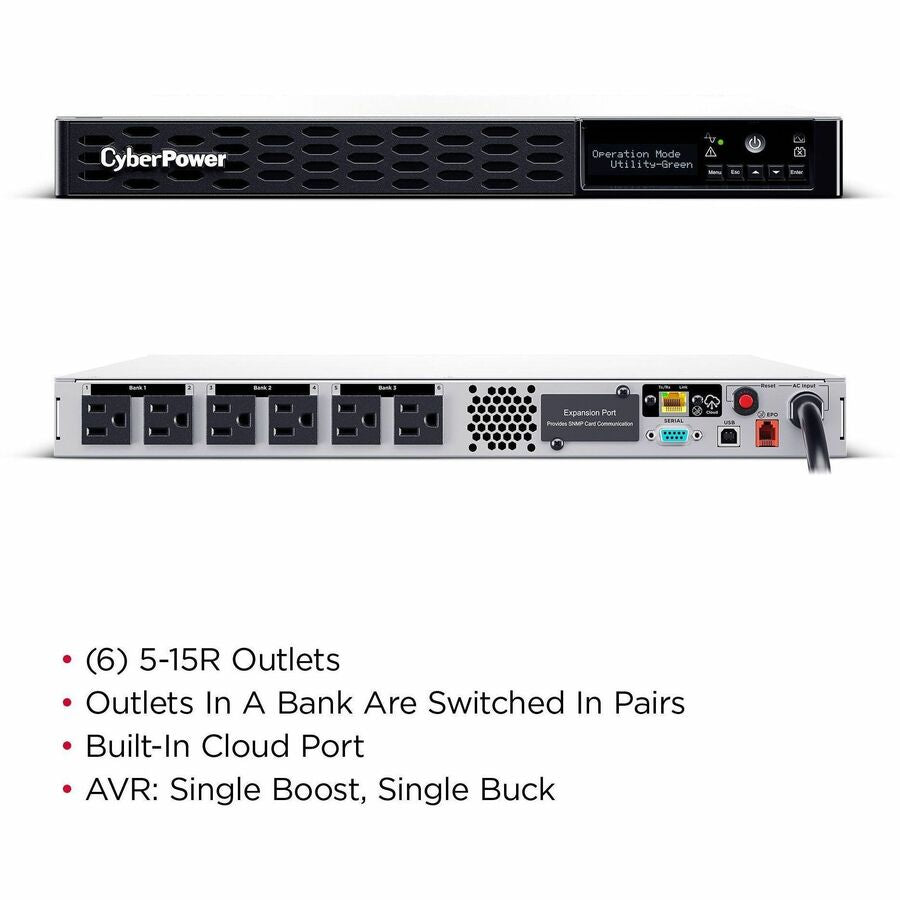

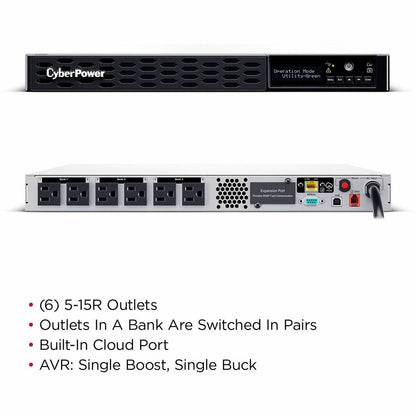

- Outlets: 6 × NEMA 5-15R, Switched in pairs
- Output: 100-125 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Remote management: Yes, optional RMCARD205 and Includes Built-in Cloud Monitoring
- Runtime (half/full): 10.3 minutes / 3.7 minutes
- Topology: Line Interactive
- Waveform: Sine Wave
Product Overview
The PR1500RM1UC is a Smart App Sinewave rack mounted UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR1500RM1UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast.
This model works with remote management card RMCARD205 or RMCARD400, which provides remote management and configuration of the UPS via a standard web browser or network management system. Built-in Cloud Monitoring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1500RM1UC.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR1500RM1UC
- Brand Name: CyberPower
- Product Series: Smart App Sinewave
- Product Model: PR1500RM1UC
- Product Name: PR1500RM1UC
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes

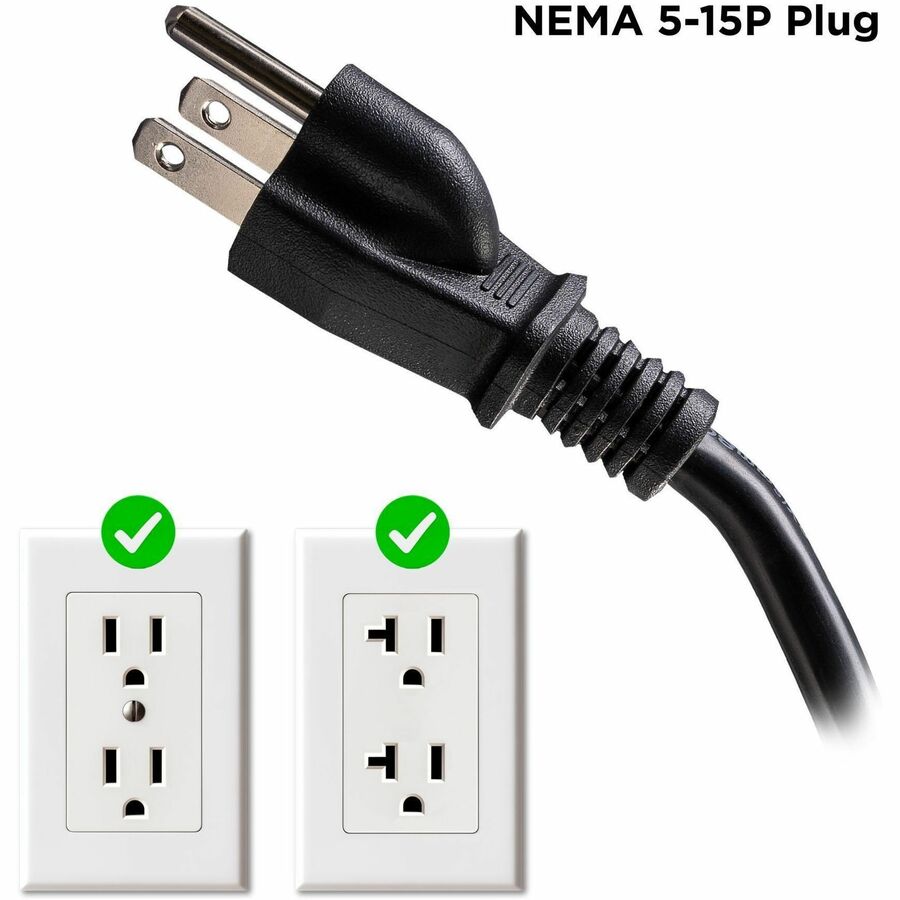

- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Overload Protection: Yes
- Cord Length: 10 ft
- Transfer Time: 7 ms
- Phase: Single Phase
- Energy Saving: GreenPower UPS™ Bypass Technology
- Surge Suppression: Yes
- Features: Cold Start Function
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 1500 W
- Input Voltage: 120 V AC
- Input Voltage Range:
- 88 V AC - 153 V AC
- 100 V AC - 125 V AC
- Output Voltage:
- 100 V AC
- 110 V AC
- 120 V AC
- 125 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 2720 J
- Circuit Breaker: Yes
- Output Power Factor: 1
Display & Graphics

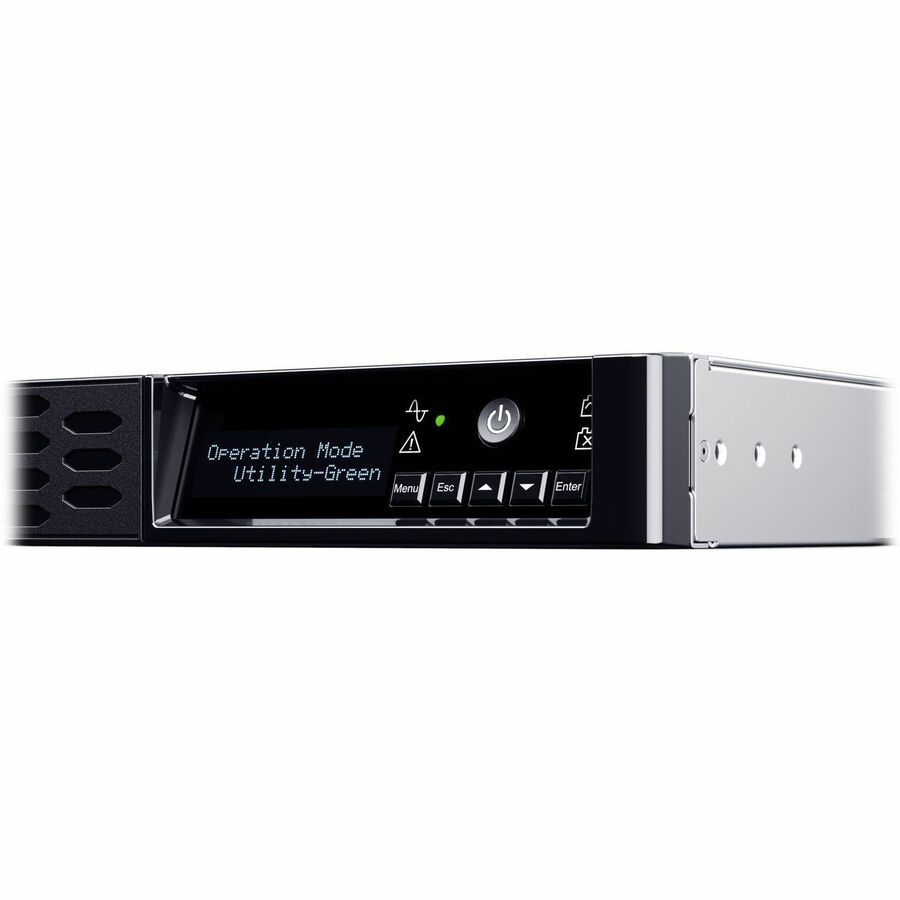

- Display: LCD
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: Power On

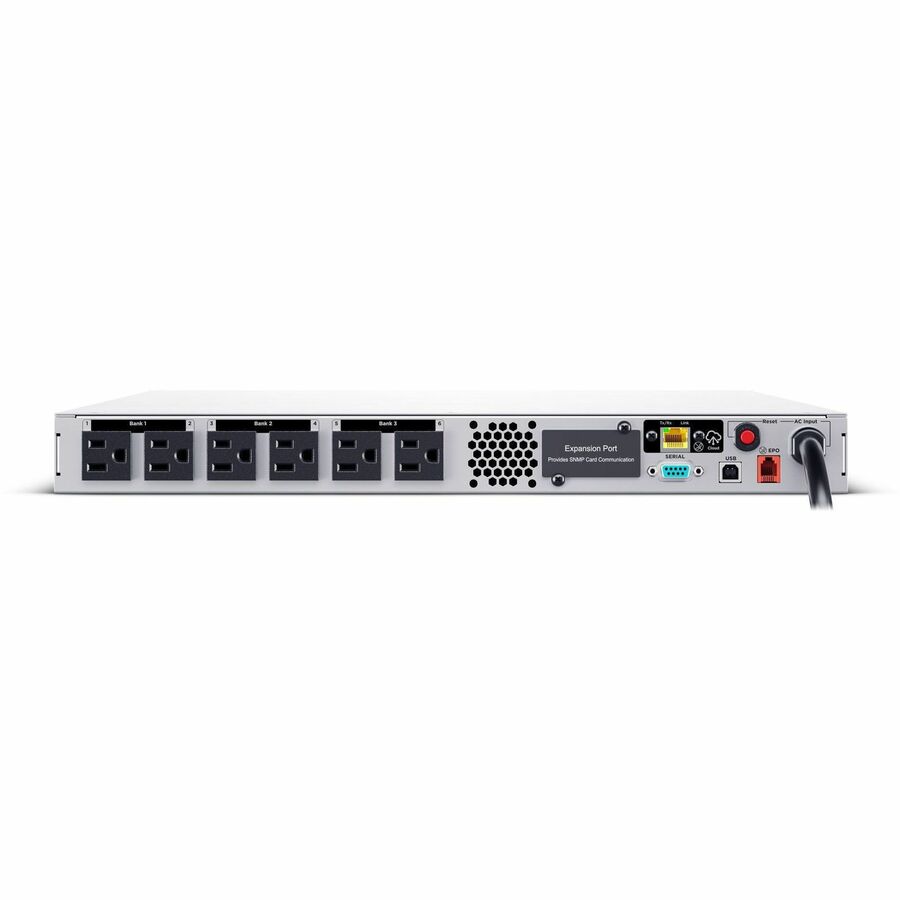

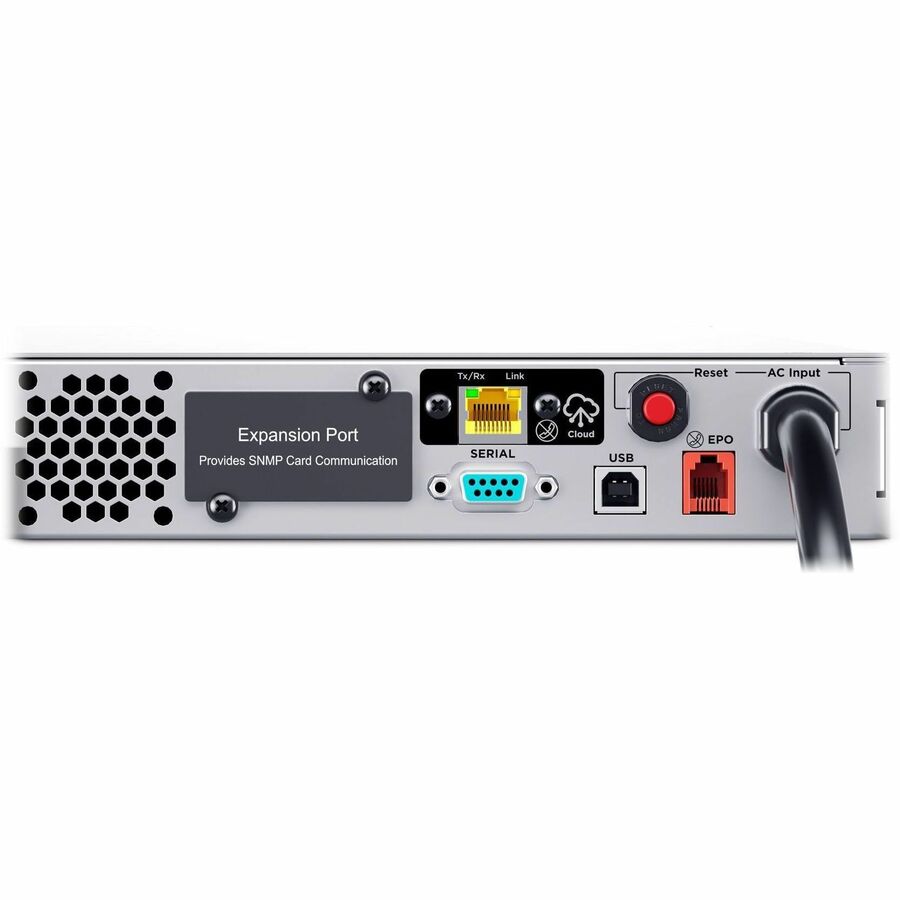

Interfaces/Ports
- Serial Port: Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 6
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 6V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 3.70 Minute
- Backup/Run Time (Half Load): 10.30 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 9843 ft
- Maximum Storage Elevation: 49213 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 40 dB(A)
Physical Characteristics
- Product Color:
- Black
- Silver

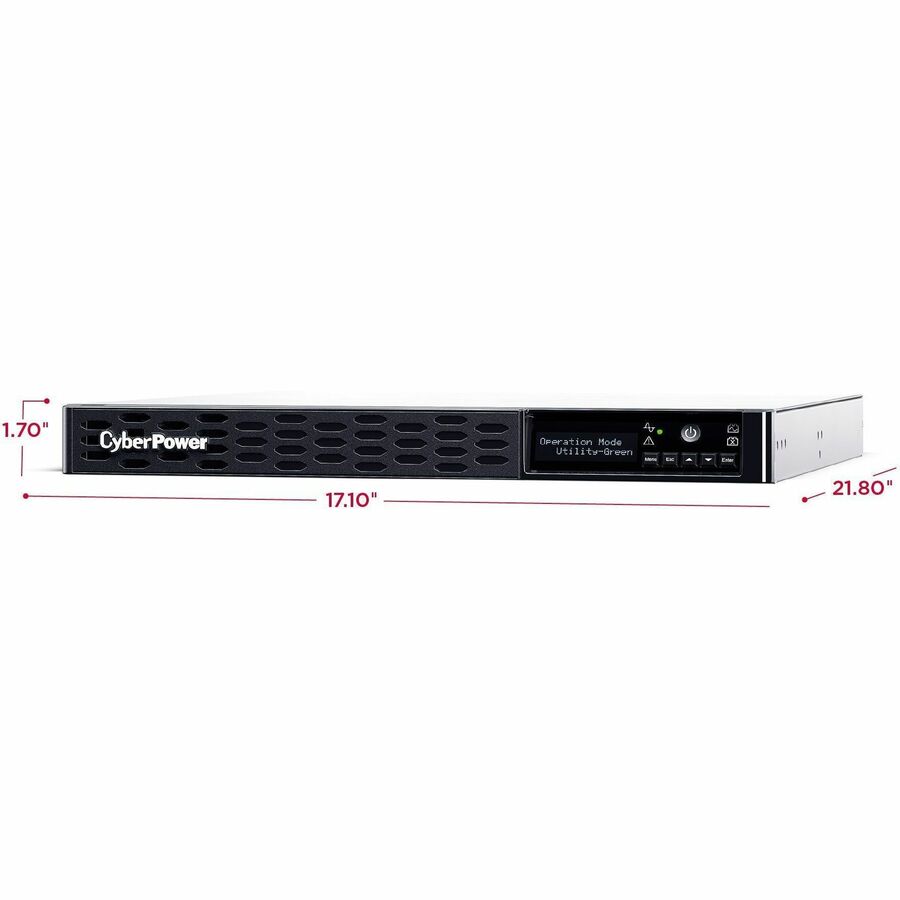

- Height: 1.70"
- Width: 17.10"
- Depth: 21.80"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 44.80 lb
Miscellaneous
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
