CyberPower PR3000RTXL2UACN Smart App Sinewave UPS Systems - PR3000RTXL2UACN
Key Features
- Capacity: 3000 VA / 3000 W
- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® certified: Yes
- Management software: PowerPanel® Business

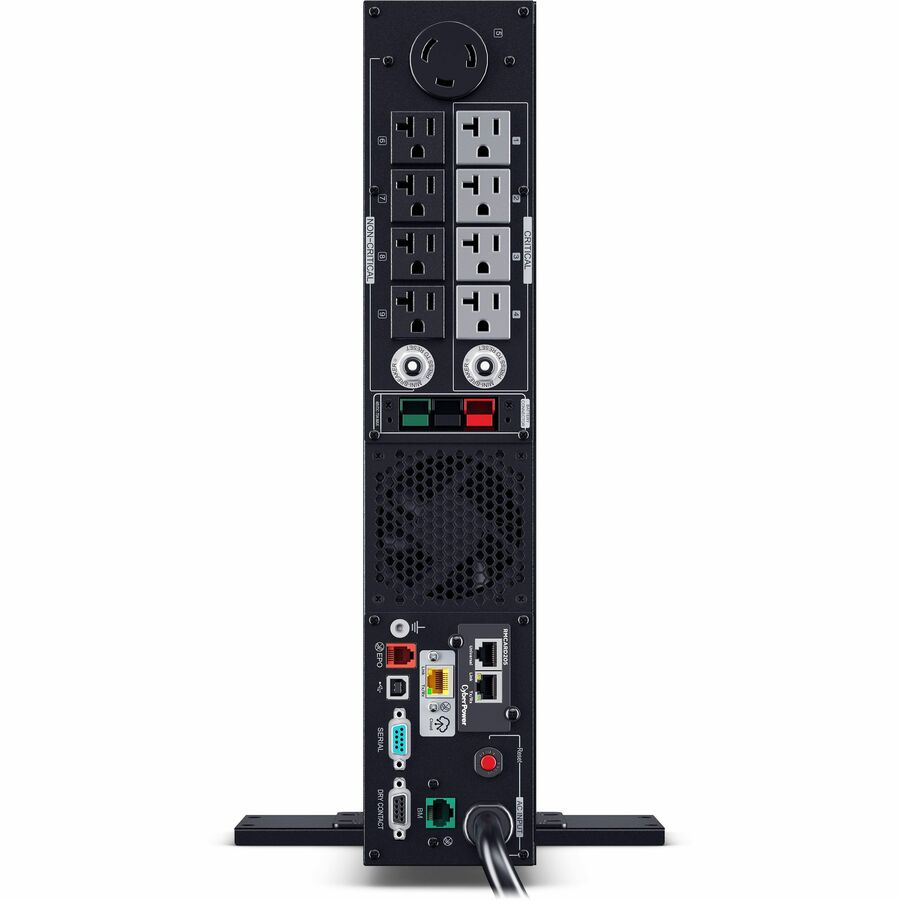

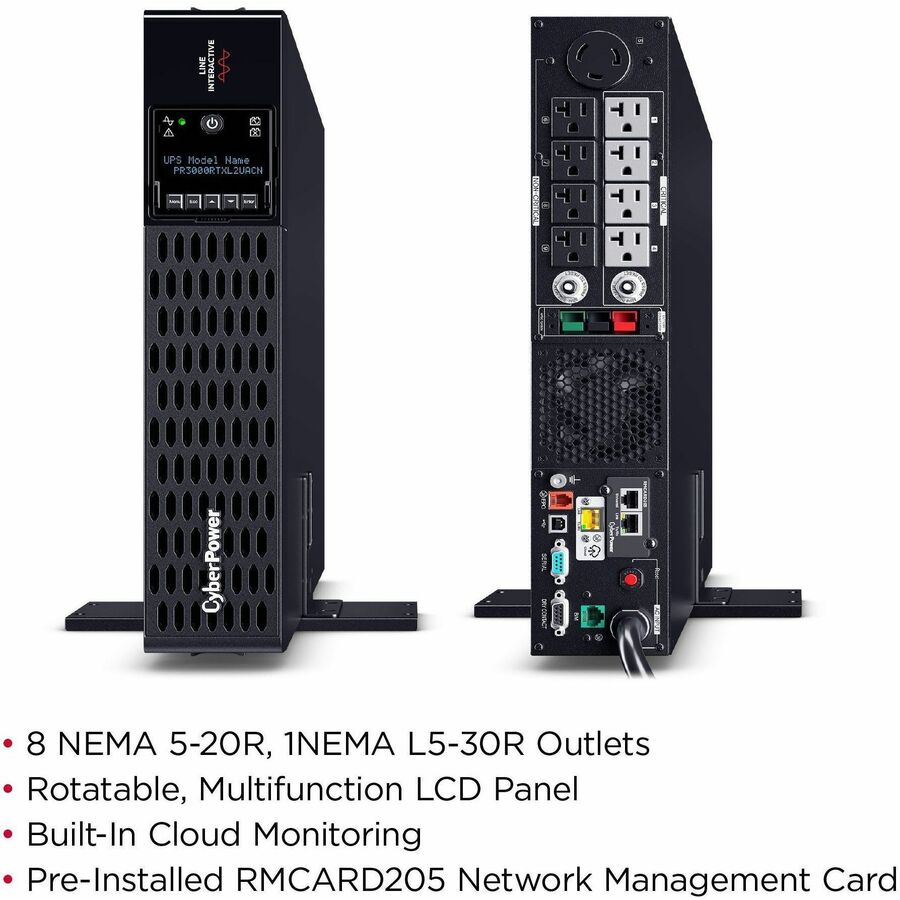

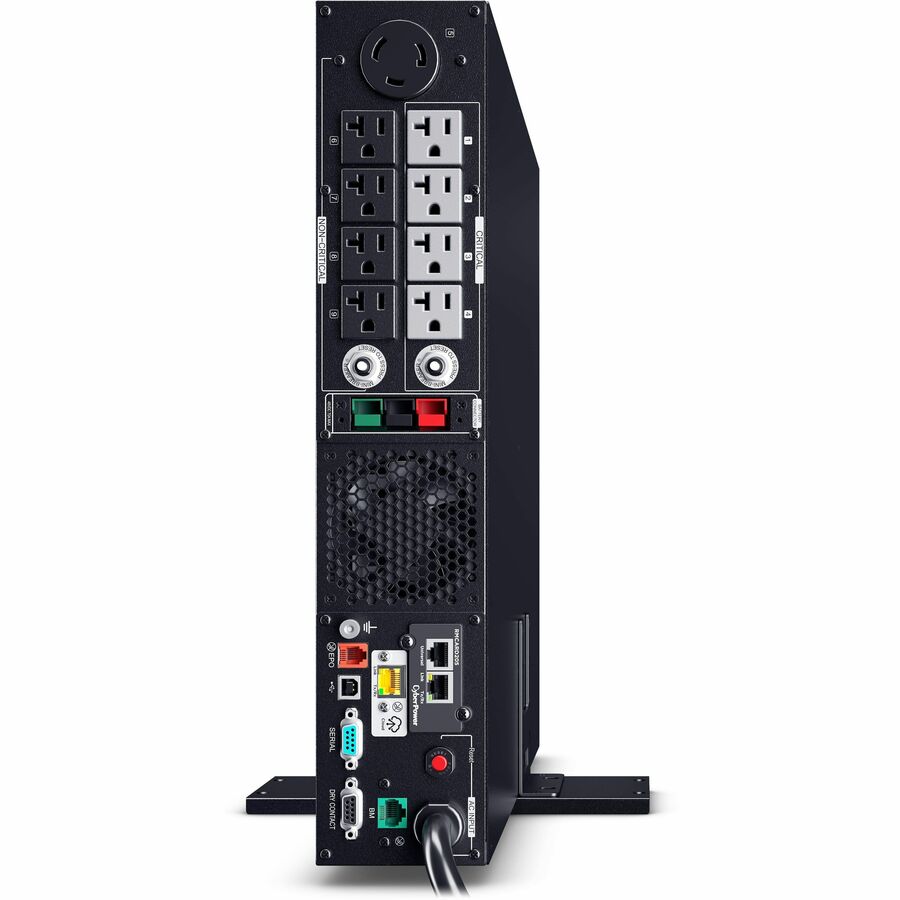

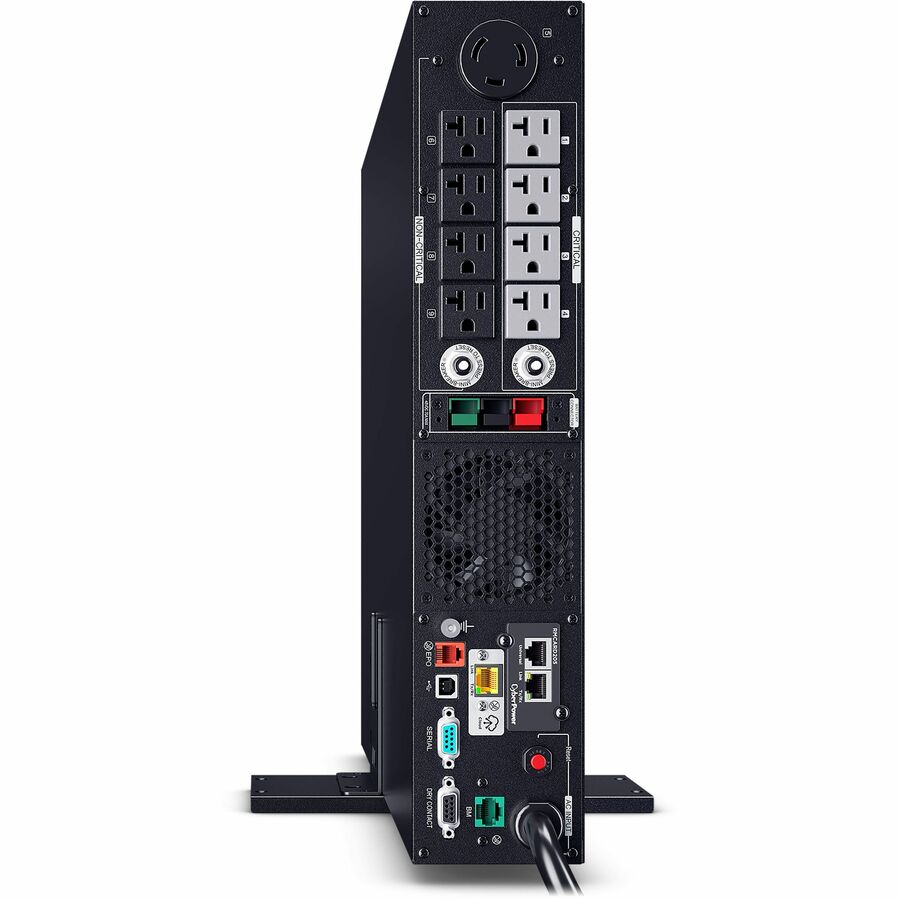

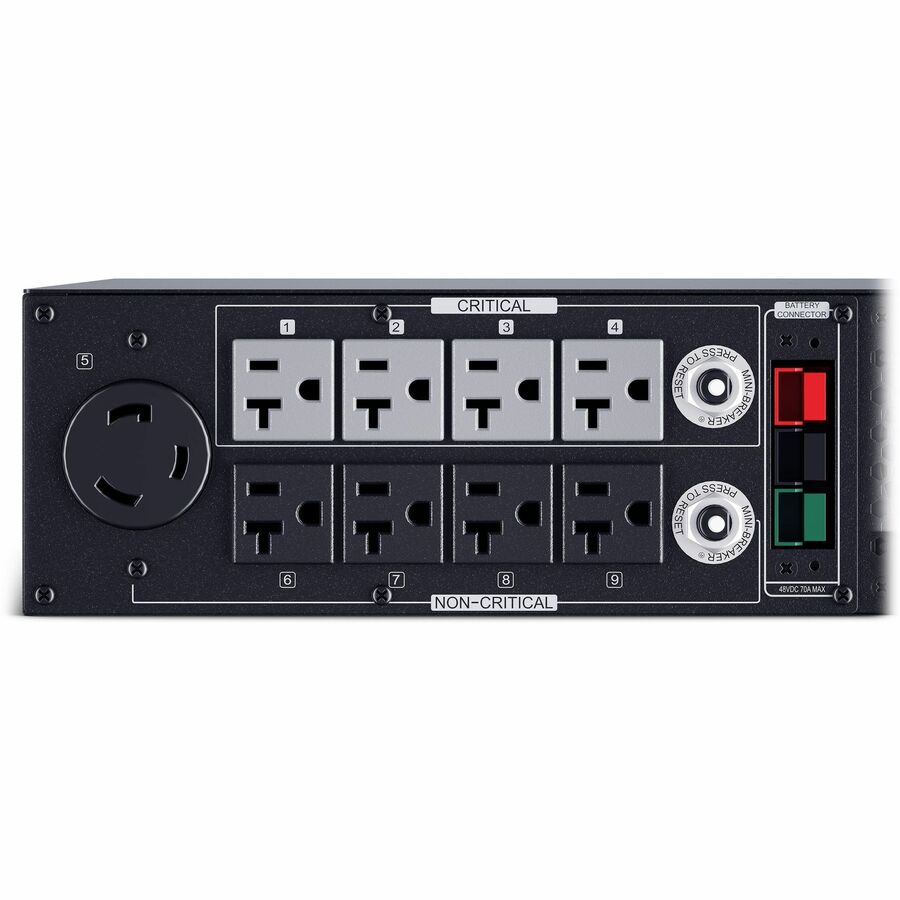

- Outlet types: 8 × NEMA 5-20R; 1 x NEMA L5-30R
- Outlets: 9 surge + battery backup
- Output: 100-120 VAC ± 5%

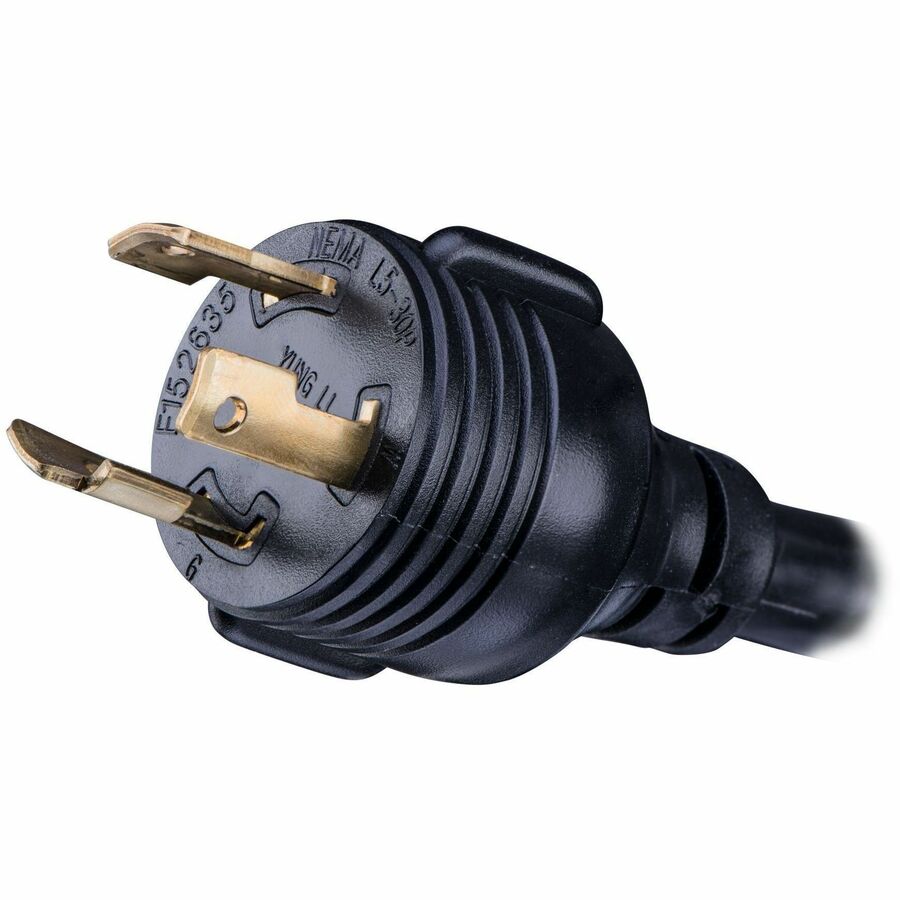

- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Remote management: Yes, pre-installed RMCARD205 and built-in Cloud

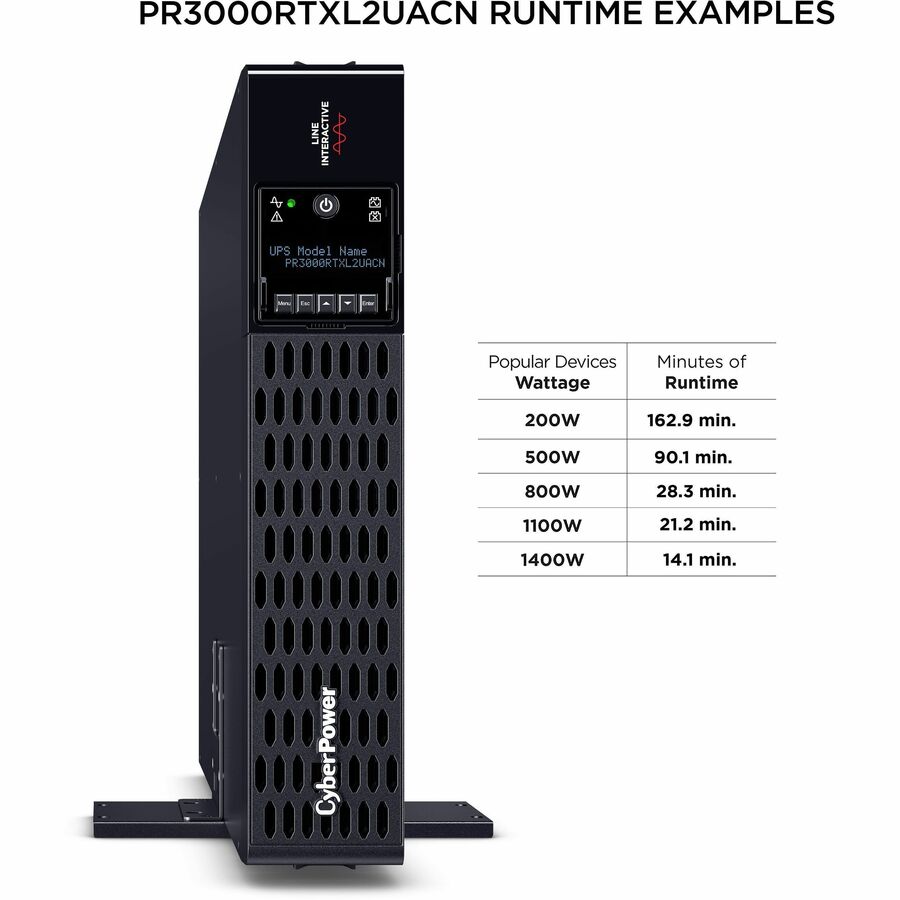

- Runtime (half/full): 11.1 minutes / 3.6 minutes
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Sine Wave
Product Overview

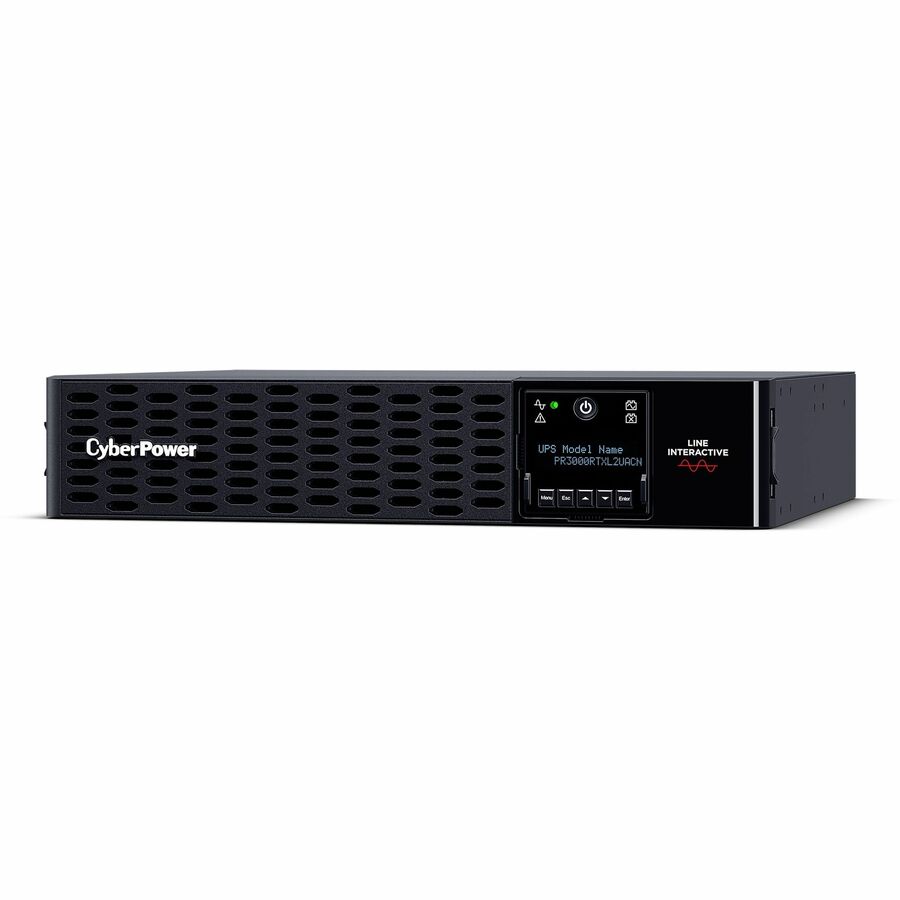

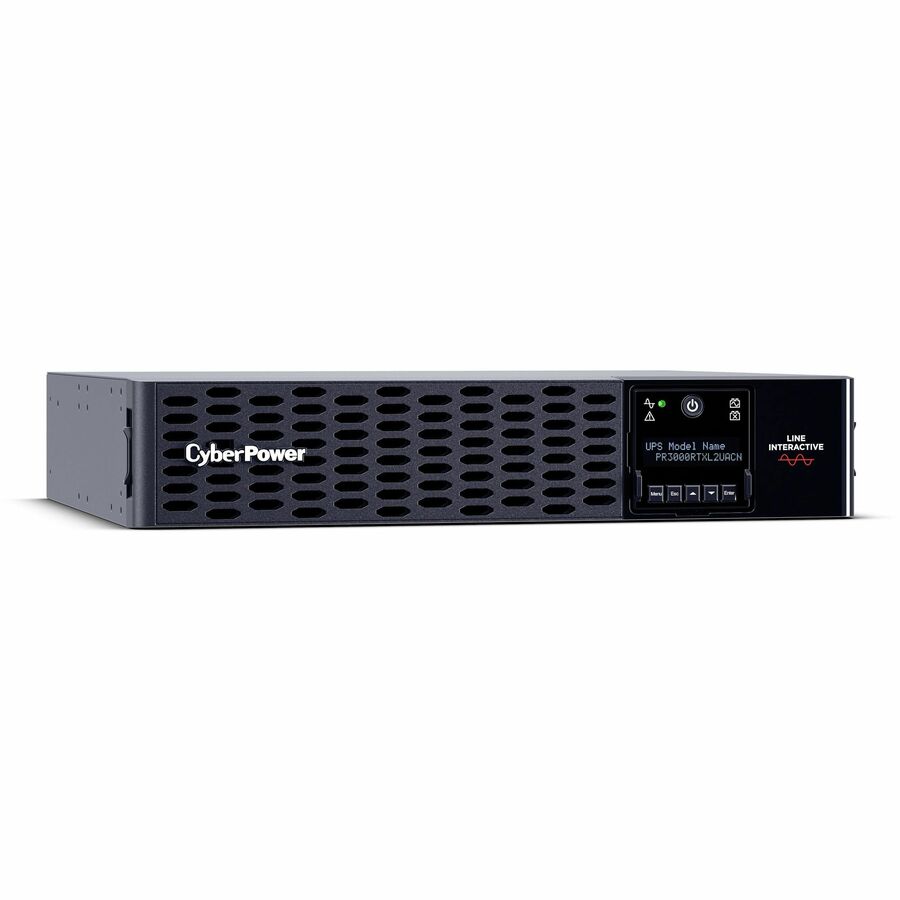

The PR3000RTXL2UACN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

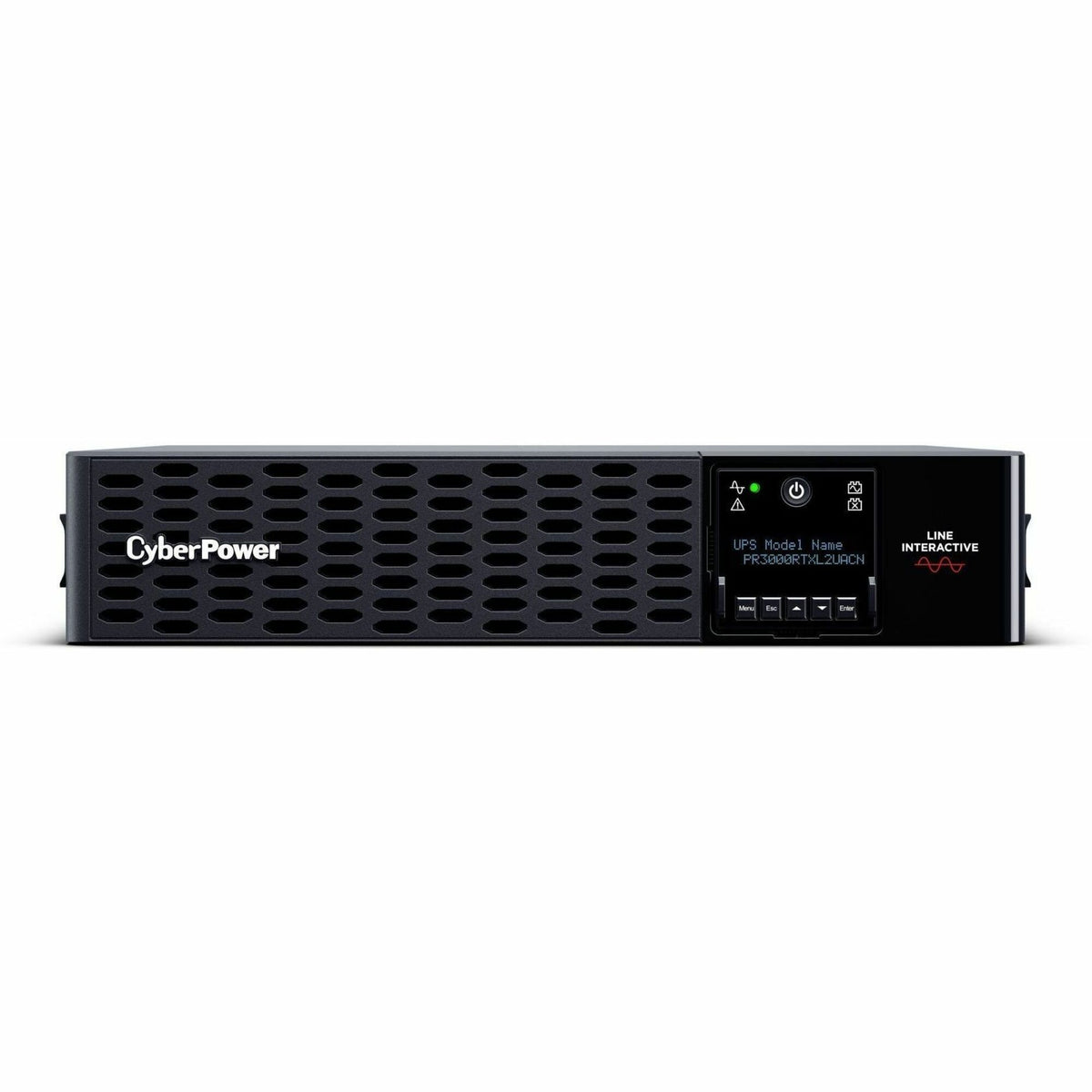

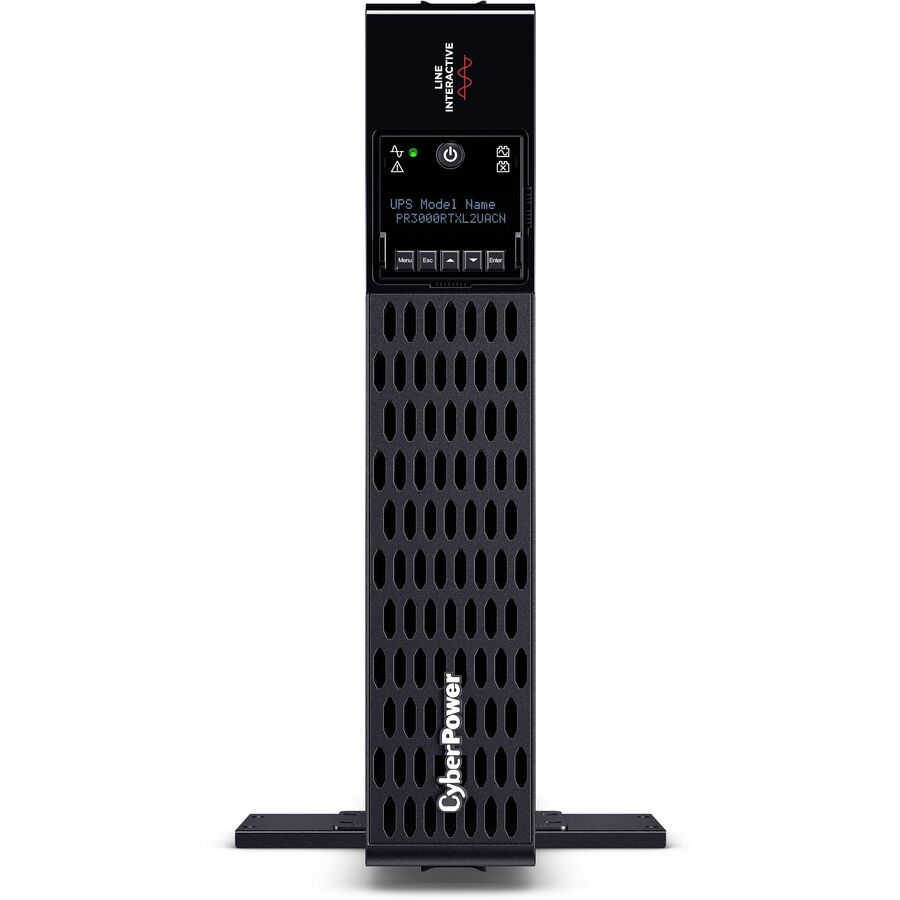

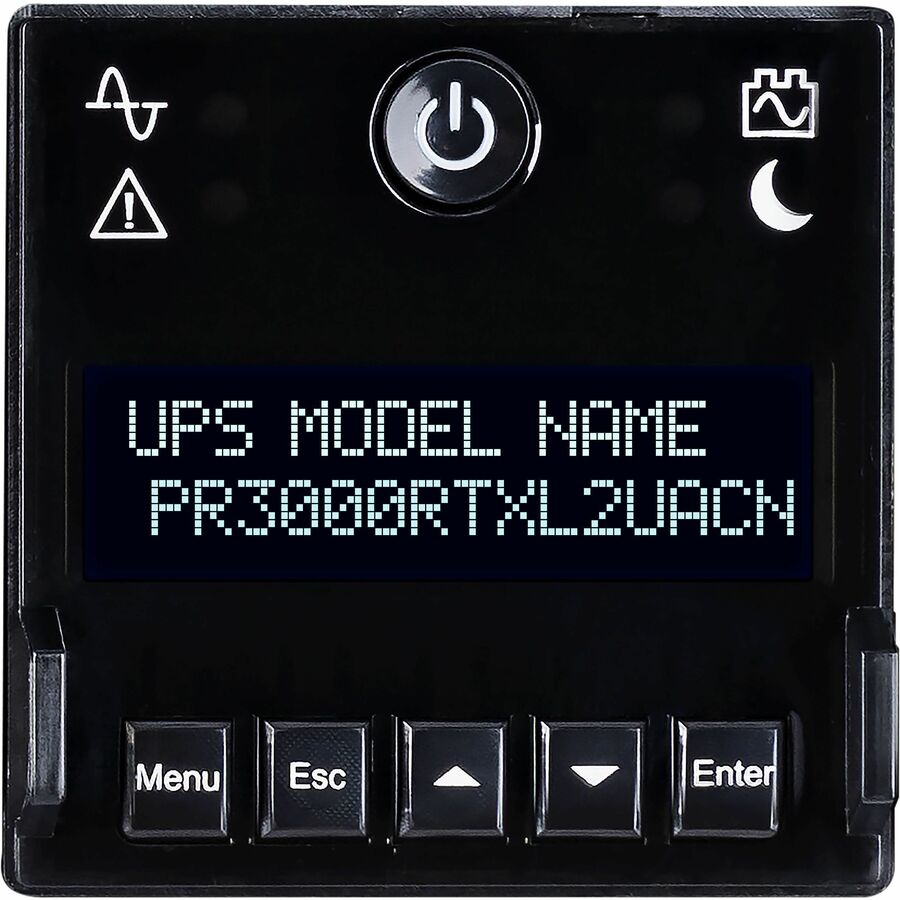

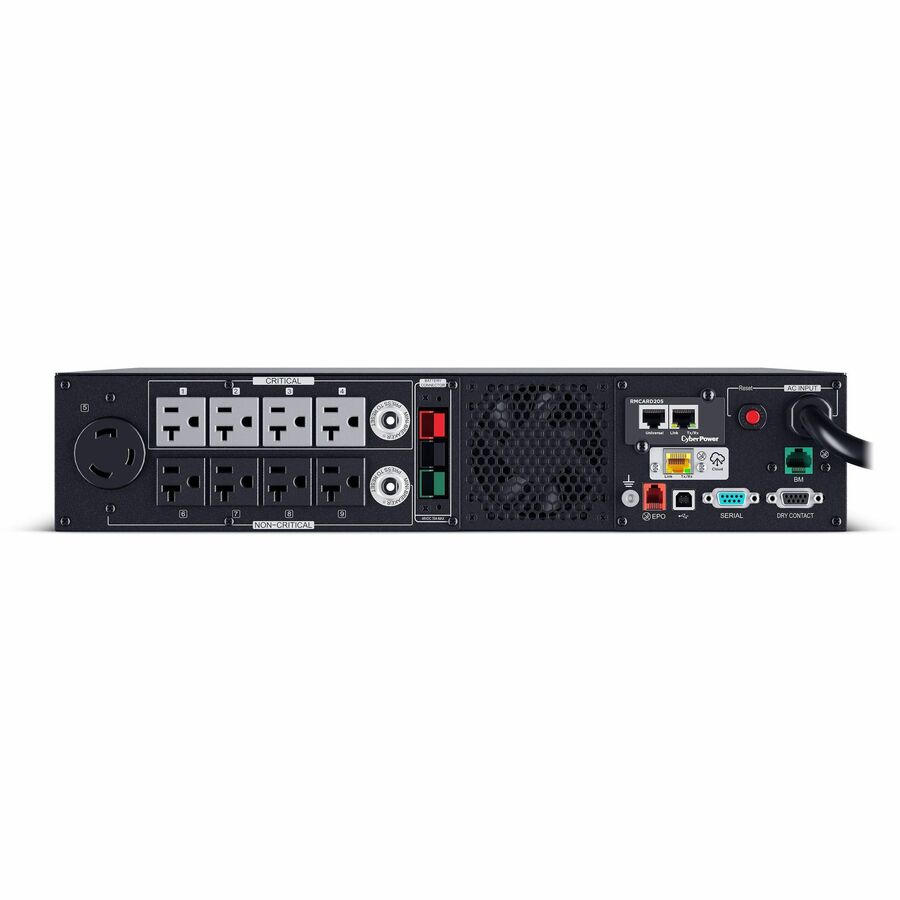

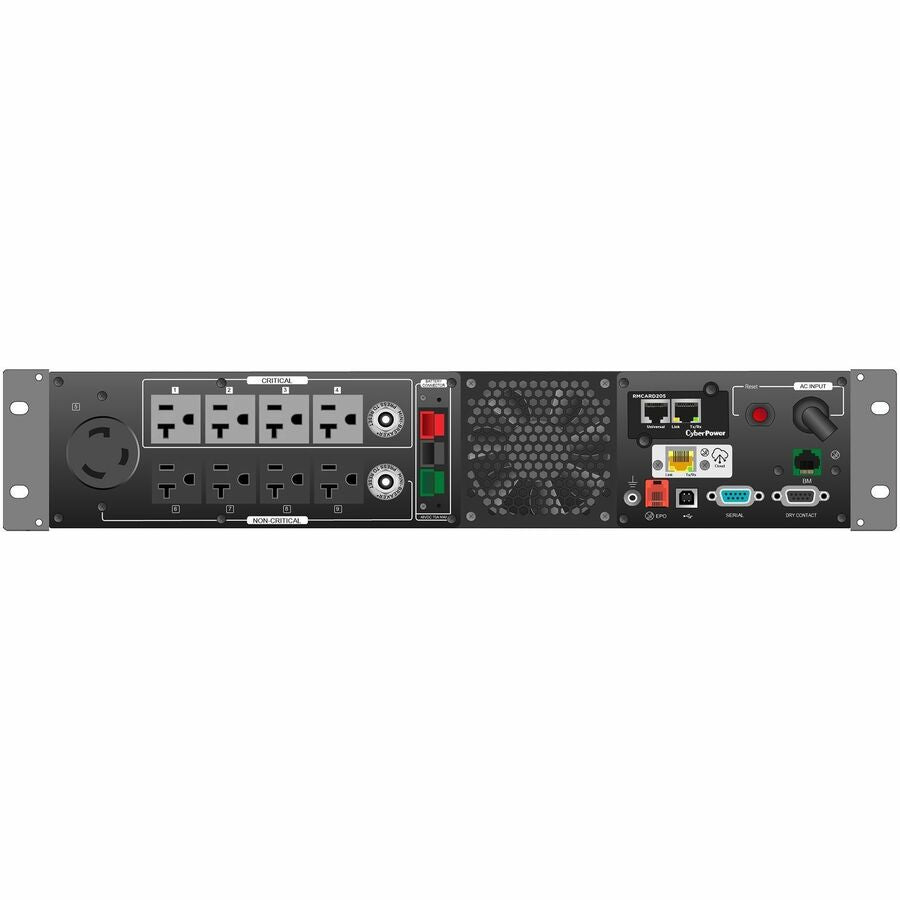

The Smart App Sinewave PR3000RTXL2UACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UACN.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR3000RTXL2UACN
- Brand Name: CyberPower
- Product Series: New Smart App Sinewave UPS
- Product Model: PR3000RTXL2UACN
- Product Name: PR3000RTXL2UACN Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 8 x NEMA 5-20R
- Number of Battery & Surge Outlets: 9
- Number of Critical Load Outlets: 4
- Overload Protection: Yes
- Cord Length: 10 ft
- Transfer Time: 6 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Server
- Storage Device
- VoIP
- Network Device
- Corporate
- Telecommunication
- Equipment
- Surge Suppression: Yes
- Features: Audible Alarm
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 3000 W
- Input Voltage: 120 V AC
- Input Voltage Range:
- 75 V AC - 149 V AC
- 100 V AC - 120 V AC
- Output Voltage:
- 100 V AC
- 110 V AC
- 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 2430 J
- Circuit Breaker: Yes
- Output Power Factor: 1
Display & Graphics
- Display: LCD
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: Power On
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 8
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 5700 mAh
- Backup/Run Time (Full Load): 3.60 Minute
- Backup/Run Time (Half Load): 11.10 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 9843 ft
- Maximum Storage Elevation: 49213 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 95%
- Storage Relative Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 57.5 dB(A)
- Thermal Dissipation: 56.42 W
Physical Characteristics
- Product Color: Black

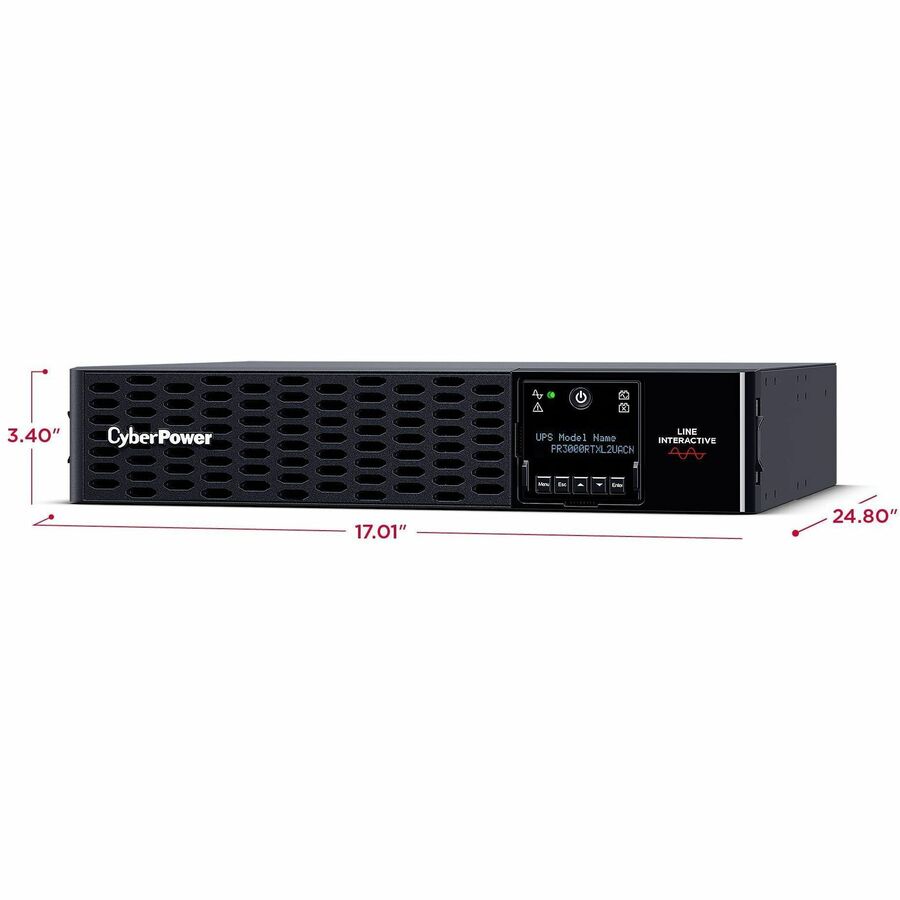

- Height: 3.40"
- Width: 17.10"
- Depth: 24.80"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 88.40 lb
Miscellaneous
- Energy Star: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
