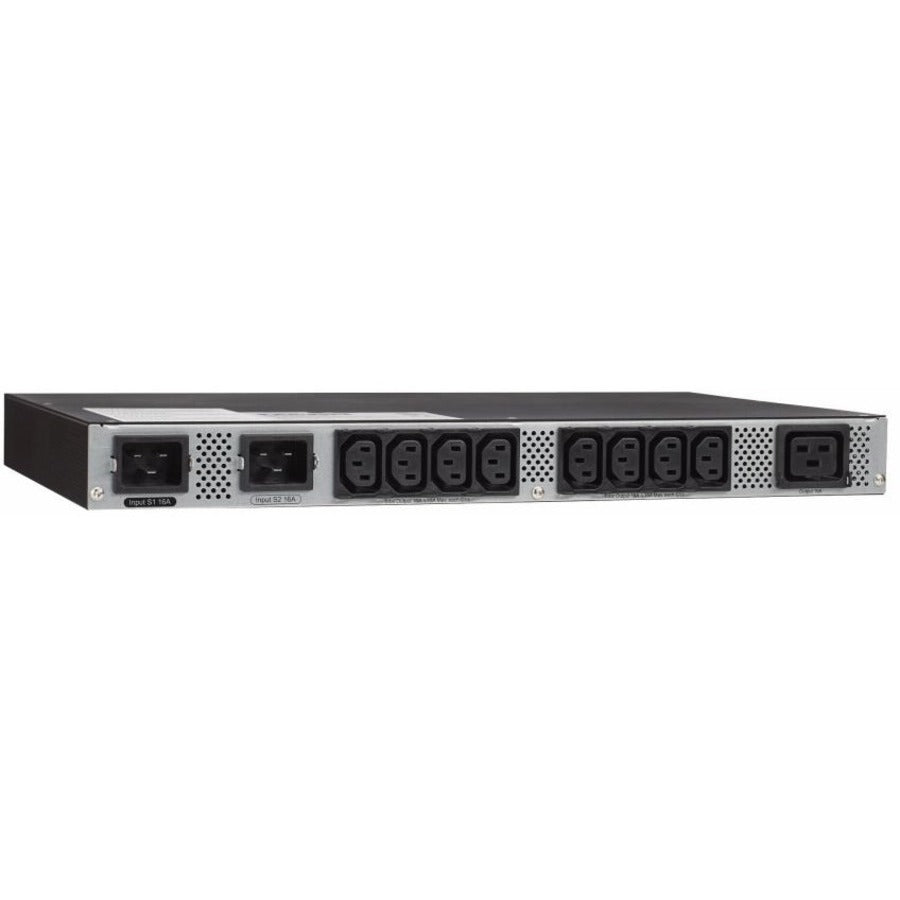

Eaton ATS Rack PDU 1U 200-240V 3.33 kW 2 5ft Cords 16A Single-Phase PDU LCD - EATS220
Key Features
- Automatically transfers power from the primary source to a secondary source if there is an issue with the primary

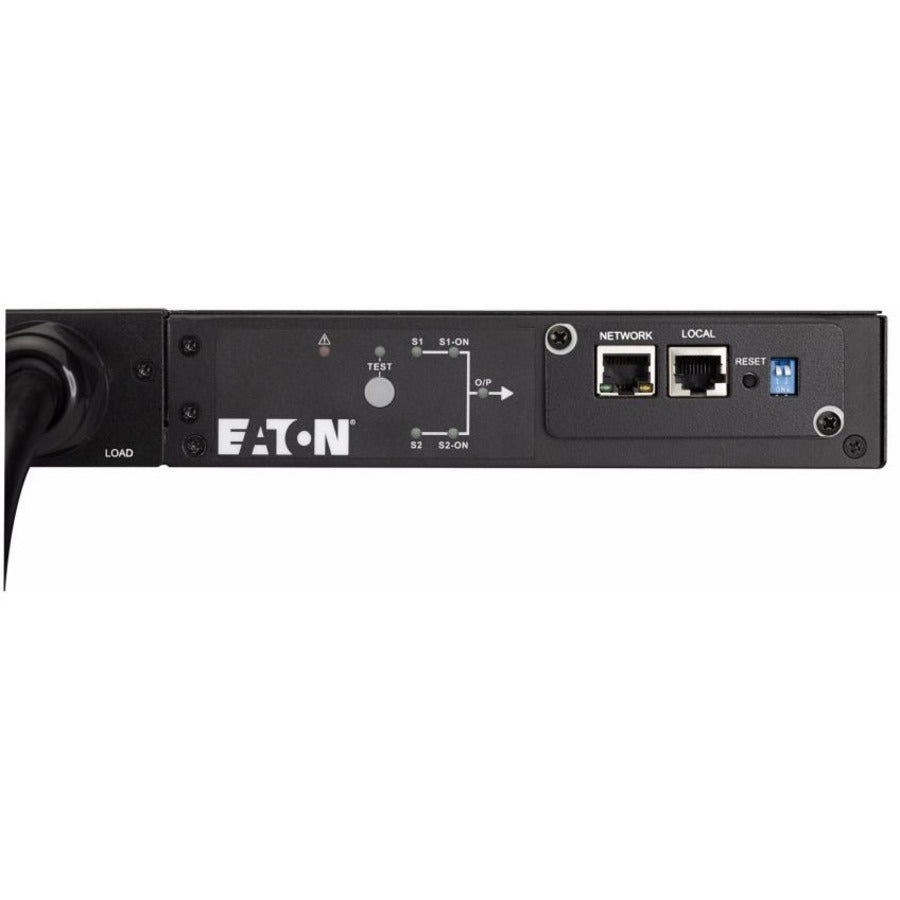

- Offers remote monitoring and email alerts with included network card
- Power is transferred back to the primary source when it is automatically restored
- Provides power redundancy to equipment with 1 or 2 power supplies

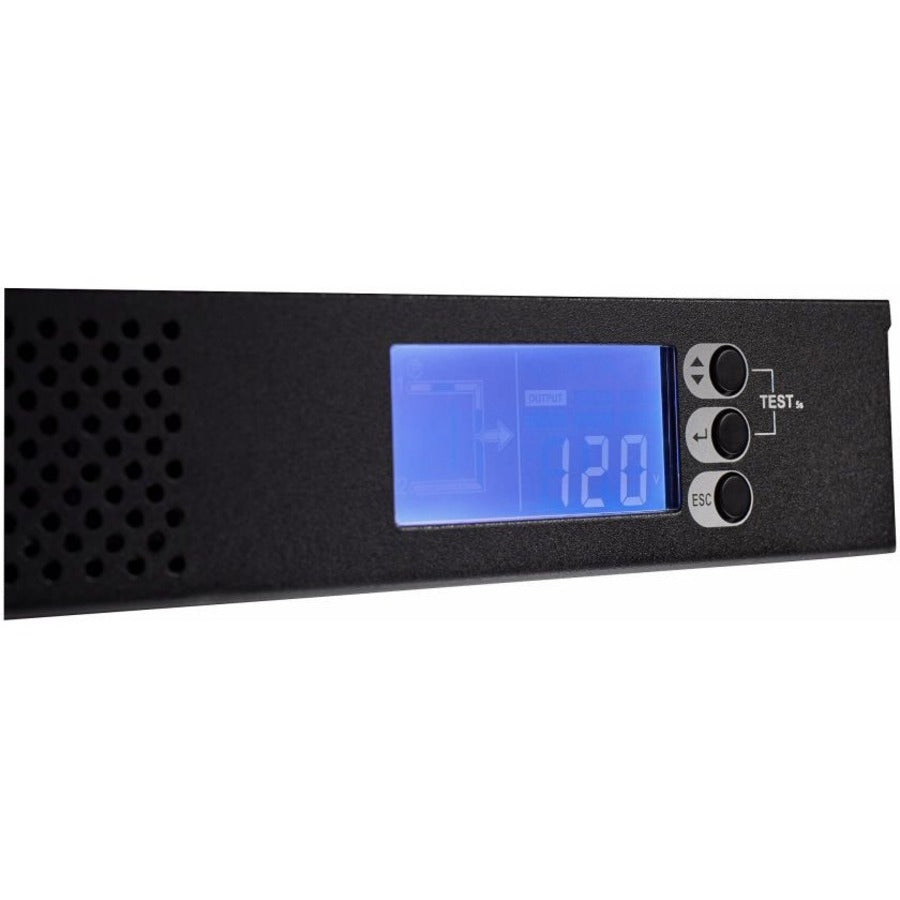

- Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD
Product Overview
Eaton eATS ePDUsDesigned for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: EATS220
- Brand Name: Eaton
- Product Line: eATS
- Product Name: eATS 9-Outlet PDU
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA L6-20P
- Plug/Connector Detail: 2 x NEMA L6-20P
- Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail:

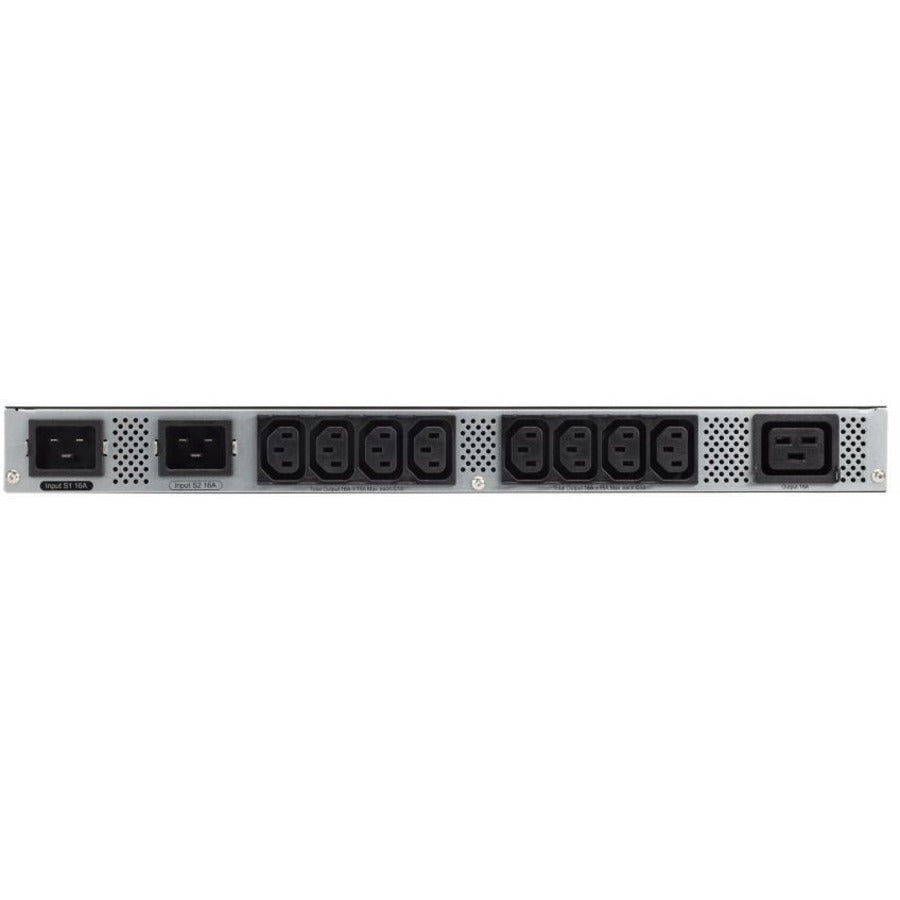

- 8 x IEC 60320 C13
- 1 x IEC 60320 C19
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Input Voltage Range: 120 V AC - 230 V AC
- Power Rating (Watt): 3330 W
- Input Current: 16 A
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.7"
- Width: 17.3"
- Depth: 9.8"
- Weight (Approximate): 7.80 lb
Miscellaneous
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
