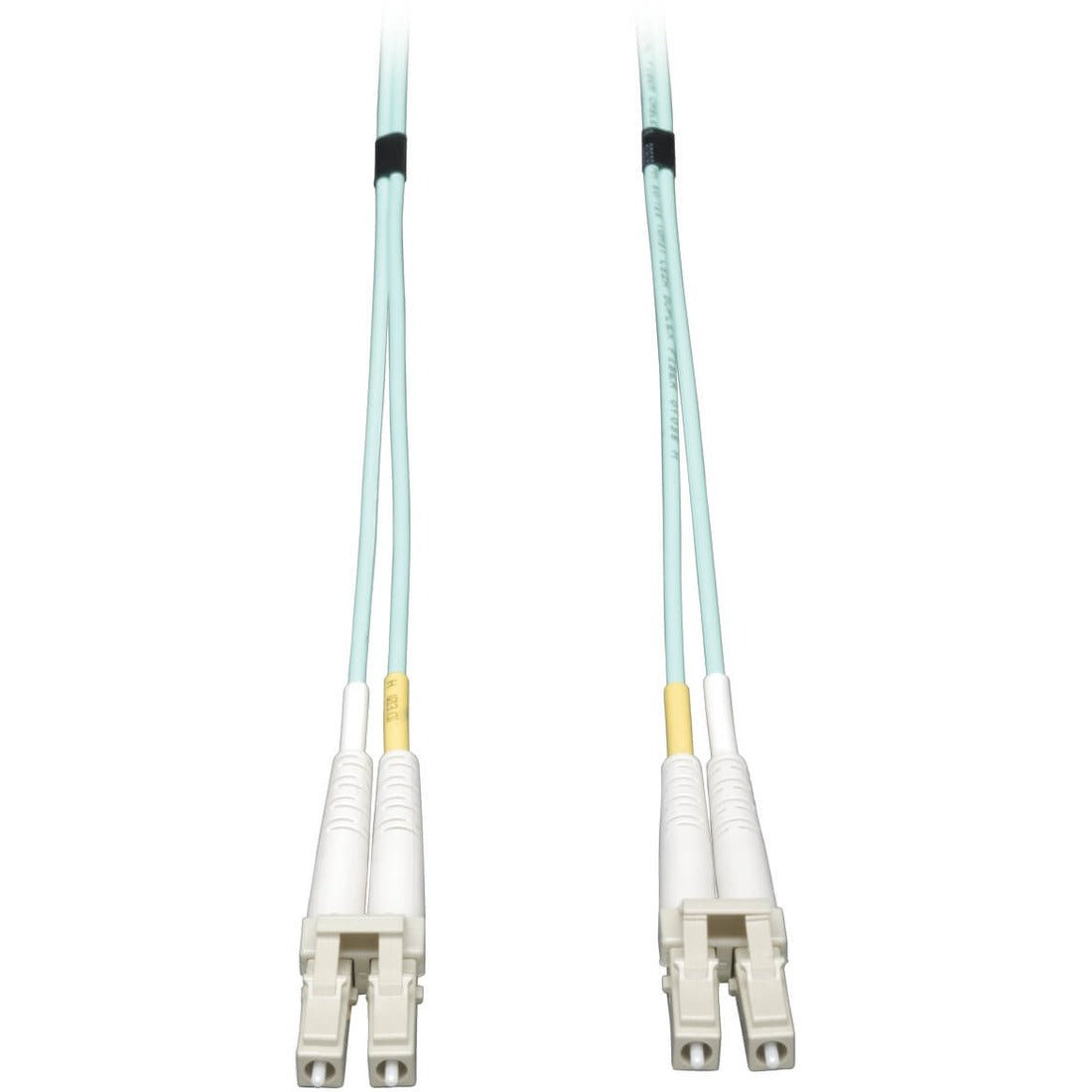

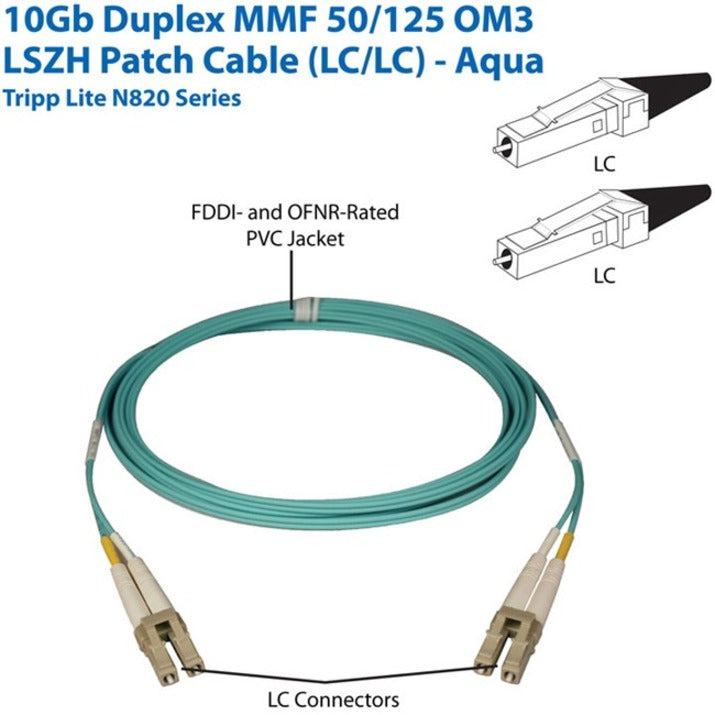

Eaton Tripp Lite Series 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/LC) - Aqua, 3M (10 ft.) - N820-03M
Key Features
- Backward compatible with existing 50/125 fiber
- Designed for 10-Gig Ethernet applications...OM3 Rated
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
- Max 10Gb distance of 300 meters @850nm
Product Overview
Tripp Lite introduces it's new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: N820-03M
- Brand Name: Tripp Lite series
- Product Model: N820-03M
- Product Name: Aqua Duplex Fiber Patch Cable
- Product Type: Network Cable
Technical Information
- Cable Type: Fiber Optic
- Cable Characteristic: Patch Cable
- Fiber Optic Cable Core/Cladding Specification: 50/125 µm
- Cable Length: 10 ft
- Connector Type on First End: LC - Male
- Connector on First End Details: 2 x LC - Male
- Connector Type on Second End: LC - Male
- Connector on Second End Details: 2 x LC - Male
Miscellaneous
- Package Contents:
- Aqua Duplex Fiber Patch Cable
- 3 meter Duplex Multimode 50/125 Aqua Fiber Patch Cable, LC/LC
- Country of Origin: Vietnam
Warranty
- Limited Warranty: Lifetime
