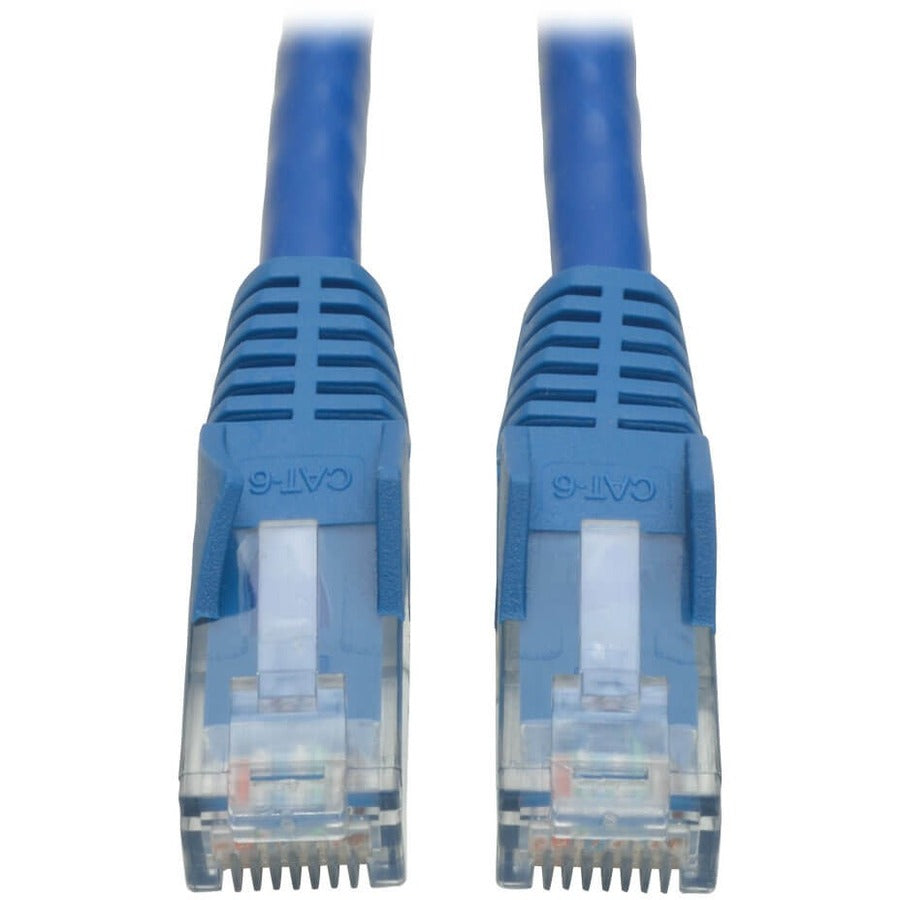

Eaton Tripp Lite Series Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Blue, 20 ft. (6.09 m) - N201-020-BL
Key Features
- Drastically reduce impedance and structural return loss compared to standard 100Mhz wire.
- Feature molded connectors with integral strain relief. Rated for 550 MHz/1 Gbps communication
- Meets Category 6 cabling standards
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)
- Snagless boots protect the locking tabs on the RJ45 connectors from being damaged during installation
Product Overview
With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: N201-020-BL
- Brand Name: Tripp Lite series
- Product Model: N201-020-BL
- Product Name: Cat6 UTP Patch Cable
- Product Type: Network Cable
Technical Information
- Cable Type: Category 6
- Cable Characteristic: Patch Cable
- Cable Length: 20 ft
- Connector Type on First End: RJ-45 Network - Male
- Connector on First End Details: 1 x RJ-45 Network - Male
- Connector Type on Second End: RJ-45 Network - Male
- Connector on Second End Details: 1 x RJ-45 Network - Male
- Contact Plating: Gold
- Shielding: No
- Jacket Type: CM
- Device Supported: Network Device
- American Wire Gauge: 24 AWG
- Data Transfer Rate: 10 Gbit/s
- Boot Type: Snagless
- Number of Pairs: 4
- Features:
- Snag Resistant
- Stranded
- Strain Relief
- Molded
- Minimized Near-End Crosstalk (NEXT)
- Damage Resistant
Physical Characteristics
- Color Family: Blue
- Product Color: Blue
Miscellaneous
- Package Contents:
- Cat6 UTP Patch Cable
- 20-ft. Cat6 Blue Gigabit Patch Cord Snagless Molded
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS) 3
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
