Eaton Tripp Lite Series Isobar 12-Outlet Network Server Surge Protector, 15 ft. (4.57 m) Cord, 3840 Joules, Diagnostic LEDs, 1U Rackmount - ISOBAR12 ULTRA
Key Features
- $25,000 Ultimate Lifetime Insurance
- 12 NEMA 5-15R outlets in exclusive isolated filter banks

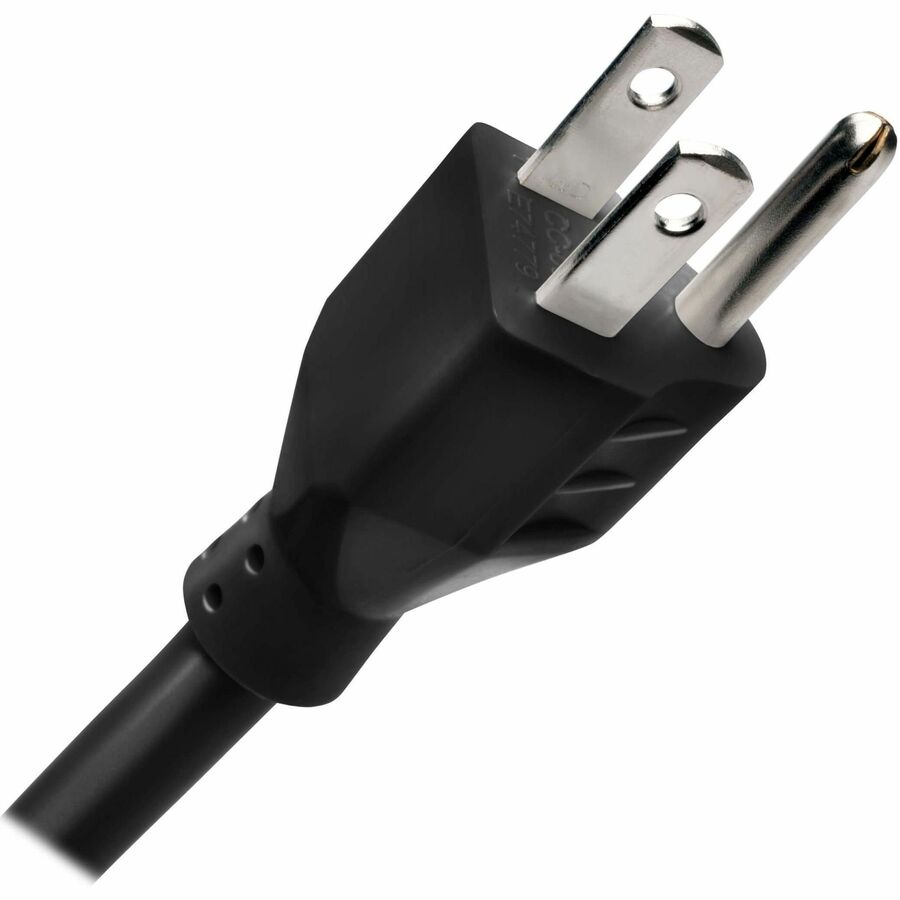

- 15-ft. (4.57 m) AC power cord with NEMA 5-15P plug
- 15A resettable circuit breaker prevents dangerous overloads
- Durable metal housing designed for tough environments
- Network-grade 3840-joule surge protection rating
- This product is covered by a Lifetime Limited Warranty
Product Overview
Tripp Lite's ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge suppressors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with ,25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage .PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: ISOBAR12 ULTRA
- Brand Name: Tripp Lite series
- Product Line: Isobar
- Product Name: Isobar 12-Outlets 120V Surge Suppressor
- Product Type: Surge Suppressor/Protector
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacles: 12 x NEMA 5-15R
Power Description
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Maximum Surge Current: 96 kA
- Power Handling: 1800 VA
- Surge Energy Rating: 3840 J
Environmental Conditions
- Maximum Operating Temperature: 103°F (39.4°C)
Physical Characteristics
- Power Cord/Cable Length: 15 ft
- Product Color: Black
- Product Material: Metal
- Height: 1.8"
- Width: 17.5"
- Depth: 4"
- Weight (Approximate): 4.60 lb
Miscellaneous

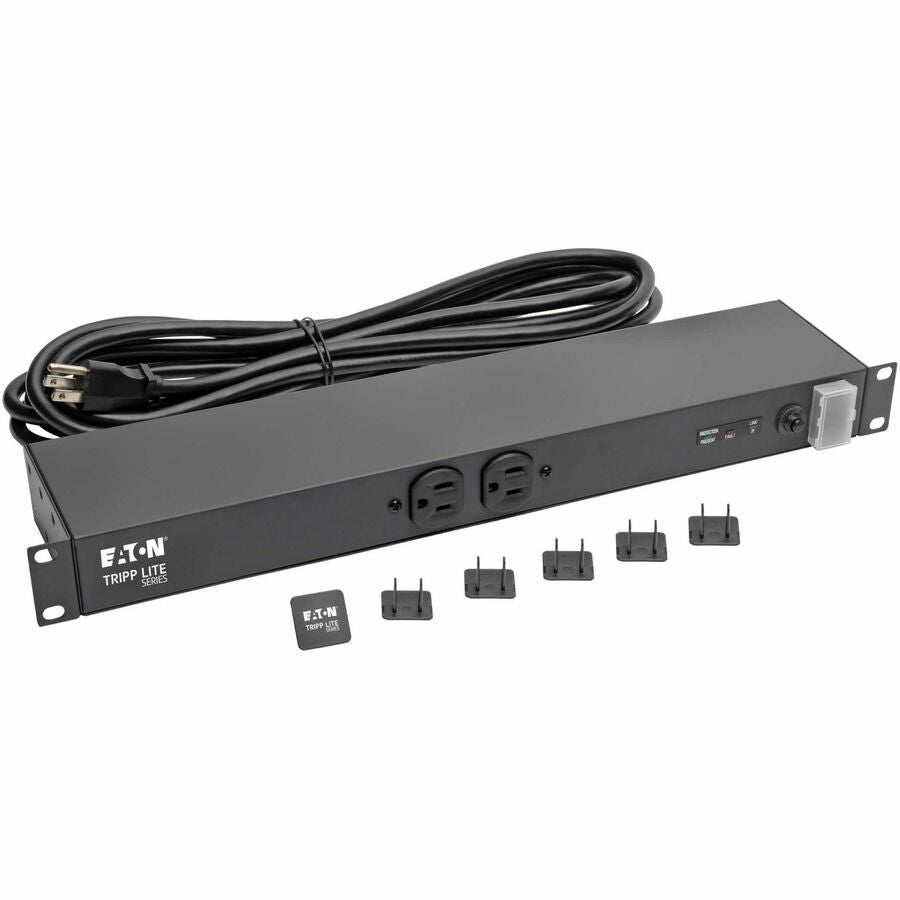

- Package Contents:
- Isobar 12-Outlets 120V Surge Suppressor
- Rack-mounting brackets
- Owner's manual
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
