Eaton Tripp Lite Series OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets - OMNIVSINT1500XL
Key Features
- 1500VA / 1.5kVA tower 230V line interactive extended-run UPS

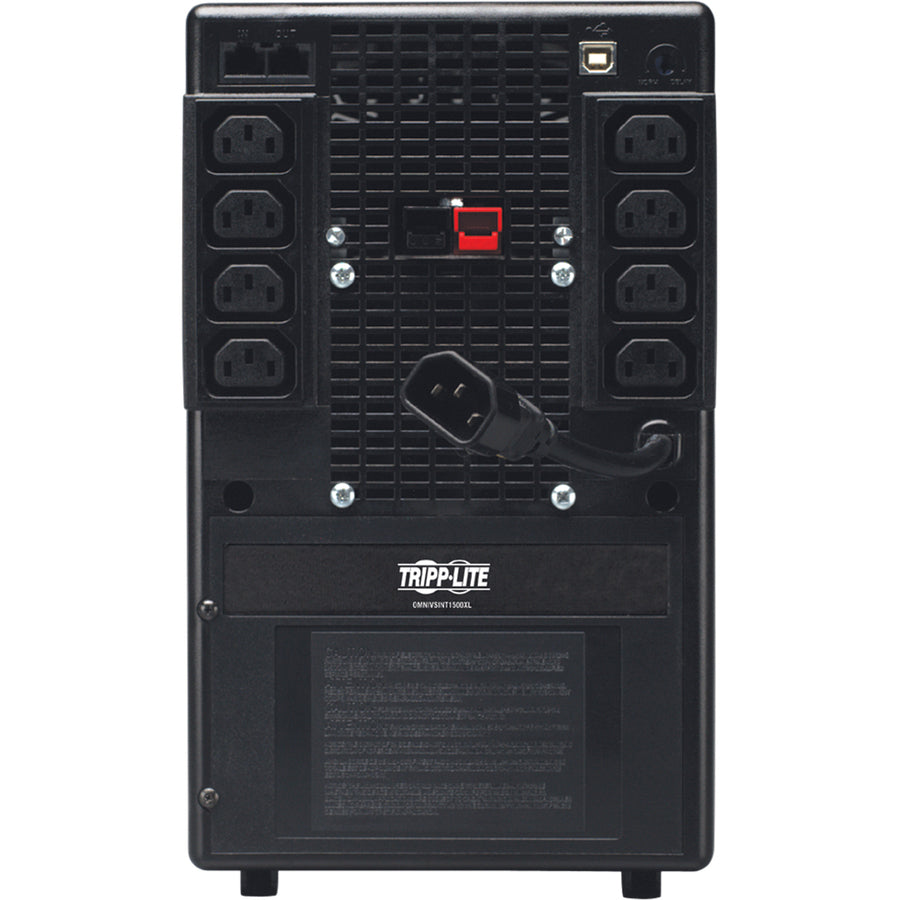

- C14 input and 8 C13 outlets
- Corrects brownouts and overvoltages from 151 to 282V
- USB port, TEL/DSL/ethernet protection, External battery pack options
Product Overview
Tripp Lite's OMNIVSINT1500XL line interactive UPS system offers voltage regulation, surge suppression and expandable battery support for sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151 and overvoltages up to 282 volts back to usable 230V levels without using battery power. Includes 8 IEC320-C13 outlets with battery support and AC surge suppression. USB port enables unattended system shutdown. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ jacks. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via access panel.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: OMNIVSINT1500XL
- Brand Name: Tripp Lite series
- Product Line: Omni
- Product Series: VS
- Product Name: Omni VS 1500VA Tower UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: IEC 320-C14
- Receptacle Type: IEC 60320 C13
- Receptacle Detail: 8 x IEC 60320 C13
- Dataline Protection:
- RJ-45
- RJ-11
- Cord Length: 5.91 ft
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 940 W
- Input Voltage: 220 V AC
- Output Voltage: 230 V AC
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 1920 J
Management
- Alarm: Power Failure
Controls/Indicators
- Status Indicators:

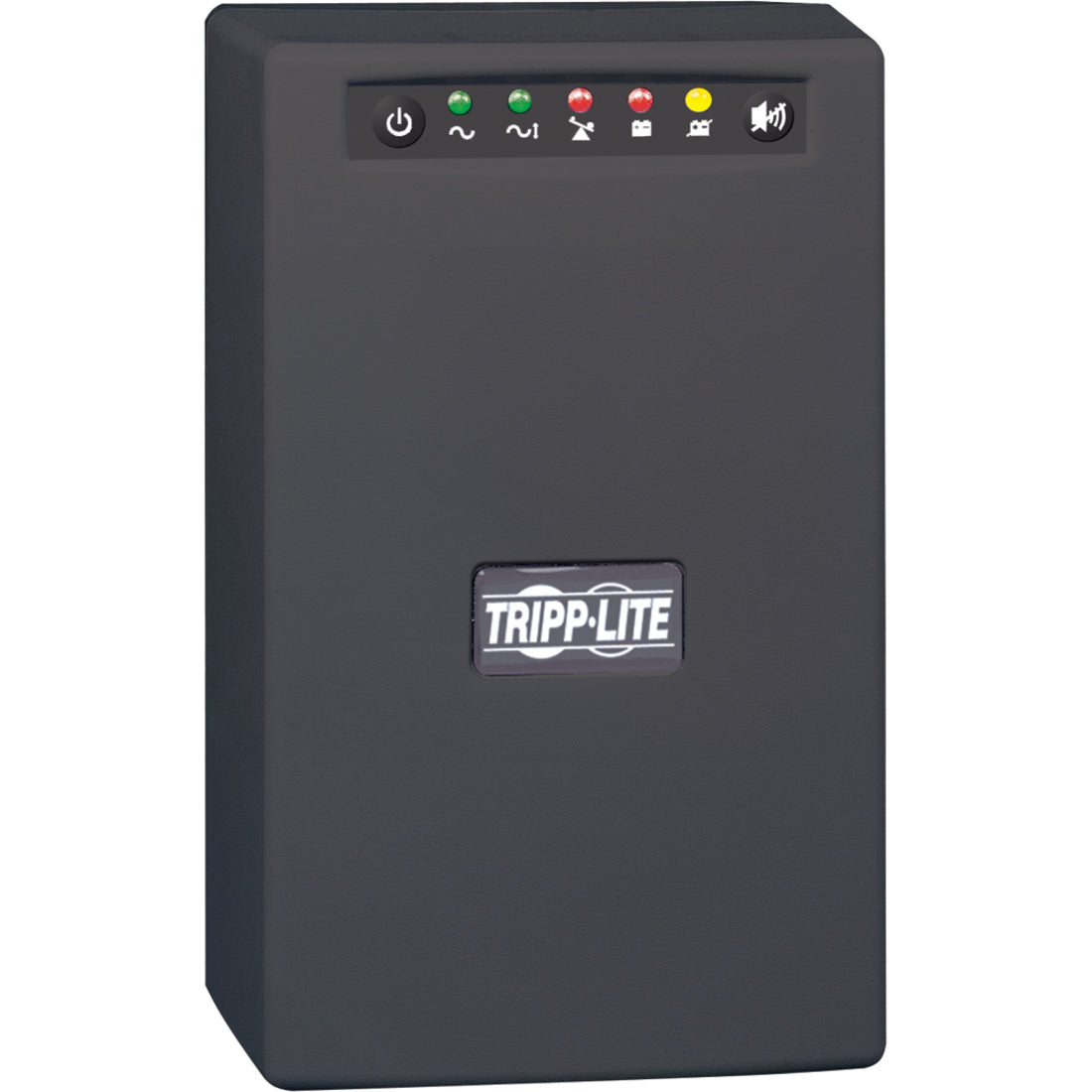

4 Front Panel LEDs:
- Line power
- Battery power
- Low battery
- Replace battery
- Voltage regulation operation
Interfaces/Ports
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 5 Minute
- Backup/Run Time (Half Load): 14 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4 Hour
Environmental Conditions
- Maximum Operating Temperature: 122°F (50°C)
Physical Characteristics
- Product Color: Black
- Height: 11.75"
- Width: 7.25"
- Depth: 7.50"
- Form Factor: Tower
- Weight (Approximate): 33 lb
Miscellaneous
- Package Contents:
- Omni VS 1500VA Tower UPS
- OMNIVSINT1500XL line interactive UPS
- 2 C13 to C14 interconnection cables
- USB and phone line cables
- Owner's manual with warranty information
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
