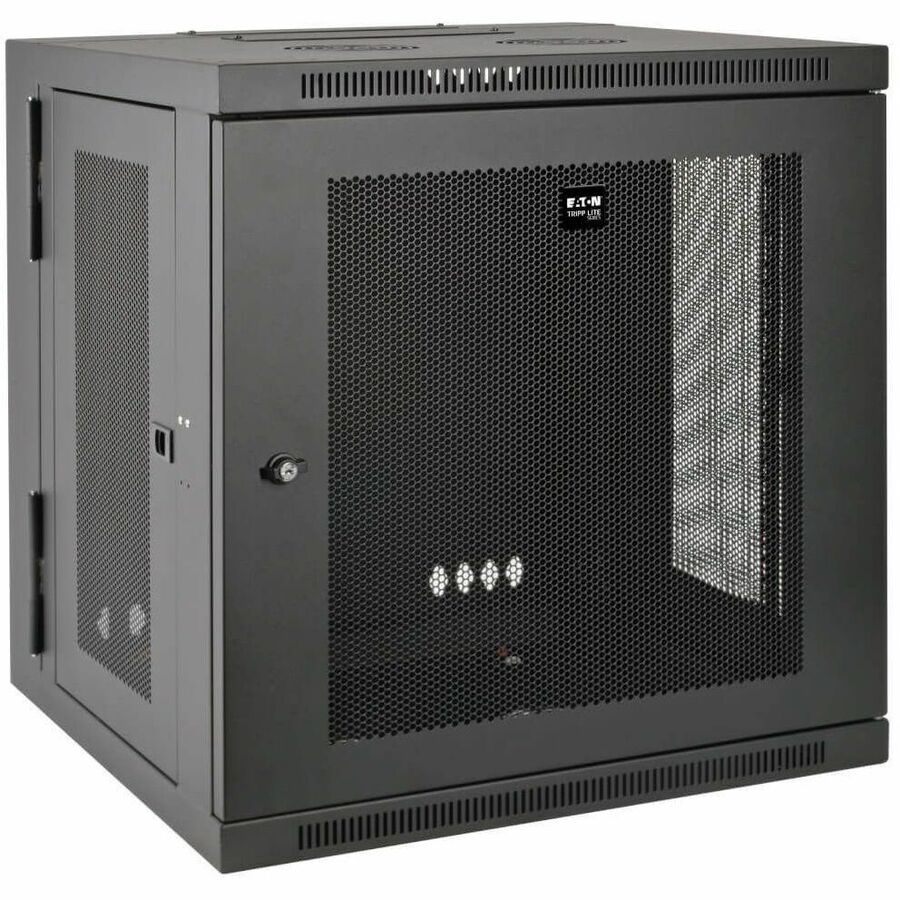

Eaton Tripp Lite Series SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back - SRW10US
Key Features
- Flow-through ventilation keeps equipment cool
- Locking steel cabinet vented at sides, front, top and bottom
- Maximum load capacity of 200 lb.
- Secures 10U of 19 in. rack equipment up to 20.5 in. deep

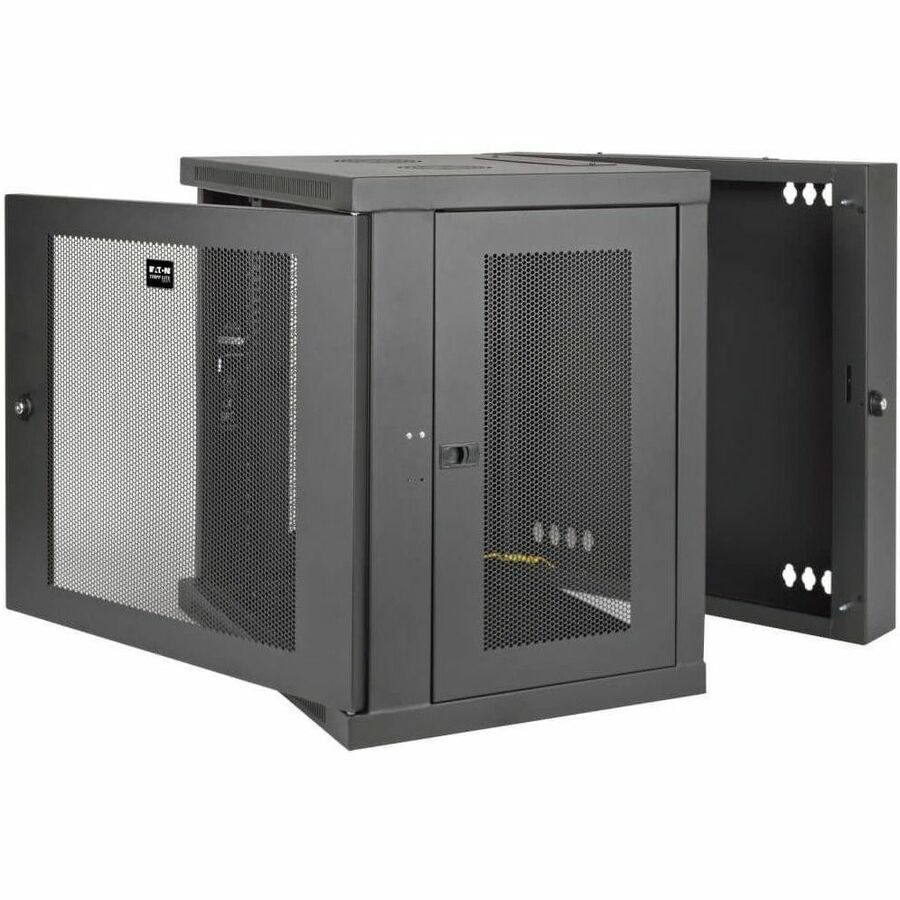

- Swings away from wall on hinge for easy back-door access
Product Overview
The SRW10US 10U Wall Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SRW10US
- Brand Name: Tripp Lite series
- Product Line: SmartRack
- Product Model: SRW10US
- Product Name: SRW10US Wall mount Rack Enclosure Cabinet 10U 19"
- Product Type: Rack Cabinet
Physical Characteristics
- Form Factor: Wall Mountable
- Maximum Weight Capacity: 140 lb
- Height: 21.6"
- Width: 23.6"
- Depth: 21.5"
- Rack Height: 10U
- Rack Width: 19"
Miscellaneous
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
