Eaton Tripp Lite Series SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back - SRW12US
Key Features
- Flow-through ventilation keeps equipment cool
- Locking steel cabinet vented at sides, front, top and bottom
- Maximum load capacity of 200 lb.
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- Swings away from wall on hinge for easy back-door access
Product Overview

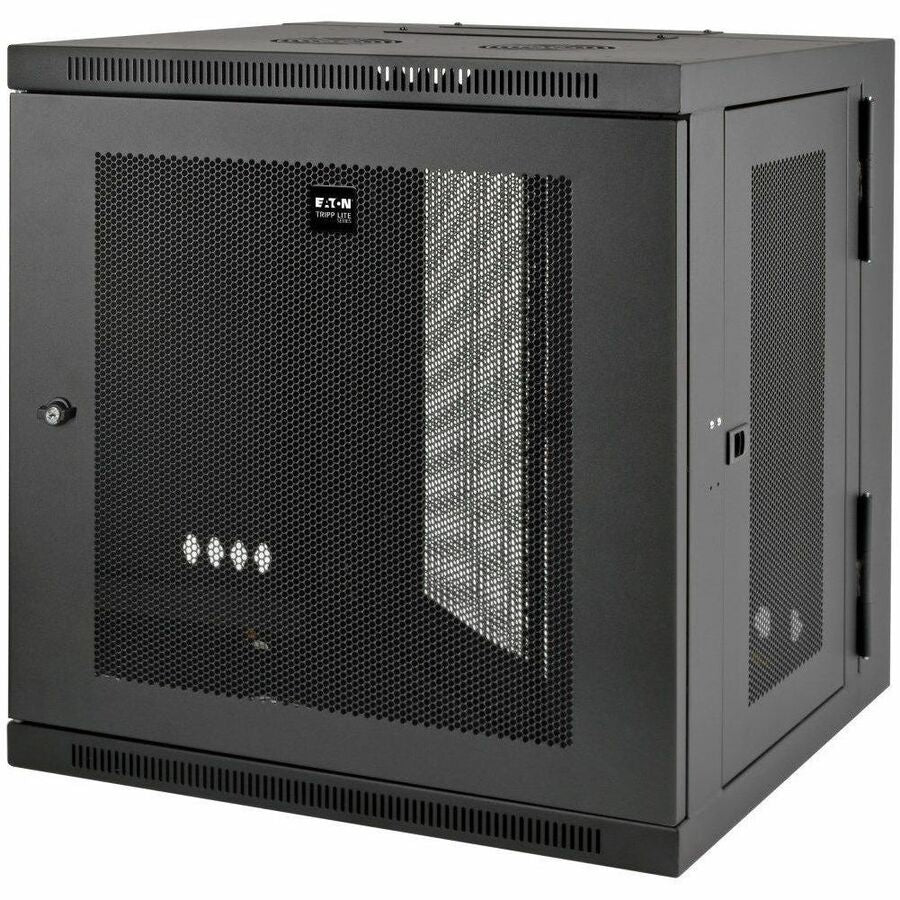

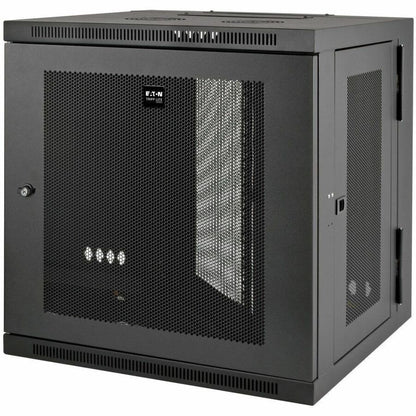

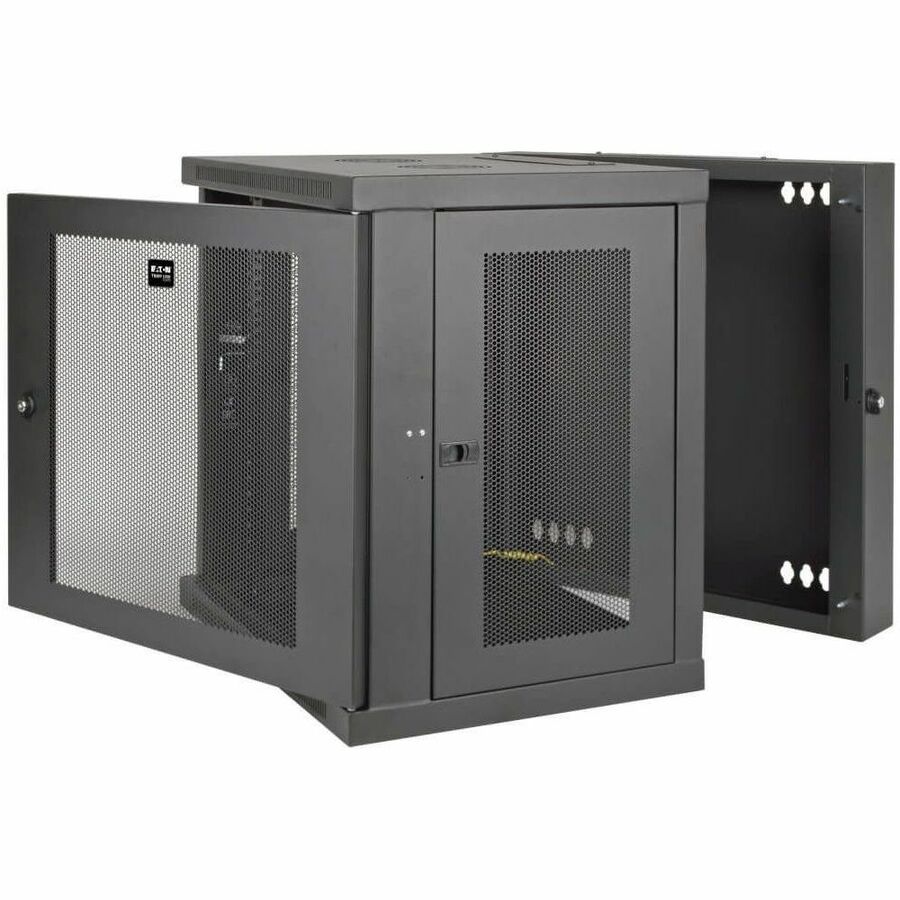

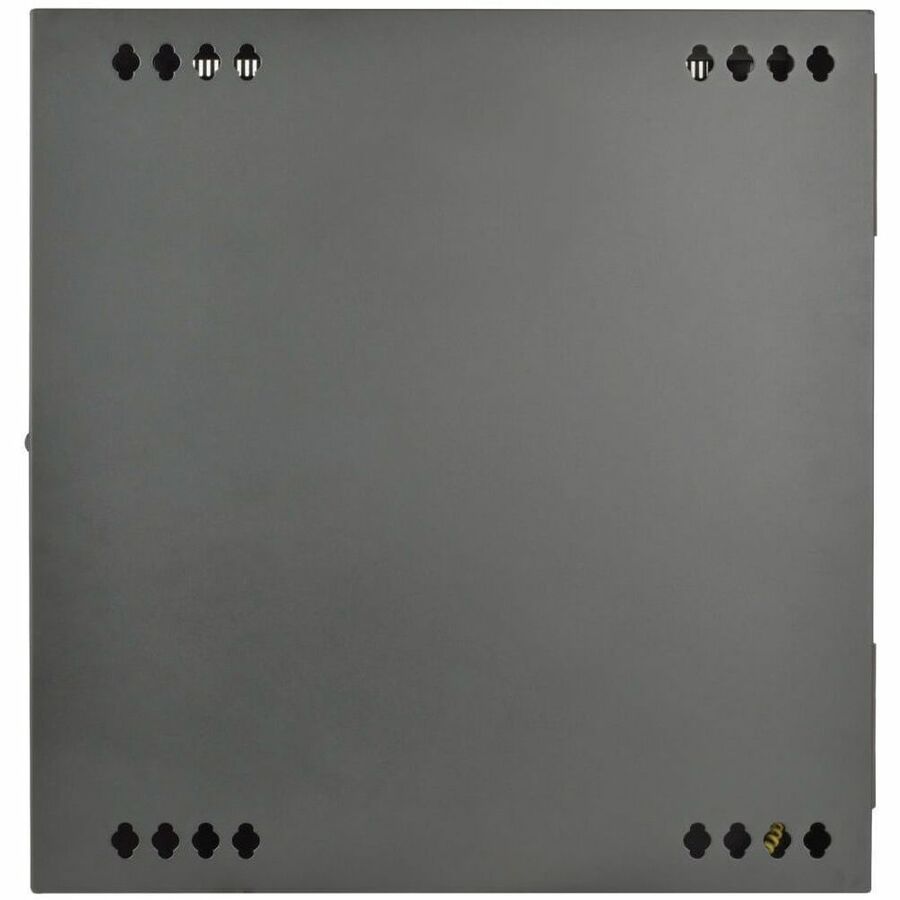

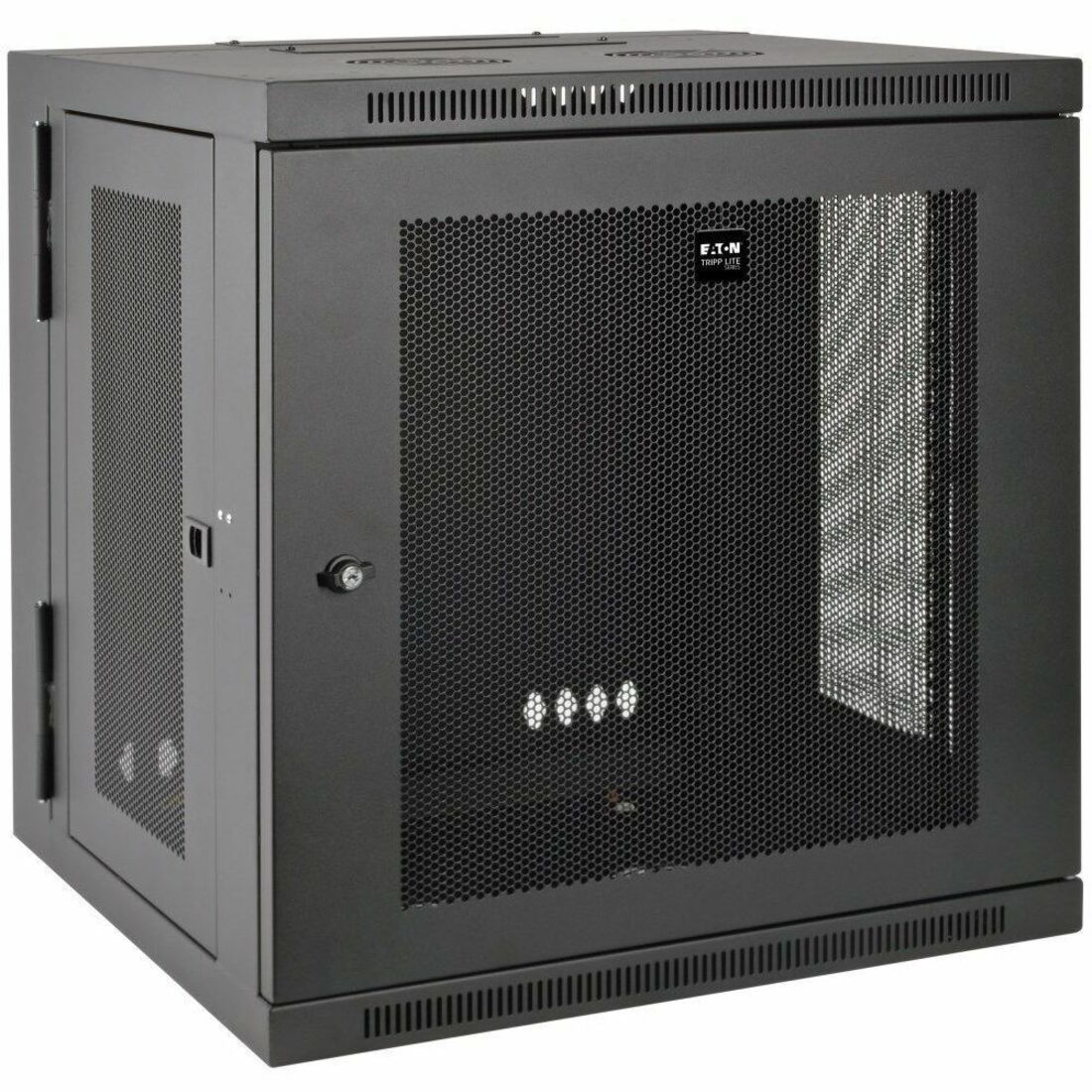

The SRW12US SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SRW12US
- Brand Name: Tripp Lite series
- Product Line: SmartRack
- Product Model: SRW12US
- Product Name: SRW12US Wall mount Rack Enclosure Server Cabinet
- Product Type: Rack Cabinet
Technical Information
- Application/Usage:
- Networking
- LAN Switch
- Patch Panel
- UPS
- Features:
- Lockable
- Vented Bottom
- Vented Top
- Vented Side
Physical Characteristics
- Form Factor: Wall Mountable
- Color Family: Black
- Product Color: Black
- Maximum Weight Capacity: 200 lb
- Height: 24.6"
- Width: 23.5"
- Depth: 21.6"
- Rack Height: 12U
- Rack Width: 19"
- Weight (Approximate): 60 lb
Miscellaneous

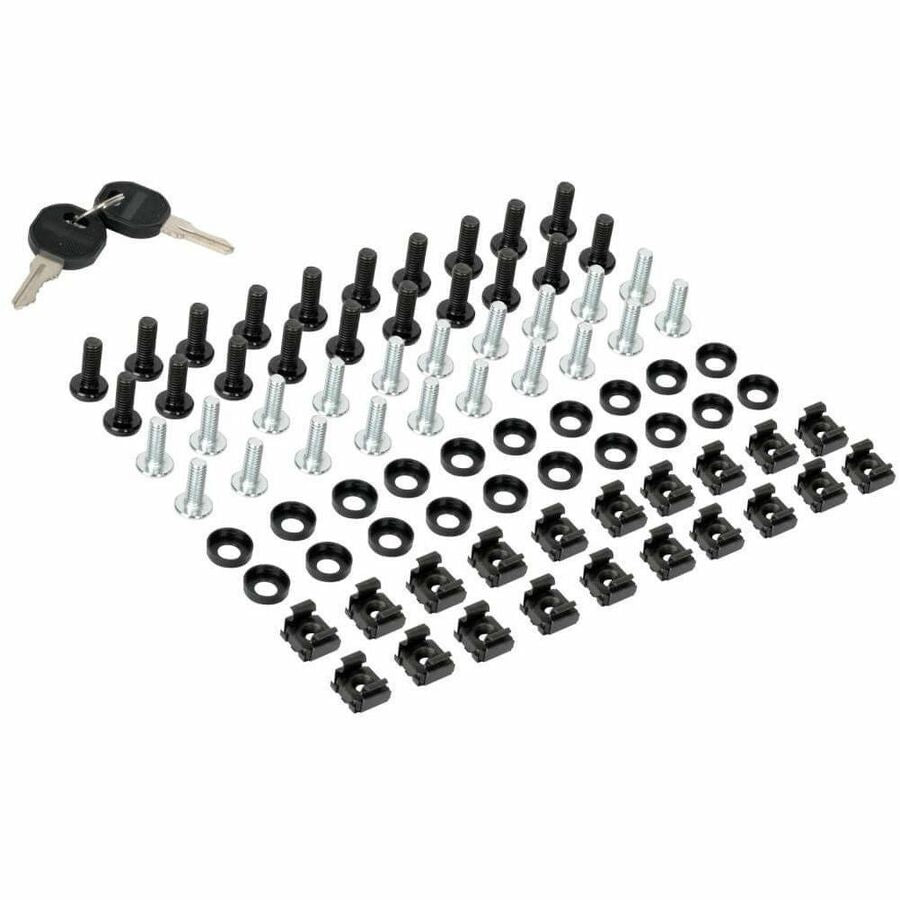

- Package Contents:
- SRW12US Wall mount Rack Enclosure Server Cabinet
- 20 x M6 Screws
- 20 x M6 Cage Nuts
- 20 x M6 washers
- 20 x 12-24 Screws
- 2 x Keys
- Owner's Manual
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
