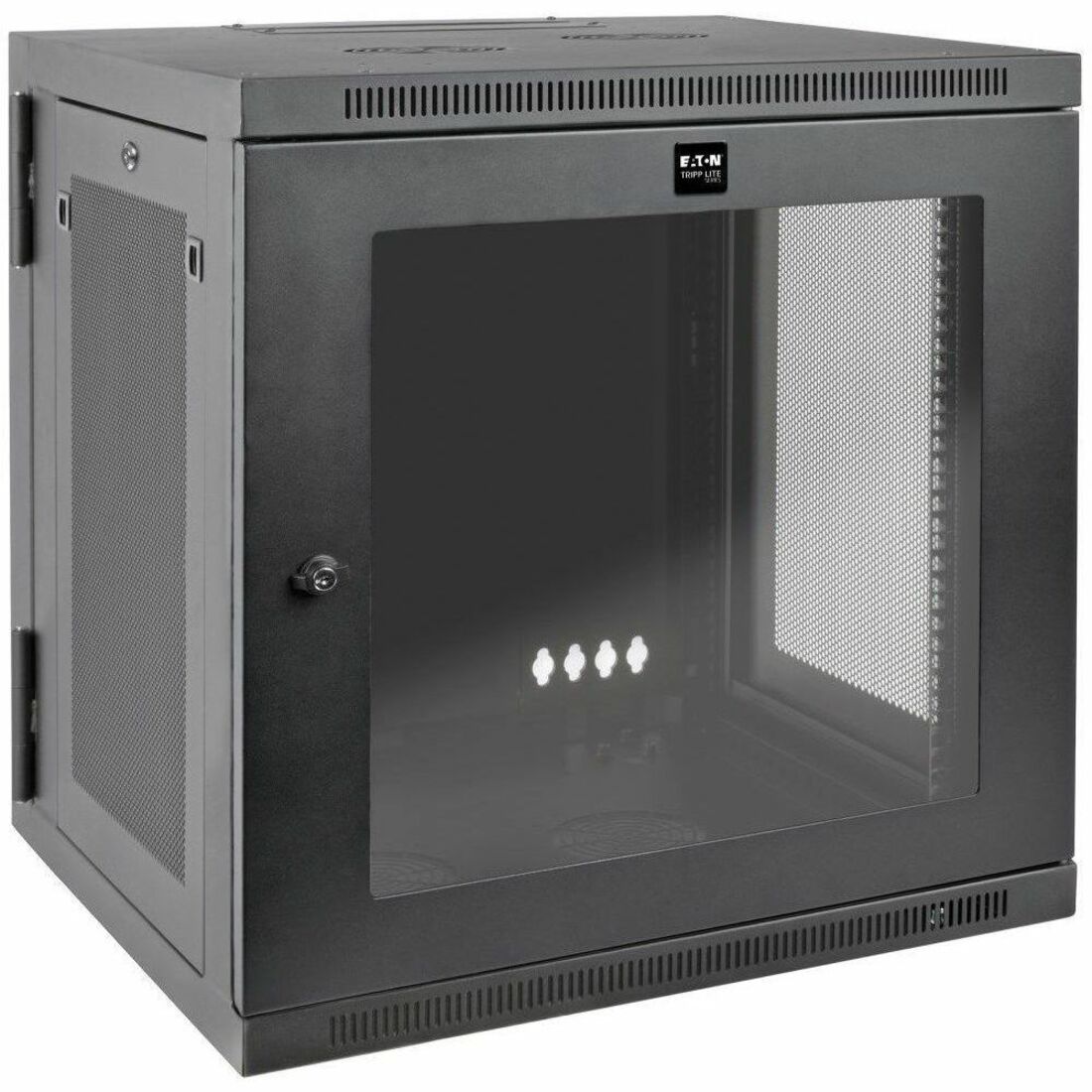

Eaton Tripp Lite Series SmartRack 12U UPS-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back - SRW12USDPG
Key Features
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Maximum load capacity of 200 lb.
- Secures 12U of 19 in. rack equipment up to 24.5 in. deep
- Swings away from wall on hinge for easy back-door access
Product Overview

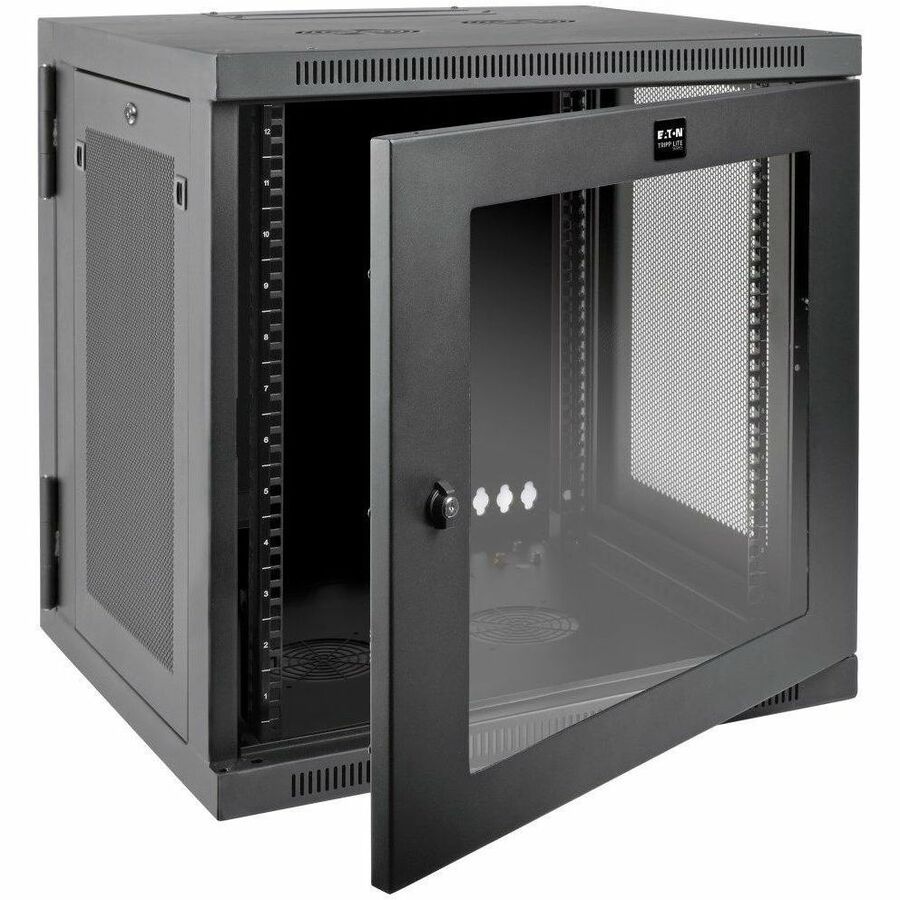

The SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

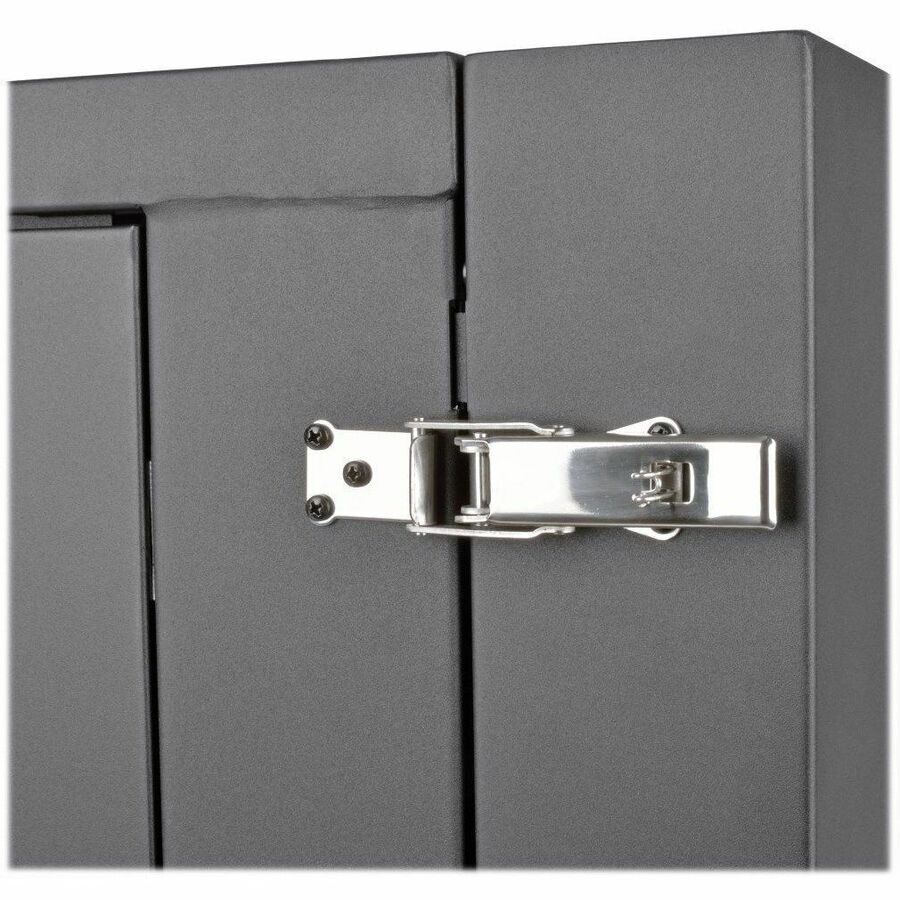

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

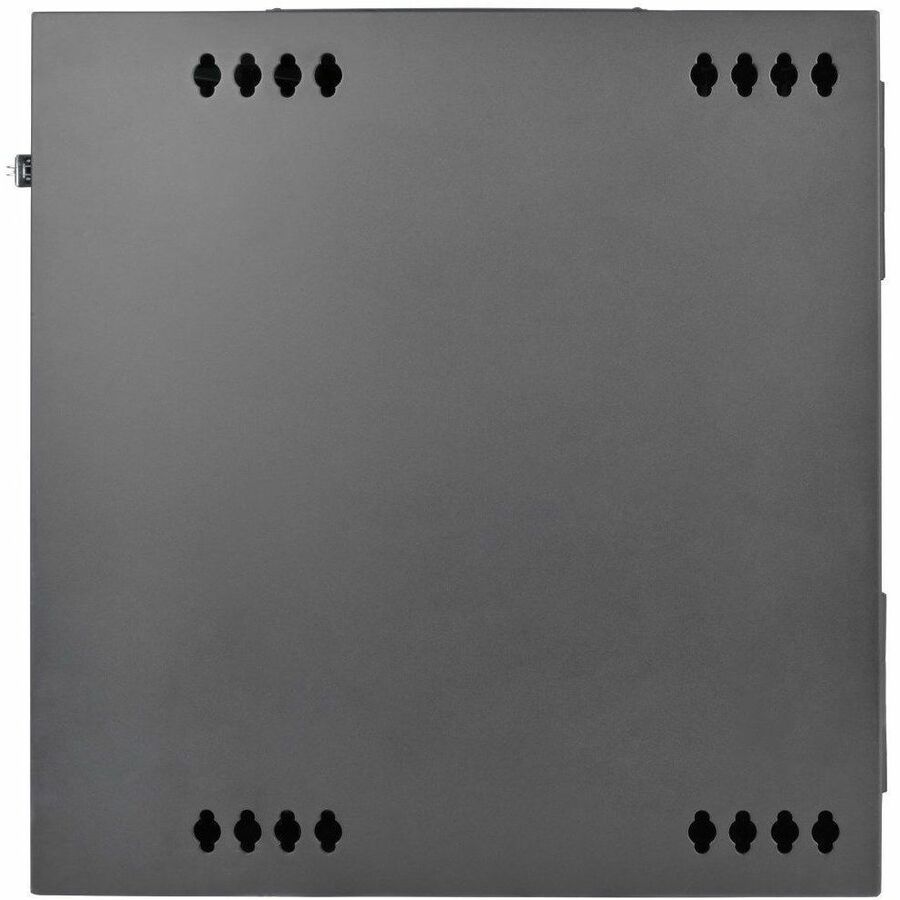

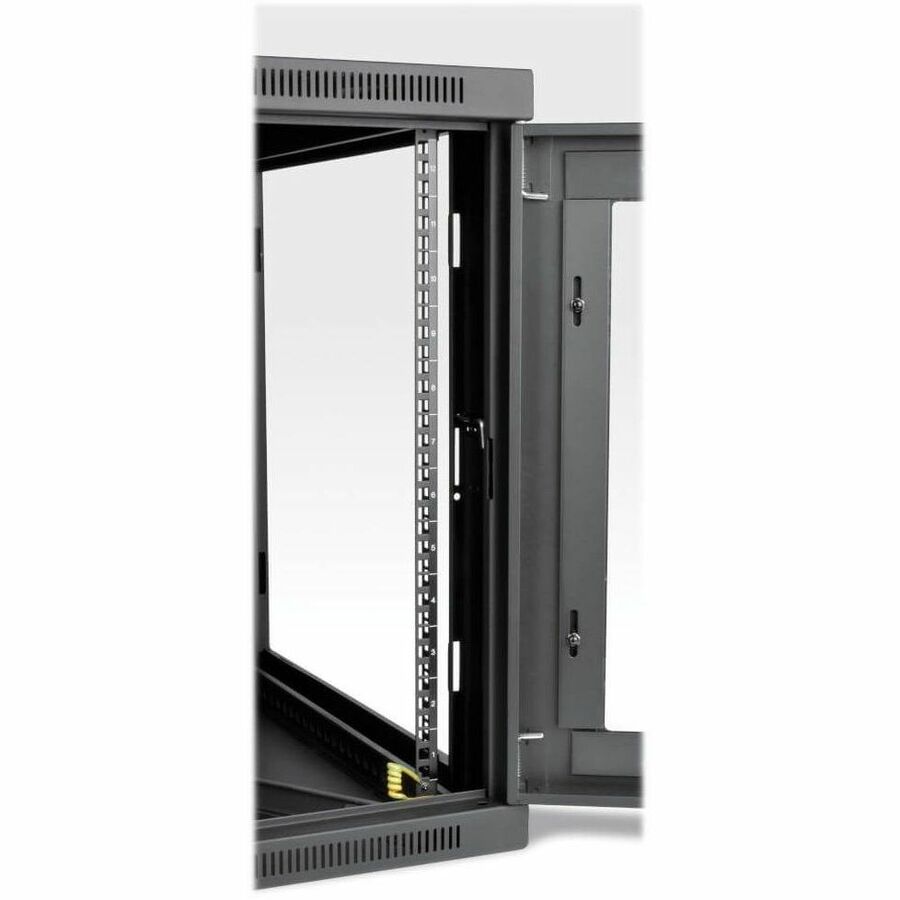

The SRW12USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SRW12USDPG
- Brand Name: Tripp Lite series
- Product Line: SmartRack
- Product Model: SRW12USDPG
- Product Name: SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet
- Product Type: Rack Cabinet
Technical Information
- Application/Usage: UPS
Physical Characteristics
- Form Factor: Wall Mountable
- Color Family: Dual Color
- Product Color:
- Black
- Clear
- Product Material:
- Steel
- Acrylic
- Maximum Weight Capacity: 200 lb
- Static/Stationary Weight Capacity: 200 lb
- Height: 25.1"
- Width: 23.6"
- Depth: 25.5"
- Rack Height: 12U
- Rack Width: 19"
- Rack Depth: 24.50"
- Weight (Approximate): 64 lb
Miscellaneous

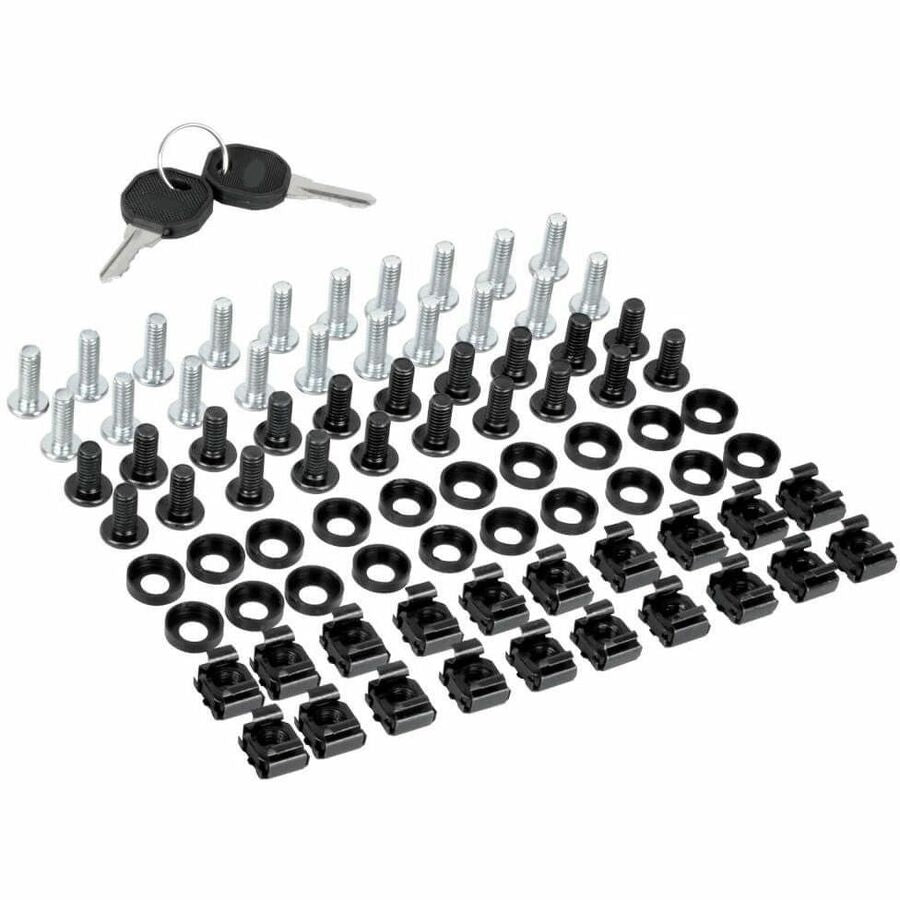

- Package Contents:
- SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet
- 20 x M6 Screws
- 20 x M6 Cage Nuts
- 20 x M6 Washers
- 20 x 12-24 Screws
- 2 x Keys
- Owner's Manual
- Assembly Required: No
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
