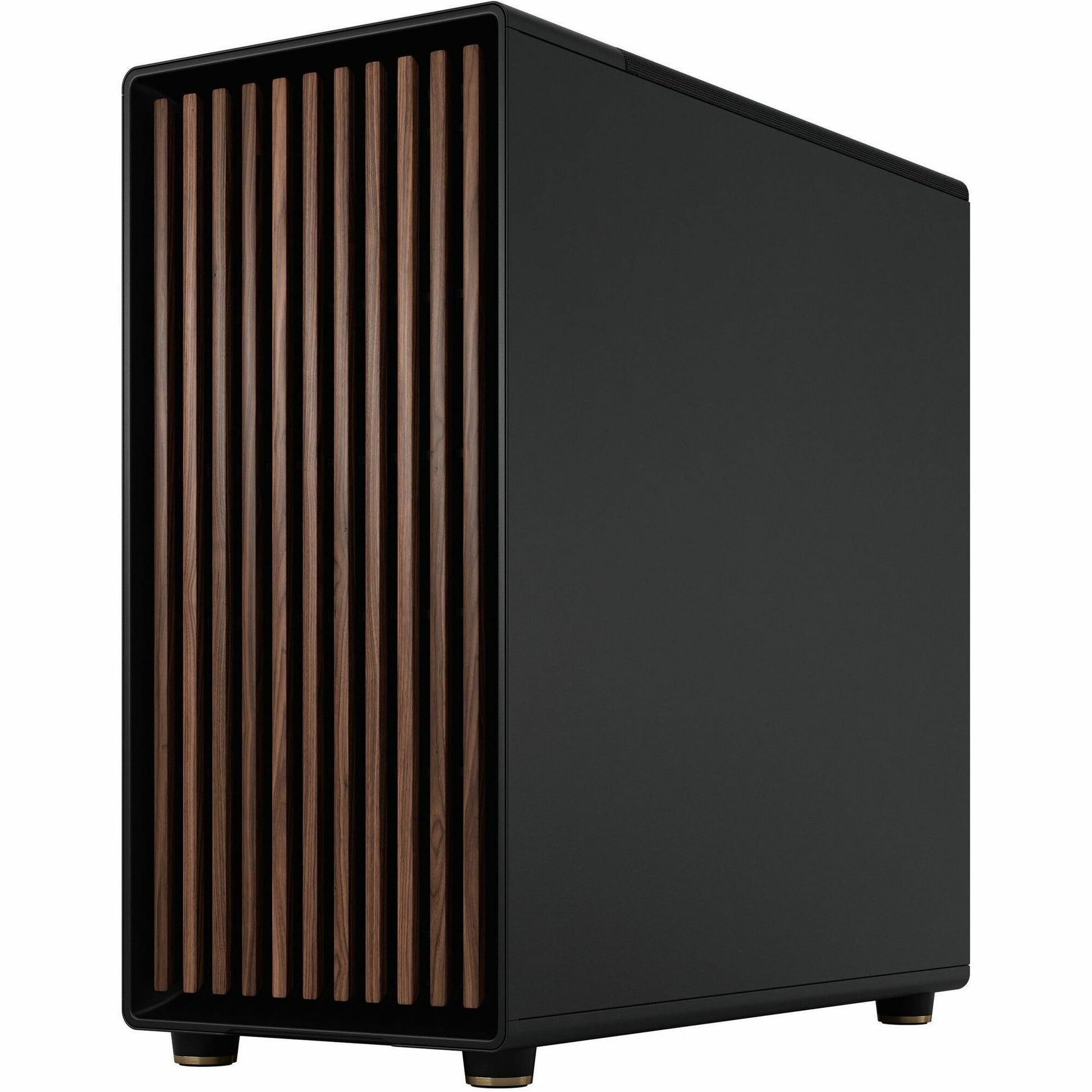

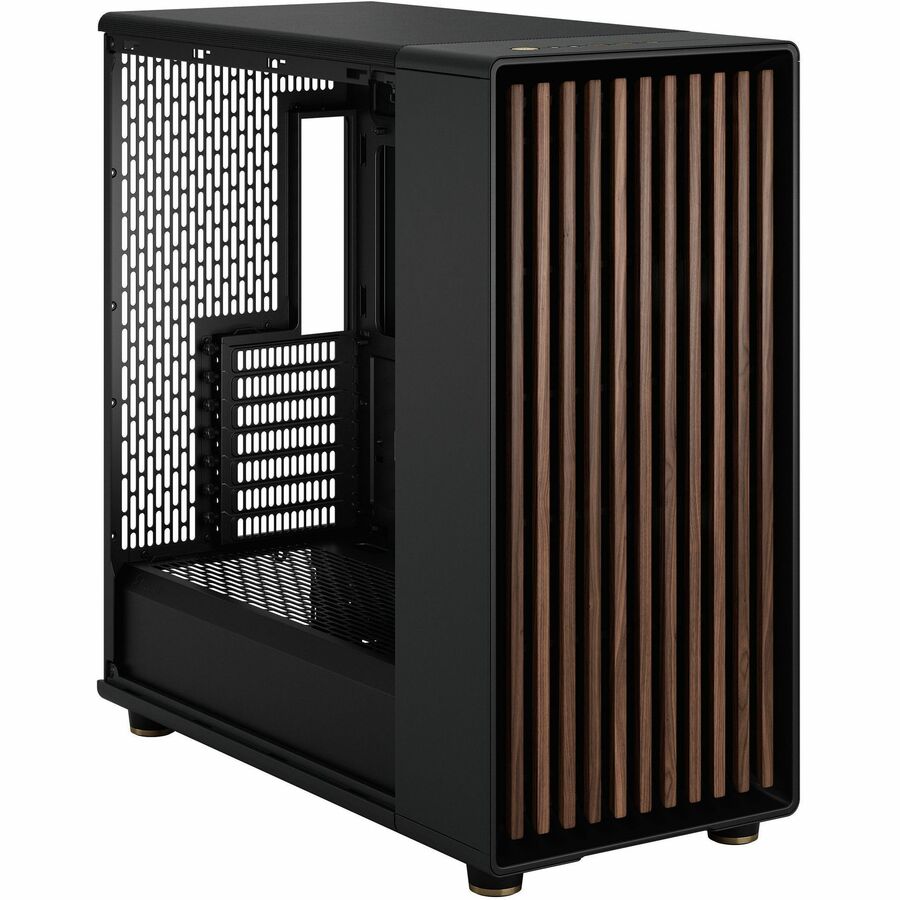

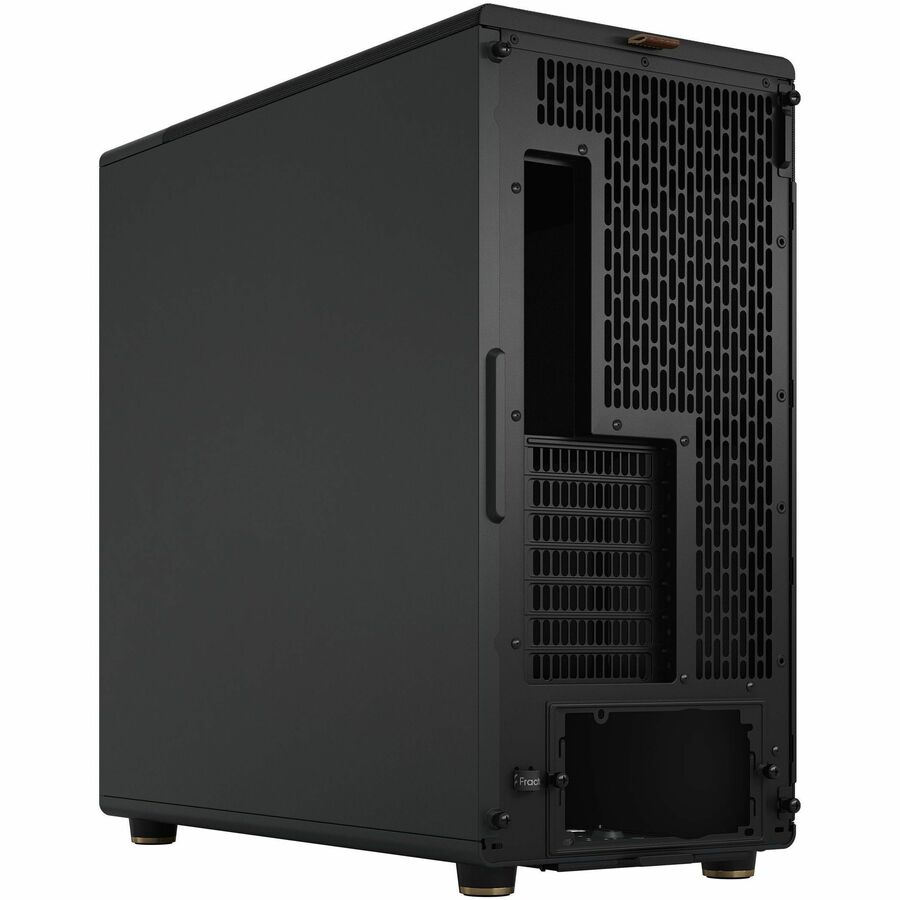

Fractal Design North XL - FD-C-NOR1X-05
Key Features
- Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
- Compatible with front radiators up to 420 mm and top radiators up to 360 mm
- Designed for ATX and mATX motherboards with connectors hidden on the back (North XL RC version only)

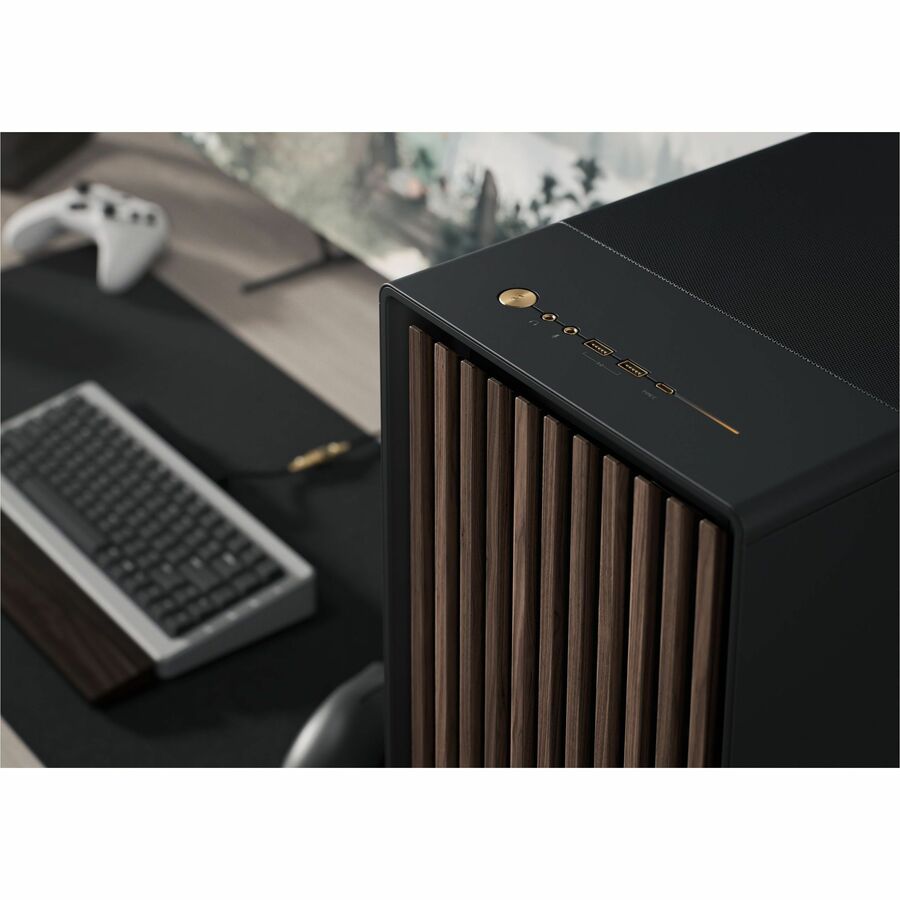

- Enhance the look of your gaming station with sleek wood and alloy details
- Enjoy a sophisticated looking case which integrates effortlessly into your living space
- Enjoy natural ventilation through an open front and stylishly integrated mesh
- Get a head start on your build with the three included 140 mm Aspect PWM fans
- Slide open the side panels, unclip the front and use the integrated tab to pop off the top panel
Product Overview
Natural design
- Enjoy a sophisticated looking case which integrates effortlessly into your living space
- Enhance your gaming station with an FSC-certified oak or walnut front, a faux leather tab and sleek steel or brass details
Gaming ready
- Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
- Make the most of your build with a generous layout compatible with full E-ATX motherboards
Extended cooling
- Supports front radiators up to 420 mm and top radiators up to 360 mm
- Three Aspect 14 PWM fans preinstalled with room to expand up to a total of eight 140 mm or nine 120 mm fans
Type-C interface

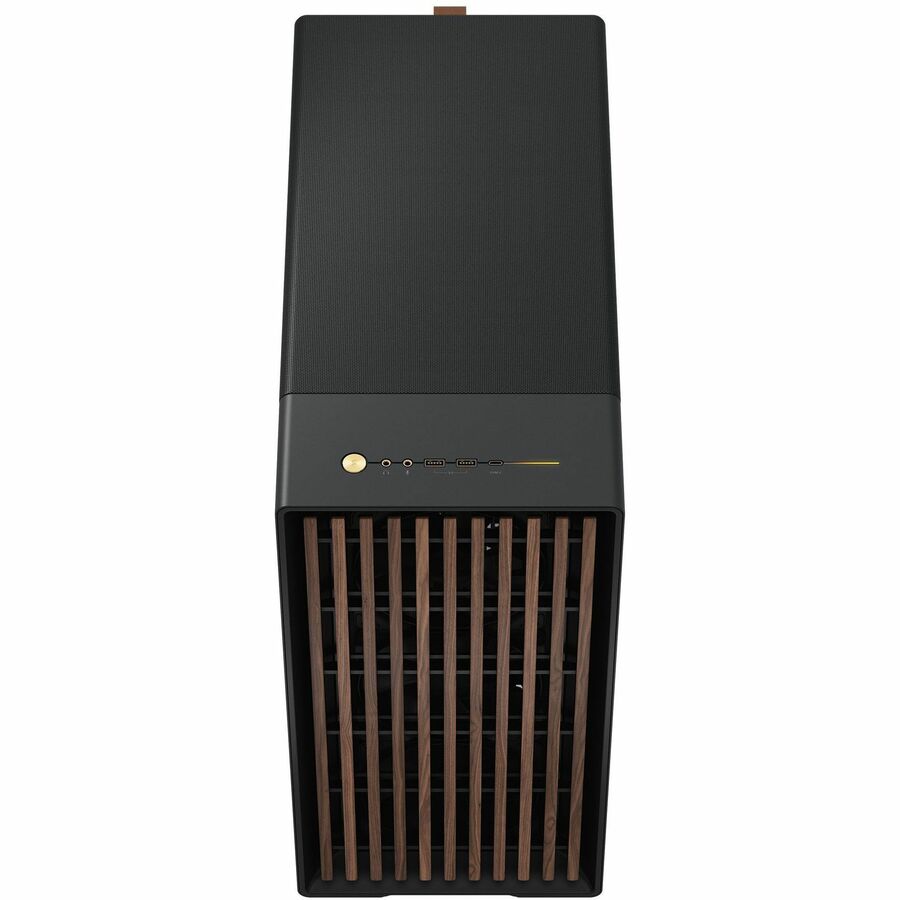

Three front USB ports including one USB 3.2 Gen 2×2 Type-C with speeds up to 20Gbps
Ventilated performance
- Natural ventilation through an open front and a stylishly integrated mesh top panel

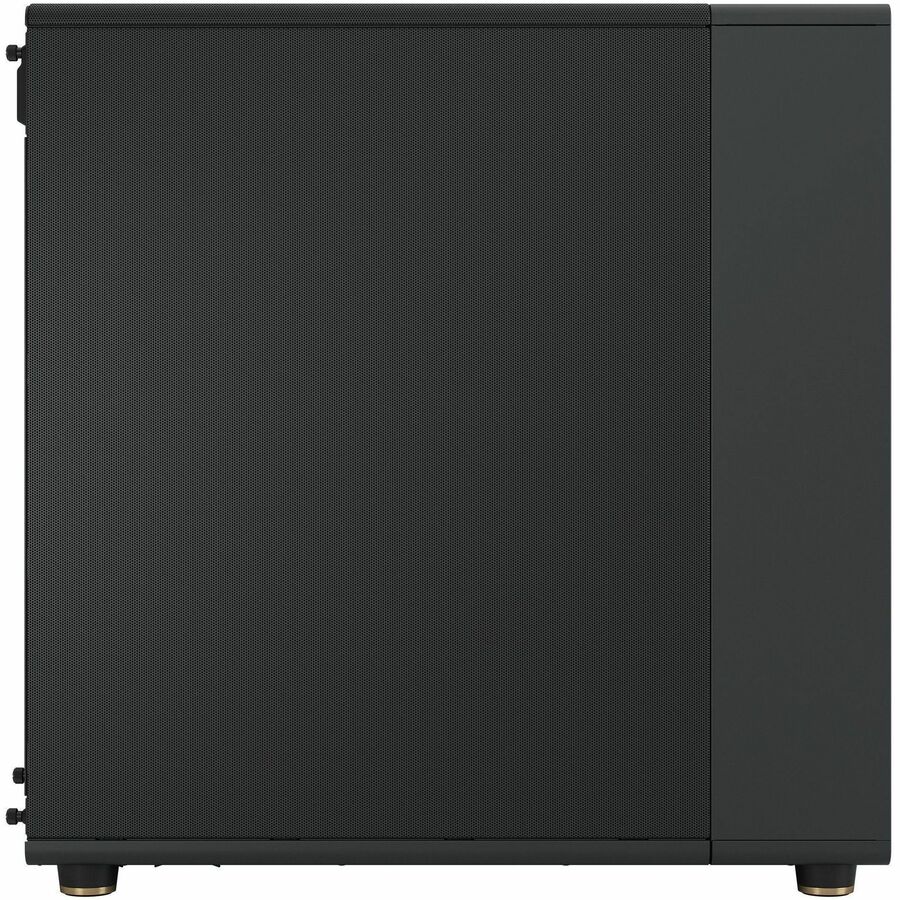

- The mesh version of the case features a full mesh side panel in addition to the top
Naturally unique

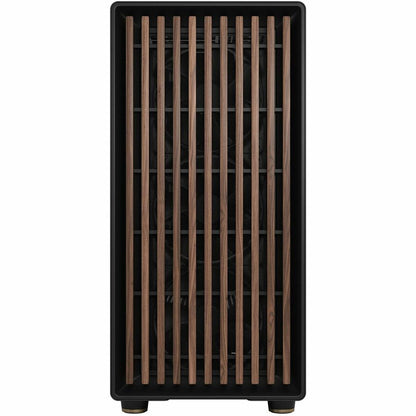

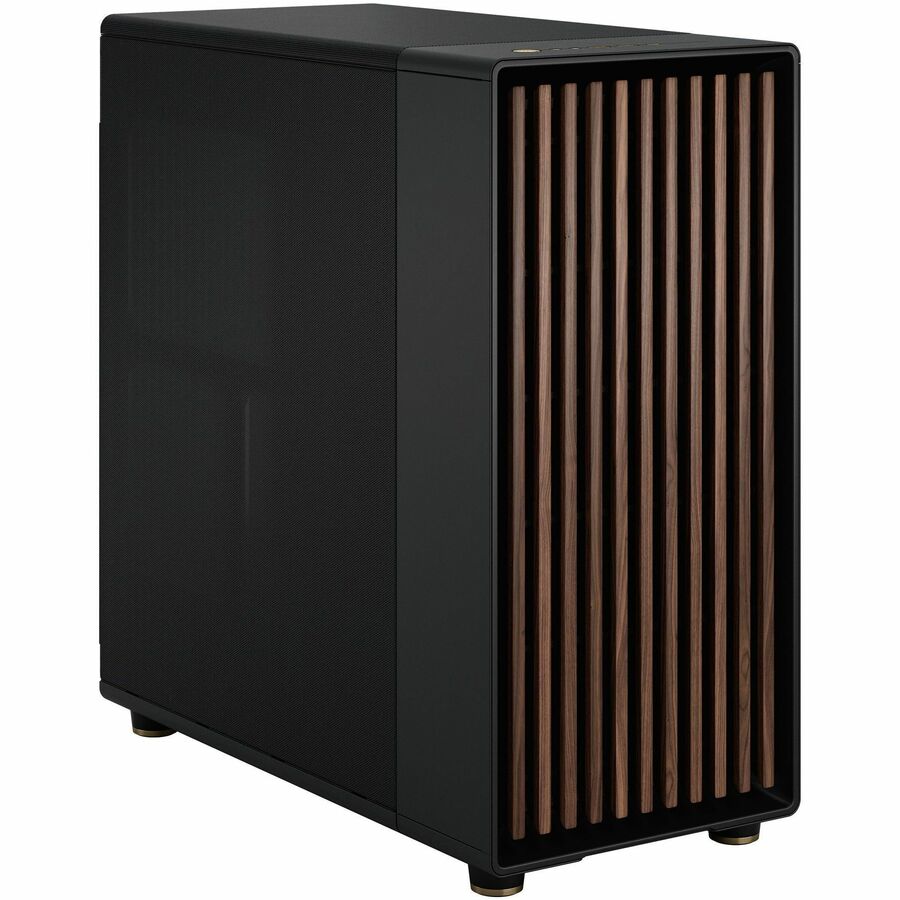

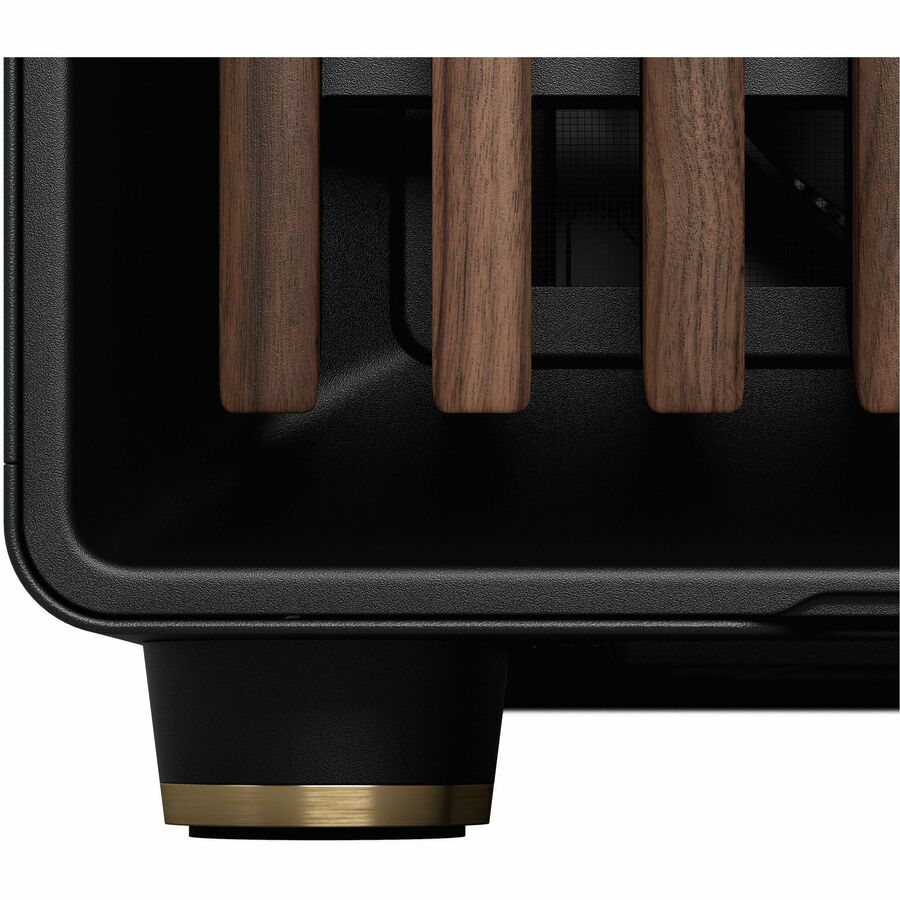

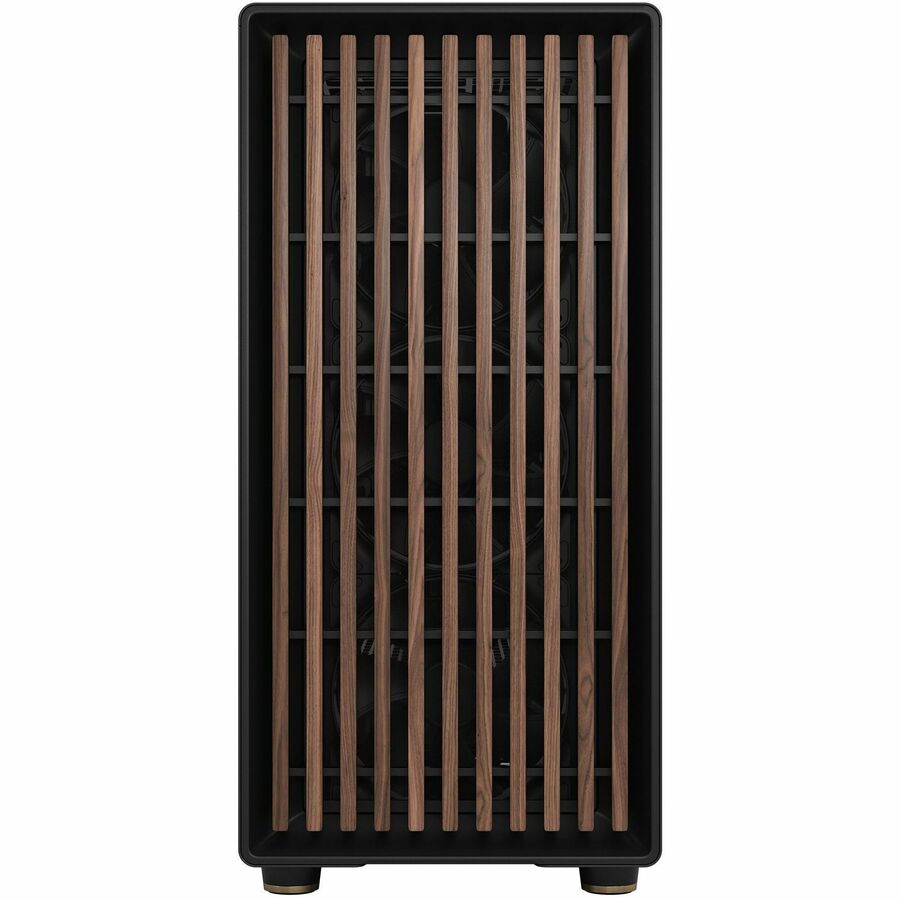

Enjoy a unique finish, with front panel bars cut from FSC-certified oak or walnut
Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Build versatility

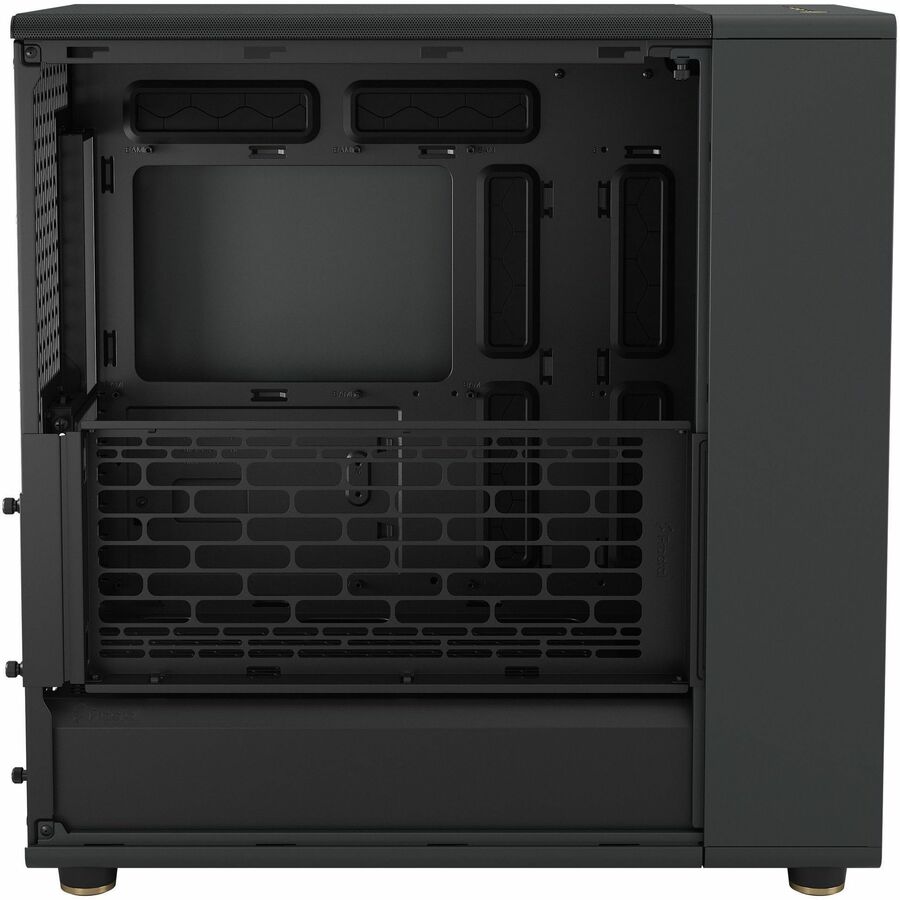

- Make the most of your building experience with an intuitive interior layout
- Designed for E-ATX / ATX / mATX / mITX motherboards
General Information
- Manufacturer: Fractal Design
- Manufacturer Part Number: FD-C-NOR1X-05
- Brand Name: Fractal Design
- Product Line: North XL
- Product Name: North XL
- Product Type: Gaming Computer Case
Technical Information
- Motherboard Supported:
- ATX
- Micro ATX
- EATX
- Mini ITX
- Number of Fans Supported: 7
- Number of Fans Installed: 3
- Fan Size Supported:
- 4.72"
- 5.51"
- Installed Fan Size: 5.51"
- Installed Fan Size Details: 3 × 140mm
- Features: Dust Filter

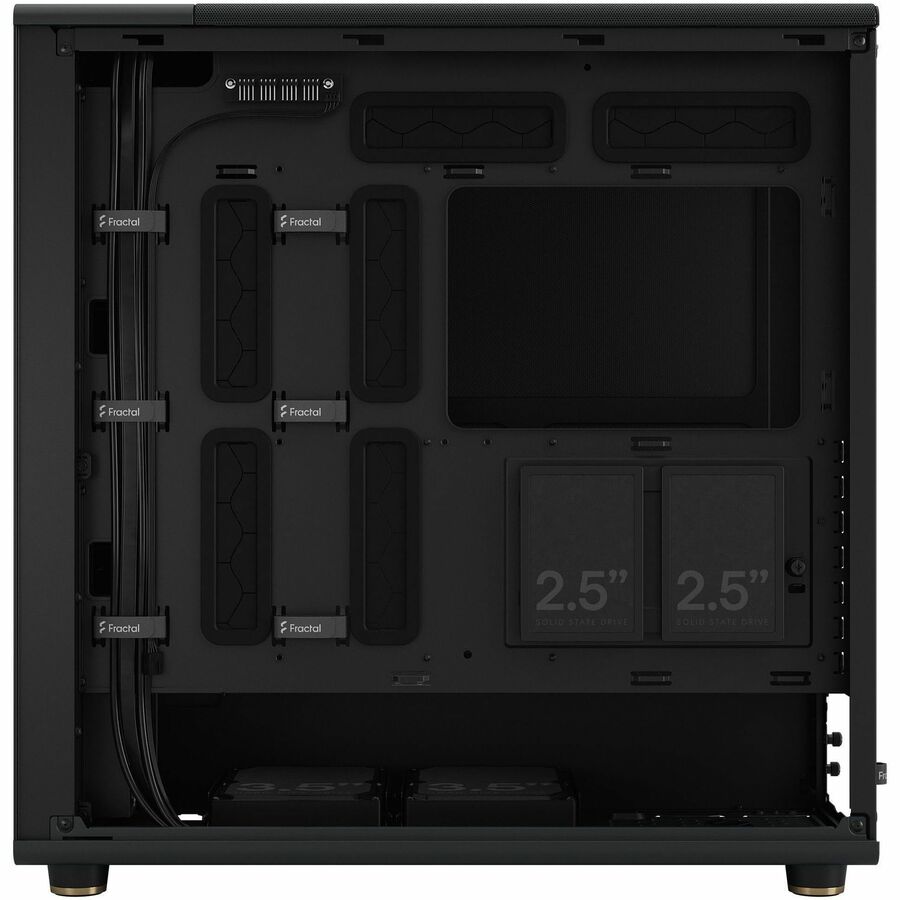

Bays
- Number of Internal 3.5" Bays: 2
- Number of Internal 2.5" Bays: 2
I/O Expansions

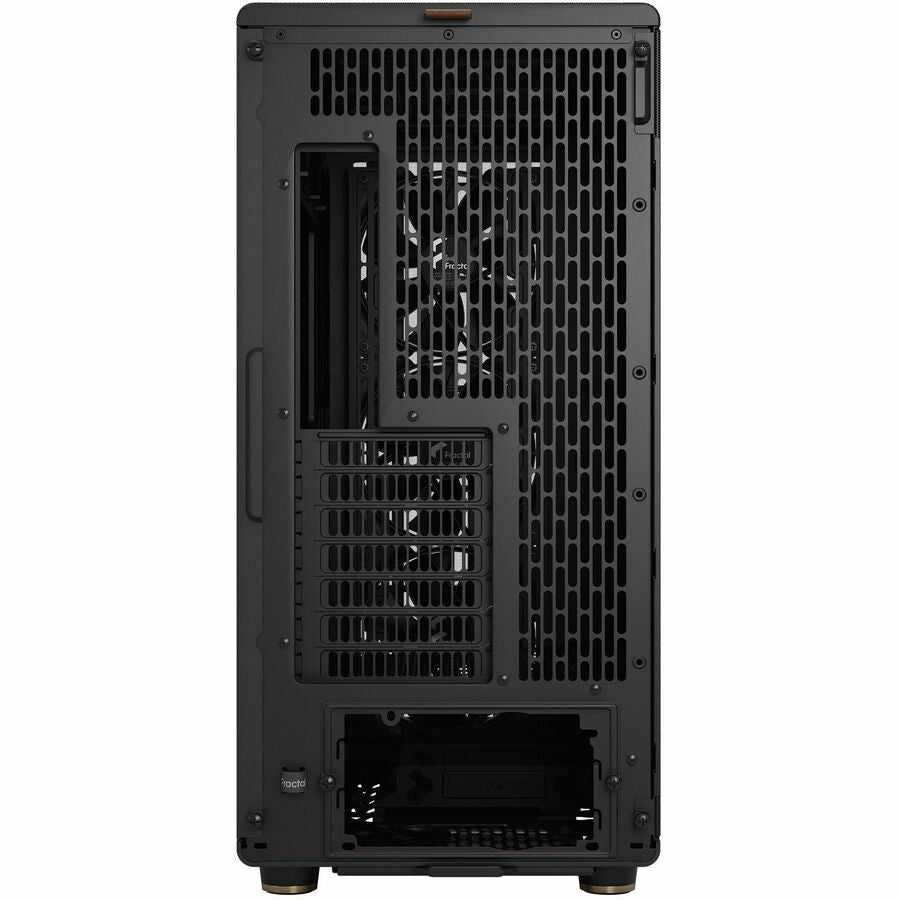

- Total Number of Expansion Slots: 7

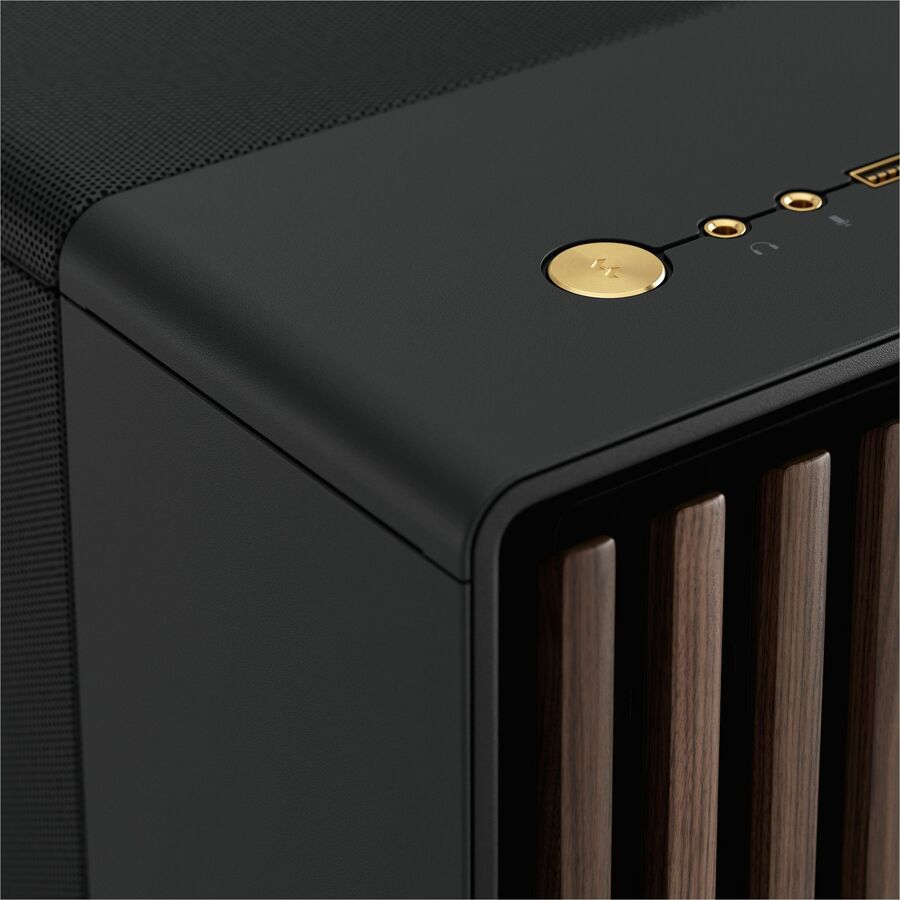

Interfaces/Ports
- Total Number of USB Ports: 3
- USB Port Details:
- 1 x USB 3.2 Gen 2x2 Type C
- 2 x USB 3.0
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
- Microphone: Yes
Physical Characteristics
- Color Family: Black
- Product Color: Charcoal Black
- Product Material:
- Tempered Glass
- Steel
- Wood
- Alloy
- Faux Leather
- Cooler Type: Fan Cooler
- Maximum CPU Cooler Height: 6.65"
- Maximum PSU Length: 11.42"
- Maximum GPU Length: 16.26"
- Height: 20"
- Width: 9.4"
- Depth: 19.8"
- Weight (Approximate): 21.38 lb
Miscellaneous
- Package Contents:
- North XL RC case
- Accessory Box
- User Manual
Warranty
- Limited Warranty: 2 Year
