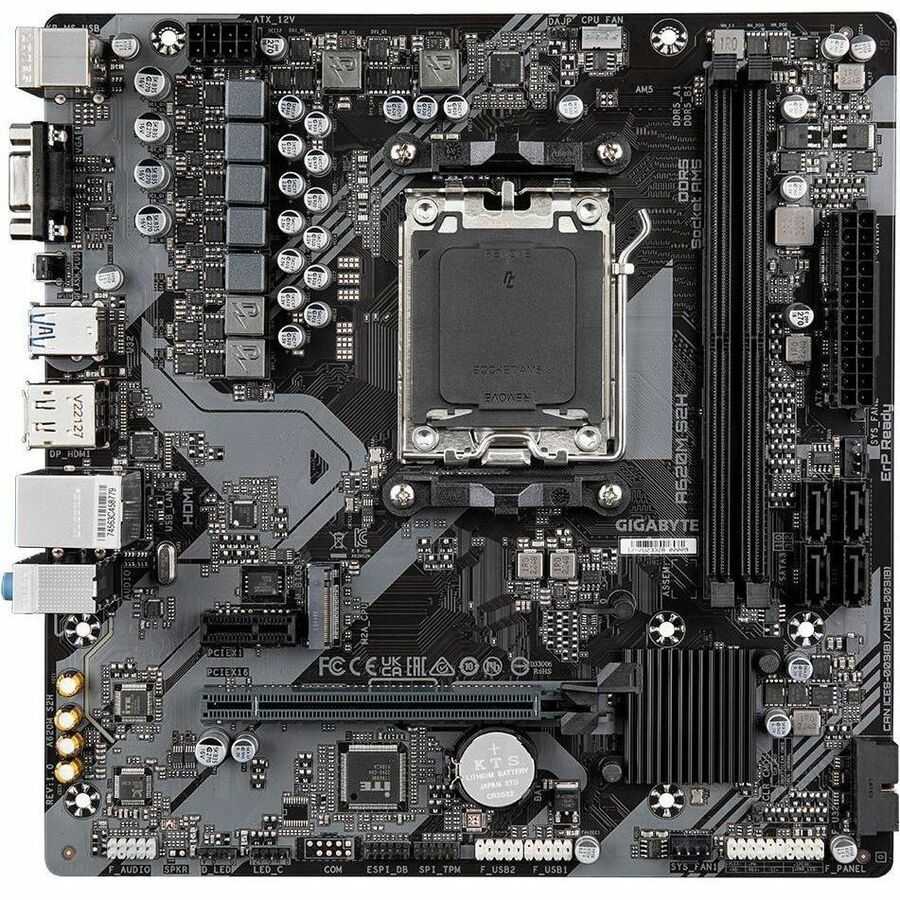

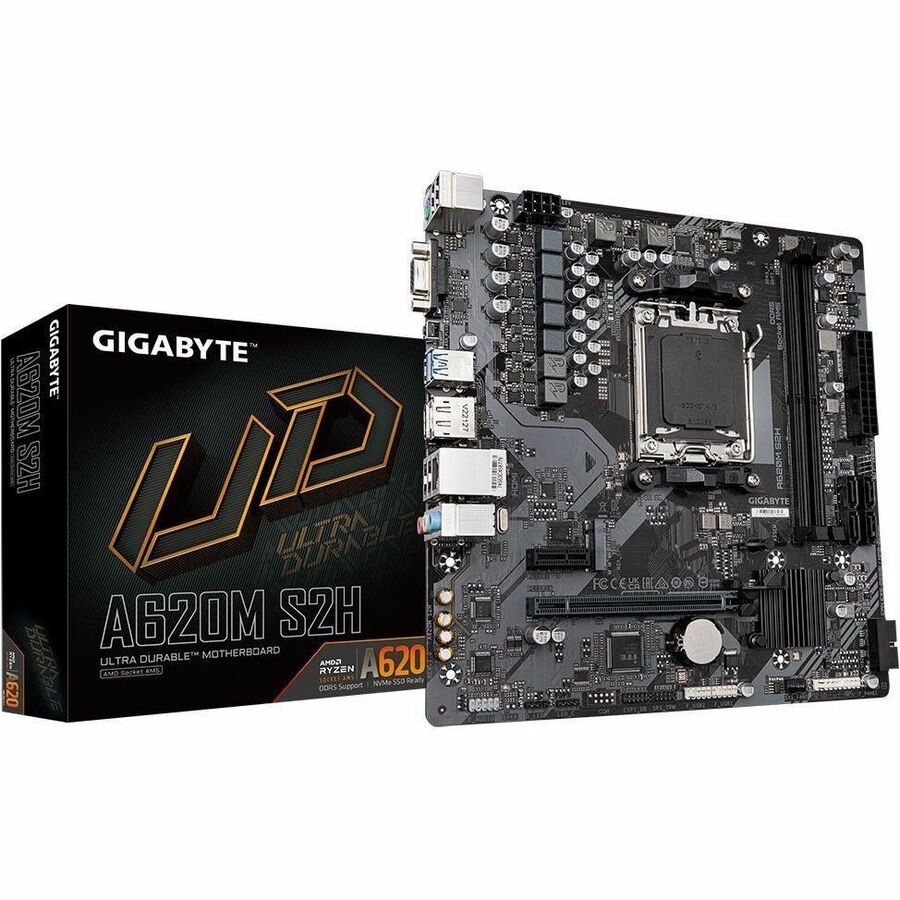

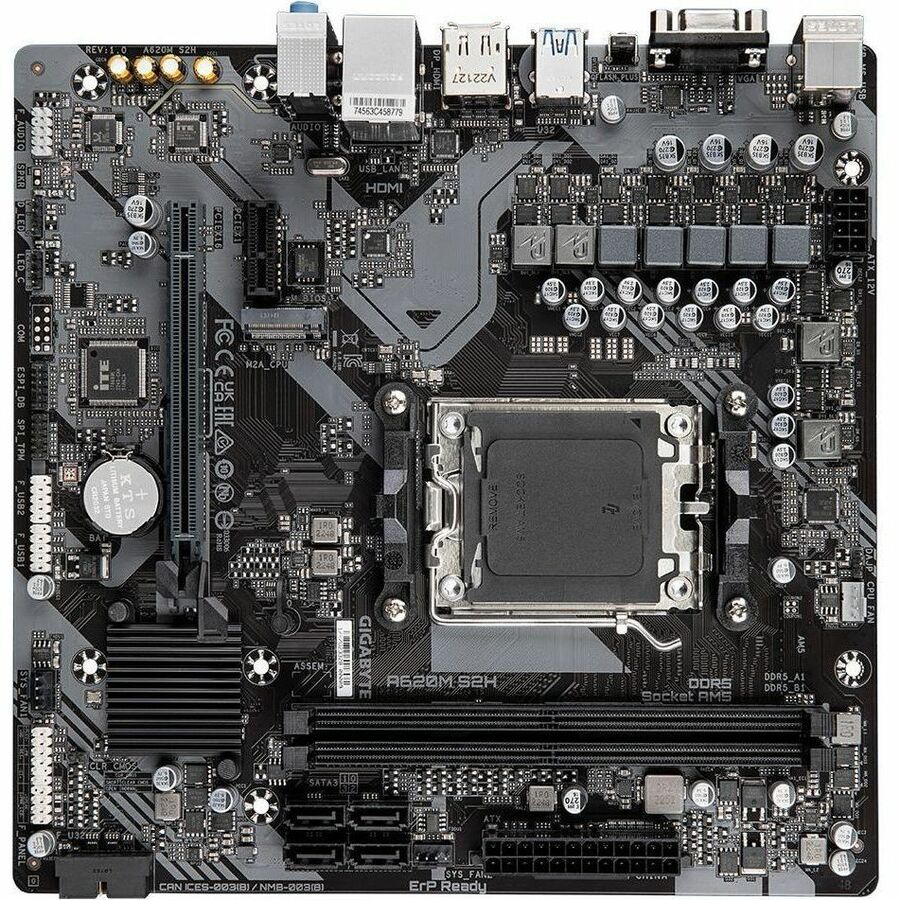

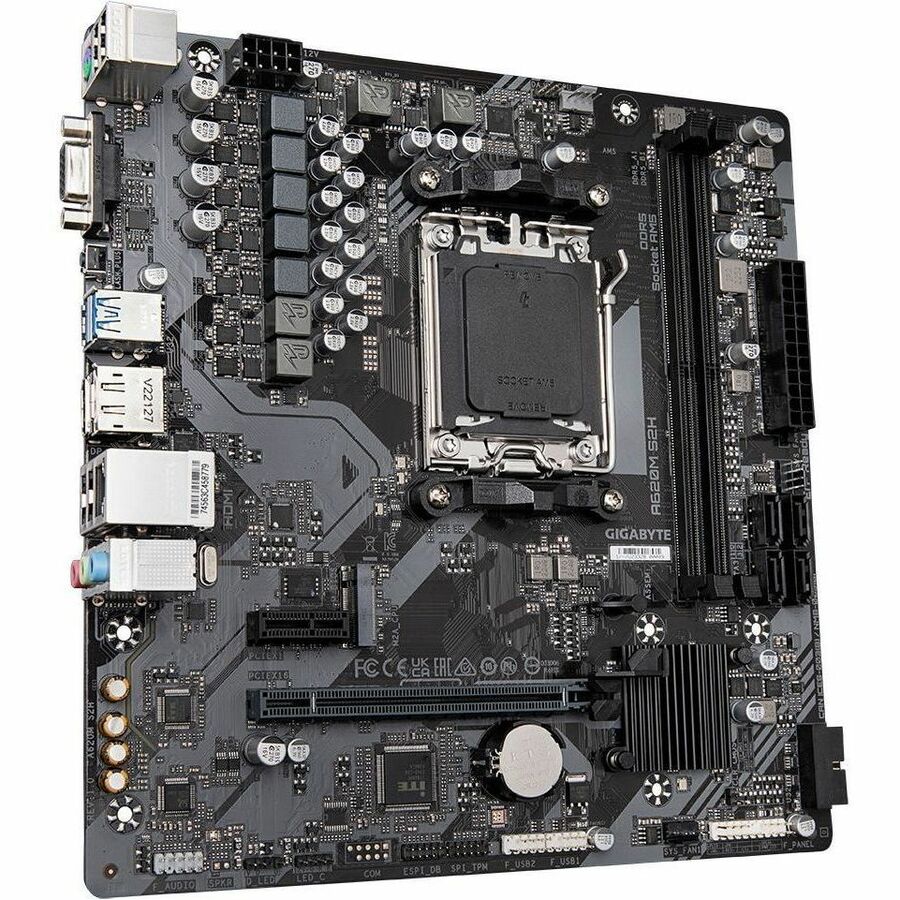

GIGABYTE Ultra Durable A620M S2H Desktop Motherboard - AMD A620 Chipset - Socket AM5 - Micro ATX - A620M-S2H
Key Features
- AMD Socket AM5?Supports AMD Ryzen™ 7000 Series Processors
- Dual Channel DDR5?2*SMD DIMMs with AMD EXPO™ & Intel®XMP Memory Module Support
- Extended Connectivity?DP, HDMI, D-Sub
- EZ-Latch?PCIe x16 Slot with Quick Release Design
- Fast Networks?GbE LAN
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- SuperSpeed Storage?PCIe 4.0 x4 M.2 Connector
- Unparalleled Performance?5+2+2 Phases Digital VRM Solution
Product Overview
5+2+2 Phases Digital VRM Solution with Low RDS(on)MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
General Information
- Manufacturer: GIGABYTE Technology, Inc
- Manufacturer Part Number: A620MS2H
- Brand Name: GIGABYTE
- Product Line: Ultra Durable
- Product Model: A620M S2H
- Product Name: Ultra Durable A620M S2H Desktop Motherboard
- Product Type: Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: A620
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported: Ryzen 7
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 96 GB
- Memory Speed Supported:
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5600 MHz
- 5200 MHz
- 4800 MHz
- 4400 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Total Number of Expansion Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

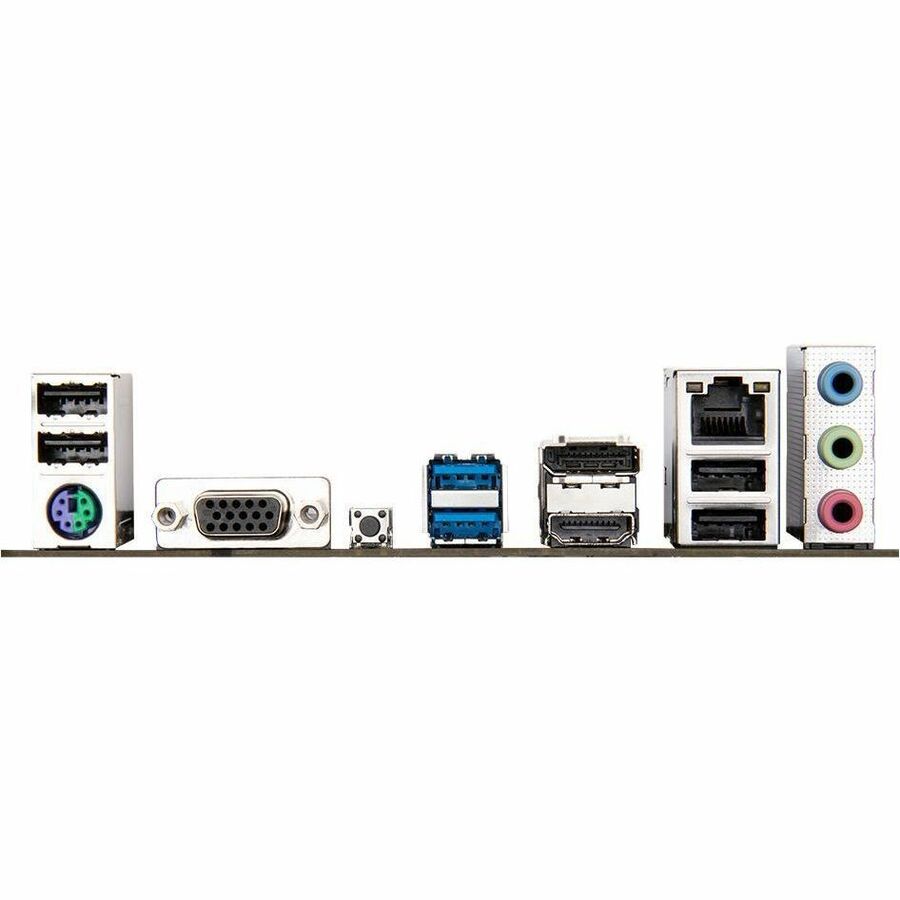

Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 4
- Number of USB 3.2 Gen 1 Ports: 2
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SAS Interfaces: 4
- Number of M.2 Interfaces: 1
- Total Number of Onboard USB Ports: 6
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.1"
- Depth: 8.9"
Miscellaneous
- Environmentally Friendly: Yes
- Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready)
- Environmental Compliance:
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
