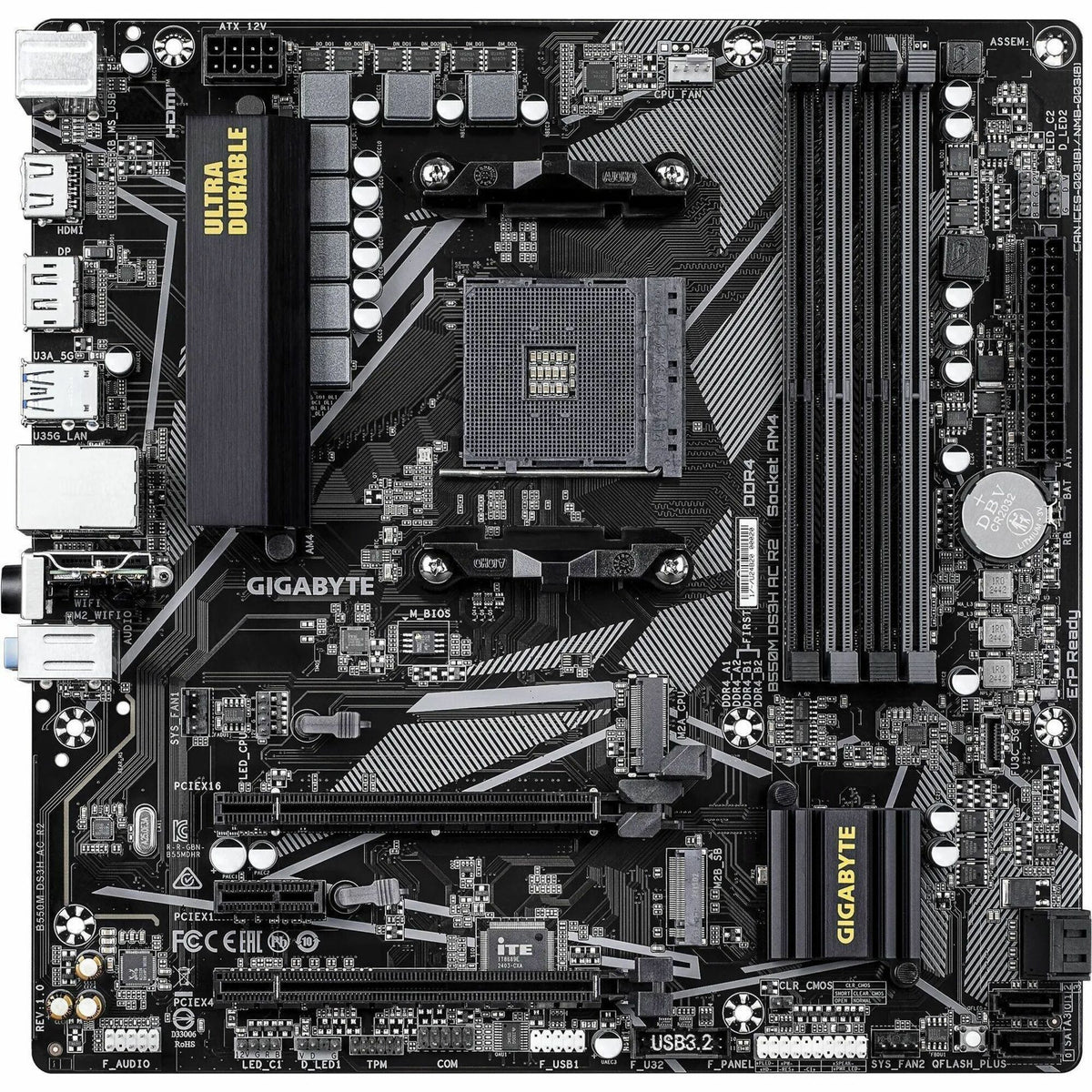

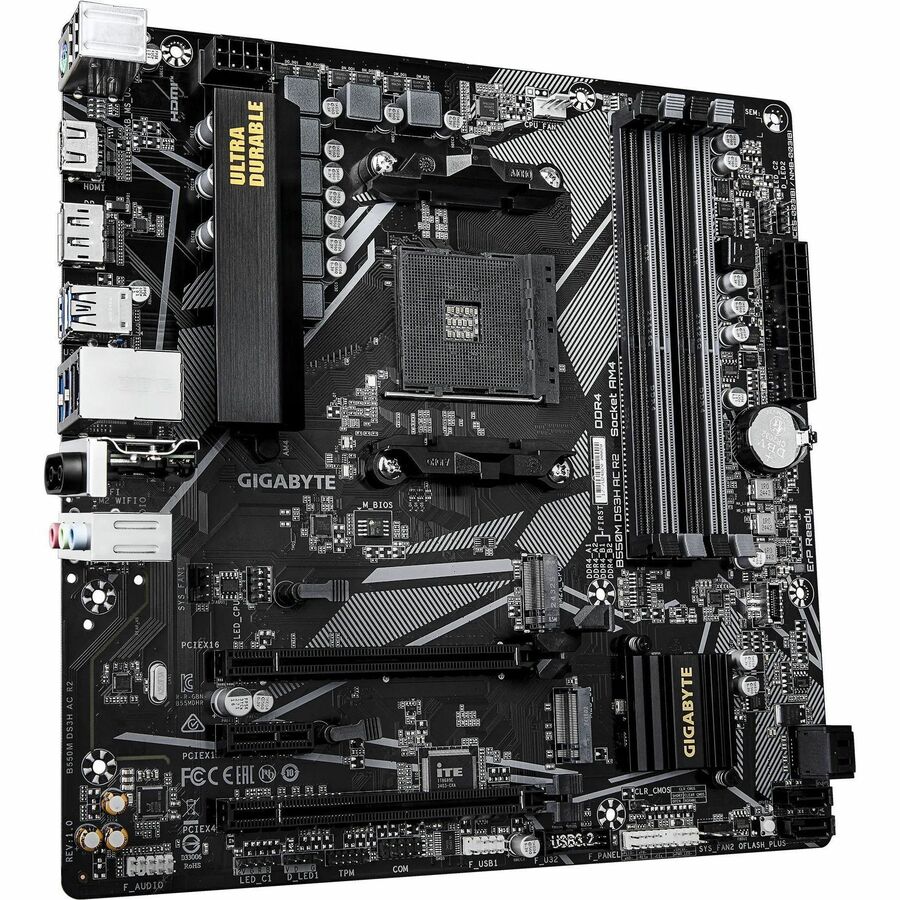

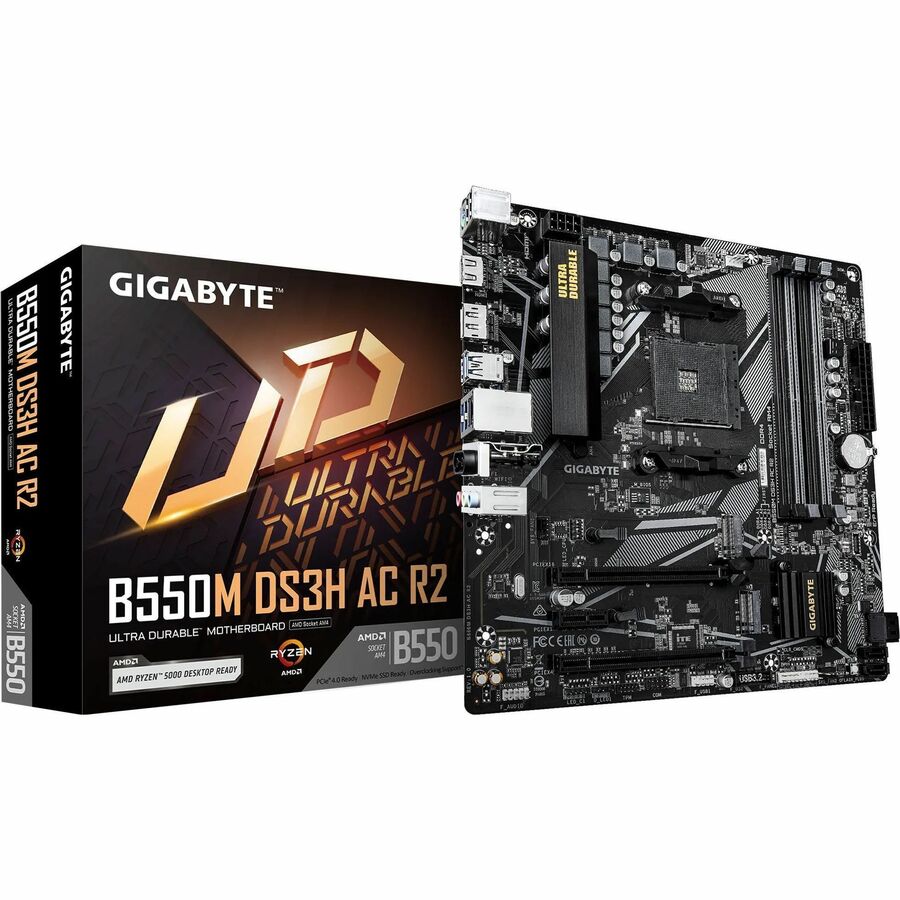

GIGABYTE Ultra Durable B550M DS3H AC R2 Gaming Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Micro ATX - B550M DS3H AC R2

GIGABYTE Ultra Durable B550M DS3H AC R2 Gaming Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Micro ATX - B550M DS3H AC R2

Key Features

• AMD Socket AM4?Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
• Digital 5+3 phases VRM solution
• Dual Channel DDR4?4*DIMMs
• Efficient Thermal?VRM Thermal Armor Advanced

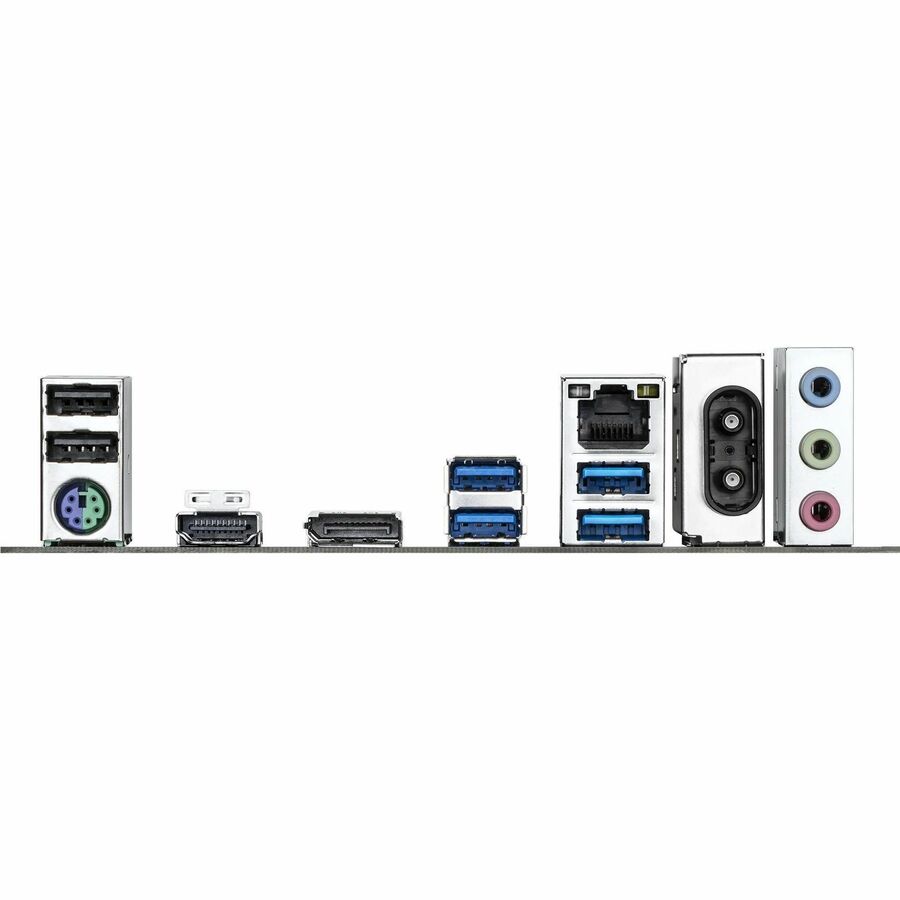

• Extended Connectivity?HDMI, Displayport
• EZ-Latch?PCIe slots with Quick Release Design
• Fast Networking?GbE LAN & Wi-Fi 5
• PCIe UD Slot?PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
• Ultra-Fast Storage?2*M.2 slots, including PCIe 4.0 x1
• WIFI EZ-Plug?Quick and easy design for Wi-Fi antenna installation

Product Overview

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

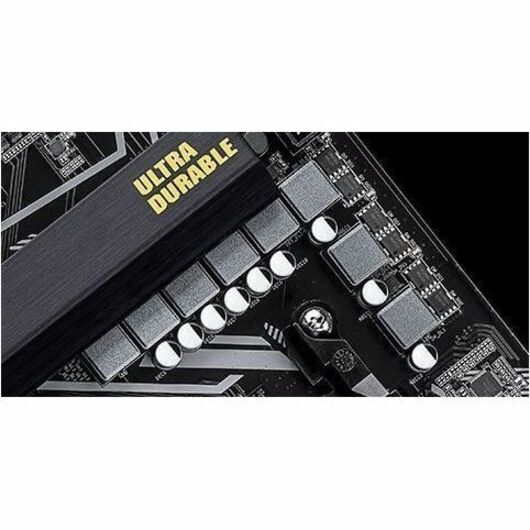

PERFORMANCE | 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Benefits of Low RDS(on) MOSFETs

• Optimized gate charge to minimize switching losses.
• Lower temperature, smaller size, better thermal characteristics.

PCIe 4.0 Slot

PCIe 4.0 x16 slot with faster bandwidth and lower impedance.

M.2 PCIe 4.0 Slot

M.2 PCIe 4.0 x4 slot with Lower impedance.

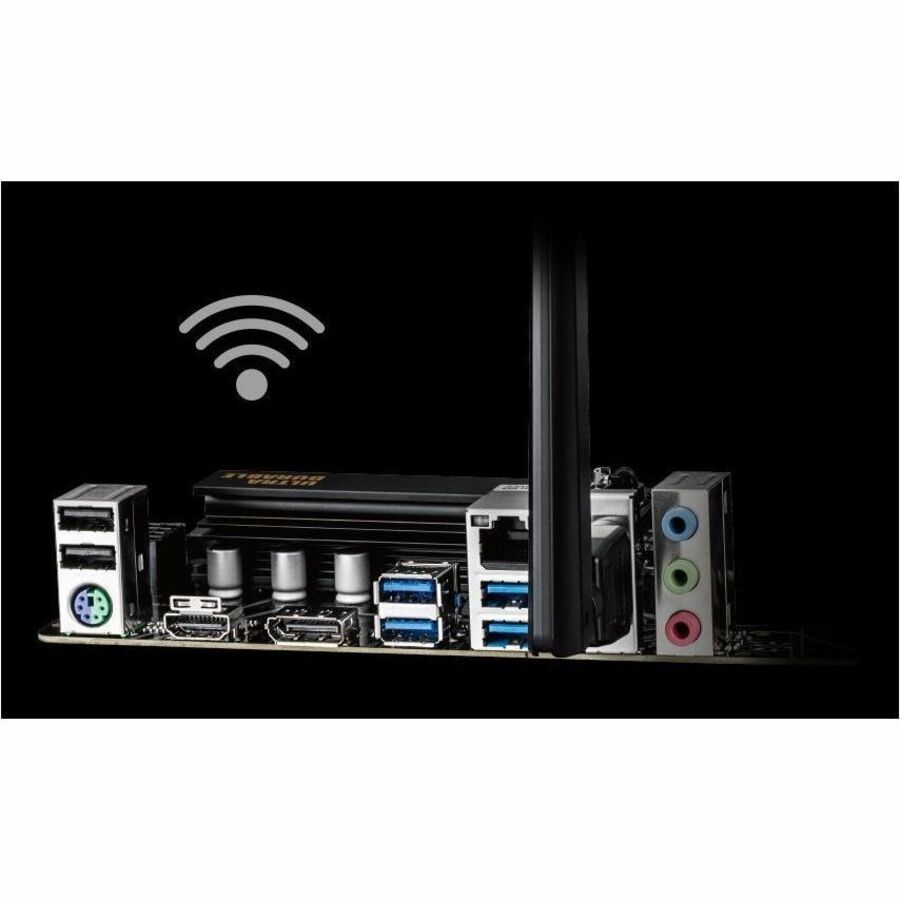

CONNECTIVITY | Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module

The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors

With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth - twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
