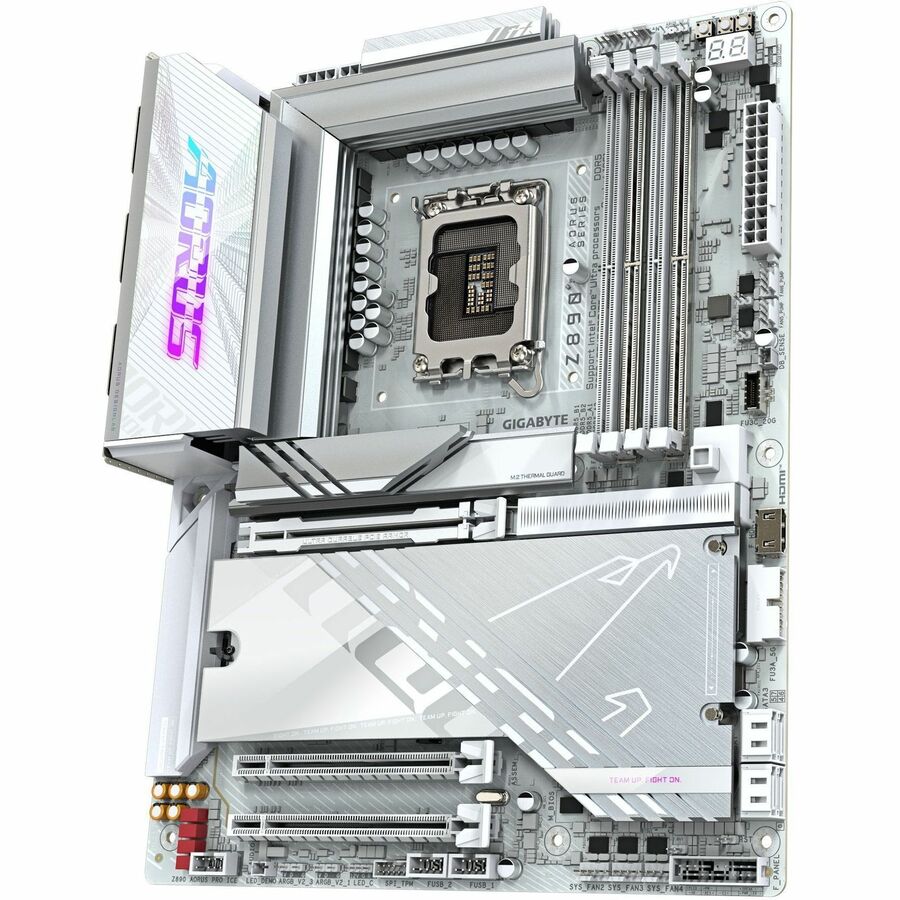

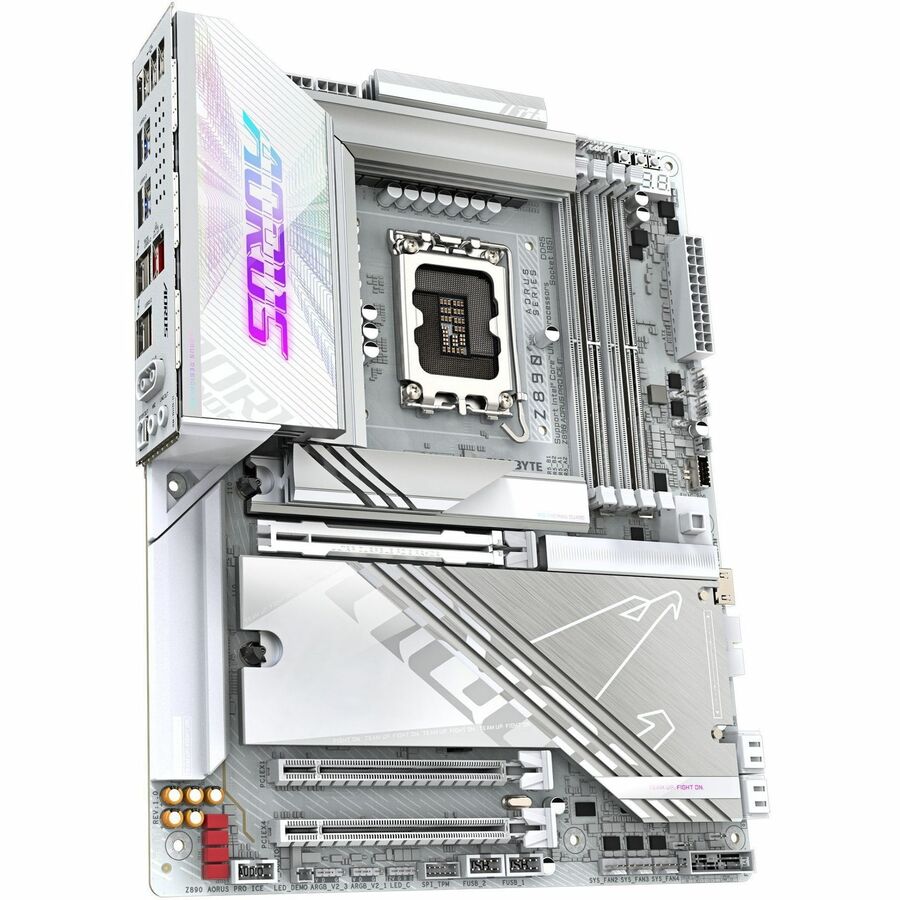

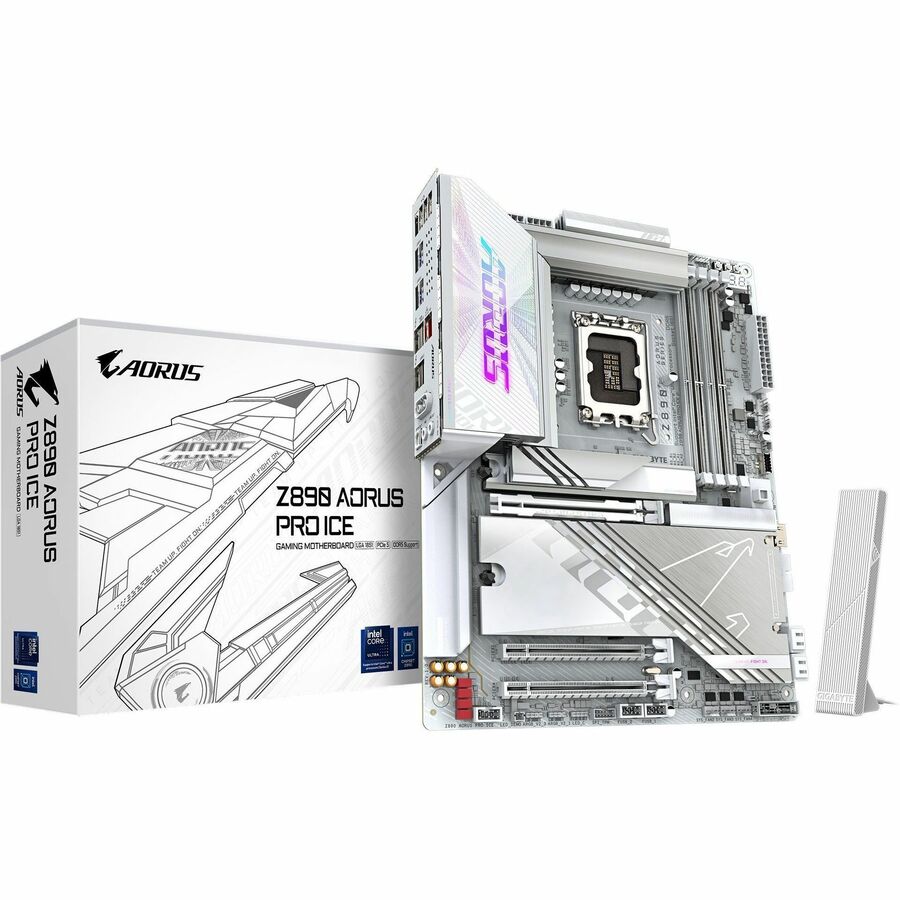

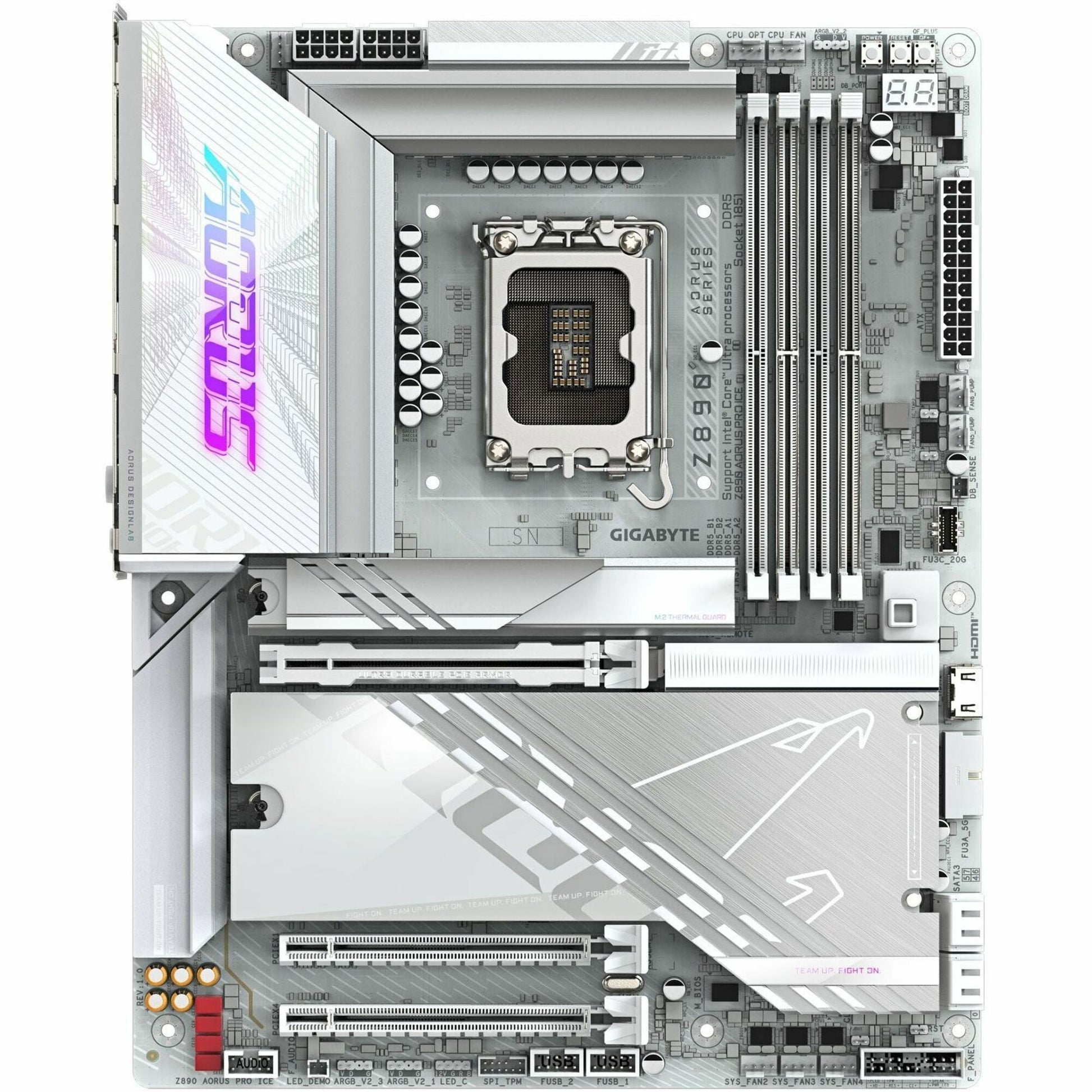

GIGABYTE Ultra Durable Z890 PRO ICE Gaming Desktop Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX - Z890AORUSPROICE
Key Features
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- Core Ultra processors supported for enhanced, dependable system performance with maximum usability
- DDR5 SDRAM slot for convenient installation of memory
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Enjoy the freedom of Wi-Fi and connect devices faster
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- RAID supported levels provide data reliability and fault tolerance
- With 4 USB 2.0 ports, connect devices for a quick data movement
Product Overview
Infinite Memory Performance
D5 Bionic Corsa Technology.
D5 Bionic Corsa
Advanced AI-enhanced overclocking tech. for DDR5.
Steady Power
Keeps your computing smooth.

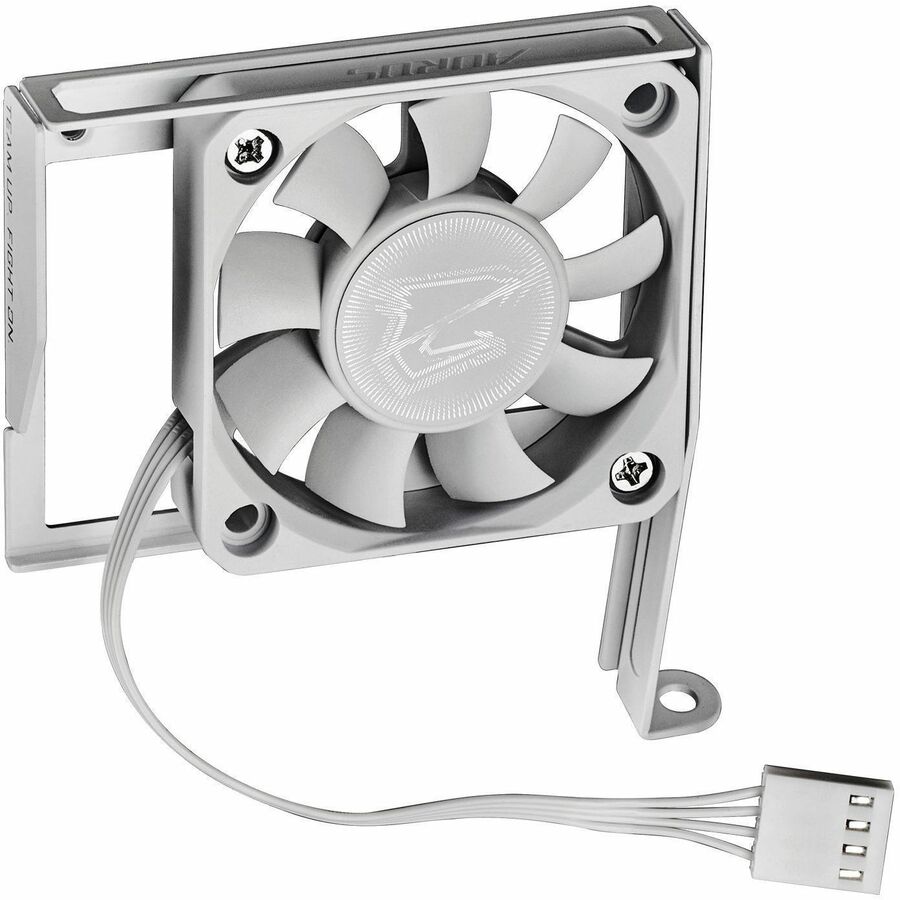

Comprehensive Thermal
Keep your system cool and efficient.
Hassle-free Assembly
Ultimate DIY-Friendly experience.
Tailored Computing
More superb, user-friendly, customized BIOS & software.
Born from Ultra Durable
Built for longevity and reliability.
General Information
- Manufacturer: GIGABYTE Technology, Inc
- Manufacturer Part Number: Z890AORUSPROICE
- Brand Name: GIGABYTE
- Product Line: Ultra Durable
- Product Model: Z890 PRO ICE
- Product Name: Z890 AORUS PRO ICE Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: Z890
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1851
- Processor Supported: Core Ultra
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Technology: DDR5 SDRAM
- Error Checking: ECC
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
- Graphics Controller Model: HD Graphics
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x16 Slots: 3
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0

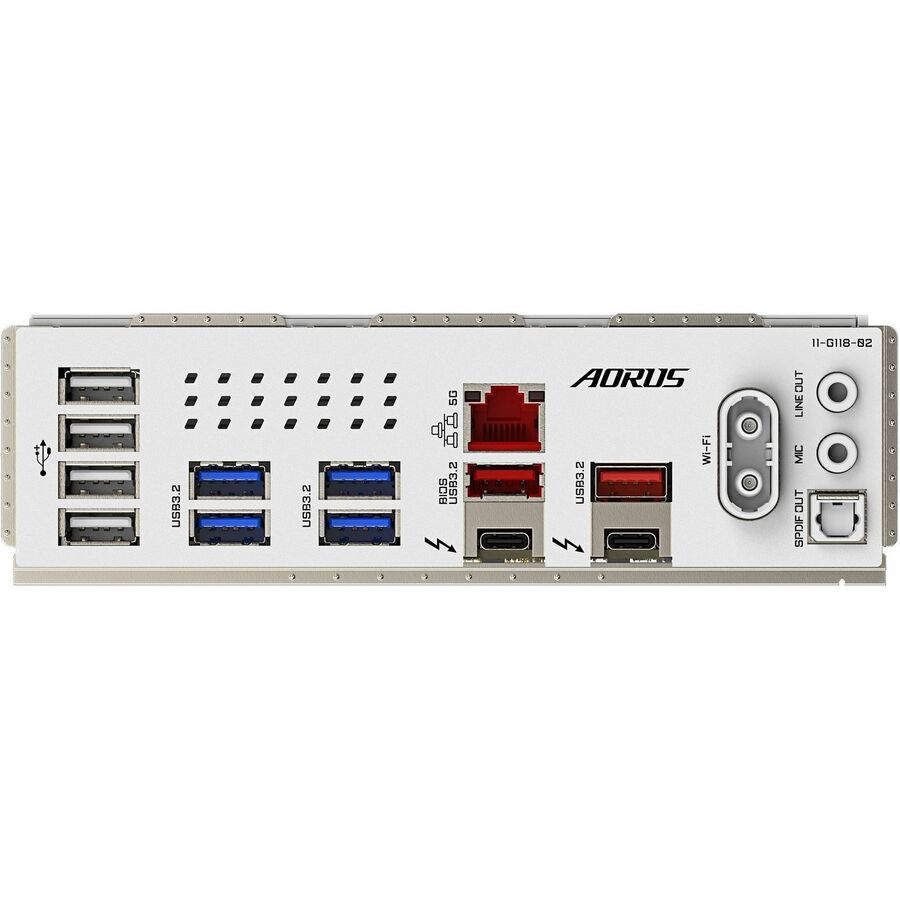

Interfaces/Ports
- Total Number of USB Ports: 12
- Number of USB 2.0 Ports: 4
- Number of USB 3.2 Gen 1 Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 2
- S/PDIF: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
- Thunderbolt: Yes
- Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 5
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
