- Description
- Specifications
GIGABYTE X870E PRO Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX - X870E AORUS PRO
Key Features
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
- Compatible Ryzen 9 processor lets you perform all your computational tasks at a swift pace
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- RAID supported levels provide data reliability and fault tolerance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
Product Overview
16 +2+2 Twin Digital VRM Design
- 6-Layer PCB
- Mid-Loss PCB
- 2X Copper PCB
- Premium Choke and Capacitor
- * 8+8 Phases parallel power design

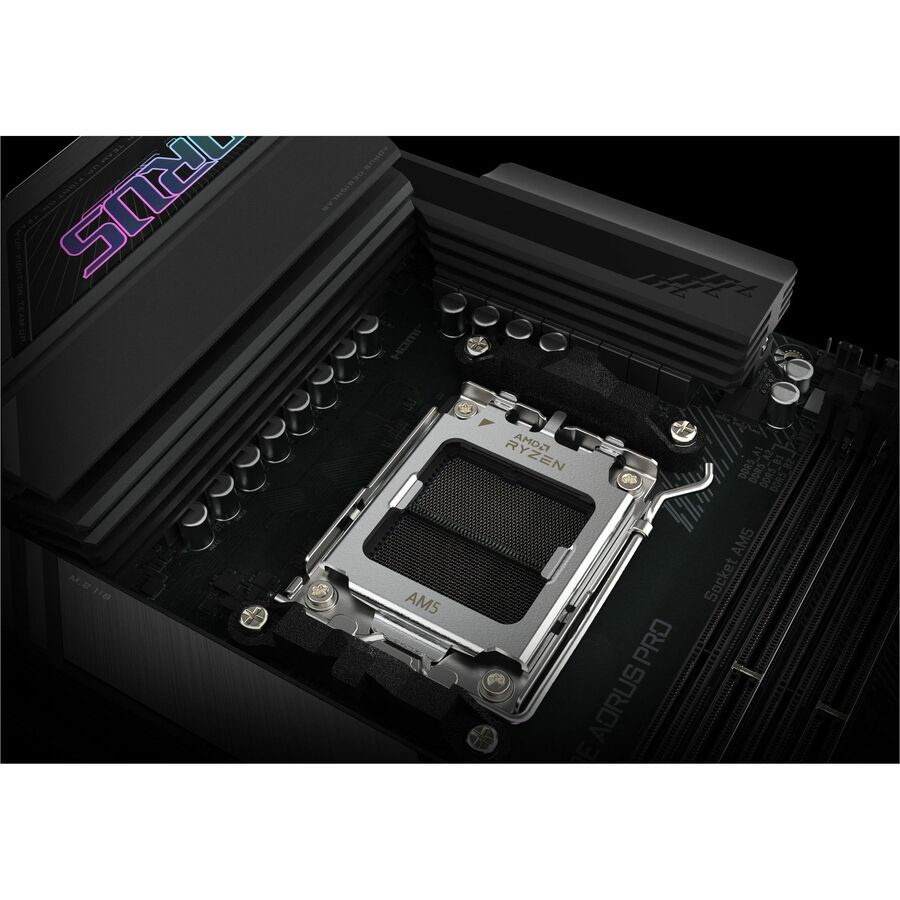

Socket AM5 Supports AMD Ryzen
Series Processors
UD Power Connector
- 24 pin ATX Power Connector
- 8+8 pin CPU with UD Solid Pin
4 x DIMMs, Dual Channel DDR5
4 x M.2 Slots
- 3 x PCIe 5.0 M.2 UD Slots
- 1 x PCIe 4.0 M.2 Slot
Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot X
- 1 x PCIe 4.0 x4 Slot
- 1 x PCIe 3.0 x2 Slot
AORUS AI Bullet Point
Unleash Ultimate Performance with One-Click Activation.
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance DDR5 speeds with a single click.
Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Top-tier Compatibility
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
General Information
- Manufacturer: GIGABYTE Technology, Inc
- Manufacturer Part Number: X870E AORUS PRO
- Brand Name: GIGABYTE
- Product Model: X870E PRO
- Product Name: X870E PRO Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870E
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.3
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x16 Slots: 3
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

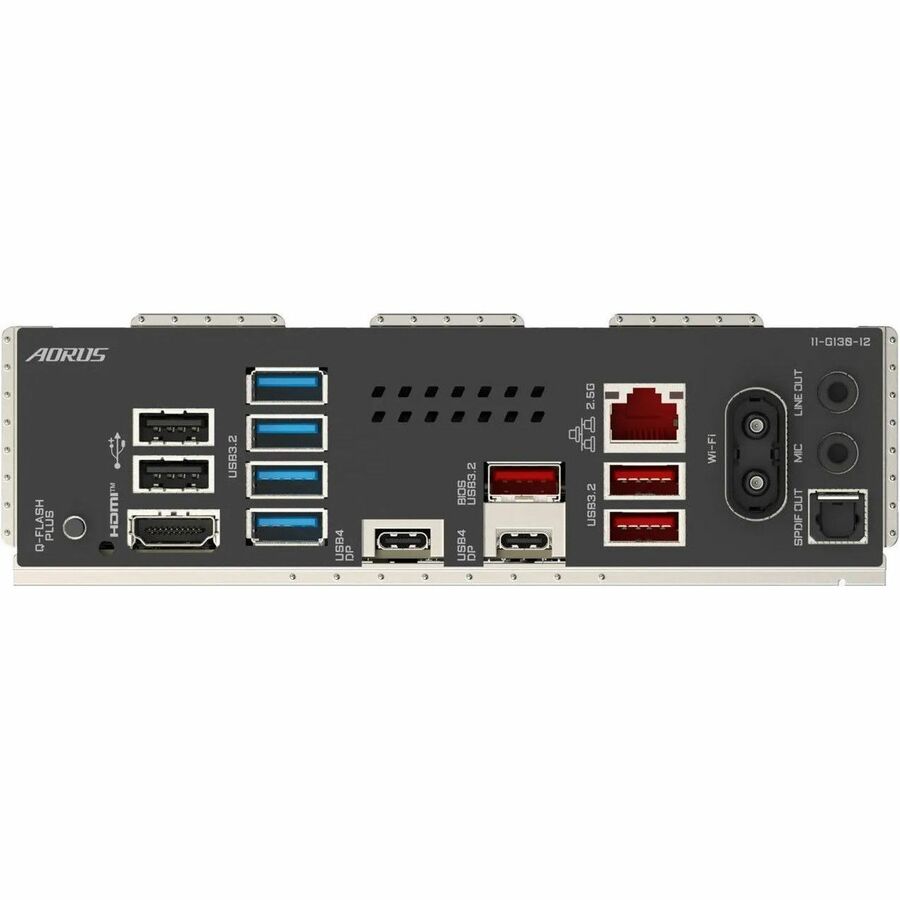

Interfaces/Ports
- Total Number of USB Ports: 11
- Number of USB 2.0 Ports: 2
- Number of USB 3.2 Gen 1 Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 3
- S/PDIF: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 4
- Total Number of Onboard USB Ports: 15
- Number of Onboard USB 2.0 Ports: 6
- Number of Onboard USB 3.2 Ports: 9
Physical Characteristics
- Form Factor: ATX
- Height: 3.3"
- Width: 12"
- Depth: 9.6"
- Weight (Approximate): 5.11 lb
