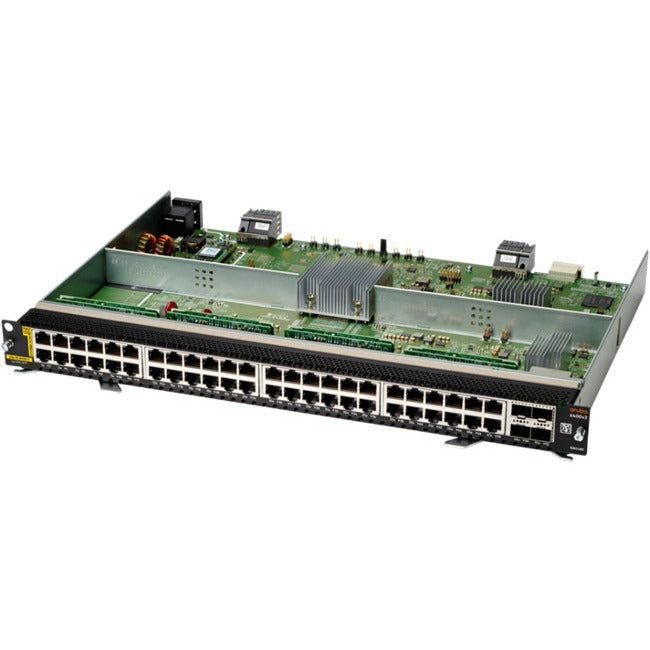

HPE 48-port 1GbE Class 6 PoE and 4-port SFP56 v2 Module - R0X40C
Key Features
- Expansion Module is the single answer to all your desired and specified application execution and expansion needs
- Expansion Module with data networking application/usage for maximum dependability and convenience
- Gigabit Ethernet port for ultra-fast network speeds
- Rack-mount keeps expansion module evenly spaced without creating any airflow obstructions
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 1000Base-T technology, get up to 1000Mbps data transfer rate over twisted pair cable
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: R0X40C
- Brand Name: HPE
- Product Name: 48-port 1GbE Class 6 PoE and 4-port SFP56 v2 Module
- Product Type: Expansion Module
Technical Information
- Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
- Total Number of Ports: 48
- Connector Type: RJ-45
- Interfaces/Ports Details: 48 x RJ-45 1000Base-T LAN
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 1000Base-T
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP56
Physical Characteristics
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 12.4"
- Depth: 17.3"
- Weight (Approximate): 6.90 lb
Miscellaneous
- Compatibility:
Aruba CX 6400 Series Switches
